758CI-N SM 8

Part of the 758 Series

Ordering Code: M6762937

UPC: 643925584042

Lead Free: YES

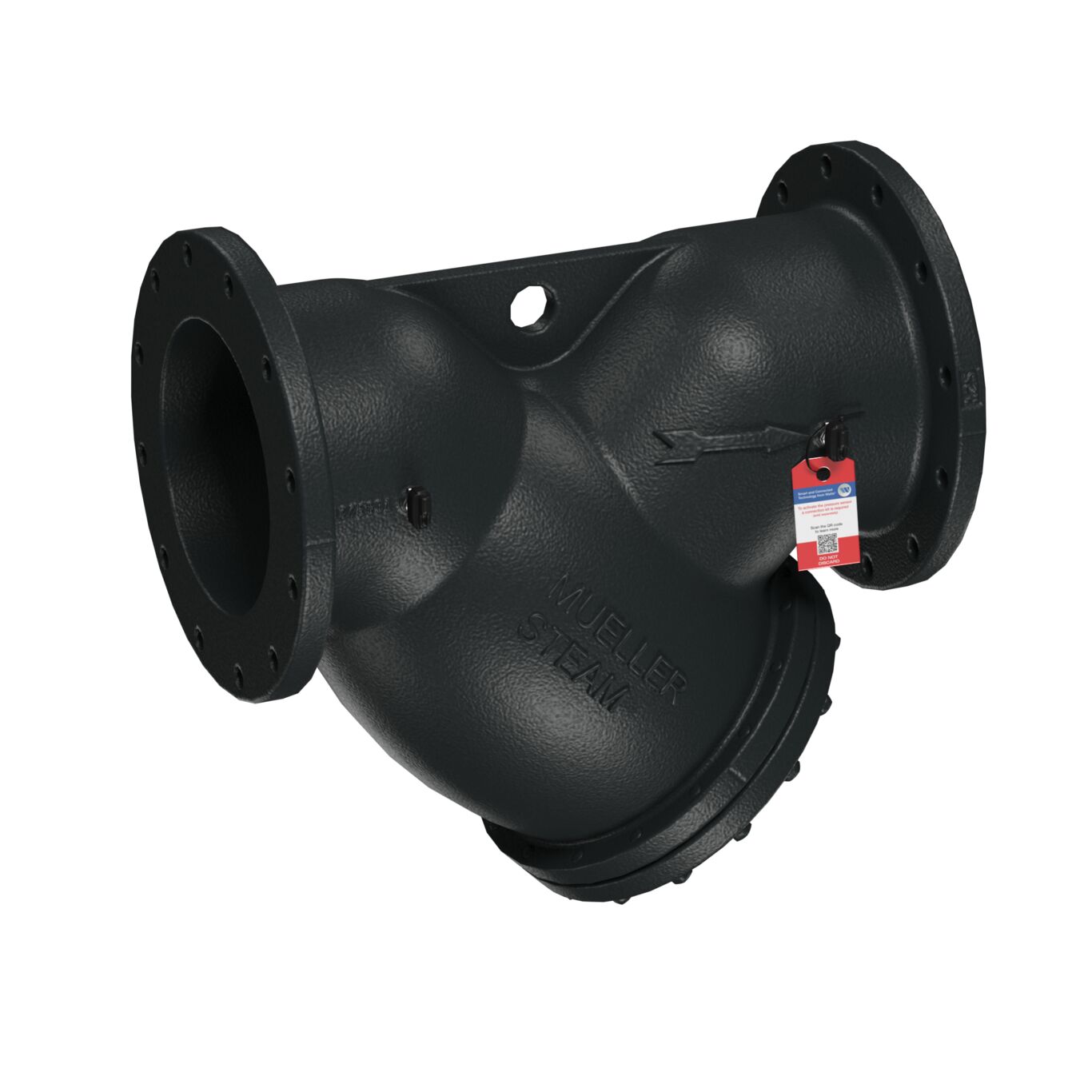

8 IN Cast Iron Y Smart Strainer, Flanged, Class 125, Import

This 8 inch flanged cast iron Y strainer, class 125, is used to filter undesirable particulate from pipelines, thereby protecting other equipment downstream. It has a 0.125 perforated 304 stainless steel screen. The threaded blowoff allows for a variety of means of cleaning the unit. This model is imported. This strainer includes two pressure sensors that provide users with real-time strainer basket pressure differential monitoring, data stream, and full basket alerts via BMS connectivity and/or cellular gateway. This enables them to make informed decisions pertaining to maintenance of the strainer. The Smart Strainer provides a proactive way to avoid unnecessary downtime and ensures efficient and smooth operation of the overall system.

Features

Includes two pressure sensors that are installed at the inlet and outlet of the WYE strainer
Activation kit included to enable pressure monitoring feature
Cast iron
Flanged end connections
0.125 Perf screen
Class 125

Specifications
Blowdown Outlet Connection	Female Threaded
Blowdown Outlet Size	2 IN
Body Material	Cast Iron
Body Pattern	Y-Pattern
Bolt Material	GRADE 5
Brand	Mueller Steam Specialty
Class Rating	125
Control Type	Does Not Apply To Product
EAN	643925584042
Epoxy Coating Type	None
Flange Material	Cast Iron
Gasket Material	Non-Asbestos
Grooved Coupling Material	Does Not Apply To Product
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Celsius	229.90
Maximum Operating Temperature-Fahrenheit	450
Maximum Pressure And Temperature	200 psi at 150 Degree F
Maximum Pressure-BAR	13.79
Maximum Pressure-PSI	200
Maximum Working Pressure And Temperature	200 psi at 150 Degree F
Minimum Temperature - Celsius	-28.60
Minimum Temperature-Fahrenheit	-20
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	M6762937
Plug Material	Does Not Apply To Product
Pressure-Temperature Rating	125 psi at 450 Degree F
Pressure-Temperature Rating-BAR	10.34 BAR at 65.5 Degree C
Retainer Cover Material	Cast iron
Retainer Cover Type	Bolted
Screen Material	Stainless Steel
Screen Size	ONE_EIGHTH
Seat Material	Does Not Apply To Product
Series	758
Strainer Type	Wye
WOG Rating	200 psi at 150 Degree F
