LF919-QT-S-FS 2

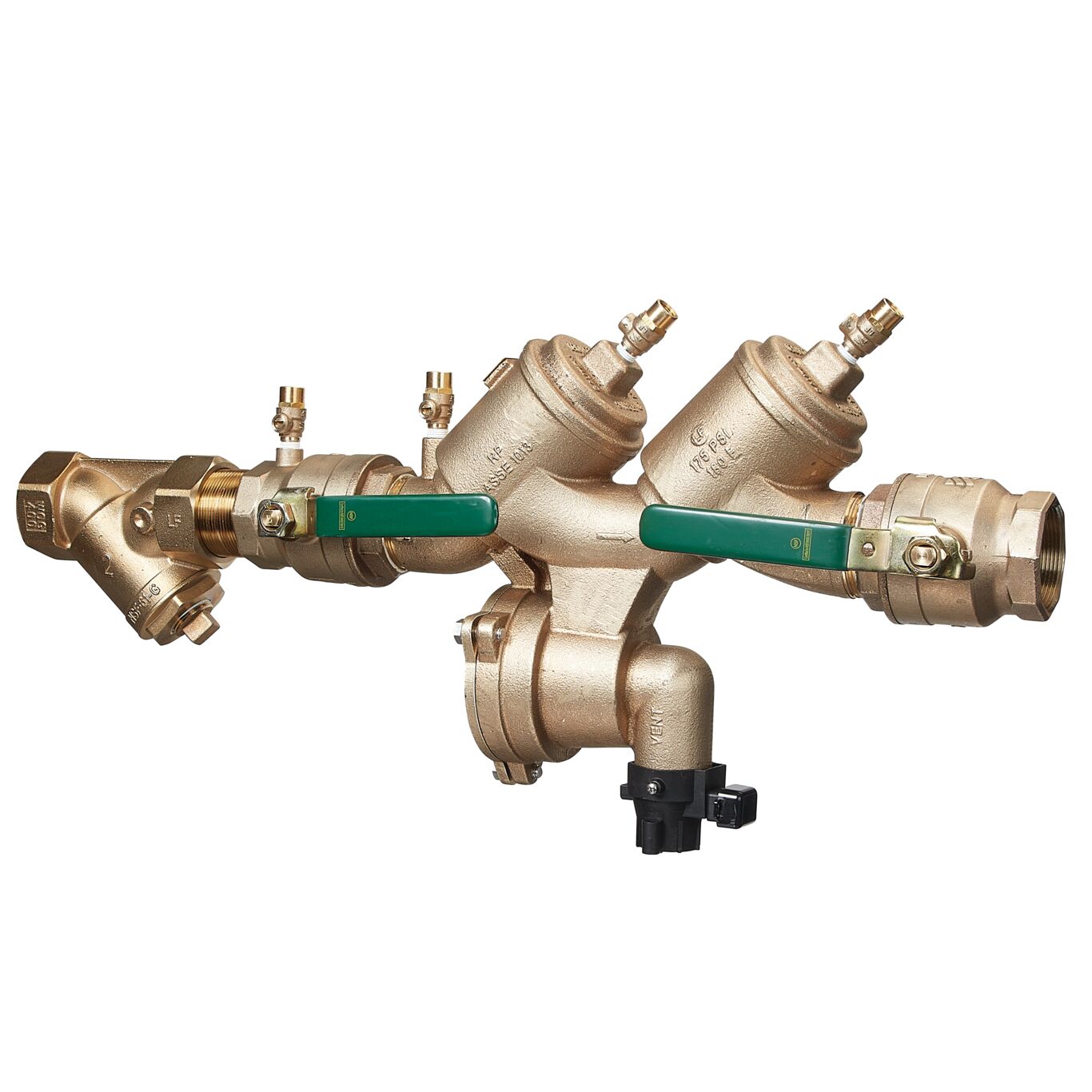

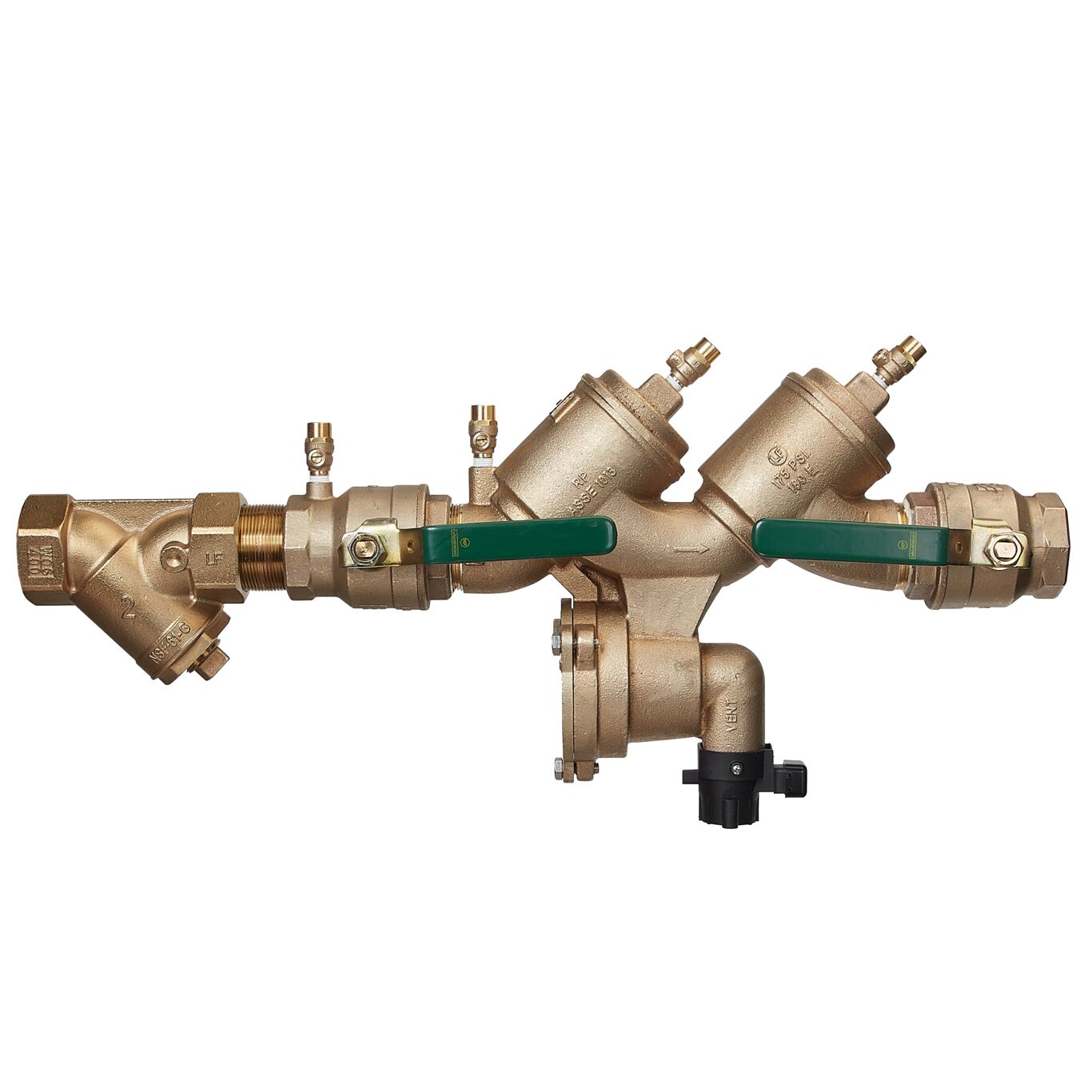

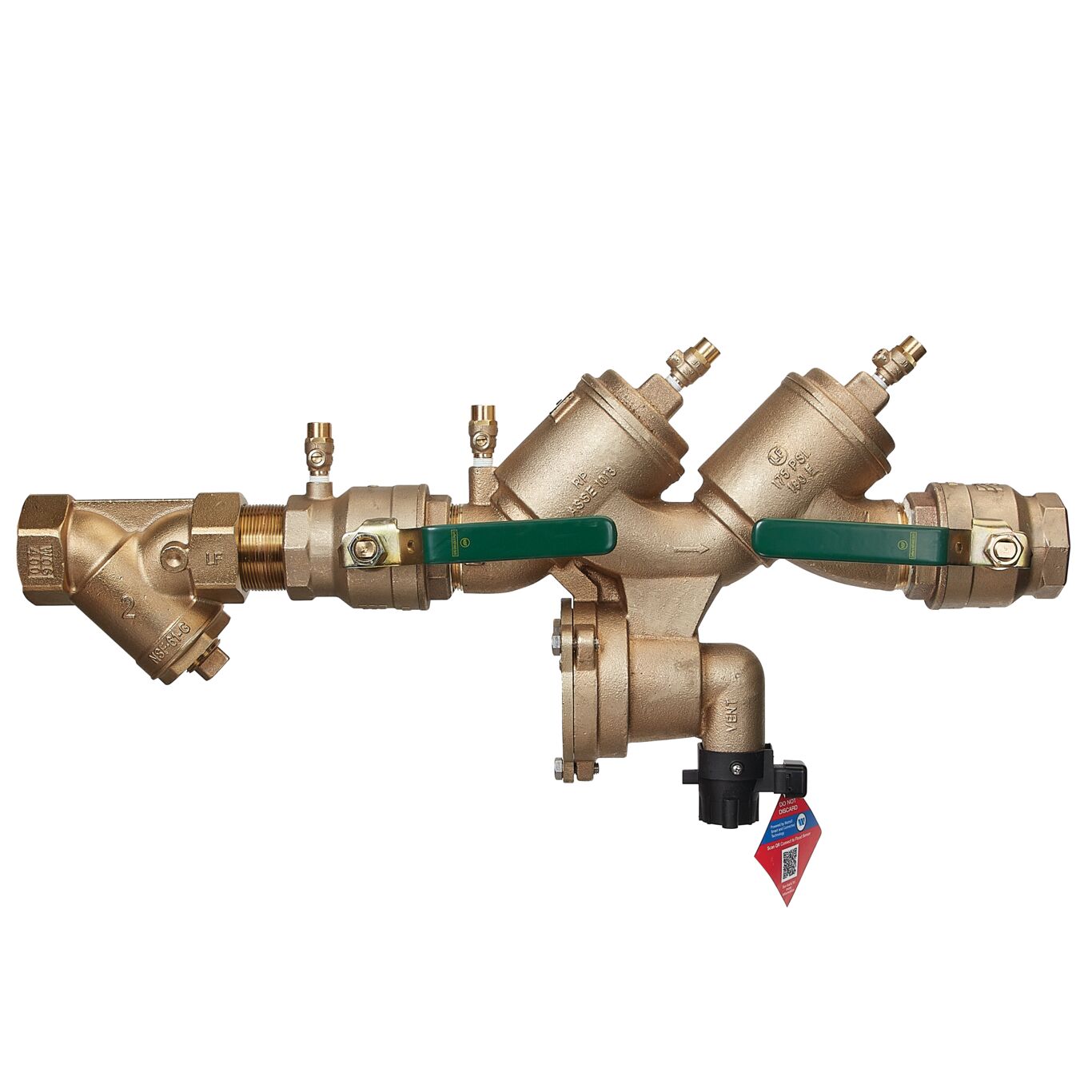

Product Image - Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Ball Valves, Backflow Flood Sensor

Part of the LF919 Series

Ordering Code: F065382

UPC: 098268541854

Lead Free: YES

2 IN Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Ball Valves, Bronze Strainer, Backflow Flood Sensor

This 2 inch lead free reduced pressure zone backflow preventer assembly includes a flood sensor with SentryPlus Alert(R) technology to detect water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify facility personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications. This assembly with bronze strainer is designed to prevent the flow of polluted water from entering the potable water supply due to backsiphonage and or backpressure. Ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance.

Features

Flood sensor with SentryPlus Alert technology to detect water discharges from the relief valve
Flood alerts feature available with add-on sensor connection kit
Lead-free bronze body construction with NPT end connections
Strainer, quarter turn ball valve shutoffs with tee handles, two poppet style check valves, replaceable check seats, and air gap fitting
Compact, space saving design with separate access covers for the check valves and relief valve
Top-mounted, screwdriver-slotted test cocks for easy testing and use in reduced clearance installation
EZ twist relief valve cover with quarter turn locking joint to capture the spring load during repair to facilitate disassembly
Bottom-mounted relief valve for reduced space requirements

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Assembly
Body Finish	Cast Bronze
Body Material	Lead Free Copper Silicon Alloy
Body Pattern	Inline
Brand	Watts
Buy American Act Compliant	YES
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Silicone
EAN	098268541854
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	2 IN
Inlet Connection Size-Metric	50 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	Quarter Turn Ball Valve
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	2 IN
Outlet Connection Type	Female Threaded
Outlet Shutoff Valve Type	Quarter Turn Ball Valve
Outlet Thread Type	NPT
Part Number	F065382
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Engineered Plastic
Series	LF919
Strainer	Yes
Technologies	Flood Detection
Tradename	None
