315
×
![]()
Part of the Zone Controls Series
Ordering Code: 315
UPC: 779655031508
tN4 Wiring Center, Six Zone Valves

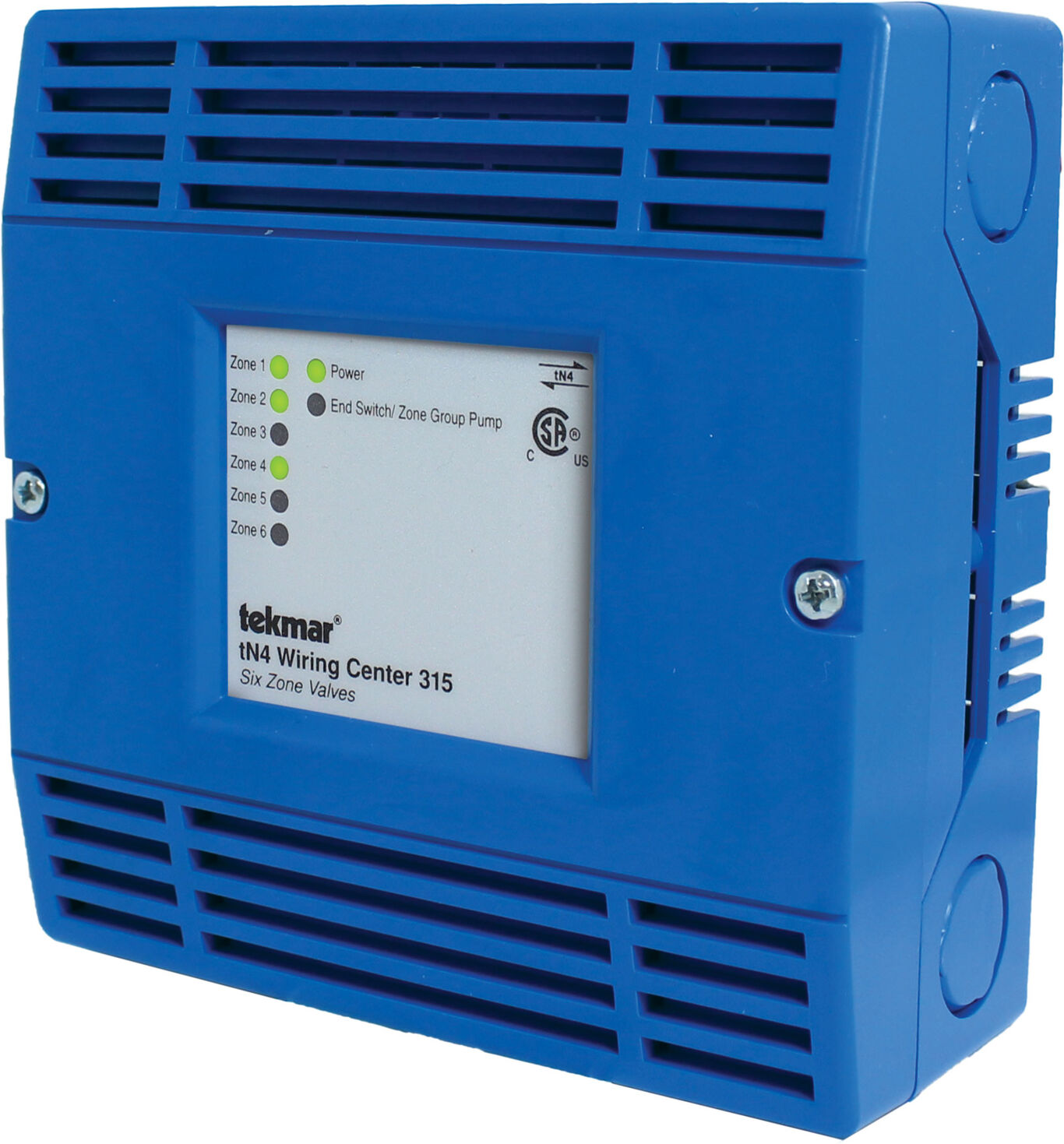

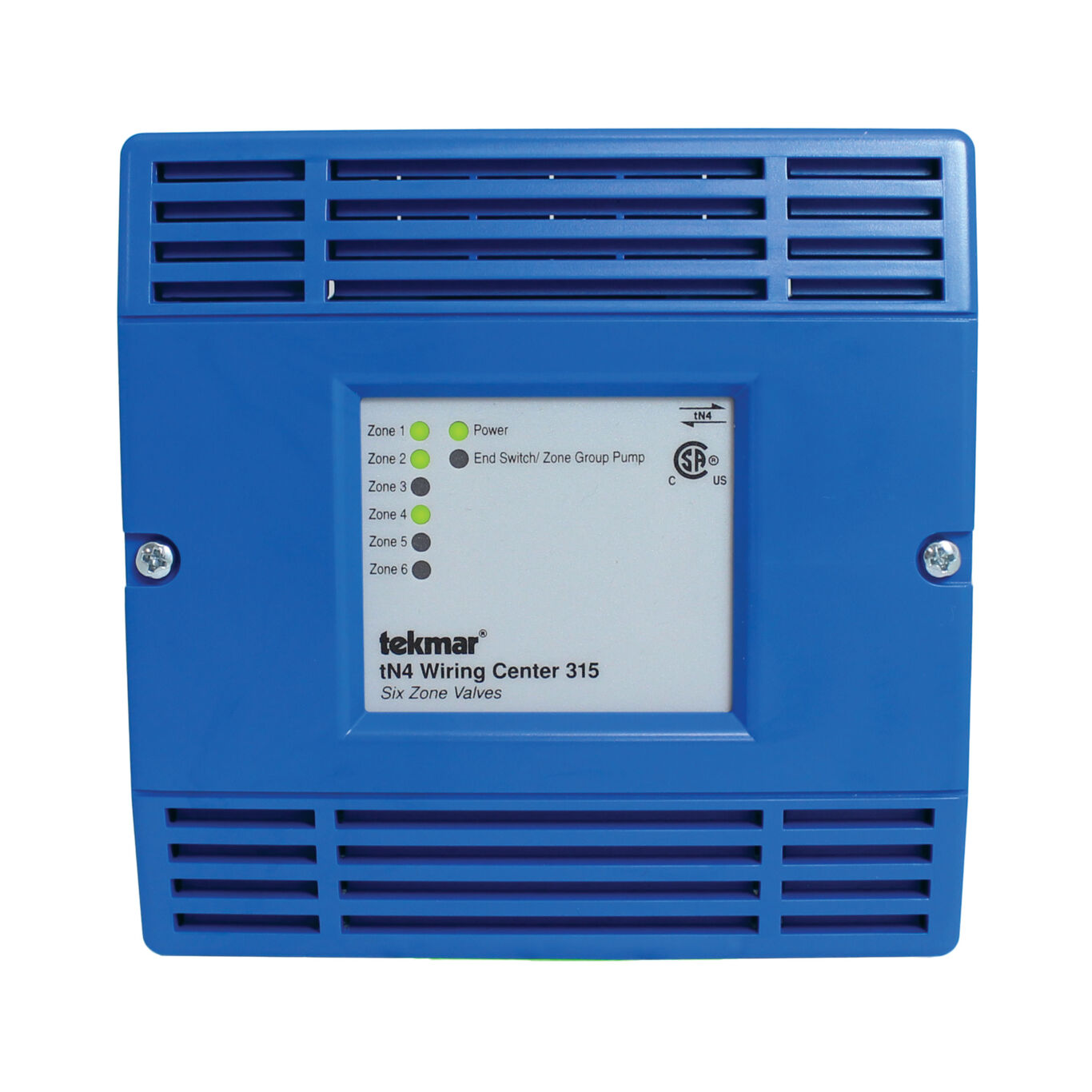

The tekmarNet (R) 4 Wiring Center 315 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to six tekmarNet (R) 4 thermostats, and up to six 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A zone group pump relay is also available to switch a pump.
Features
- Six 24 V (ac) powered zone outputs
- For use with tekmarNet (R) 4 thermostats
- tN4 expansion terminals
- Isolated end switch
- Zone group pump output
- External diagnostic LEDs
- CSA C US Certified for use in USA and Canada
| Specifications | |
|---|---|
| Agency Approvals | CSA C US, meets class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Dimensions | 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm) |
| Enclosure Material | Blue PC+ABS plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Power Supply | 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 98 VA max, Class 2 |
| Zone Valve Load | 24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A |
