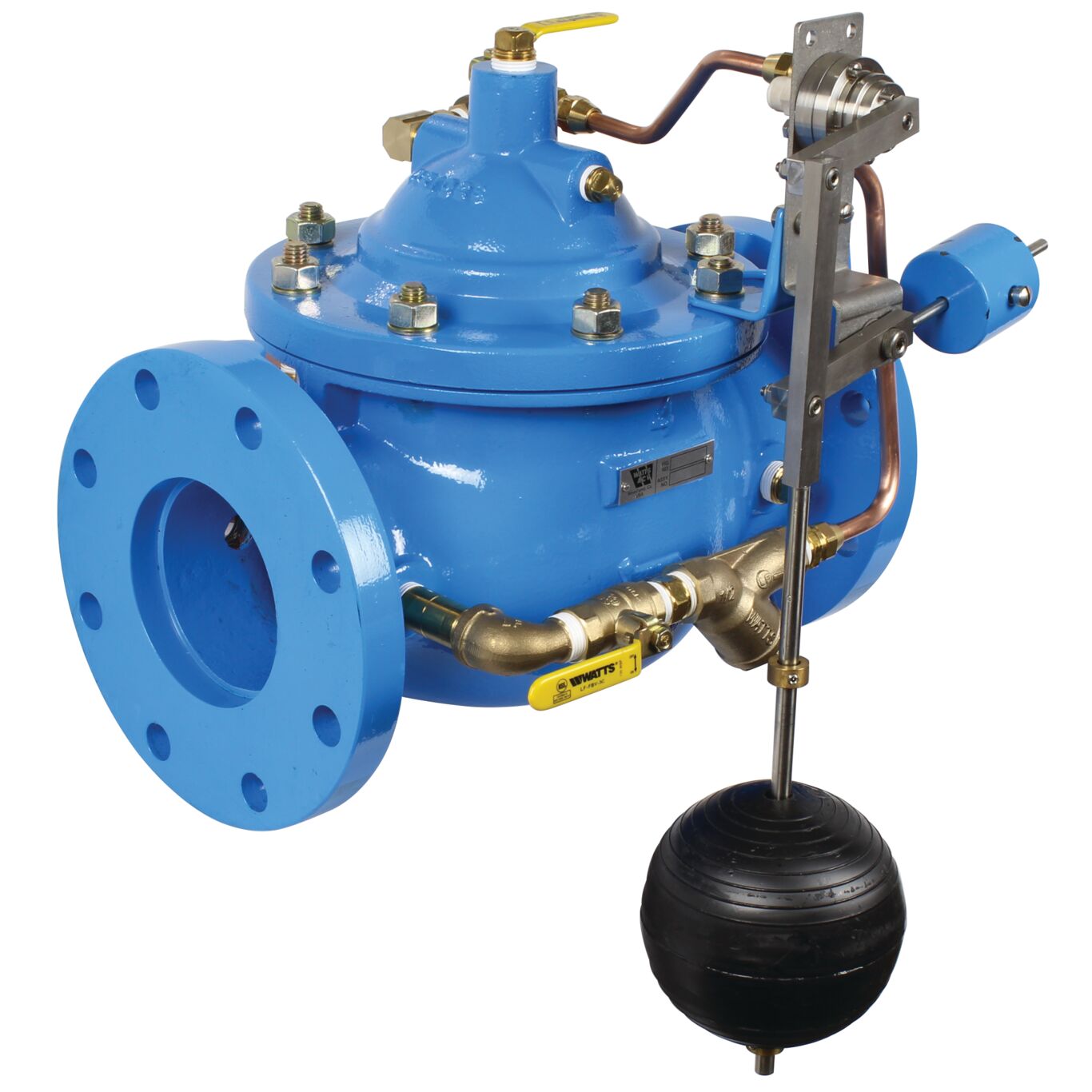

LFF110-14

On-Off (4 & smaller) Float Control Valve for Adjustable High and Low Levels

Series LFF110-14, LFF1110-14 On-Off Float Control Valve is designed to open fully or close drip-tight as commanded by the Float Control Pilot. The Float Pilot may be either valve or remote mounted. The valve closes drip tight when water level reaches the adjustable high-level setpoint, and open fully when water level is below the adjustable low-level setpoint, allowing a calculated draw-down of water level to increase tank circulation. High and low levels are separately adjustable by positioning stop collars on the float rod(s) at desired opening and closing setpoints. If desired, the on-off action of the valve can be reversed by modifying the hydraulic connections of the On-Off Float Pilot.

Features

Ideal for balancing inflow and outflow demand
Maintains a constant liquid level in a tank or reservoir
Calculated water "drawdown" increases tank circulation
High and low liquid level settings are easy to adjust to the desired setpoints

Literature

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFF110-14

View all models

No results found

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support Access BIM Drawings

Share this Product

Build Your Spec in Under 5 Minutes

Learn More

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:

ASSE	CSA	FM Approvals	NSF
UL	ULC	USC	WQA
