HydroPanel II 450-410P
HydroPanel II shower system with HydroGuard PB410 pressure balancing valve

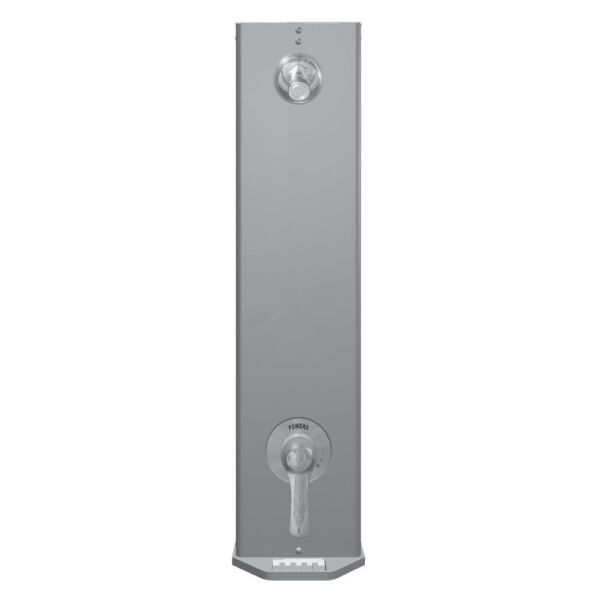

HydroPanel II series 450-0410P shower system combines pressure balanced water control with the convenience of modular shrouding. HydroPanel II's stainless steel shrouding provides a concealed shower system where in-wall piping does not exist or may not be practical. The single unit shower mounts easily onto preassembled copper tubing with just three screws. Behind the shroud, a HydroGuard 410 valve uses a proven poppet/diaphragm cartridge to balance hot and cold water supply flows. This sensitive diaphragm responds immediately to supply pressure changes to maintain the user adjusted bathing temperature. If either supply pressure fails, the valve virtually shuts off. HydroPanel II units can be used for new or retrofit applications, such as single showers or for complete shower rooms. They are ideal in schools, health clubs, factories, and remodeled older buildings. Optional hand-held showers mounted on vertical glide rails provide easy shower access for users with limited mobility. Optional HydroPanel II modular shrouding provides easy to install, interlocking stainless steel panels to conceal all exposed room piping.
Features
- Pressure balancing valve cartridge quickly compensates for pressure changes and maintains the user adjusted temperature
- Stainless steel shrouding provides a concealed shower system where in-wall piping does not exist or may not be practical
- The single unit shower mounts easily onto preassembled copper tubing with three screws
- For new or retrofit applications, such as single showers or complete shower rooms in schools, health clubs, factories, and remodeled buildings
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific HydroPanel II 450-410P
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
