LFLM496-HTK
Hot water tank capacity extender
The LFLM496-HTK hot water tank capacity extender increases hot water capacity by as much as 133%, depending on storage and cold water temperature flow. Allows hot water tank to be set at higher temperature to minimize the occurrence of Legionella and other water-borne bacteria. Temperature control to ASSE 1017 and ASSE 1070 down to 0.5 gpm. Reduces installation time by as much as 50%. Adjustable temperature selection with lock down. Advance thermal actuator for precise control. Integral checks and screens prevent cross-flow and contamination. Easy to order, easy to size, easy to install.
Size this now with our Selexit sizing tool.
Features

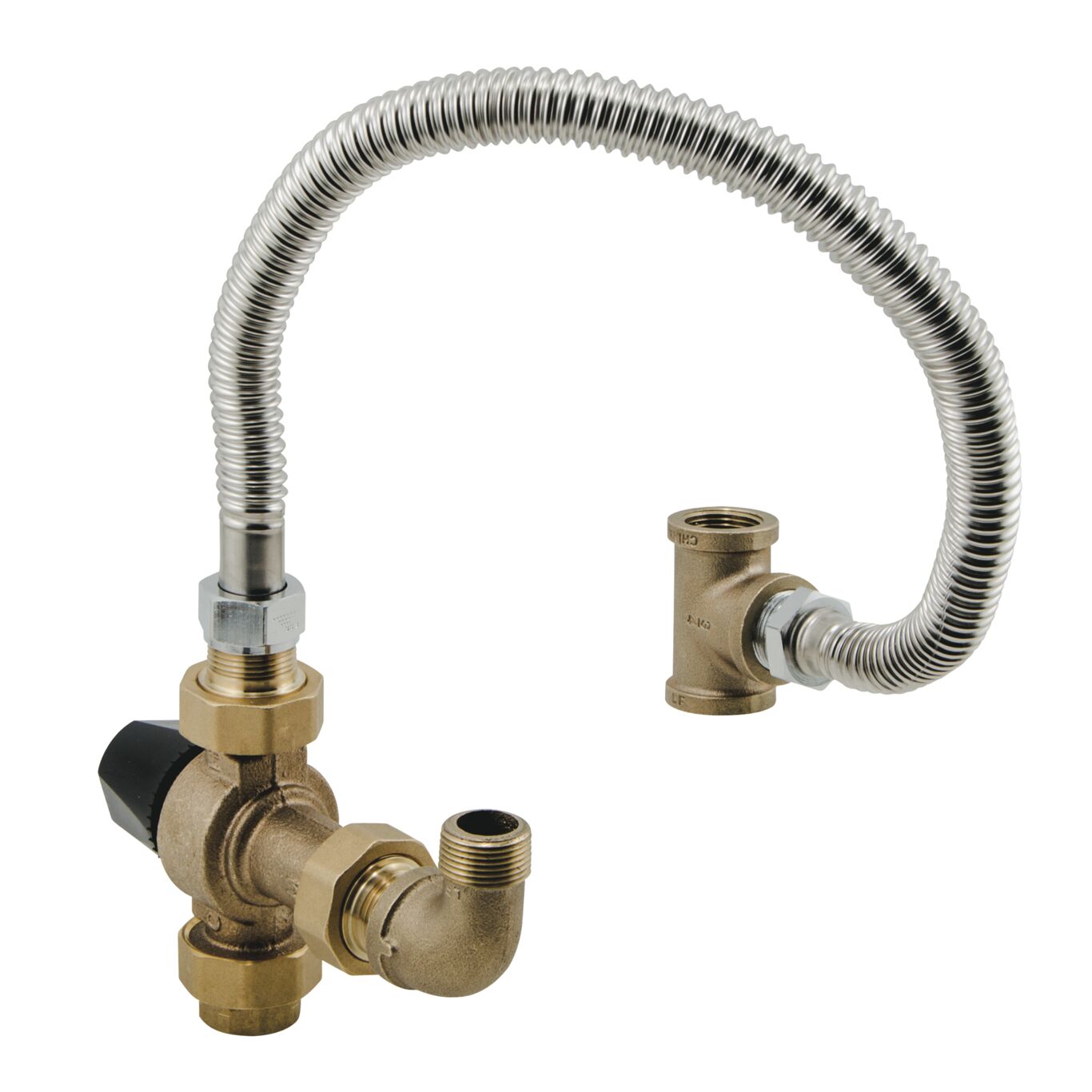

- Includes thermostatic valve, corrugated stainless steel connector, tee, and elbow
- Allows a higher temperature setting to minimize the occurrence of legionella and other waterborne bacteria
- Precise temperature control to ASSE 1017 and ASSE 1070 down to 0.5 gpm
- Increases hot water capacity from the hot water tank by up to as much as 133% depending on storage and incoming cold water temperature
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFLM496-HTK
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
