G1070
Discontinued

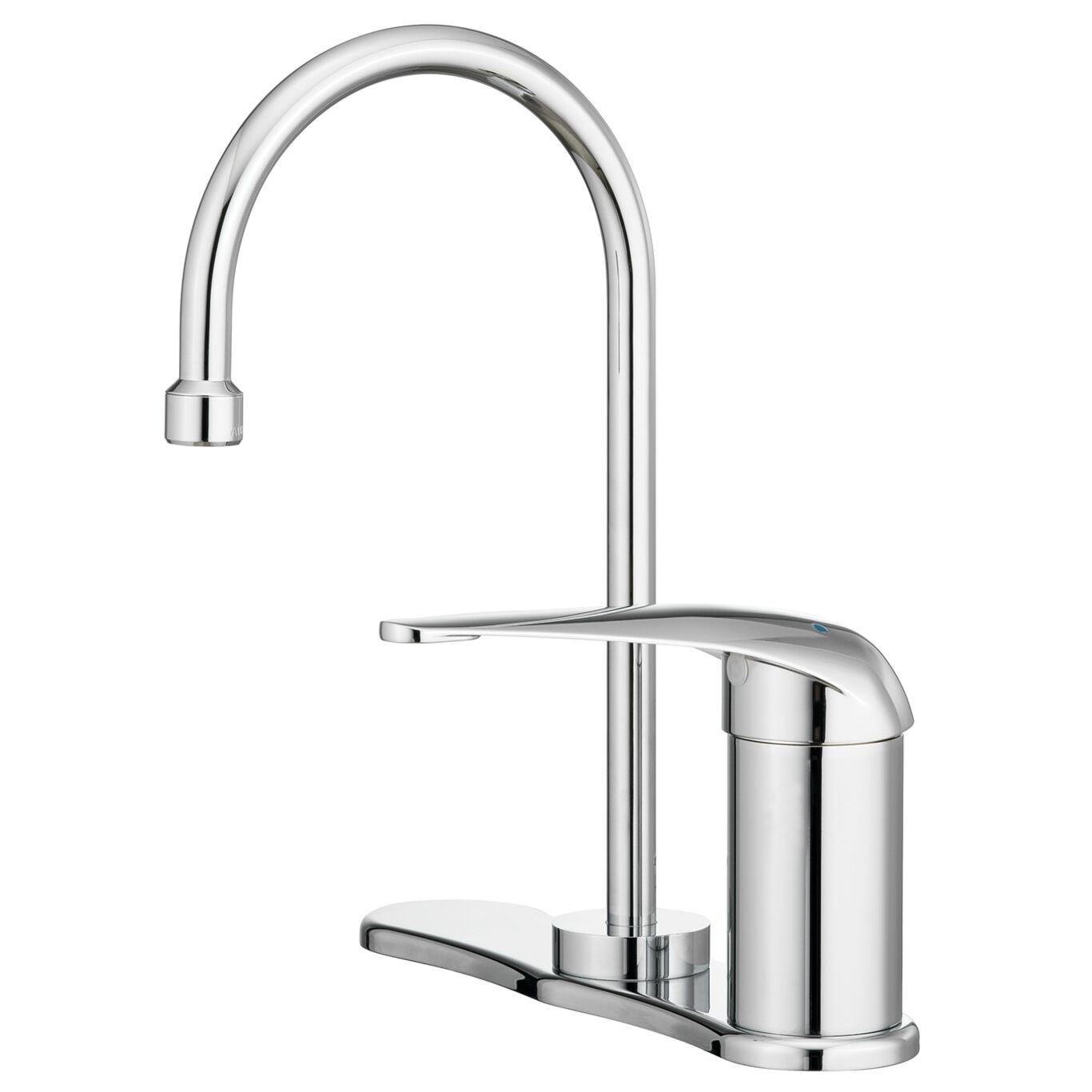

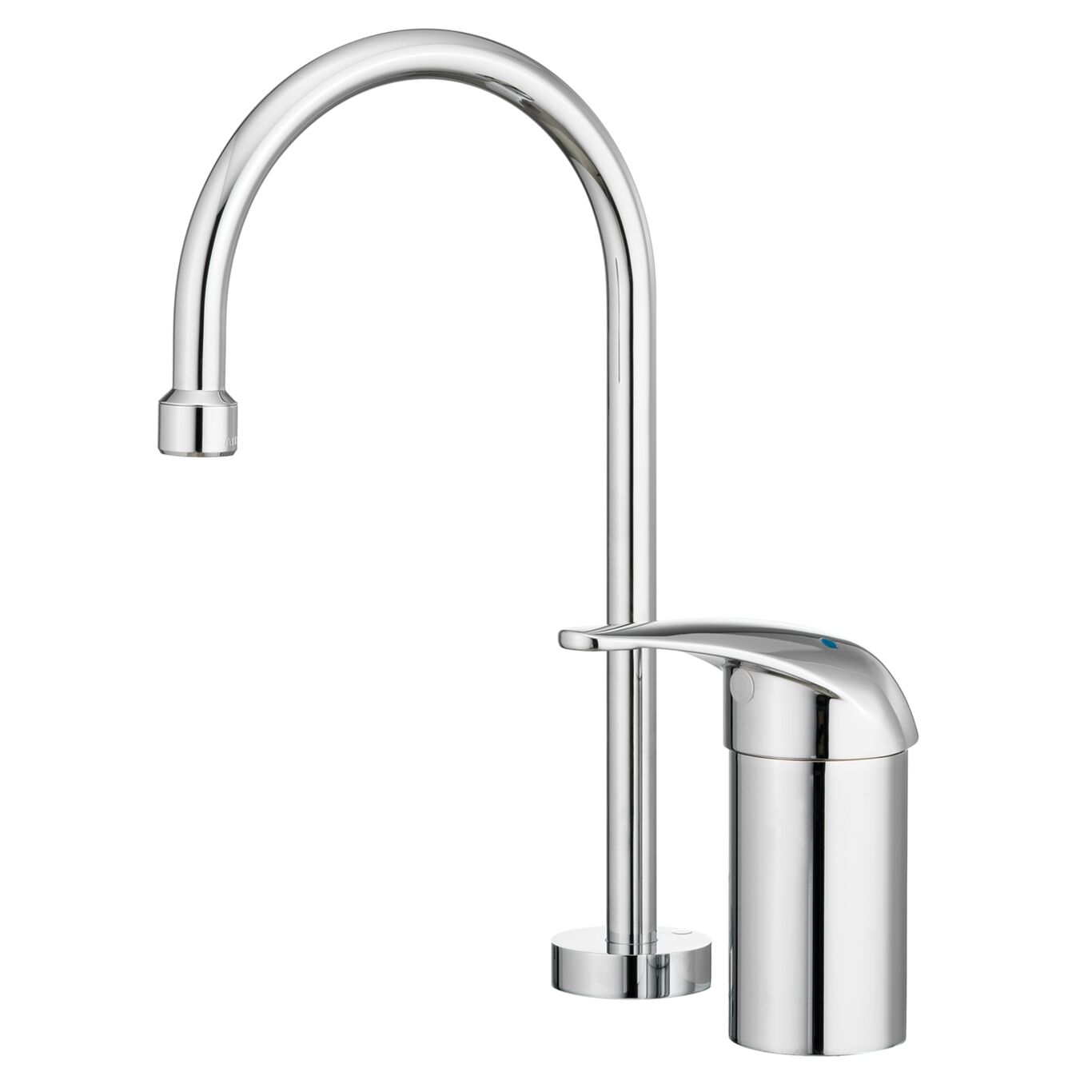

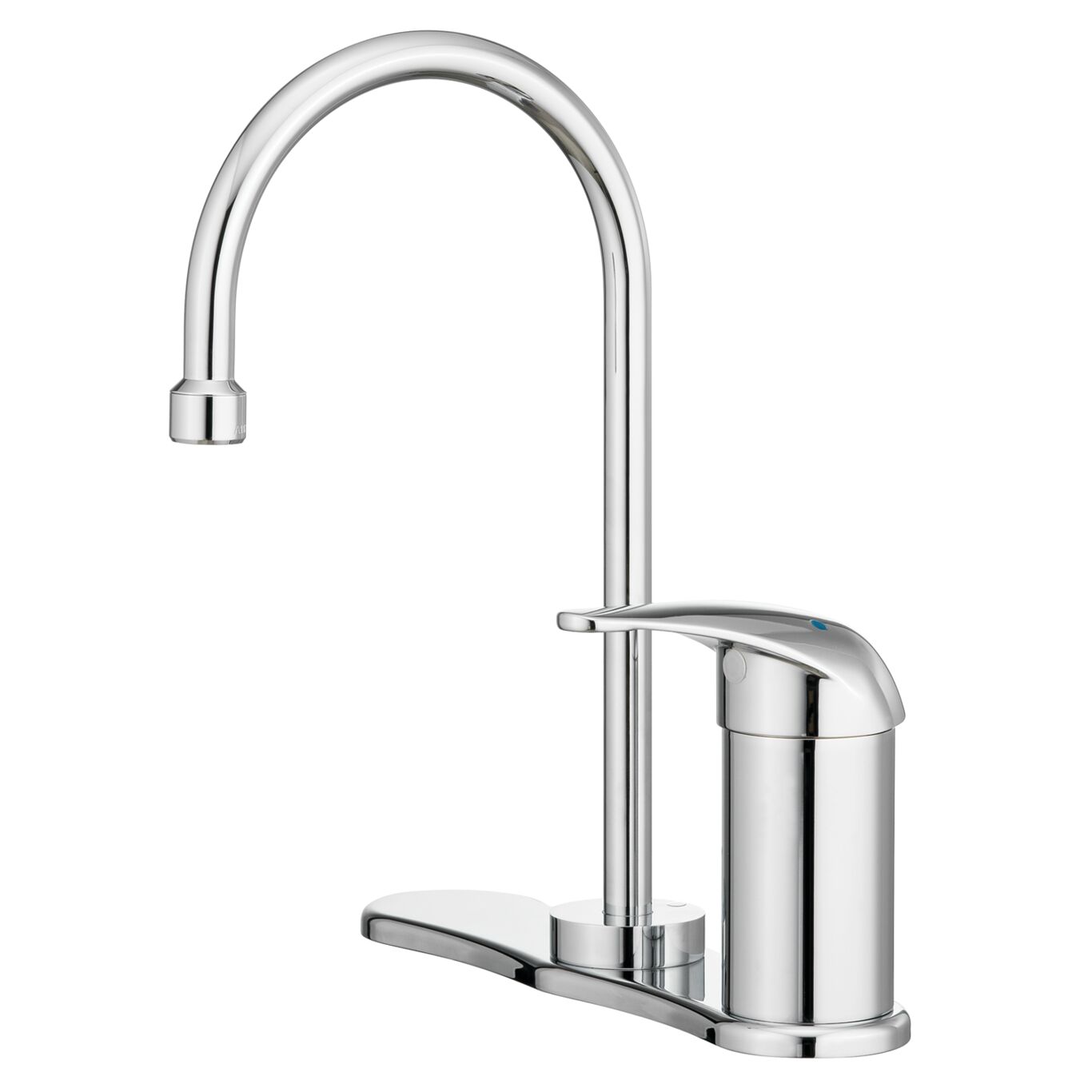

LavSafe Gooseneck Spout Thermostatic Faucet
Series G1070 and GP1070 LavSafe™ thermostatic gooseneck faucets feature an advanced thermal actuator to provide the latest in thermal protection. The single-lever cartridge, with integral ceramic discs, provides both temperature and volume control.
This LavSafe automatically mixes hot and cold water to deliver pre-set water within a specific range. In the event of cold water failure, the thermal actuator virtually shuts off the flow of hot water. LavSafe is listed to ASSE 1070, IAPMO cUPC, and NSF 61 Section 9 Annex G.
Features
- ASSE 1070 Listed
- Advanced thermal actuator
- Self-contained cartridge
- Heavy duty lead free brass body
- ADA compliant
Literature
-
- Brochure - Thermostatic Mixing Valves
- Brochure - Thermostatic Mixing Valves (Spanish)
- Installation Instructions - Copper Supply Tube Kit for 1070, P1070, G1070, GP1074
- Installation Instructions - G1070
- Installation Instructions - LavSafe Cartridge Kit For Use with 1070, P1070, G1070, GP1070
- Installation Instructions - LH Copper Supply Tube Kit for 1070, P1070, G1070, GP1072
- Price List - Valve Repair Kits and Parts
- Specification Sheet - G1070
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific G1070
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
