LF800M4-QT-FZ 3/4

Part of the LF800M4QT Series

Ordering Code: T792011

UPC: 098268573725

Lead Free: YES

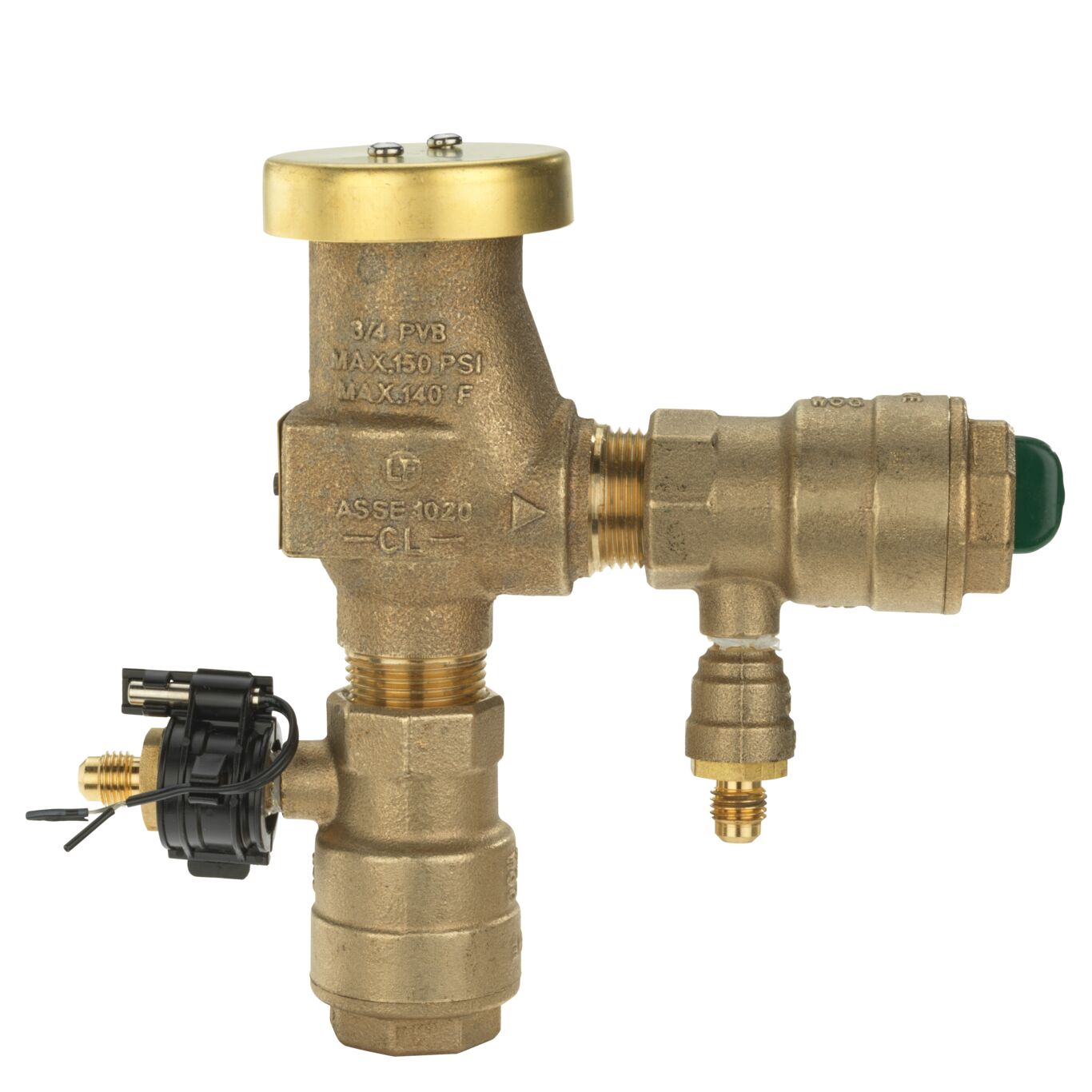

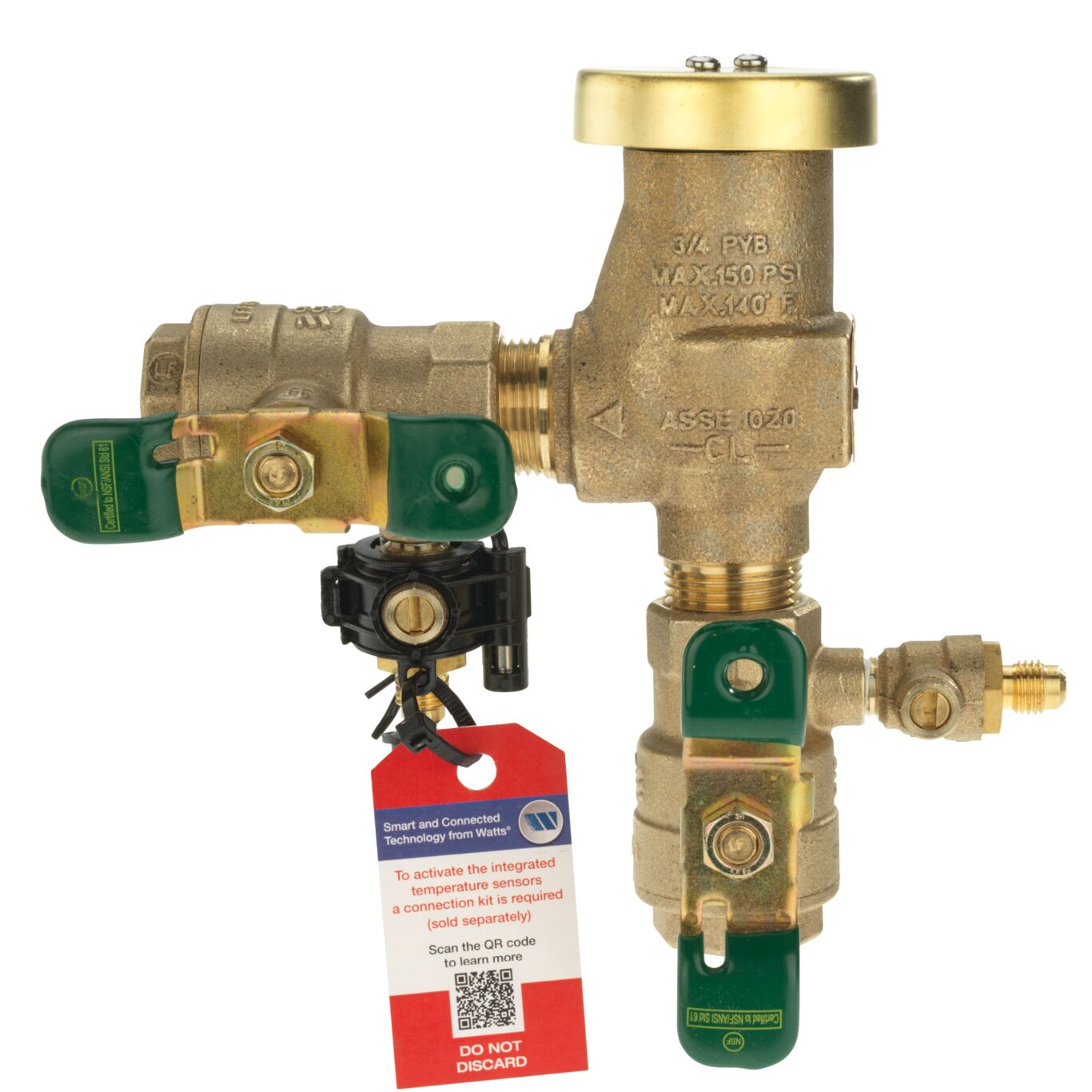

3/4 IN Lead Free Anti-Siphon Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoff, Tee Handles, Freeze Sensor

  • Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
  • Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
  • Lead free construction
  • Replaceable seat
  • Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
  • Female NPT inlet and outlet with quarter turn shutoffs
  • Easy internal access
Specifications
Backflow Preventer Type Vacuum Breaker
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Copper Silicon Alloy
Body Pattern Angle
Brand Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 098268573725
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number T792011
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material Engineered Plastic
Series LF800M4QT
Strainer No
Technologies Freeze Detection
