LF860-QT 1 1/2

Discontinued - Replaced By: LF860-QT-FS 1 1/2

Part of the LF860 Small Series

Ordering Code: 0683004

UPC: 098268455250

Lead Free: YES

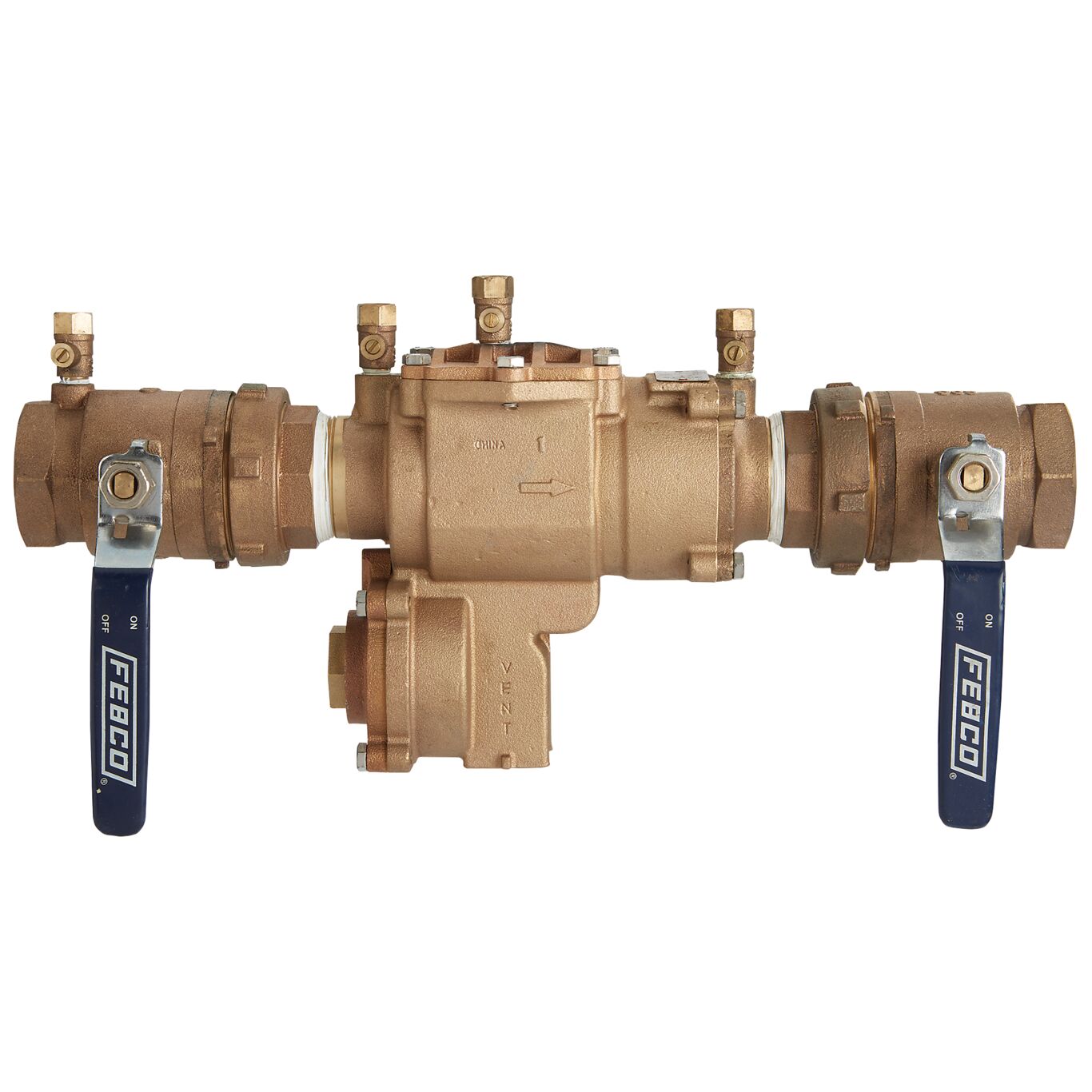

1 1/2 IN Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Qt Shutoff, Lever Handle, Small Diameter

  • Lead free bronze body
  • NPT end connection
  • Quarter turn shutoff valves
  • Replaceable seats and discs
  • The handles on the shutoff valves can be removed to discourage tampering
  • Top mounted test cocks
  • Stainless steel spring
  • Maximum working pressure is 175 psi (12.1 bar)
  • Hydrostatic test pressure is 350 psi (24.1 bar)
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Material Lead Free Bronze
Body Pattern Straight
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Cap And Tether No
Disc Material Rubber
EAN 098268455250
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 38 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 1 1/2 IN
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0683004
Polymer Coating No
Pressure Operation Does Not Apply To Product
Protection Type Does Not Apply To Product
Seat Material Noryl Plastic
Series LF860 Small
Strainer No
Technologies Does Not Apply To Product
Tradename None
