LF825Y-QT-FS 2

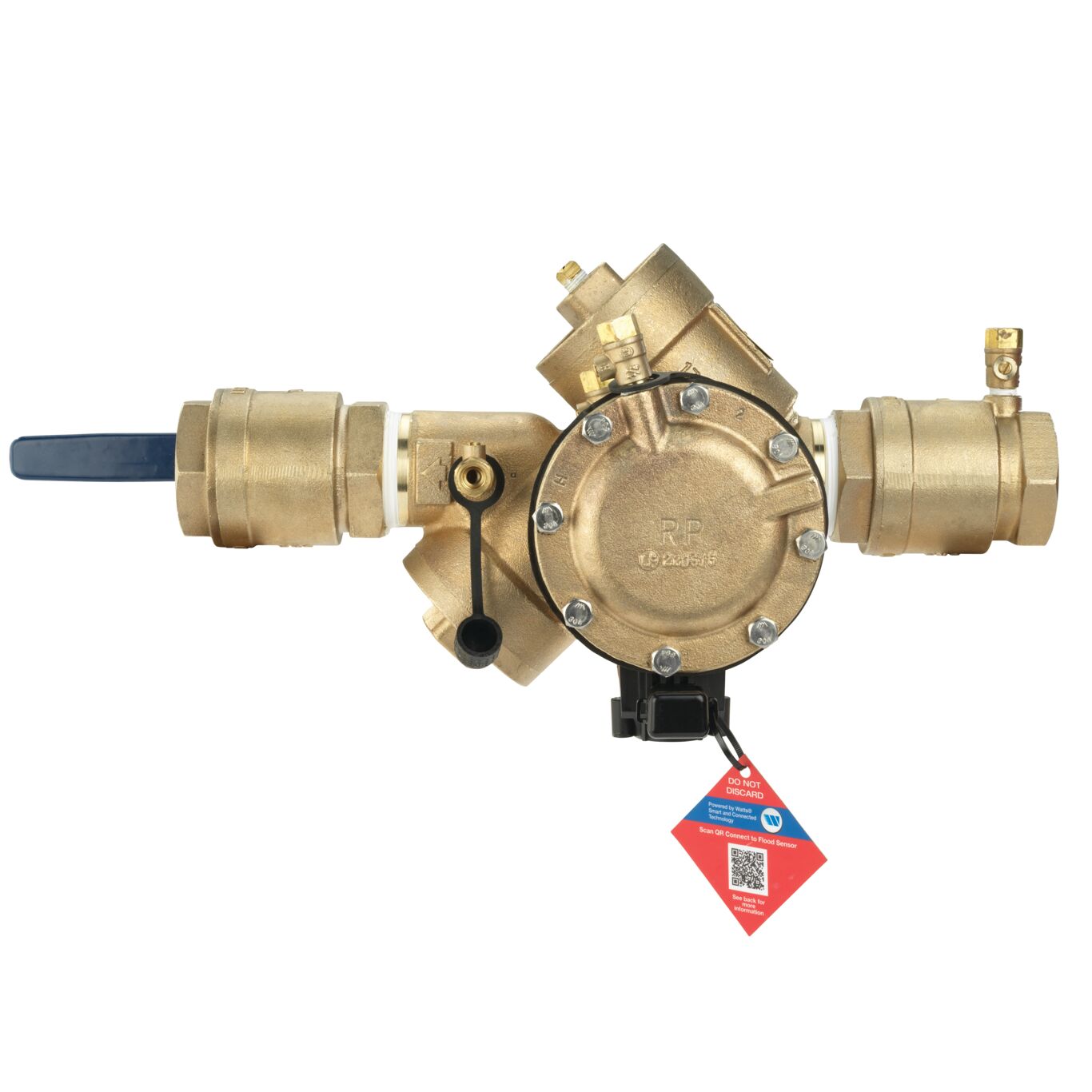

Product Image -825 flood sensor

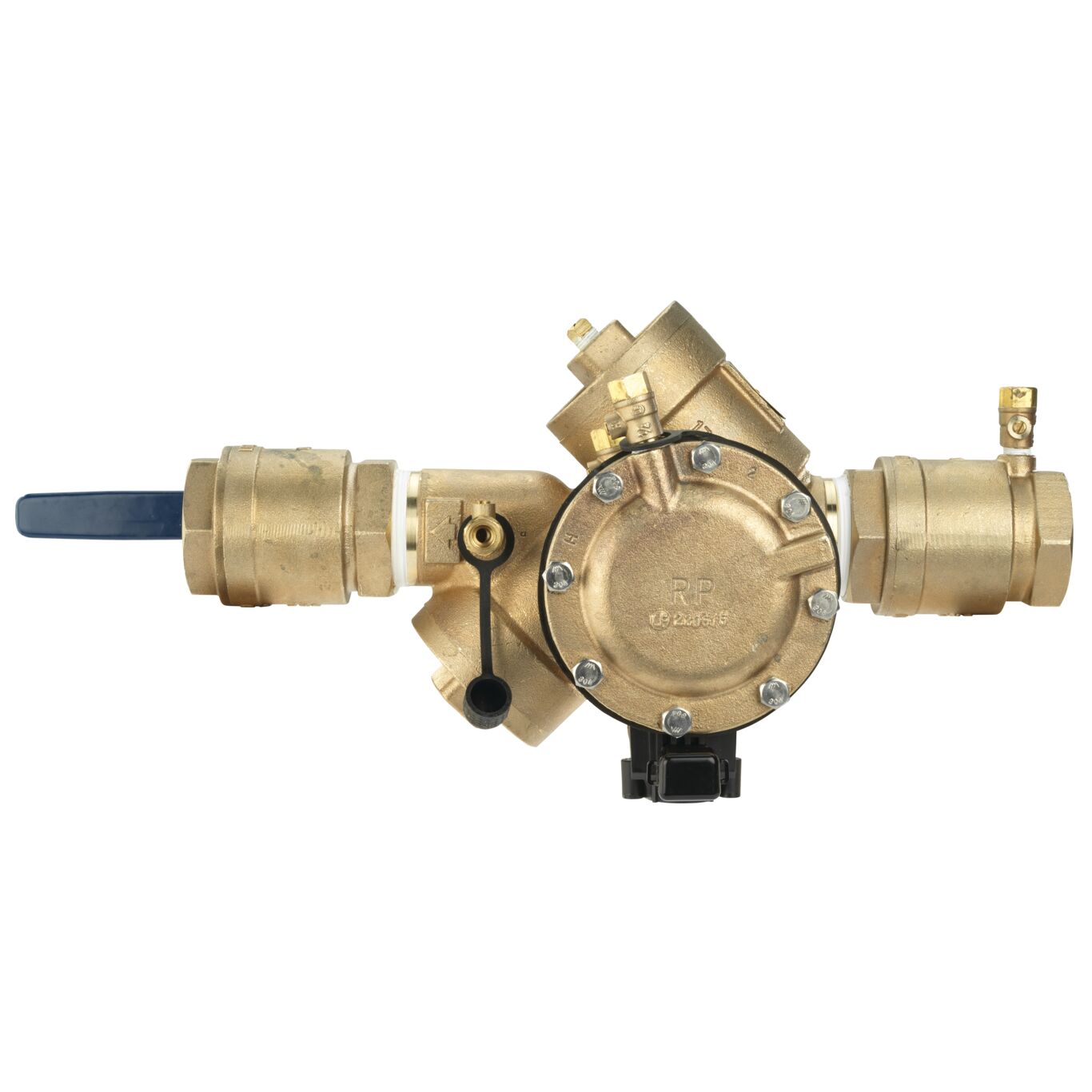

Product Image -825 flood sensor

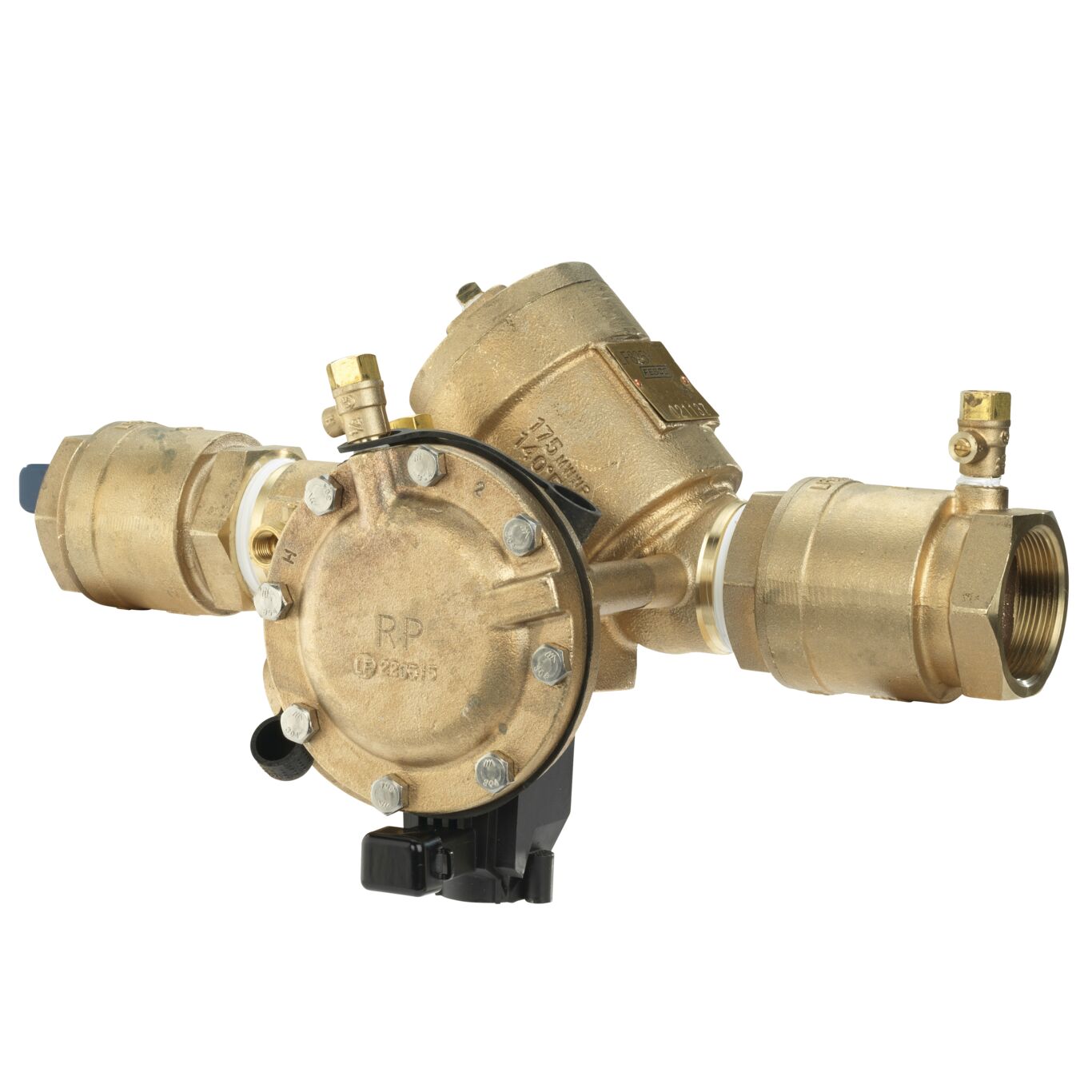

Product Image -825 flood sensor

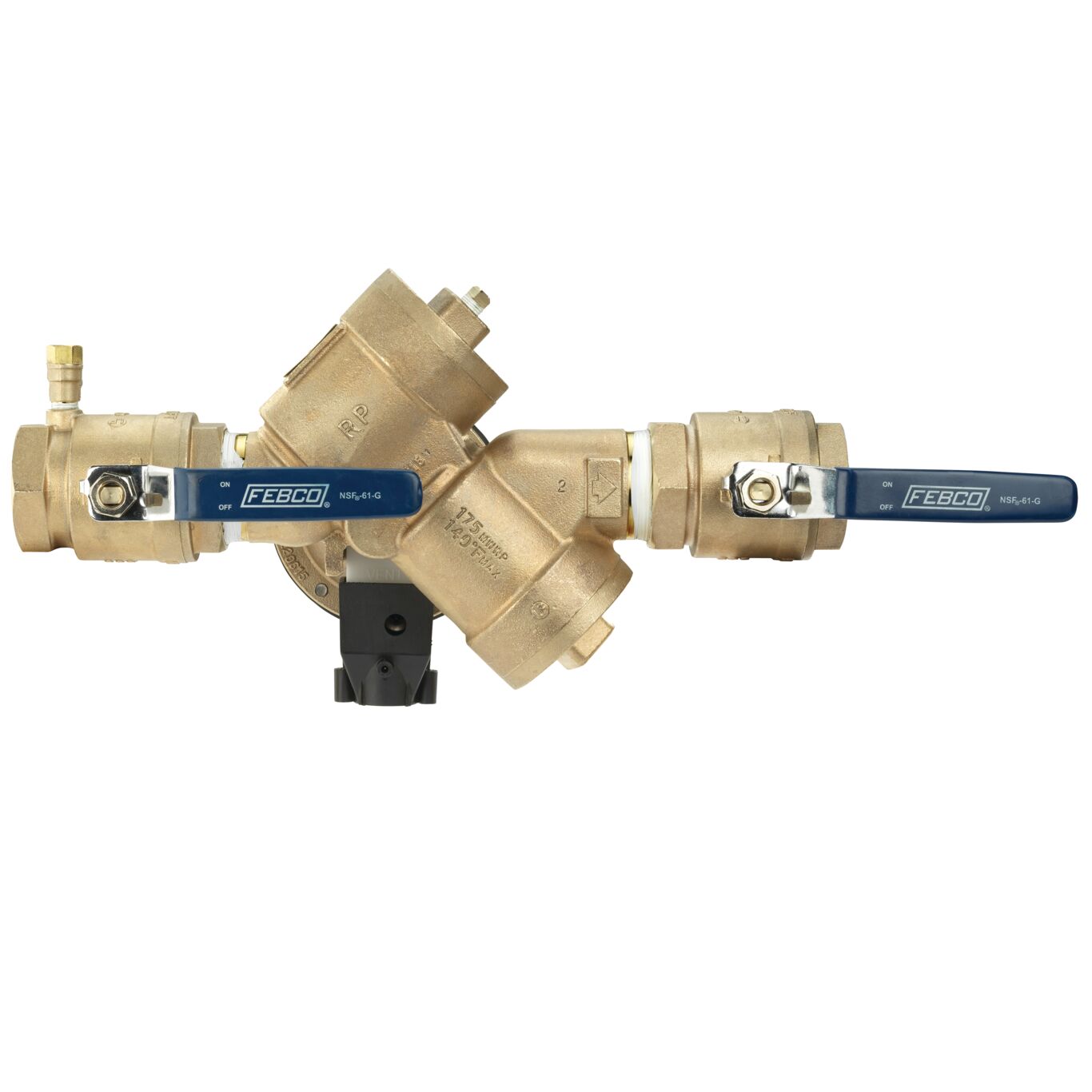

Product Image -825 flood sensor
×

Part of the LF825Y Series

Ordering Code: F683010

UPC: 643925581829

Lead Free: YES

2 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Y Pattern, Backflow Flood Sensor

This 2 inch lead free Y pattern reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Lead free construction
  • Modular relief valve and check valves for easy maintenance
  • Quarter turn shutoff valves
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Y-Pattern
Brand FEBCO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Nitrile
EAN 643925581829
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 IN
Inlet Connection Size-Metric 51 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type FPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type FPT
Part Number F683010
Polymer Coating No
Pressure Operation Does Not Apply To Product
Protection Type Backpressure
Seat Material Nitrile
Series LF825Y
Strainer No
Technologies Flood Detection

Literature

Find a Sales Representative
Find a Wholesaler/Distributor
View Warranty Customer Support Access BIM Drawings

Share this Product



SpecHUB

Build Your Spec in Under 5 Minutes

Learn More

Product Accessories

LFFRK 825-C 1 1/2-2

First Or Second Check Cover Repair Kit For 1 1/2 and 2 IN Lead Free Y Pattern Reduced Pressure Zone Valve Assembly

FP-FBF-SA-825-1 1/4-2

Flood Sensor Replacement Kit for 825Y, LF825Y, 825YA, LF825YA Sizes 1 1/4 IN to 2 IN

825Y SS INLET SPRING 1 1/2 - 2

1 1/2 and 2 IN Stainless Steel First Check Spring Kit

FRK 825Y-RT 1 1/2-2

Complete Rubber Parts Kit For 1 1/2 and 2 IN Reduced Pressure Zone Assembly

825Y/805Y SS OUTLET SPRING 1 1/2 - 2

Check Spring Kit for 1 1/2 and 2 IN Double Check Valve Assembly, Series 825Y Or 805Y

FP-FBF-BMS 1/2-2

BMS Flood Sensor Connection Kit for 860 Small, LF860 Small Sizes 1/2 to 2 IN, and 825Y, LF825Y Sizes 3/4 to 2 IN

FRK 825Y-YS VT 1 1/2-2

Relief Valve Kit For 1 1/2 to 2 IN Reduced Pressure Zone Assembly

FRK 825Y-RV 1 1/2-2

Relief Valve Rubber Parts Kit For 1 1/2 to 2 IN Reduced Pressure Zone Assembly

LFFRK 825Y/825YA-CKS 1 1/2-2

Check Valve Seat and Ring Kit For 1 1/2 and 2 IN Reduced Pressure Zone Assembly, Series LF825Y

FRK 805/825Y/825YA-CK4 1 1/2-2

Check Valve Kit For 1 1/2 to 2 IN Double Check Valve Assembly, Series 805,825Y and 825YA

FRK 805/825Y/825YA-RC3 1 1/2-2

Check Rubber Parts Kit For 1 1/2 to 2 IN Double Check Valve Assembly Or Reduced Pressure Zone Assembly

FP-FBF-CFS 1/2-2

Cellular Flood Sensor Connection Kit for 860 Small, LF860 Small Sizes 1/2 to 2 IN, and 825Y, LF825Y Sizes 3/4 to 2 IN

LFFRK 825-VC 1 1/4-2

Relief Valve Cover Repair Kit for 1 1/4 Through 2 IN Lead Free Y Pattern Reduced Pressure Zone Valve Assembly

FRK 825Y/825YA-CKS 1 1/2-2

Check Valve Seat and Ring Kit For 1 1/2 to 2 IN Reduced Pressure Zone Assembly, Series 825Y
