LF825Y-QT-FS 1 1/4

Part of the LF825Y Series

Ordering Code: F683008

UPC: 643925581805

Lead Free: YES

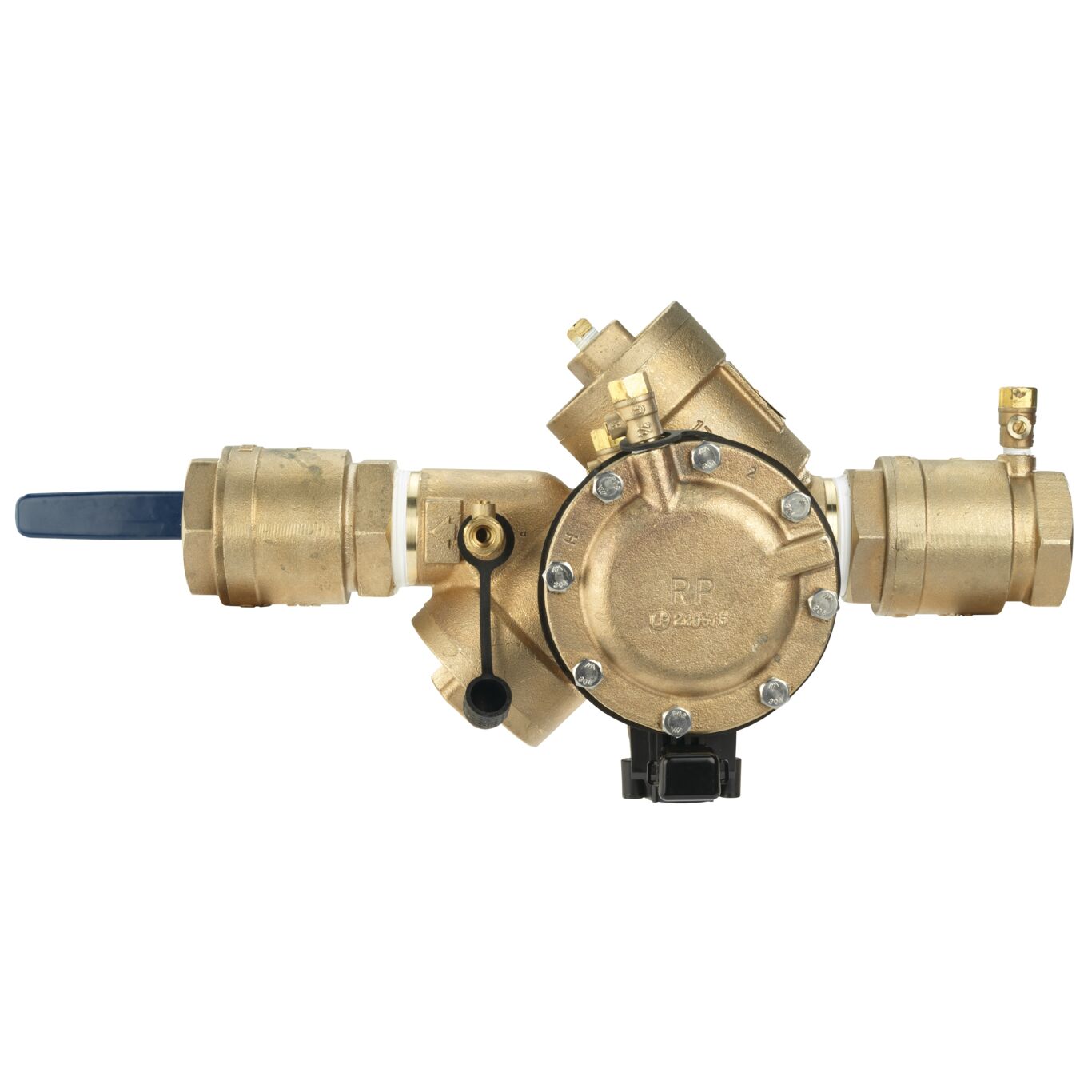

1 1/4 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Y Pattern, Backflow Flood Sensor

This 1 1/4 inch lead free Y pattern reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

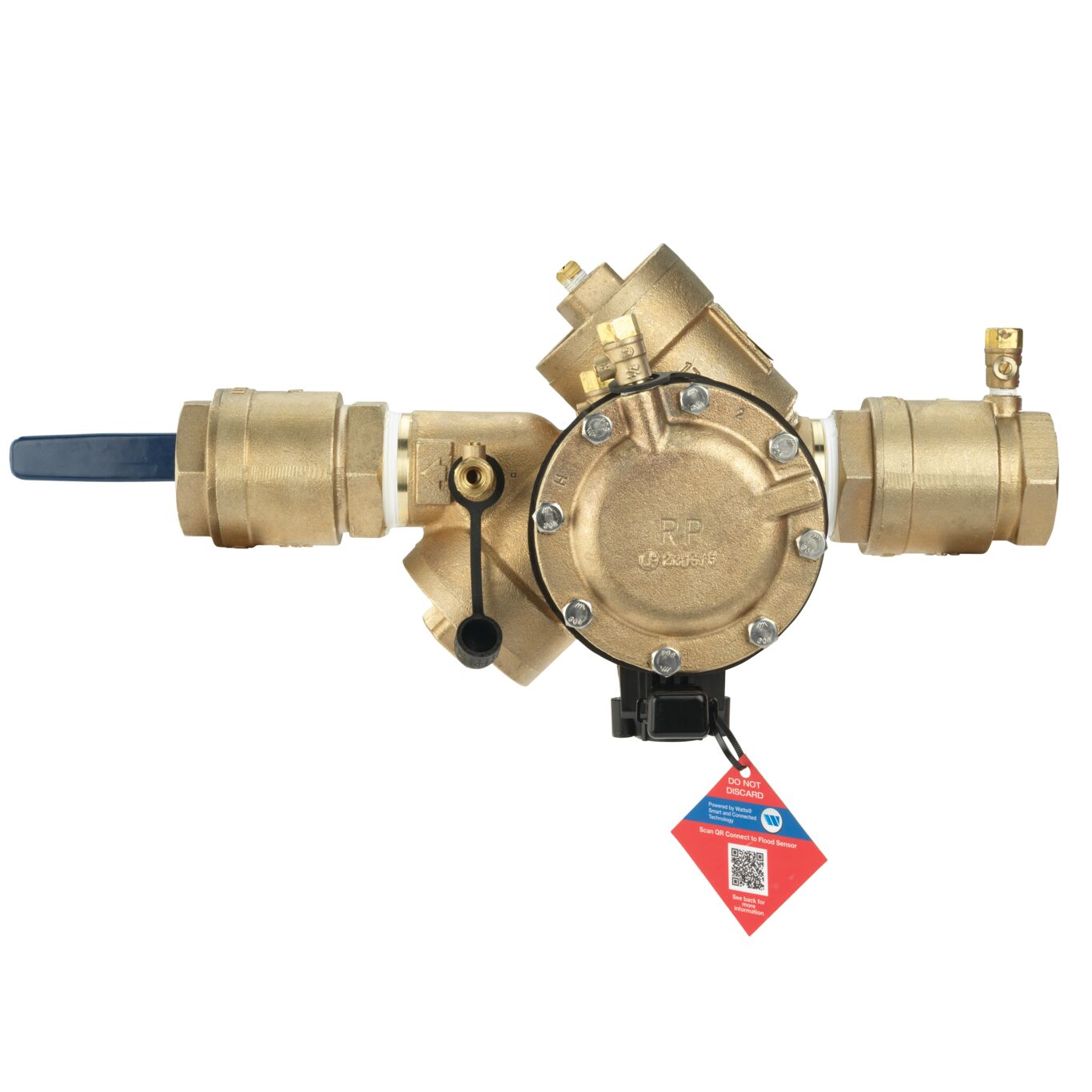

Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
Alert features available with add-on sensor connection kit
Lead free construction
Modular relief valve and check valves for easy maintenance
Quarter turn shutoff valves

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Assembly
Body Finish	Cast Copper Silicon Alloy
Body Material	Lead Free Bronze
Body Pattern	Y-Pattern
Brand	FEBCO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Nitrile
EAN	643925581805
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	Quarter Turn Ball Valve
Inlet Thread Type	FPT
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.00
Minimum Temperature-Fahrenheit	32
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Shutoff Valve Type	Quarter Turn Ball Valve
Outlet Thread Type	FPT
Part Number	F683008
Polymer Coating	No
Pressure Operation	Does Not Apply To Product
Protection Type	Backpressure
Seat Material	Nitrile
Series	LF825Y
Strainer	No
Technologies	Flood Detection
