LF825Y-QT 1 1/2

Product Image - 825
icon-360-overlay
LF825Y-QT_1_50_0683009_angle
×

Part of the LF825Y Series

Ordering Code: 0683009

UPC: 098268455304

Lead Free: YES

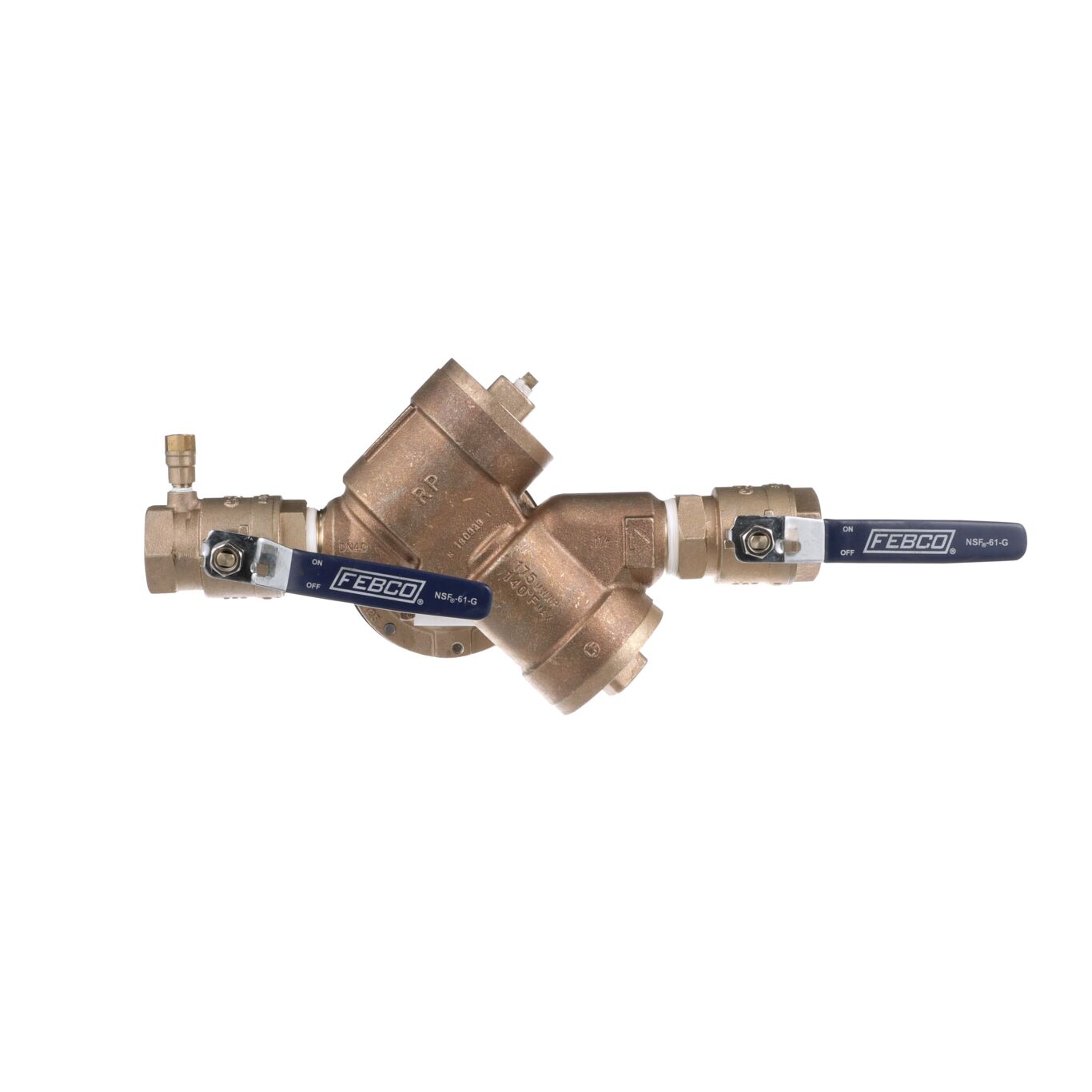

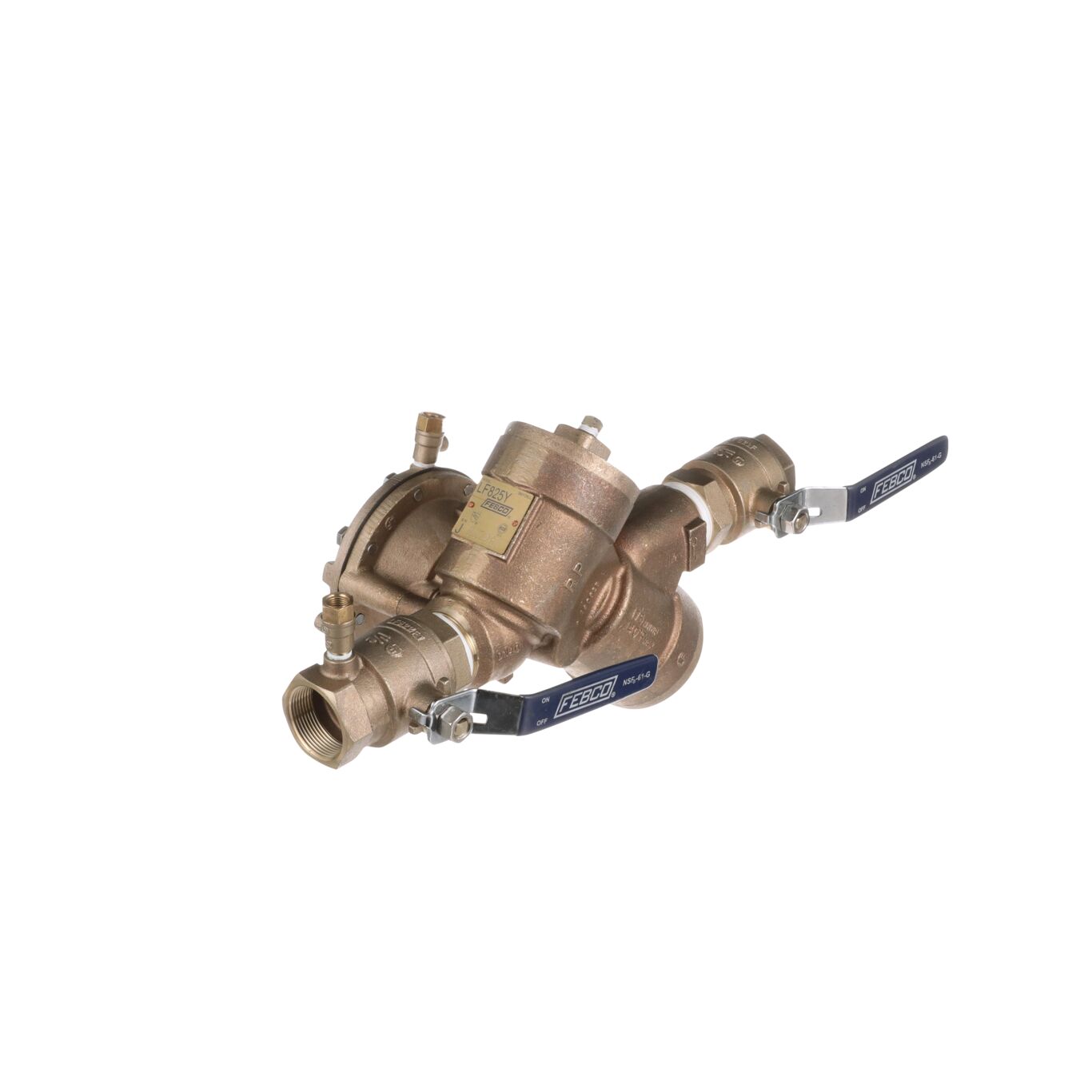

1 1/2 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Y Pattern

This 1 1/2 inch lead free Y pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve.

Features

  • Lead free construction
  • Modular relief valve for easy maintenance
  • Replaceable seat rings for longer valve life
  • NPT end connection
  • Meets all specifications of AWWA, ASSE
  • Low head loss for optimum performance
  • Quarter turn ball valves
  • Stainless steel springs
  • Nitrile elastomers
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Y-Pattern
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Nitrile
EAN 098268455304
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 38 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type FPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type FPT
Part Number 0683009
Polymer Coating No
Pressure Operation Does Not Apply To Product
Protection Type Backpressure
Series LF825Y
Strainer No
Technologies Does Not Apply To Product
Tradename None
