LF825Y 1 1/4

Part of the LF825Y Series

Ordering Code: 0683008

UPC: 098268455298

Lead Free: YES

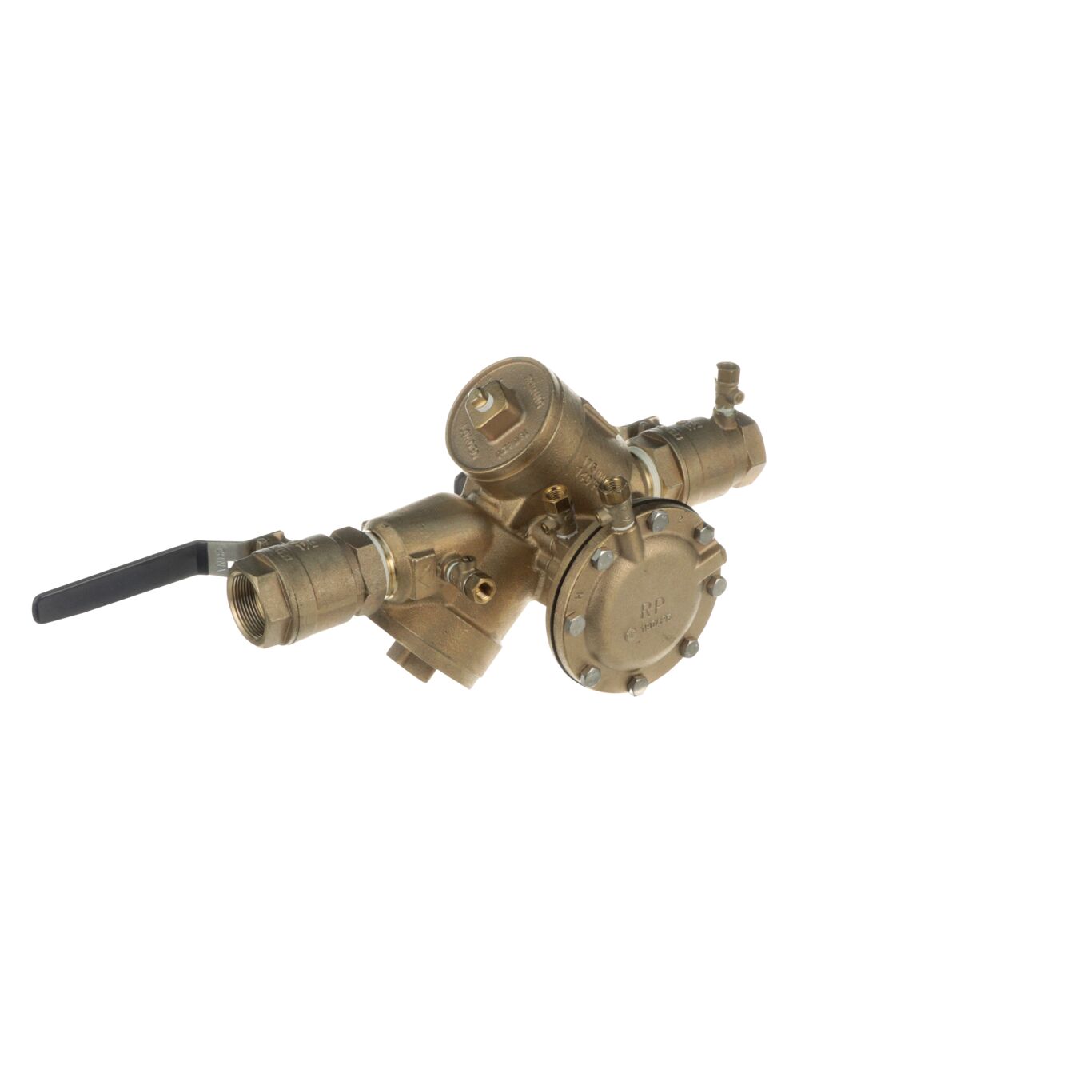

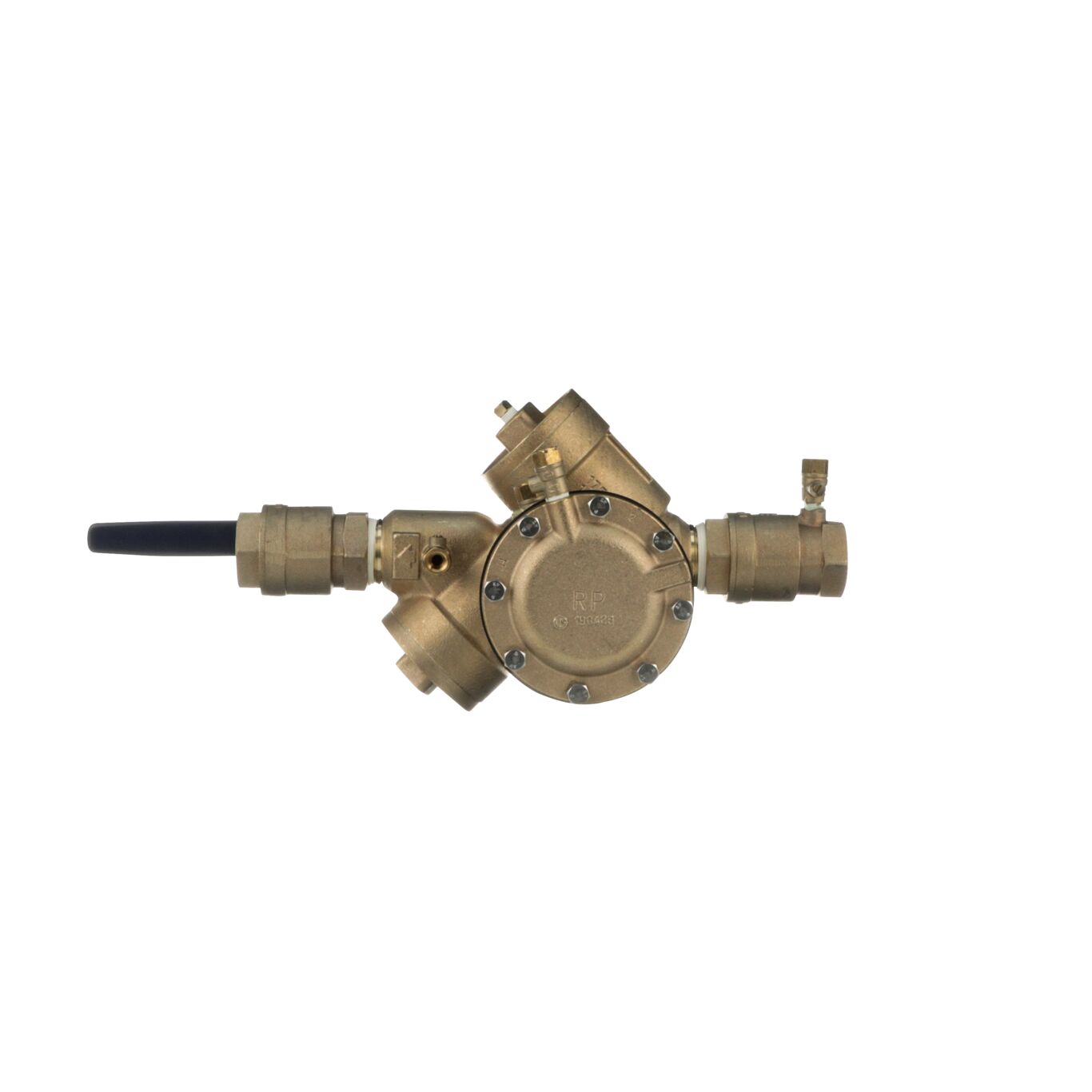

1 1/4 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Y Pattern

This 1 1/4 inch lead free Y pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve.

Features

Designed to keep high-hazard (toxic) fluids from entering potable water systems serving industrial plants, hospitals, morgues, mortuaries and chemical plants
Also ideal for irrigation systems, boiler feeds and other installations requiring maximum protection
This product includes a durable lead-free body; threaded quarter-turn ball valves; test cocks; spring -loaded Y pattern check valves and one hydraulically dependent differential relief valve
Built of lead-free bronze and cast-copper silicon alloy for durability
Modular relief valve allows for easy maintenance, while replaceable seat rings ensure longer valve life

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Assembly
Body Finish	Cast Copper Silicon Alloy
Body Material	Lead Free Bronze
Body Pattern	Y-Pattern
Brand	FEBCO
Buy American Act Compliant	NO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Nitrile
EAN	098268455298
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	Quarter Turn Ball Valve
Inlet Thread Type	FPT
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.00
Minimum Temperature-Fahrenheit	32
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Shutoff Valve Type	Quarter Turn Ball Valve
Outlet Thread Type	FPT
Part Number	0683008
Polymer Coating	No
Pressure Operation	Does Not Apply To Product
Protection Type	Backpressure
Series	LF825Y
Strainer	No
Technologies	Does Not Apply To Product
Tradename	None
