860-QT 3/4

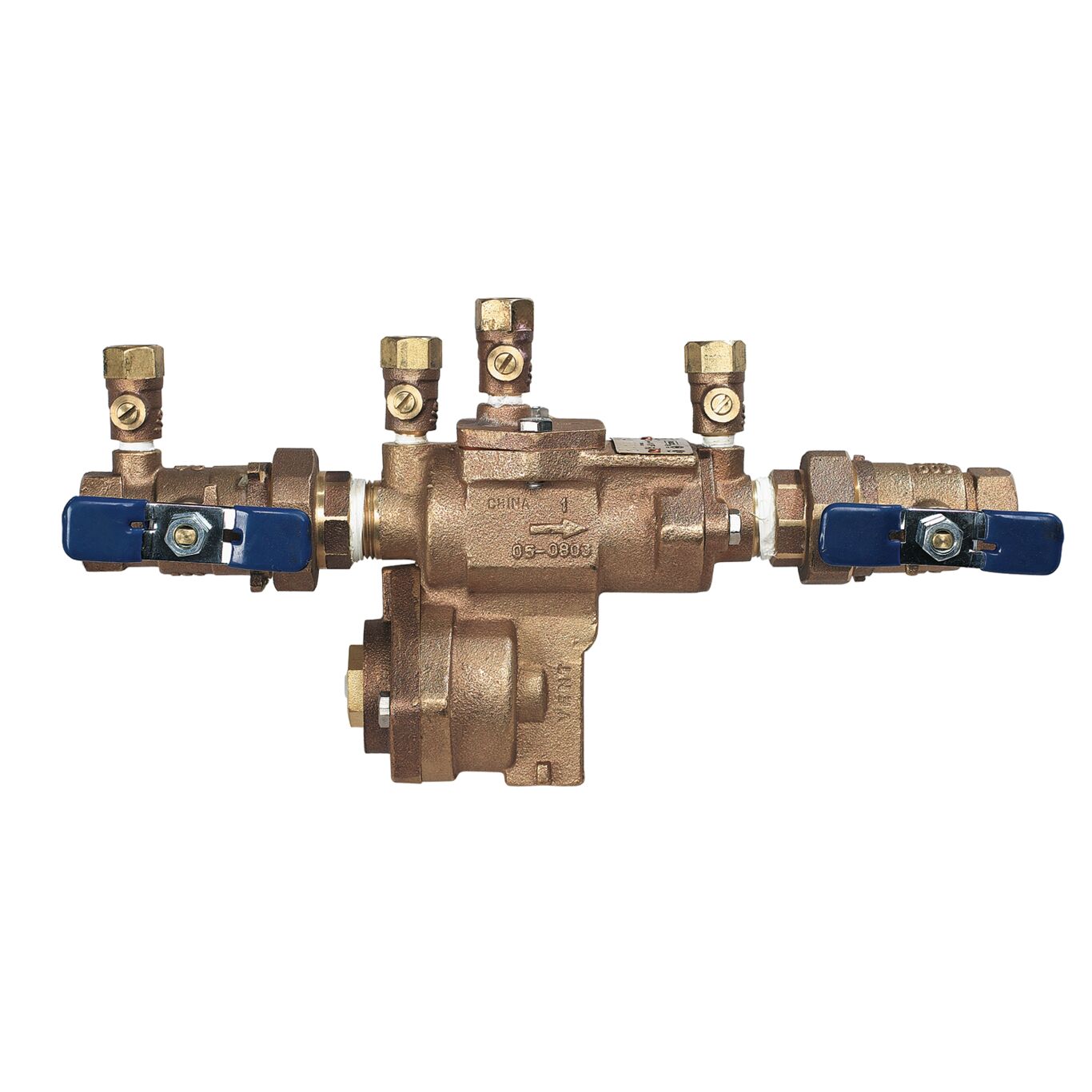

Product Image - 860U, LF860U
×

Part of the 860 Small Series

Ordering Code: 1312

UPC: 643925000665

Lead Free Model Available

3/4 IN Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Small Diameter

This 3/4 inch reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a bronze body, threaded quarter turn ball valves, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve.

Features

  • Bronze body with top entry access
  • NPT end connection
  • Quarter turn shutoff valves
  • Replaceable seats and discs
  • The handles on the shutoff valves can be removed to discourage tampering
  • Top mounted test cocks
  • Stainless steel spring
  • Maximum working pressure is 175 psi (12.1 bar)
  • Hydrostatic test pressure is 350 psi (24.1 bar)
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Rough Bronze
Body Material Bronze
Body Pattern Straight
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Cap And Tether Yes
Disc Material Rubber
EAN 643925000665
Elbow Fitting No
GDS Status Registered
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.00
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 1312
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Plastic
Series 860 Small
Strainer No
Technologies Does Not Apply To Product
Tradename None
