LF866-DOSY-GPM 8

Discontinued - Replaced By: LF866-DOSY-GPM-FS 8

Part of the LF866 Series

Ordering Code: 0683170

UPC: 098268078145

Lead Free: YES

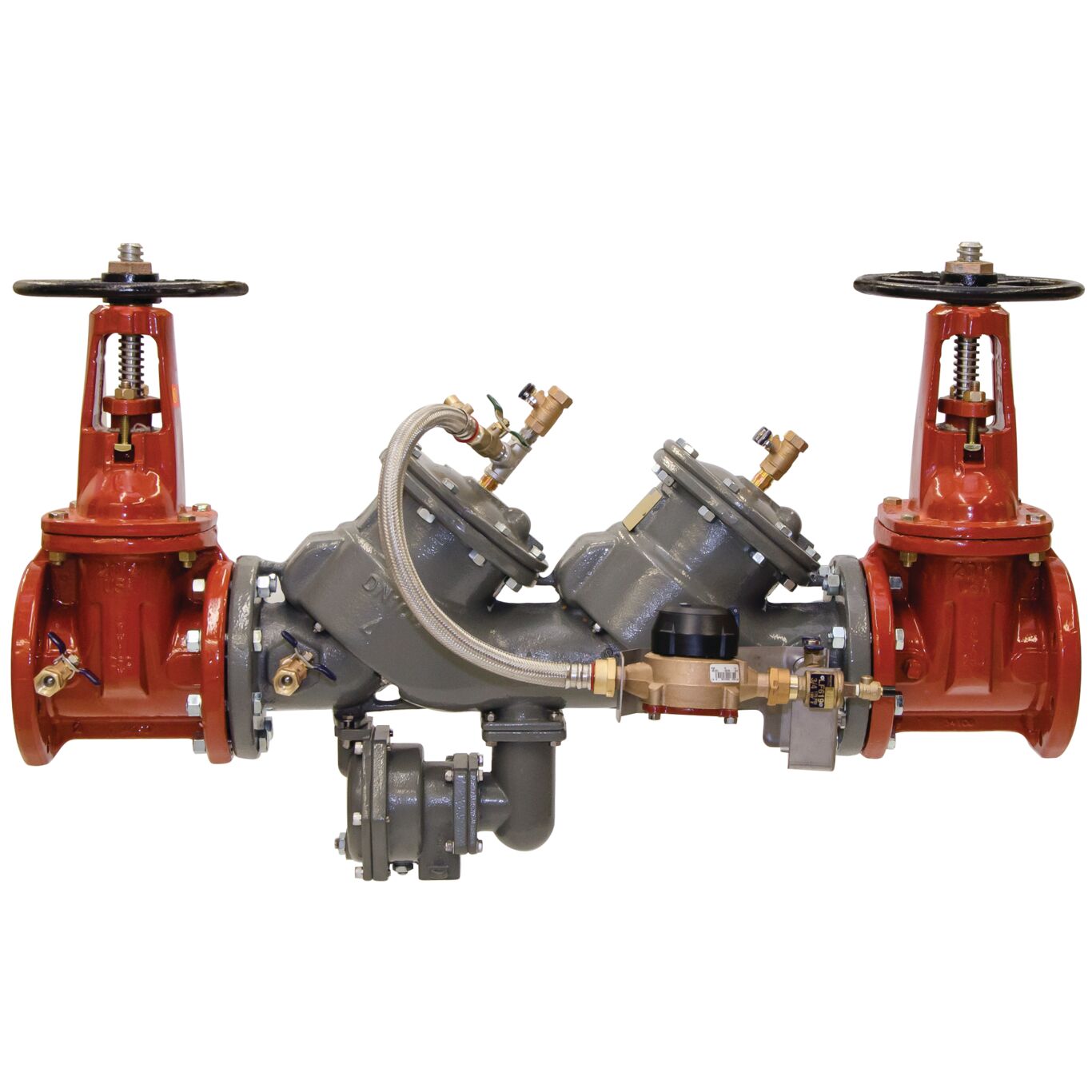

8 IN Lead Free DI Reduced Pressure Detector Backflow Preventer Assy, Epoxy Coated Using ArmorTek Technology, Domestic OSY Shutoffs, GPM Meter, SS RV Seat

  • Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
  • Detector bypass assembly with GPM meter
  • Appropriate for health hazard applications
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Detector Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Ductile Iron
Body Pattern Inline
Brand FEBCO
Buy American Act Compliant NO
Bypass Yes
Bypass Size 3/4 IN
Cap And Tether No
Disc Material Silicone
EAN 098268078145
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 8 IN
Inlet Connection Size-Metric 203 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Part Number 0683170
Polymer Coating No
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF866
Strainer No
Technologies Does Not Apply To Product
Tradename MasterSeries(R)
