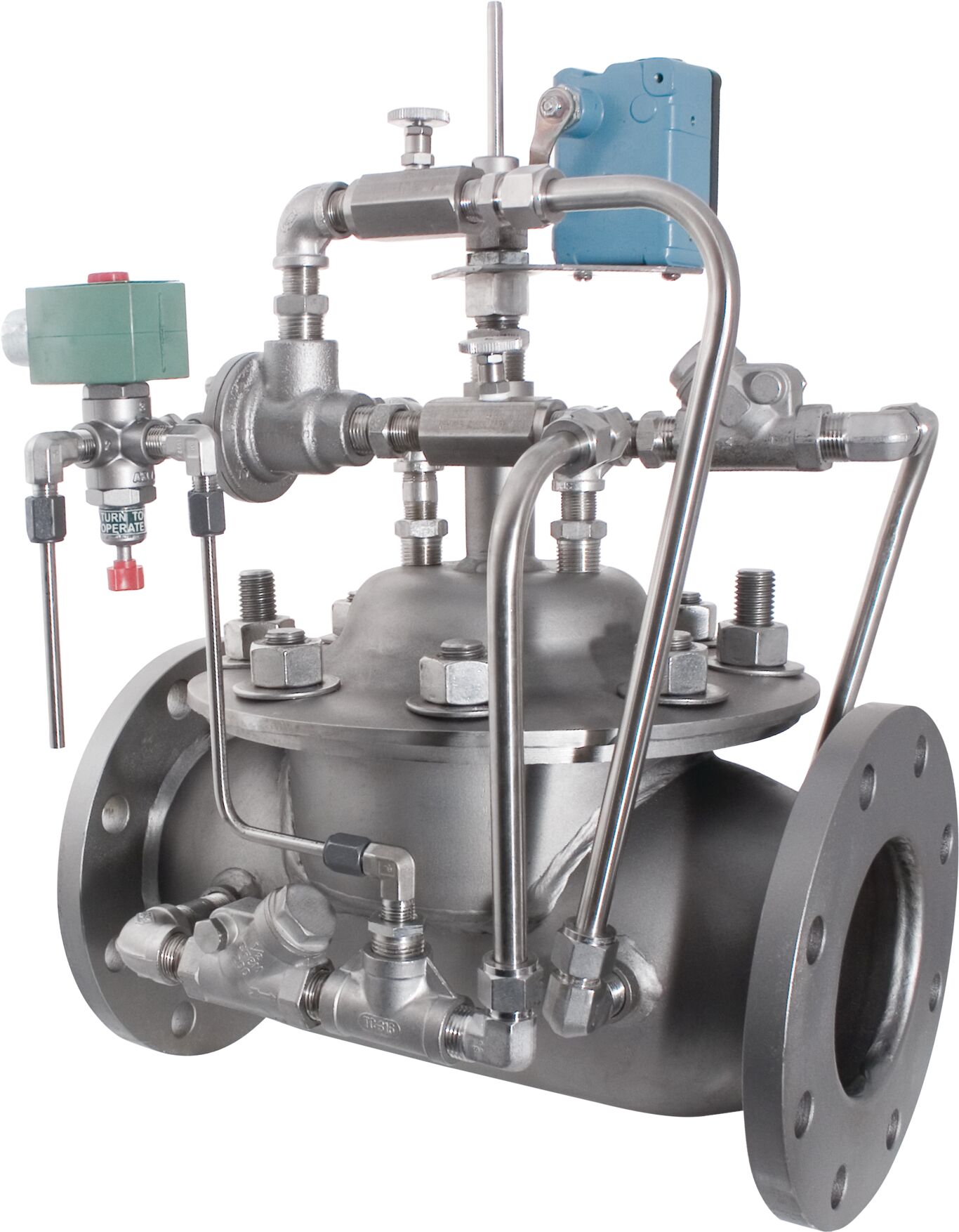

S513-AK
Dual Chamber Control Valve with Mechanical Check
Series S513-AK, S1513-AK pump control valve is designed to minimize the surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up and closes at an adjustable rate upon pump shut-off. When the valve is near closed a limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve, and has provisions for manual operation in the event of power outages.
The valve also incorporates a two-piece telescoping stem design, which acts as a mechanical check feature, that closes preventing reverse flow the moment flow ceases.
Features
- Minimizes the surges associated with pump start and stop
- Telescoping stem design acts as a mechanical check feature, that immediately prevents reverse flow when flow ceases.
- Valve open and close rate is adjustable
- Has provisions for manual operation in the event of a power outage
