073
×
![]()
Part of the Snow Melting Controls Series
Ordering Code: 073
UPC: 779655007305

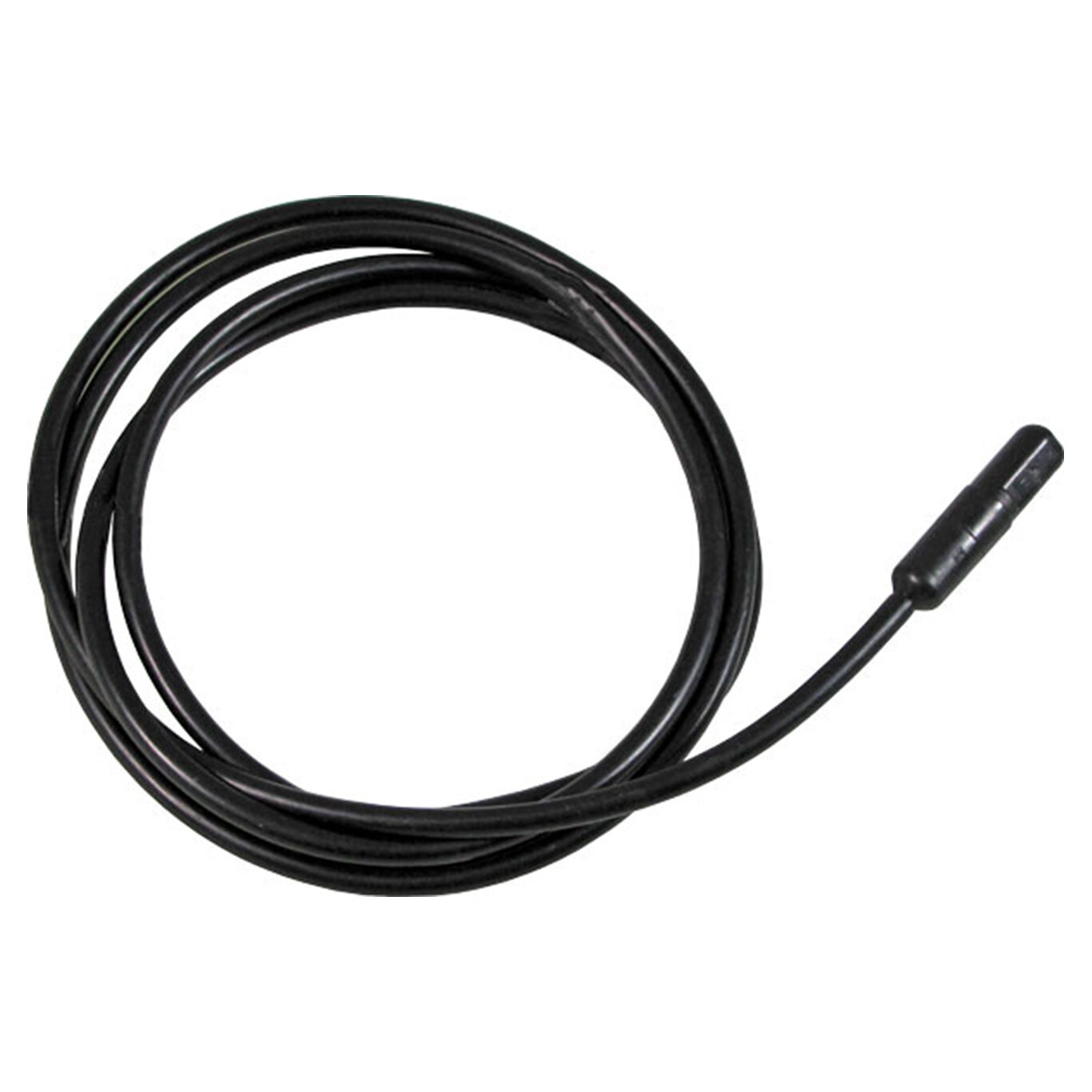

Slab Sensor, 40 FT (12 m) wire
The Slab Sensor 073 is designed to measure temperature in outside snow melting slabs. It has a high density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete, as it is suitable for direct burial. This product is supplied with 40 FT (12 m) of 2-conductor cable.
Features
- 10K thermistor
- Water resistant
- 40 ft (12 m) cable
- High density polyethylene (HDPE) sleeve which is designed for use in conduits, soils, or concrete
| Specifications | |
|---|---|
| Agency Approvals | CSA C US |
| Dimensions | 3/8" OD x 1 1/2" (10 mm OD x 38 mm) |
| Operating Range | -60 to 140 degrees F (-51 to 60 degrees C) |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Sensor Material | HDPE sleeve, 40 FT (12 m) HDPE jacketed wire |
