086
×
![]()
Part of the Control Accessories Series
Ordering Code: 086
UPC: 779655008609

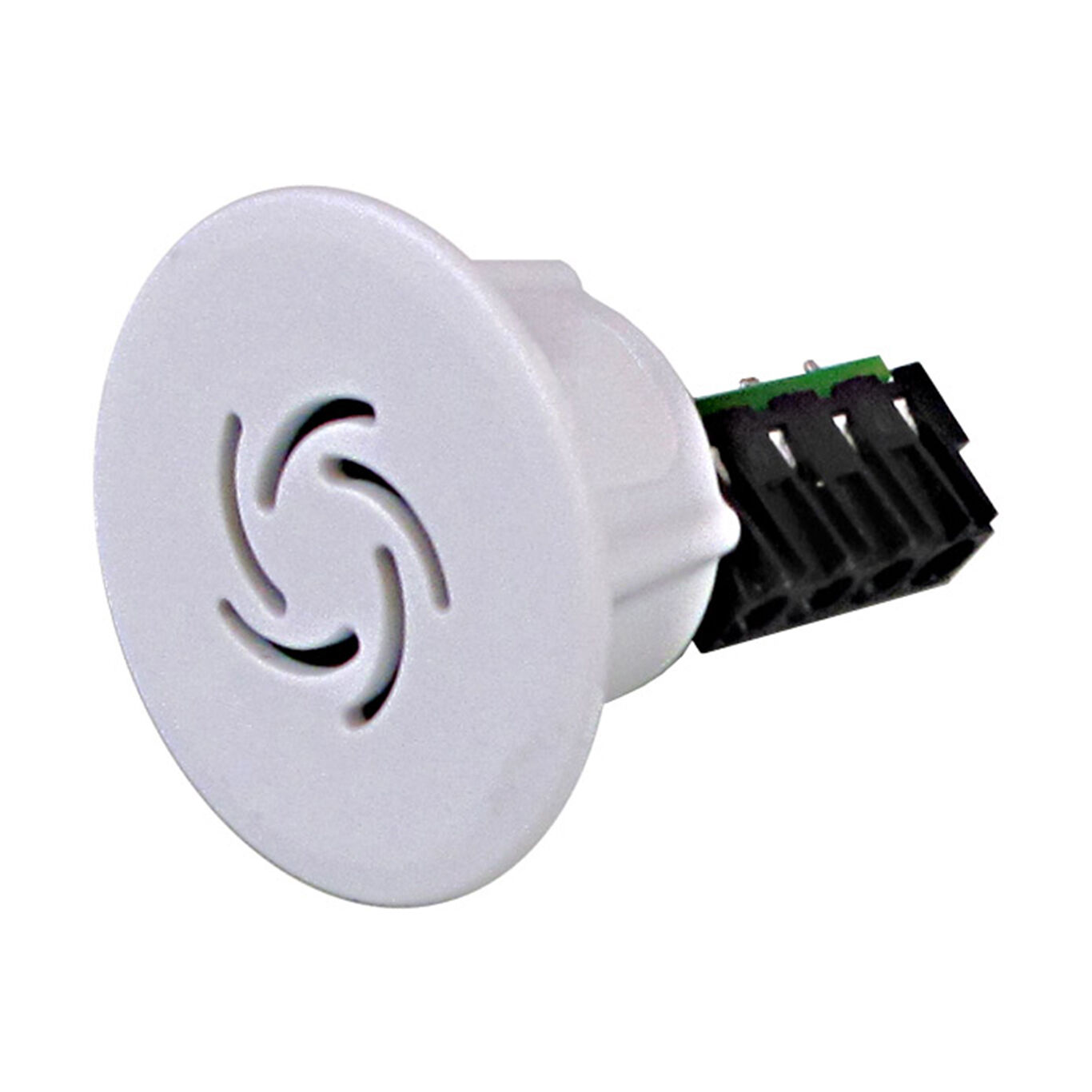

Humidity and Temperature Sensor, Flush Mount
The Humidity and Temperature Sensor 086 can be connected to select tekmar thermostats to remotely measure relative humidity and temperature. The 086 mounts flush or nearly flush to the wall to allow the sensor to visually blend in with the surrounding wall.
Features
- Hidden humidity and temperature sensing
- Compatible with tekmar thermostats that support auxiliary humidity sensors
| Specifications | |
|---|---|
| Dimensions | 1-7/16" O.D. x 1-9/16" D (36 O.D. x 40 mm D) |
| Enclosure Material | White PC-ABS plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Environmental Notice | Compatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone. |
| Markets | Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings |
| Operating Range | Indoor use only, 15 to 140 degrees F (-10 to 60 degrees C), non-condensing |
| Power Supply | 2.7 to 5.5 V (dc), 0.5 mA max, 65 k ohms min impedance |
| Sensor | Temperature sensor NTC thermistor, 10 k ohms at 7 |
