88CSI
Cast Steel, Wye-Pattern Strainers

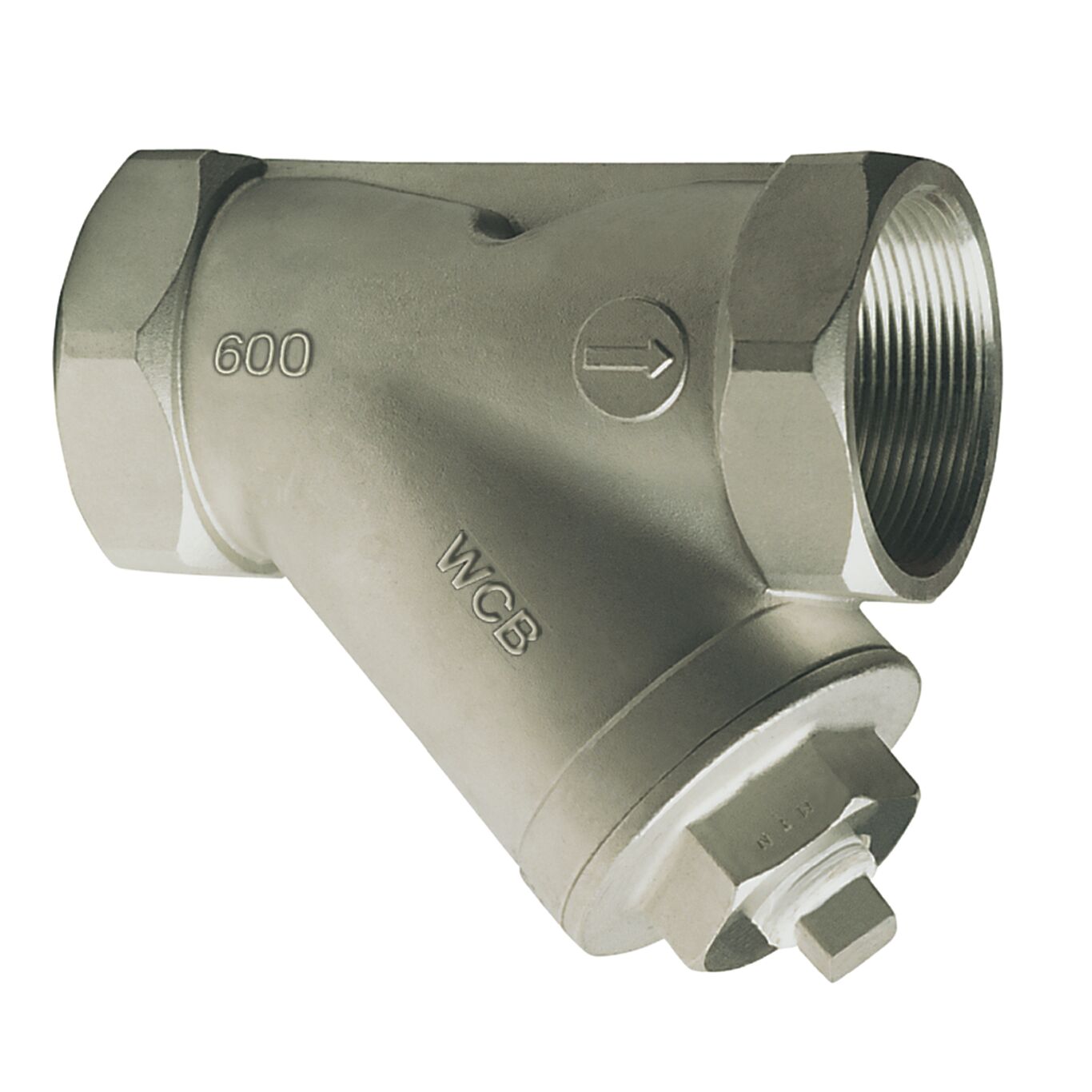

Series 88-CSI Cast Steel Wye-Pattern Strainers feature a wye-pattern, cast steel body with threaded (Model 88-CSI-T) or socket weld (Model 88-CSI-SW) connections, stainless steel screen, cast steel retainer cap and blow-down plug. Series 88-CSI has machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum Pressure (non shock): 1480psi (102 bar) at 100°F (38°C) WOG, 600psi (41 bar) at 489°F (254°C) WSP.
Features
- Cast steel 45° wye-pattern body for efficient flow and long life
- Stainless steel screen for reliability and easy cleaning
- Machined seat allows self-aligning screen to help ensure a perfect fit
- Choice of threaded or socket weld connection
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 88CSI
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
