77SI

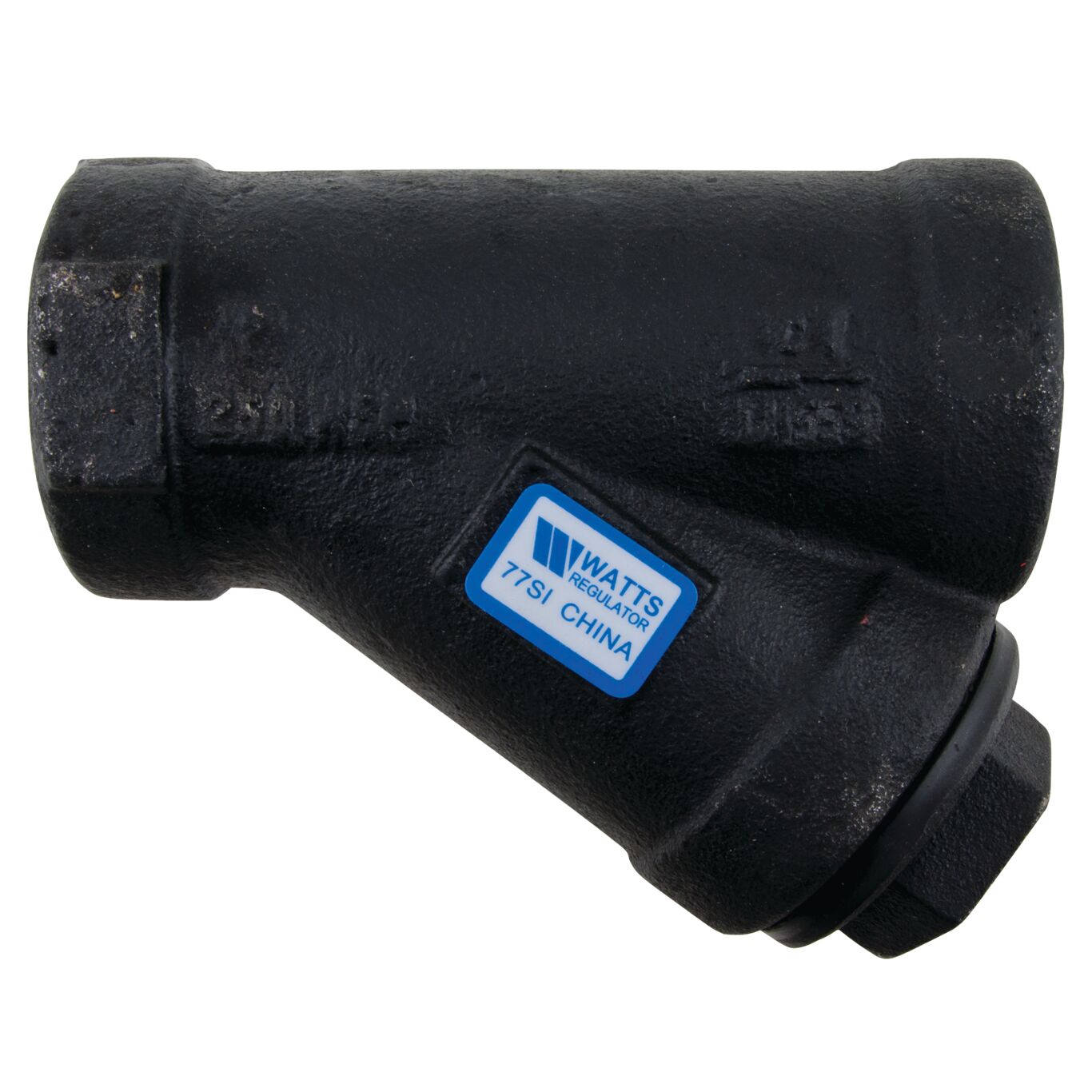

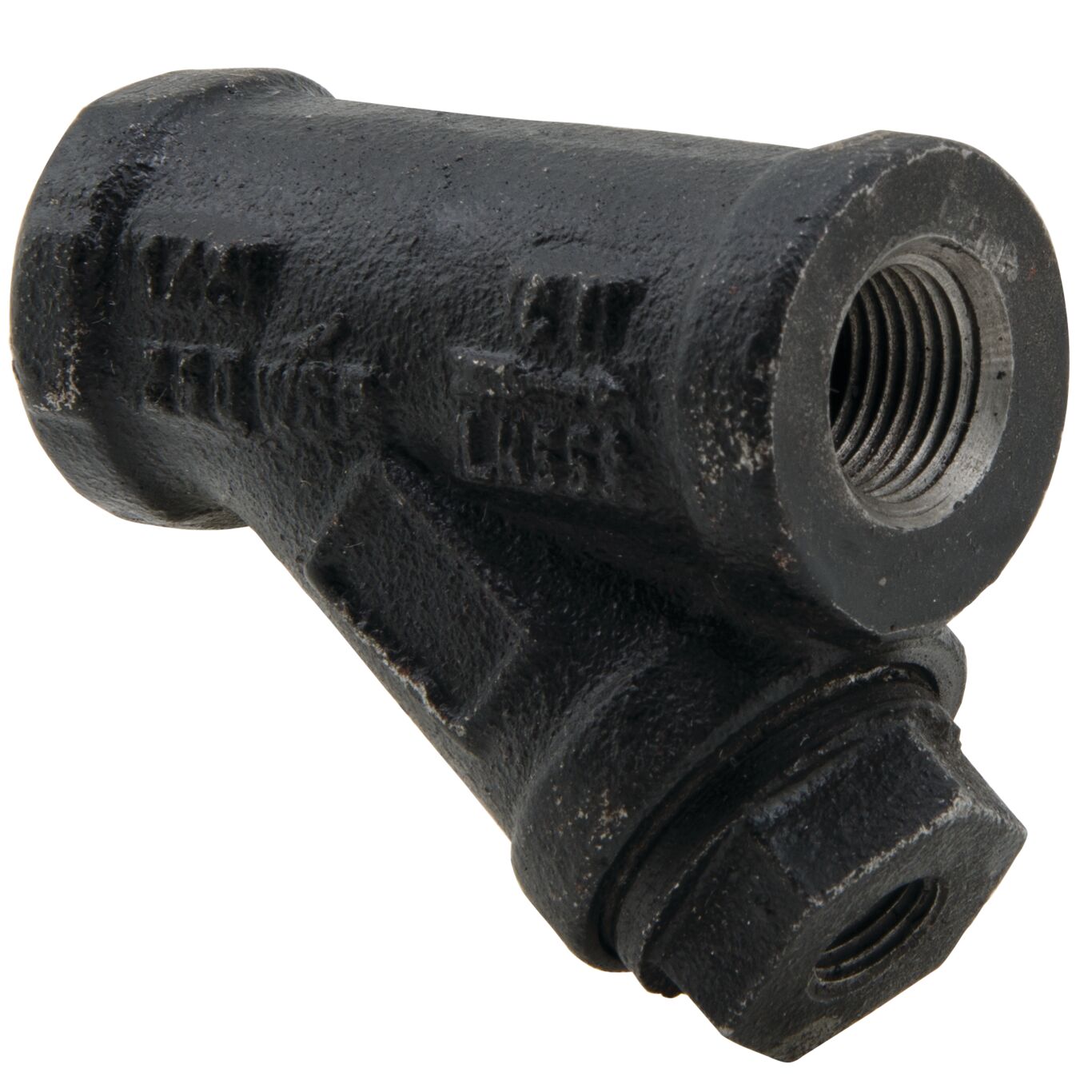

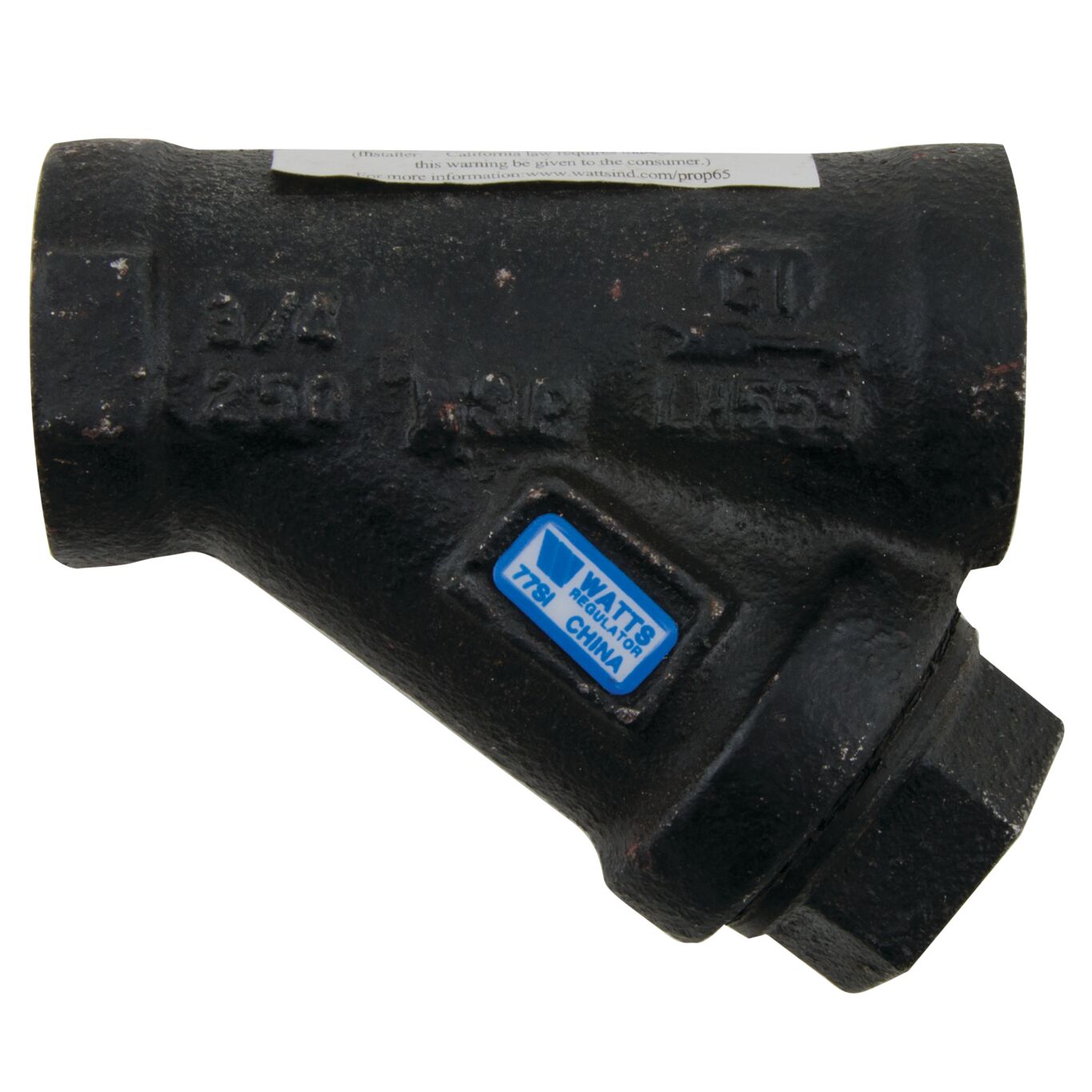

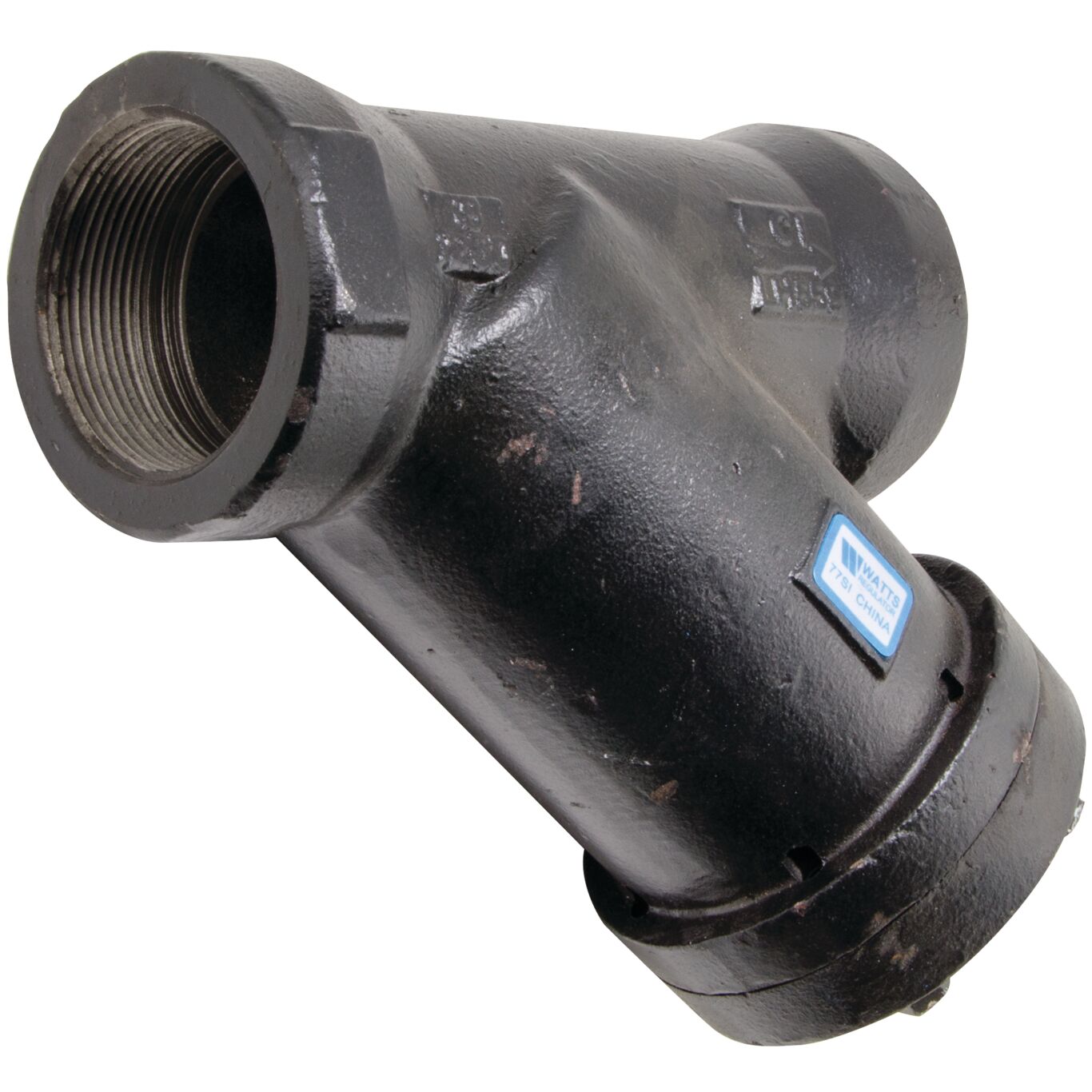

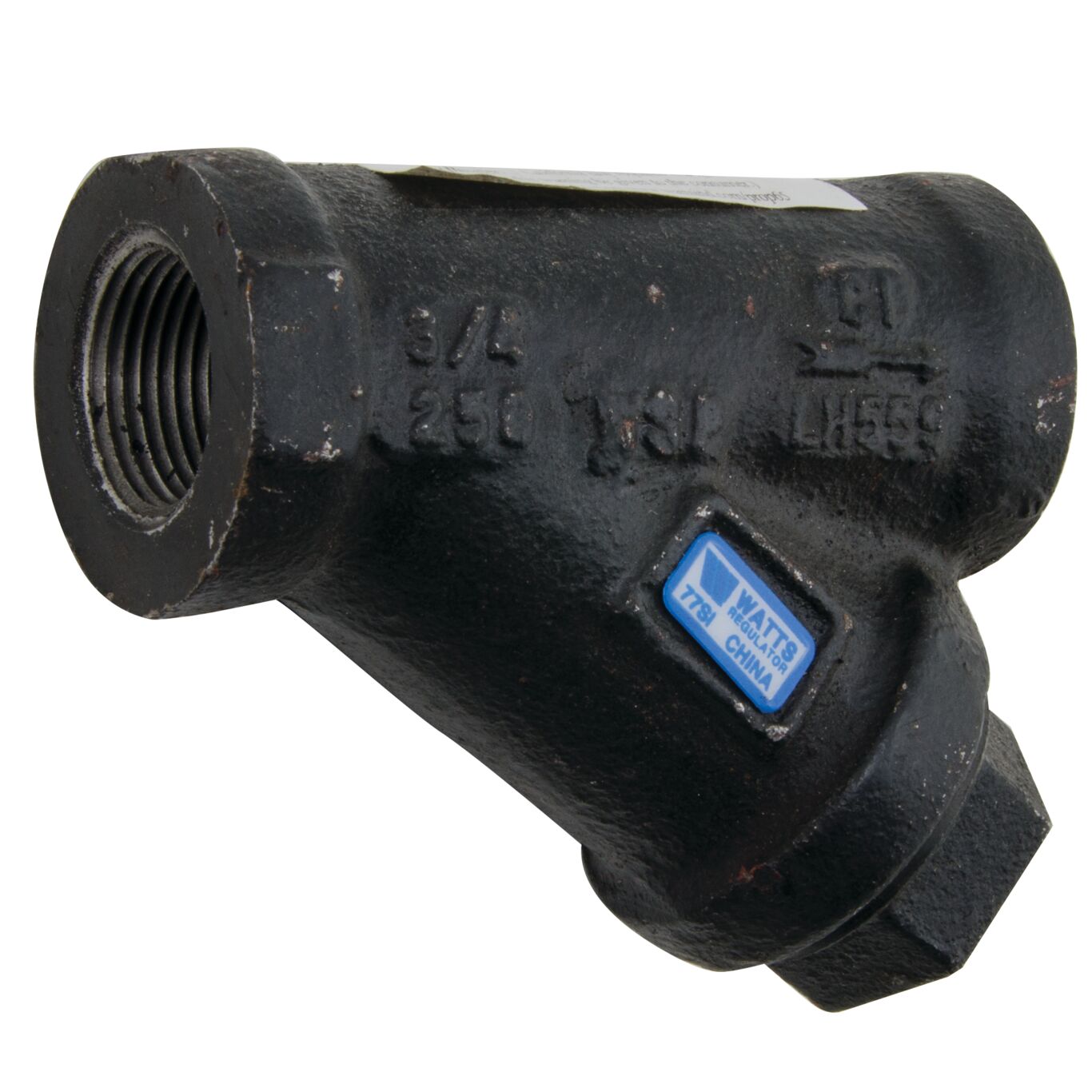

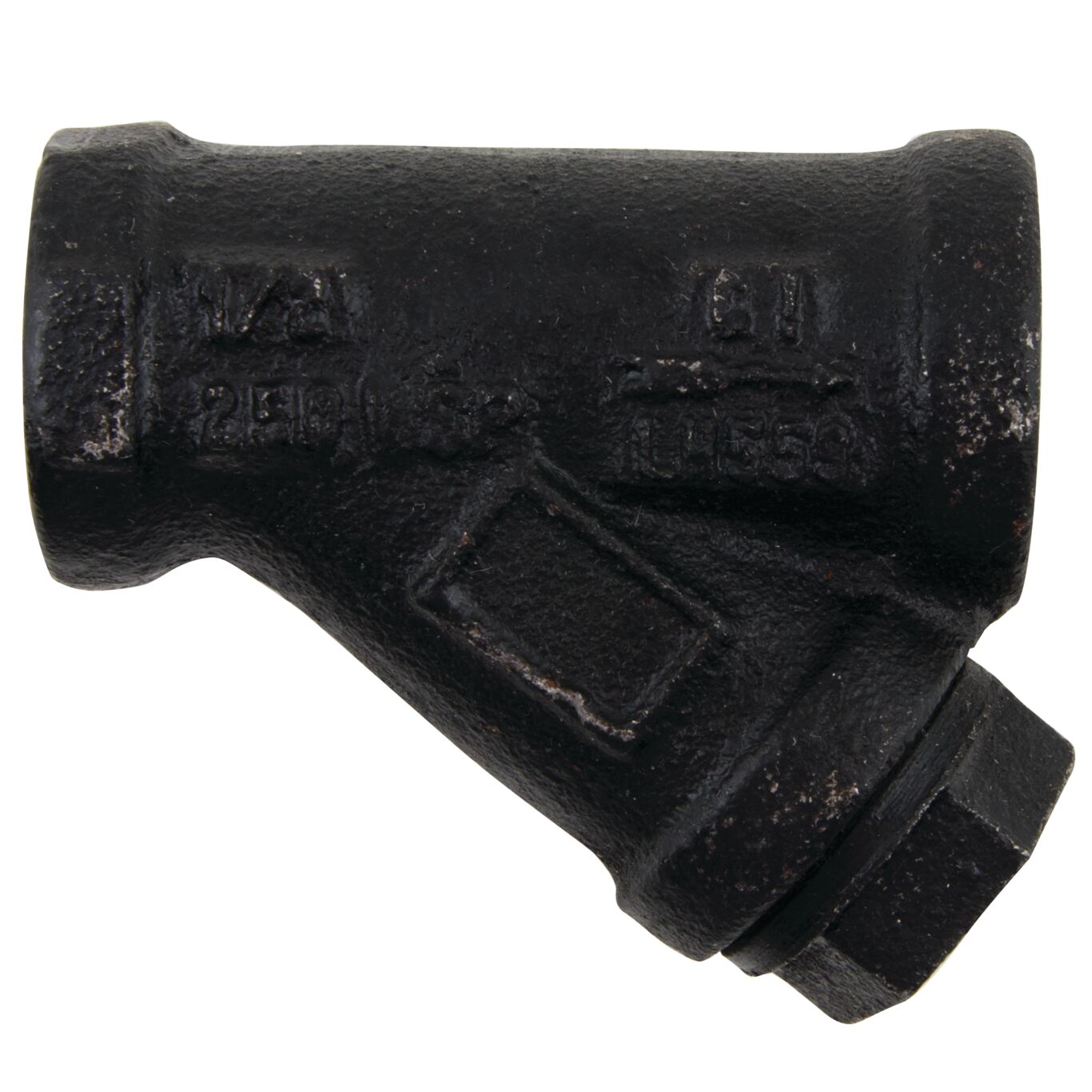

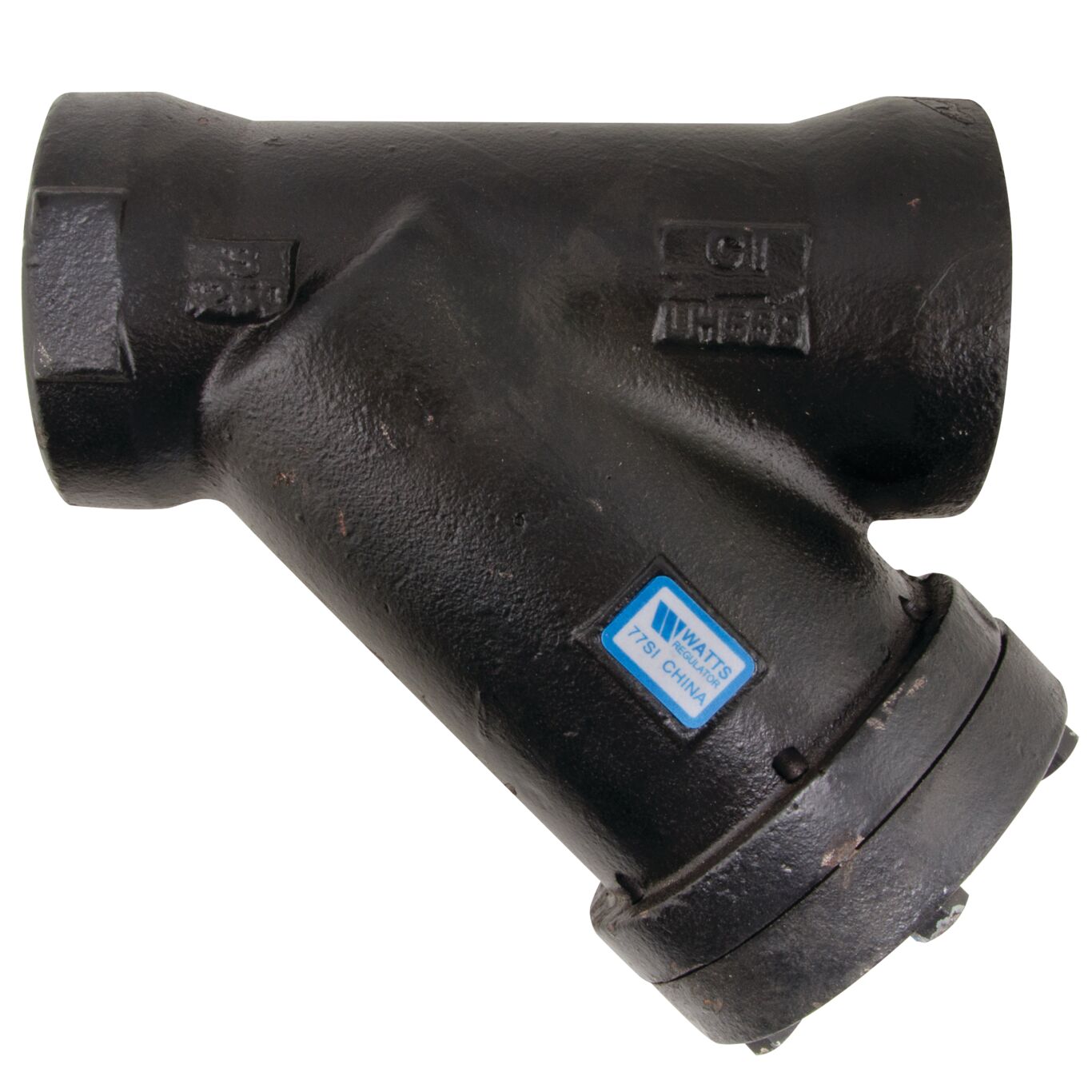

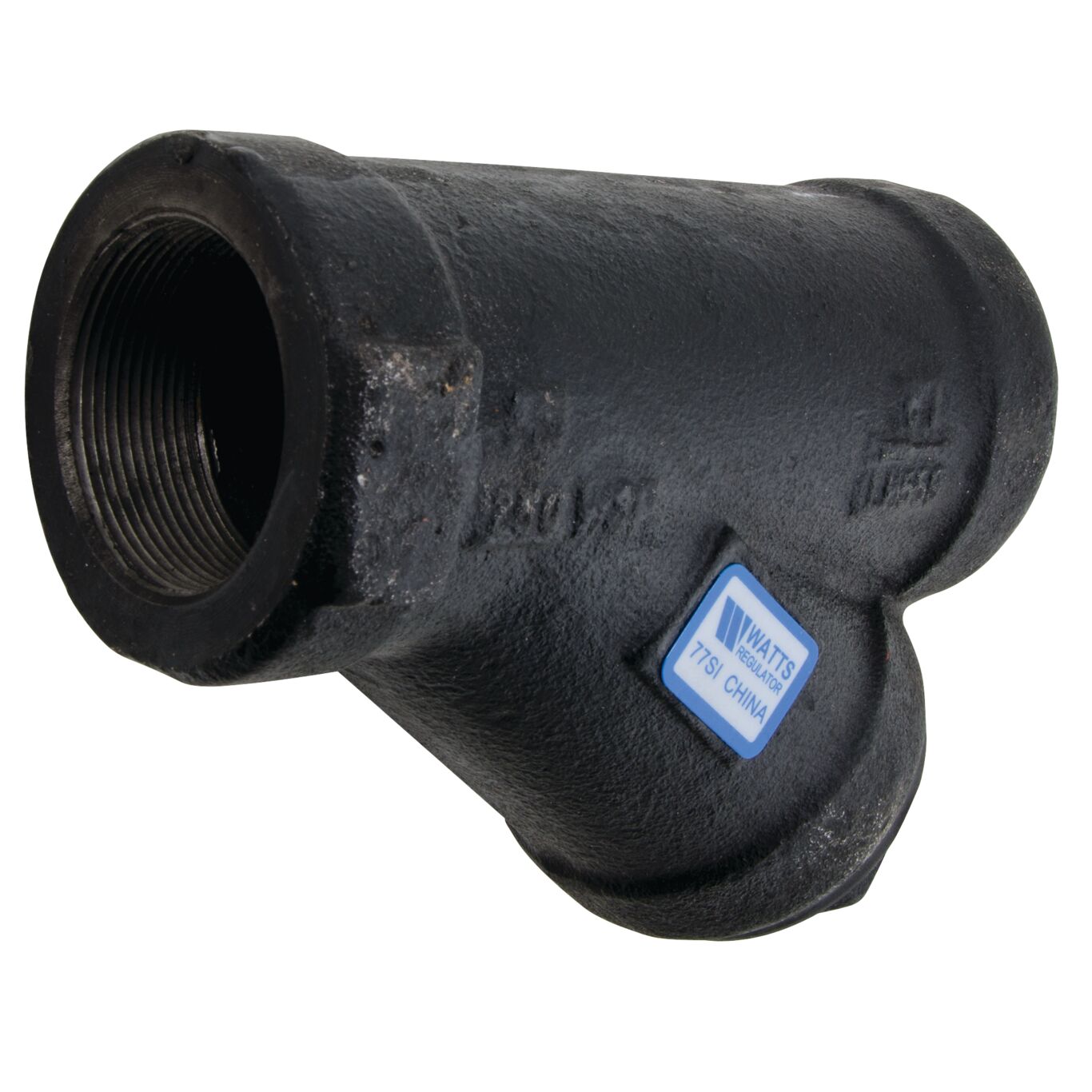

Cast Iron, Wye-Pattern Strainers
Series 77SI Cast Iron, Wye-Pattern Strainers feature a wye-pattern, iron body with NPT threaded connections, stainless steel screen, threaded iron retainer cap with non-asbestos gasket and blow-down connection. Series 77SI has machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum Pressure (non shock): 400psi (27.6 bar) at 150°F (66°C) WOG, 250psi (17.2 bar) at 406°F (208°C) WSP.
Features
- Cast steel 45° wye-pattern body for efficient flow and long life
- NPT threaded connection and threaded iron retainer cap for easy installation
- Machined seat allows self-aligning screen to help ensure a perfect fit
- Non-asbestos gasket and blow-down connection for greater confidence
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 77SI
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
