77F-DI-FDA-125

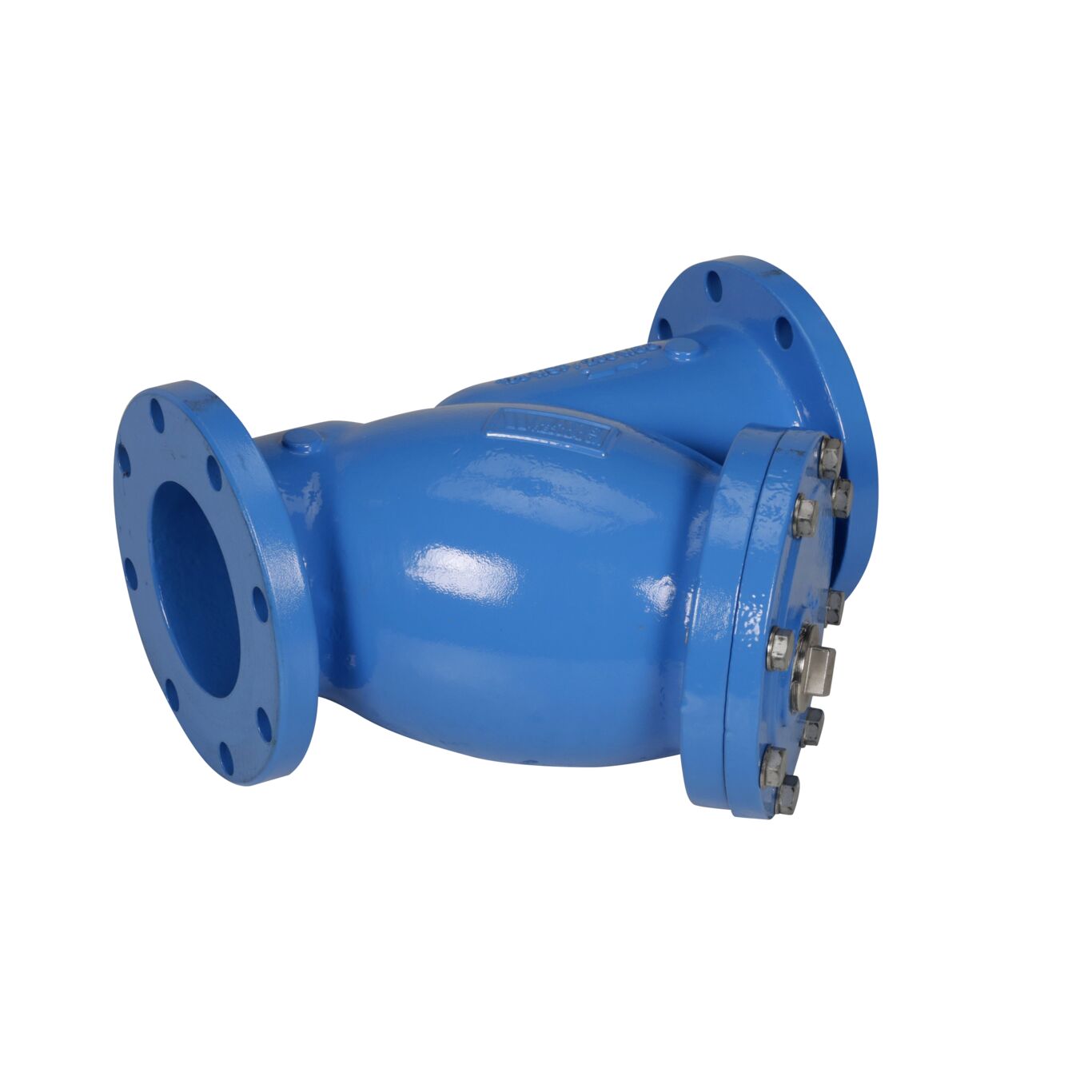

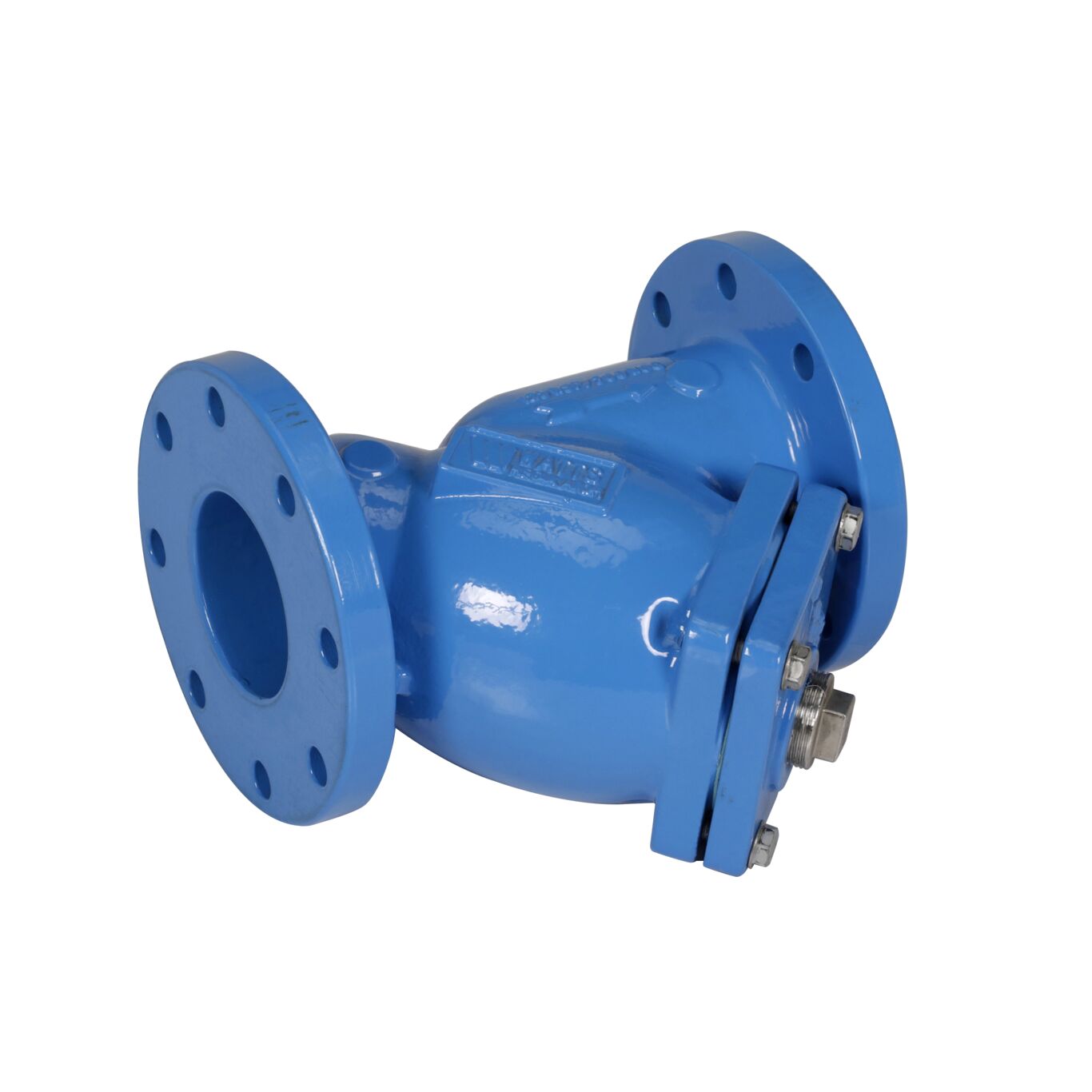

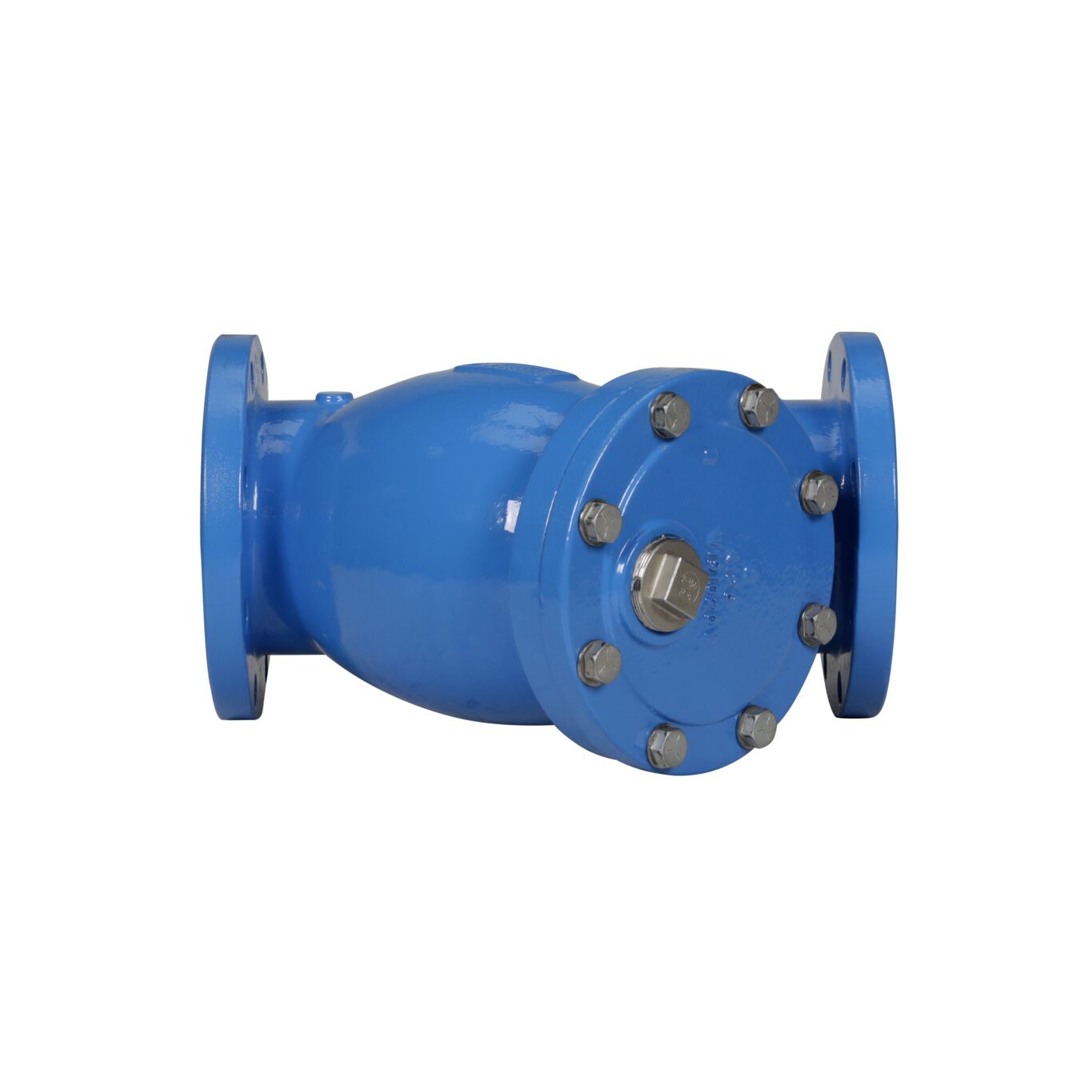

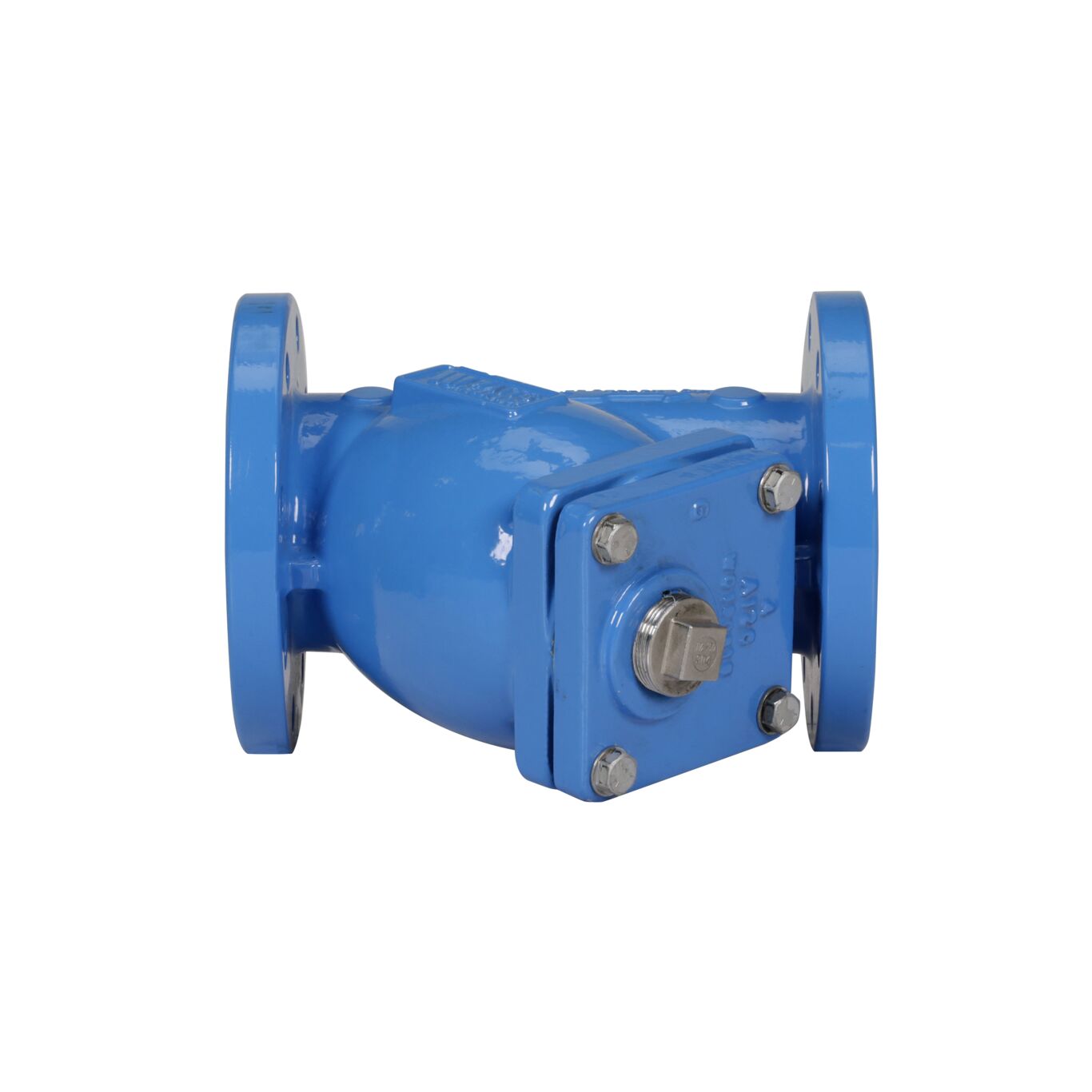

Cast Iron, Class 125 Flanged End, Wye-Pattern Strainers with FDA Epoxy Coating
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) at 140°F (60°C) WOG.
Features
- FDA-approved epoxy coating inside and out — suitable for potable water and food applications
- Class B cast iron body with Class 125 flanged connections for durability and long life
- Stainless steel screen for reliability and easy cleaning
- Bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 77F-DI-FDA-125
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
