77F-DI-125

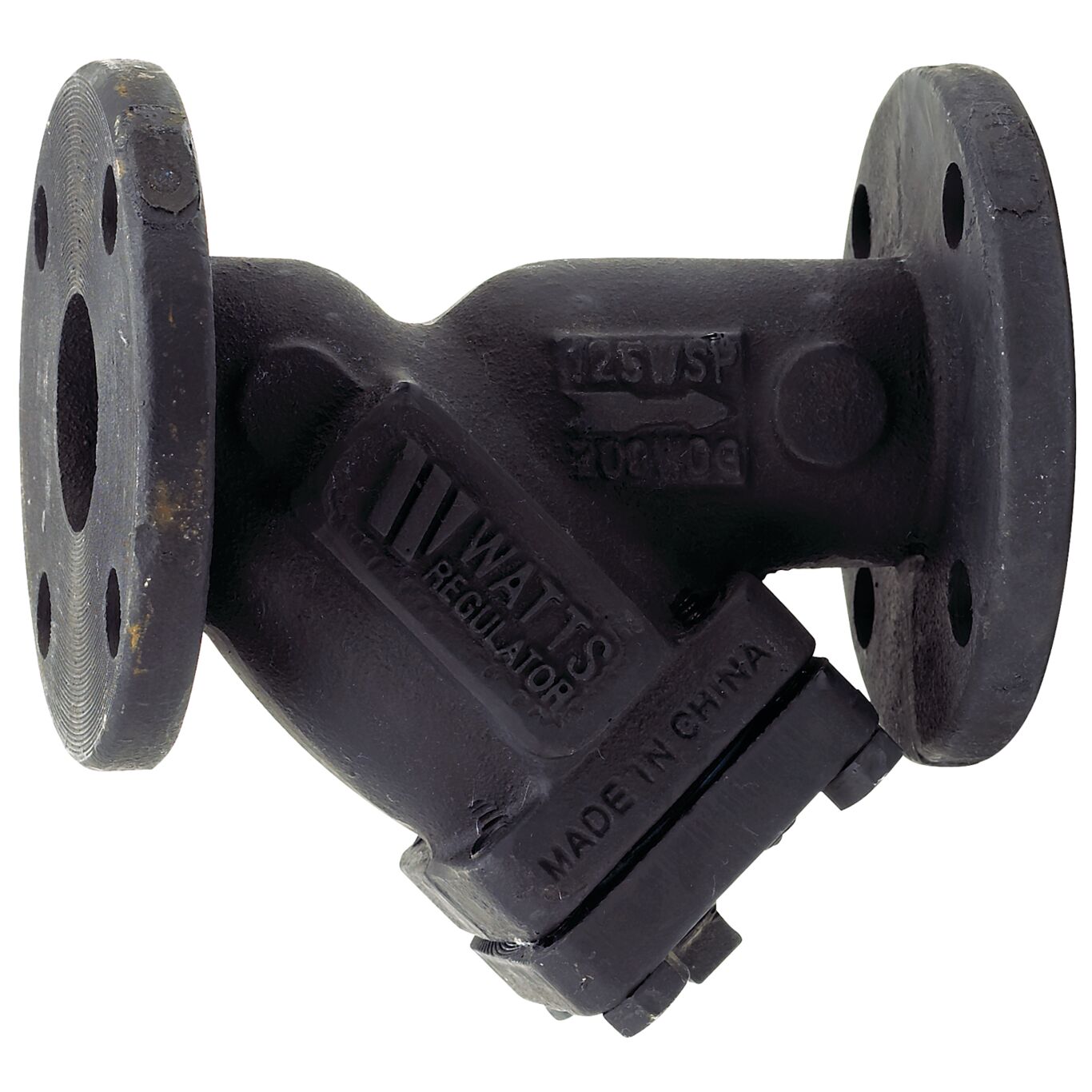

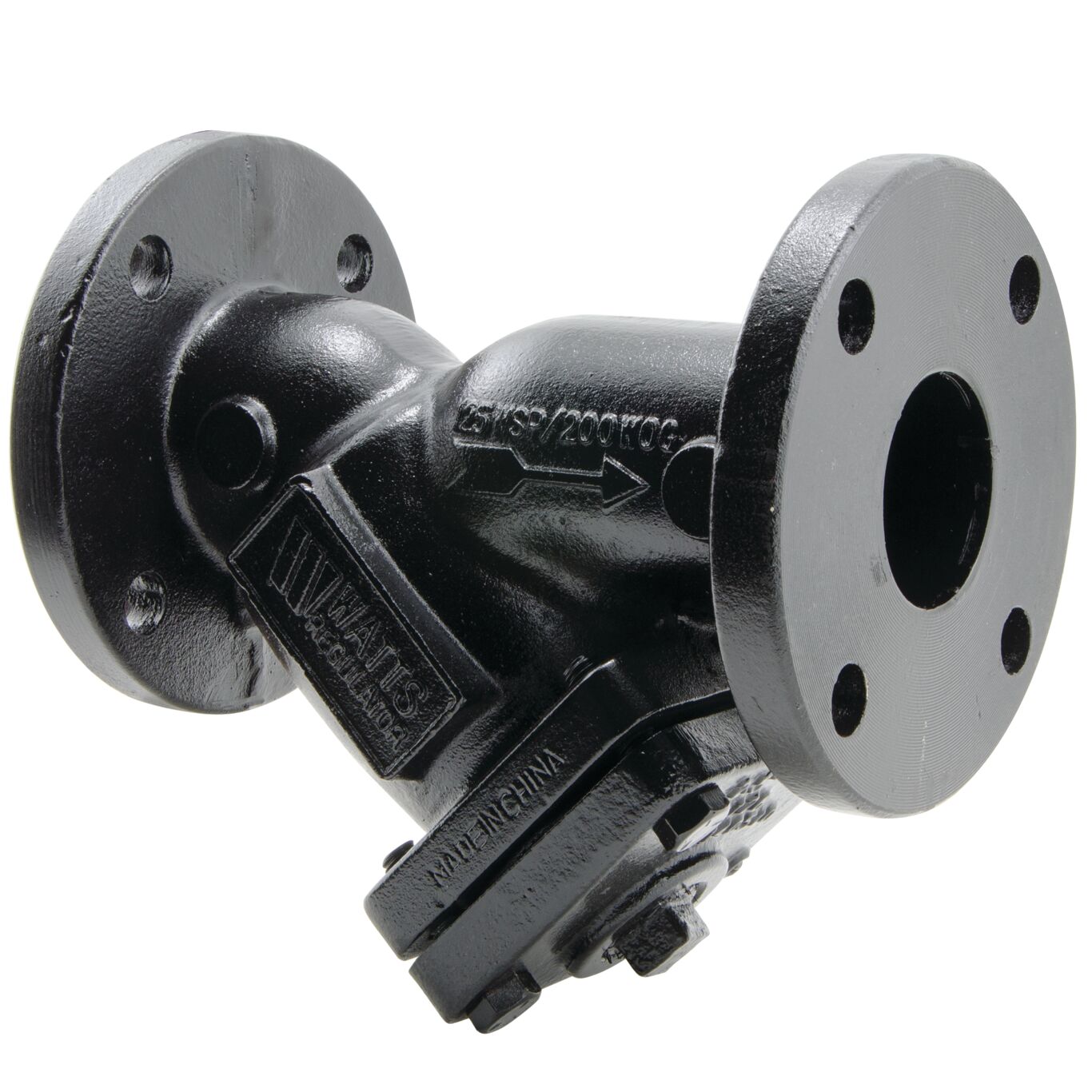

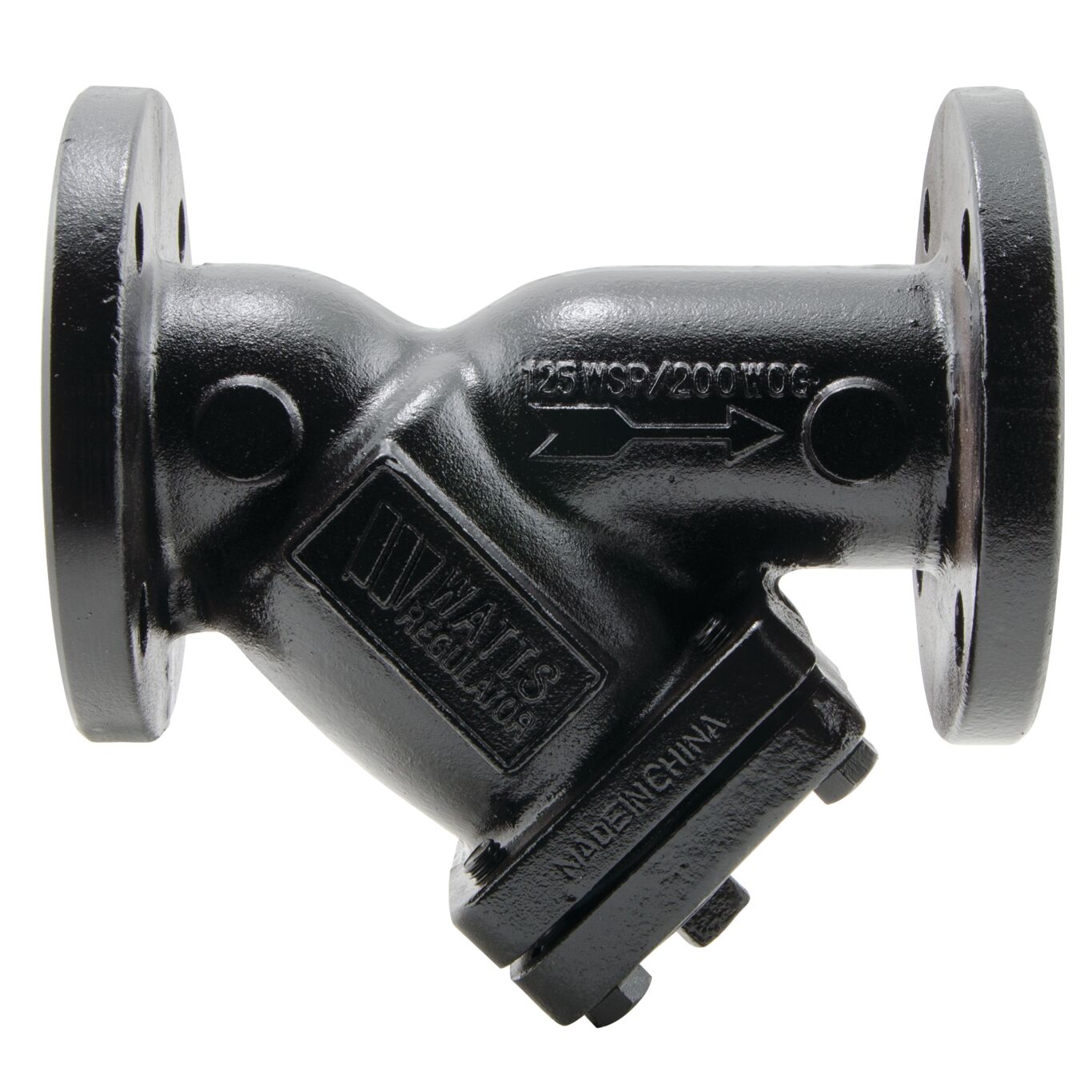

Cast Iron, Class 125 Flanged End, Wye-Pattern Strainers
Series 77F-DI-125 Cast Iron, Flanged, Wye-Pattern Strainers feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, cast iron blow-down plug, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) at 210°F (99°C) WOG, 125psi (8.6 bar) at 353°F (178°C) WSP. 14 and 16 in. rated at 150psi (10.3 bar) at 150°F; (66°C).
Features
- Class B cast iron body with Class 250 flanged connections for durability and long life
- Bolted and tapped iron retainer cap with graphite gasket and iron blow-down plug for easy servicing
- Stainless steel screen for reliability and easy cleaning
- Lead Free* models available
