2M2 DWB
Duo-Clozure Brass Washing Machine Shutoff Valve with Wall Box and Decorative Trim Plate

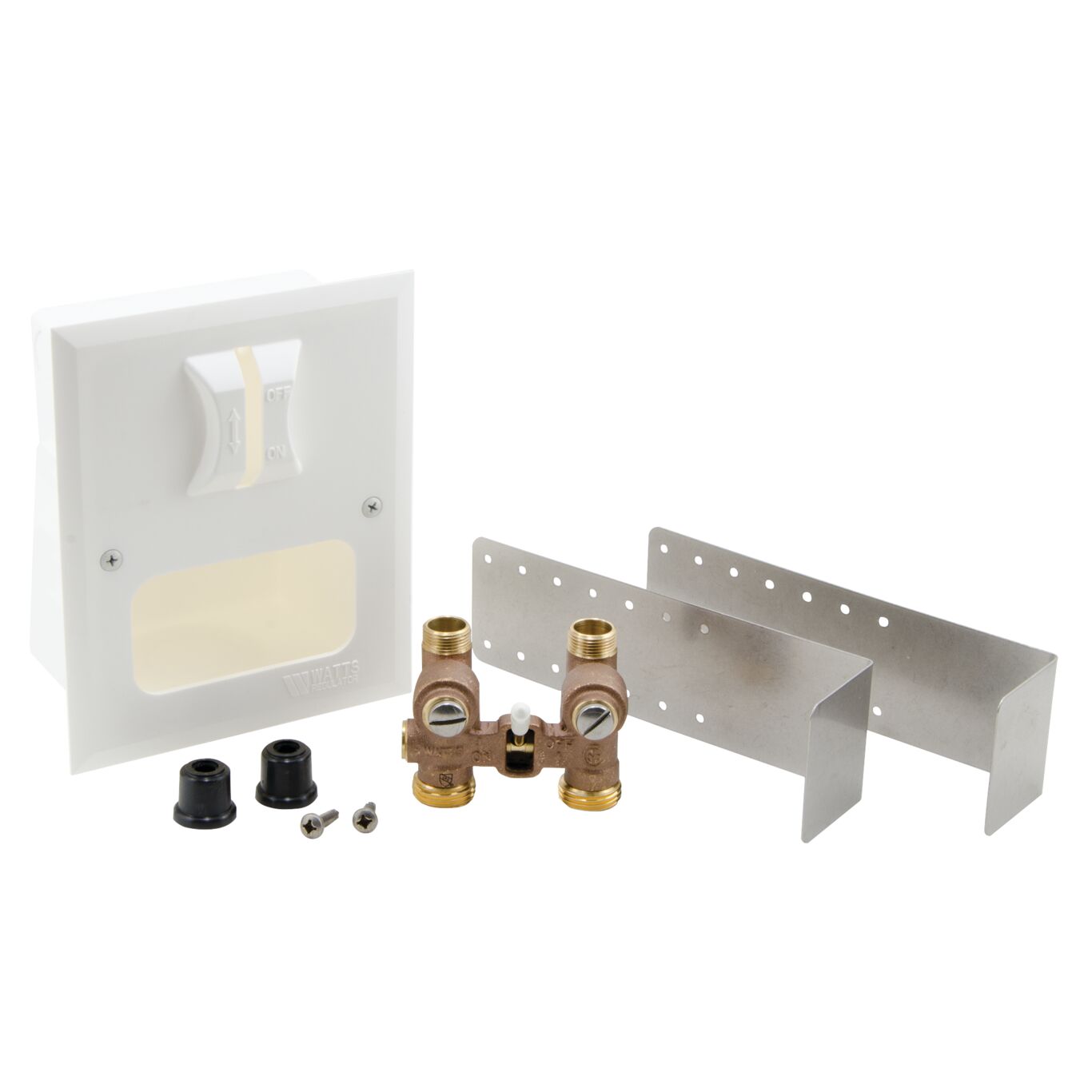

Series 2M2 DWB Duo-Clozure(TM) brass washing machine shutoff valves incorporate a Watts Series 2 Duo-Cloz(TM) washing machine shutoff valve with a molded plastic wall box enclosure, decorative trim plate and ½ inch ell solder connections for a complete installation.
The Duo-Cloz(TM) brass washing machine shutoff valve is designed to simultaneously control the flow of both hot and cold water to the appliance. The ball-type design allows it to be opened to any position to throttle water flow and minimize harmful water hammer and banging pipes caused by fast closing washing machine solenoid valves. The molded plastic enclosure with top and side knockouts accepts the hot and cold water supply piping as well as a 1 1/2 and 2 inch (40 and 50mm) drain knockout to accommodate the waste drain pipe. The trim plate can be decorated to blend in with the wall finish.
Features
- Used to manually eliminate water pressure on supply hoses and prevent catastrophic water damage
- Brass body construction
- Decorative white faceplate that can be painted or papered to match wall decor
- Connects to 1 1⁄2 or 2 IN (40 or 50mm) drain piping
- Side or top water supply piping
- Supplied with water pressure test plugs
- Easy to install, complete with adjustable stud mounting brackets
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 2M2 DWB
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
