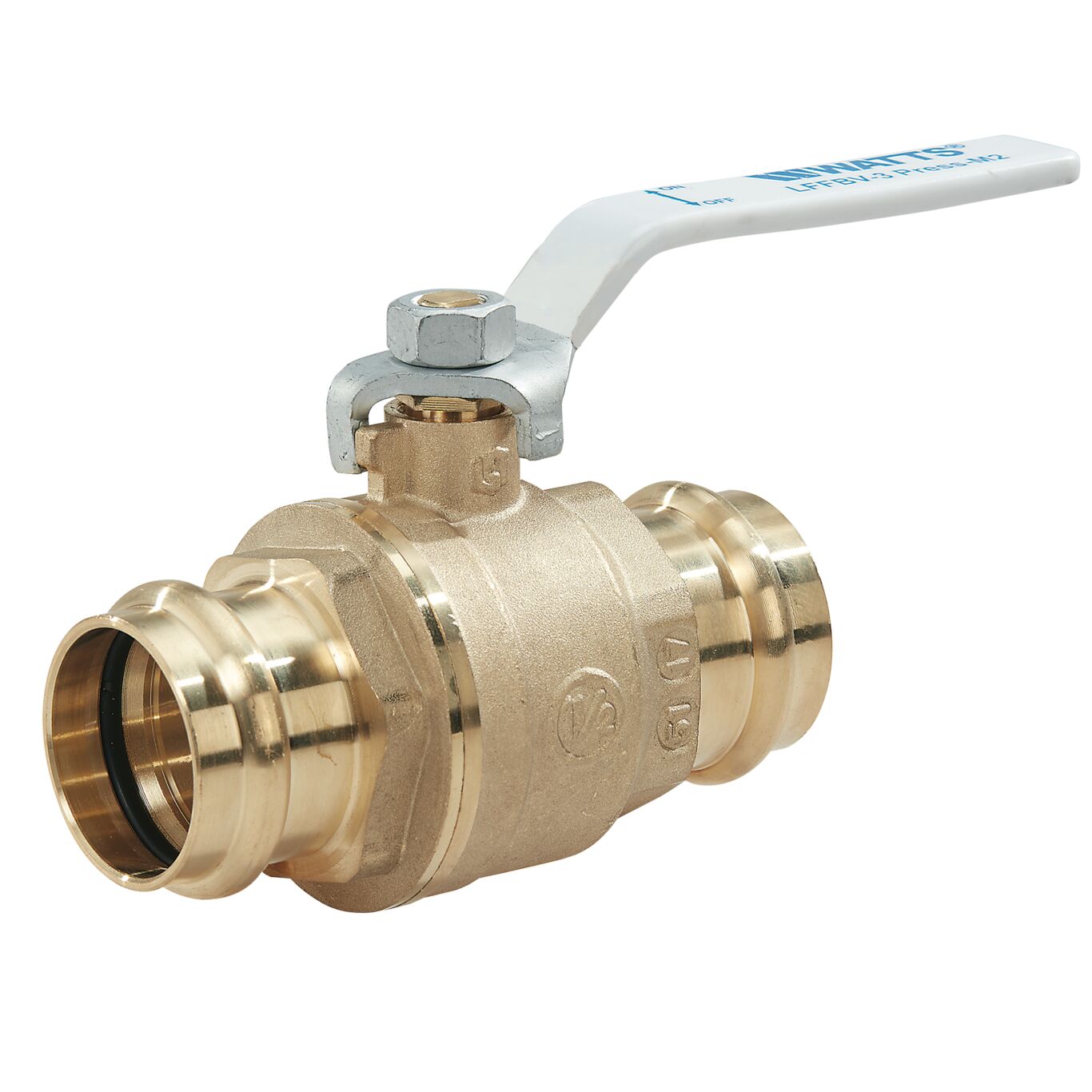

LFFBV-3-PRESS-M2

2-Piece, Full Port, Lead Free* Brass Ball Valves with Integral Press Fitting End Connection

Series LFFBV-3 Press-M2 is a 2-piece, full port, forged body of Lead Free* brass. It is certified to NSF/ANSI 61 Annex G by UL for potable water applications. It consists of Lead Free* brass ball and PTFE seats, seal, and thrust washer. Press fitting is rated to 250psi CWP up to 250°F (13.8 bar to 121°C) and press ends comply to ASTM-B88. Series LFFBV-3 Press-M2 is designed for use in ProPress® Piping Systems. Model sizes 1/2" to 4" available.

Features

Tested and Certified to NSF/ANSI 61 Annex G 1⁄2" – 4"
Designed for types K, L, and M hard copper tubing 1⁄2" - 4" and soft copper tubing 1⁄2" – 11⁄4"
Press end connections comply to ASTM-B88
Press connection rated to 250psi CWP up to 250°F (13.8 bar to 121°C)
