LF340X-8 100-210 1 1/2

Discontinued - Replaced By: LF340X-8 100/210 FS 1 1/2

Part of the LF340 Series

Ordering Code: 0121603

UPC: 098268587494

Lead Free: YES

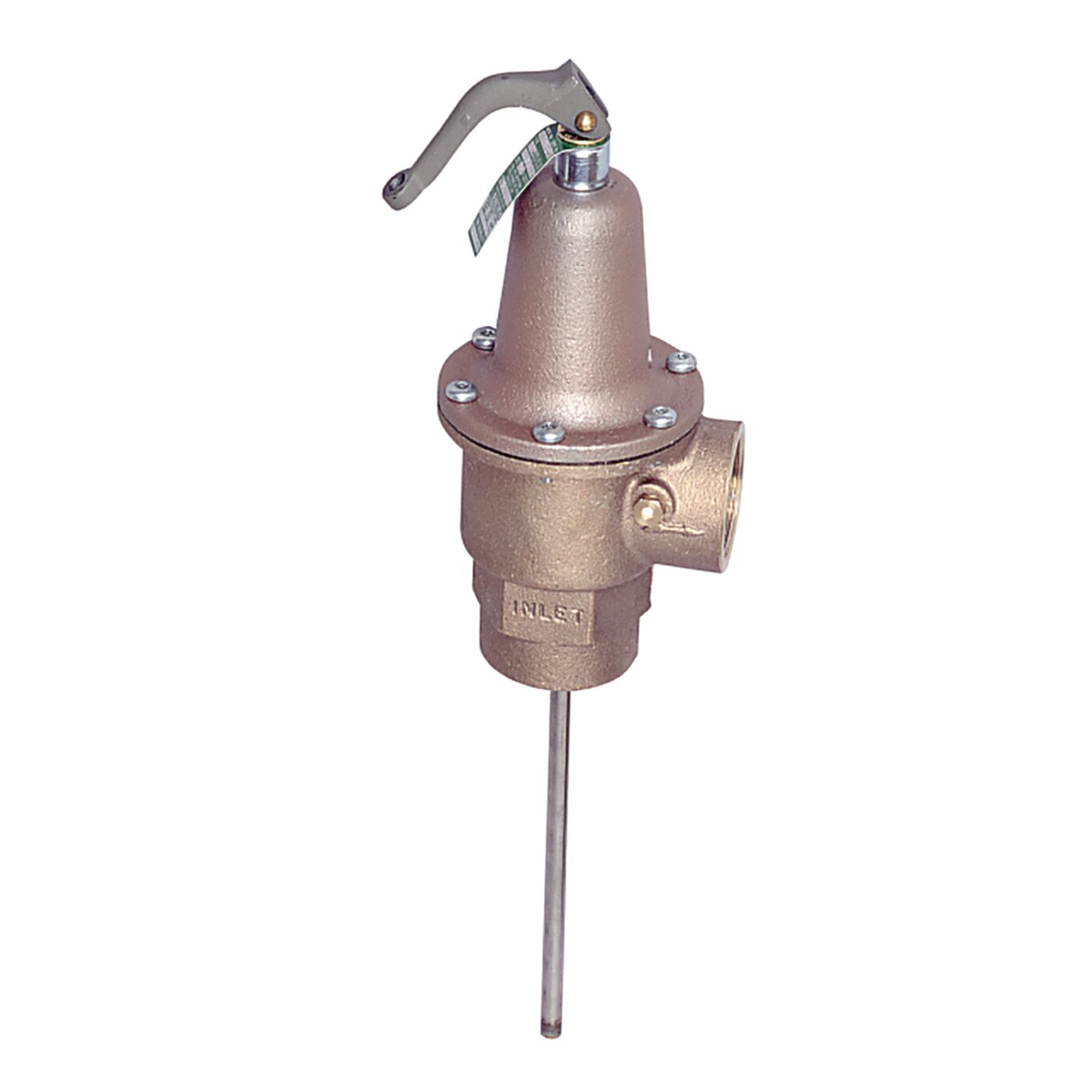

1 1/2 In Lead Free Automatic Reseating Temperature And Pressure Relief Valve, 100 psi, 210 degree F, 8 In Ss Thermostat

This 1 1/2 inch lead free automatic reseating temperature and pressure relief valve with an 8 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 100 psi.

Features

Lead free bronze body construction
Tamper resistant bonnet screws
Unique thermostat with a special thermo-bonded coating
Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
EAN	098268587494
Inlet Connection Size	1 1/2 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121603
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	100
Protection Type	Temperature And Pressure
Series	LF340
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel

Literature

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support

Share this Product

Build Your Spec in Under 5 Minutes

Learn More

Product Accessories

FS-RV-BMS-RFK-1 1/2

BMS Flood Sensor Connection Kit, For Relief Valves with 1 1/2 IN Discharge Outlet
