M335M2-030 3/4
×
![]()
Part of the 335 Series
Ordering Code: 0342692
UPC: 098268784206
Lead Free: Not In Scope

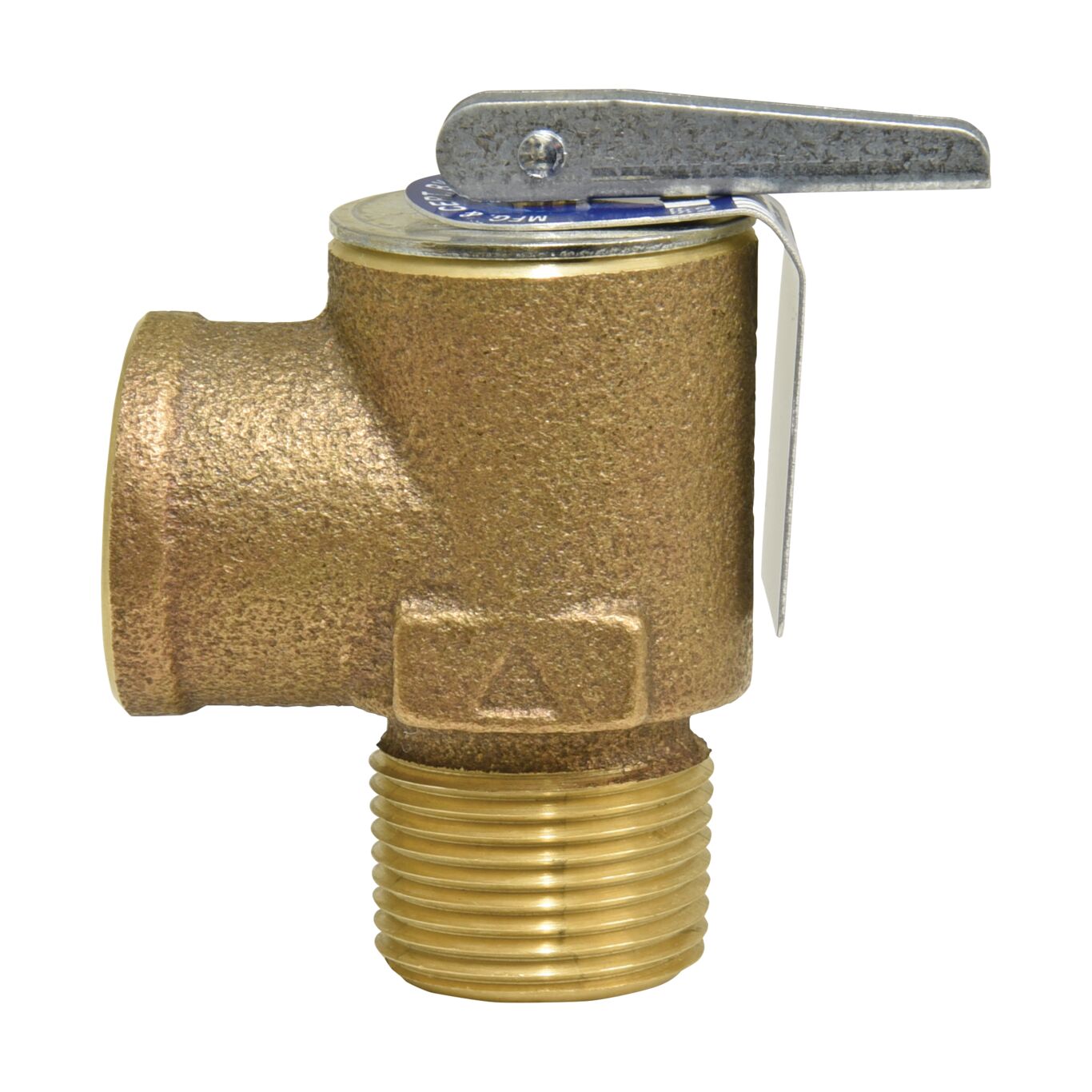

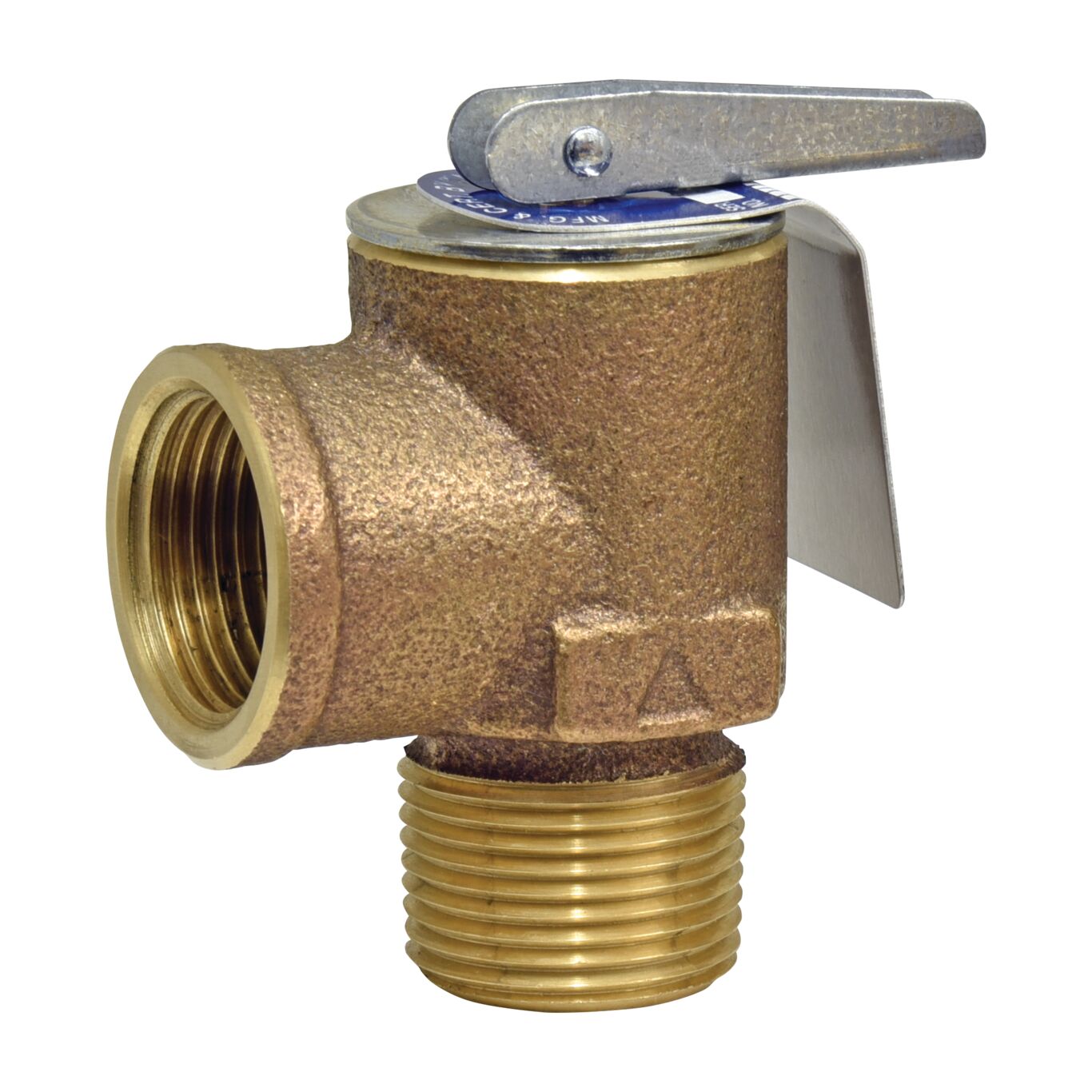

3/4 In Bronze Boiler Pressure Relief Valve, Male Inlet, 30 psi
This 3/4 inch pressure safety relief valve is used in commercial and industrial applications for low pressure, steam heating boilers and process equipment. It consists of a bronze body construction with NPT threaded male inlet and threaded female outlet (drain) connection, stainless steel spring, a top-guided stem, and a non-stick Teflon (R) disc-to-metal seating. The pressure relief is set at 30 psi (2.1 bar).
Features
- High heat resisting silicone disc
- Positive shut off
- ASME Section IV at 30 psi set point
- Seat located above drain
| Specifications | |
|---|---|
| Body Material | Bronze |
| Brand | Watts |
| Buy American Act Compliant | NO |
| EAN | 098268784206 |
| GPM-When Relieved | Does Not Apply to Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | Not In Scope |
| Maximum Temperature-Fahrenheit | 250 |
| Maximum Working Pressure-PSI | 20 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0342692 |
| Pressure Range | Does Not Apply to Product |
| Pressure Relief Setting-PSI | 30 |
| Pressure Steam Discharge Capacity | 510,000 BTU per hour |
| Protection Type | Pressure |
| Series | 335 |
| Shank Length | Does Not Apply To Product |
| Temperature Steam Discharge Capacity | Does Not Apply to Product |
| Thermostat Material | Does Not Apply To Product |
| Thermostat Probe Length | Does Not Apply To Product |
