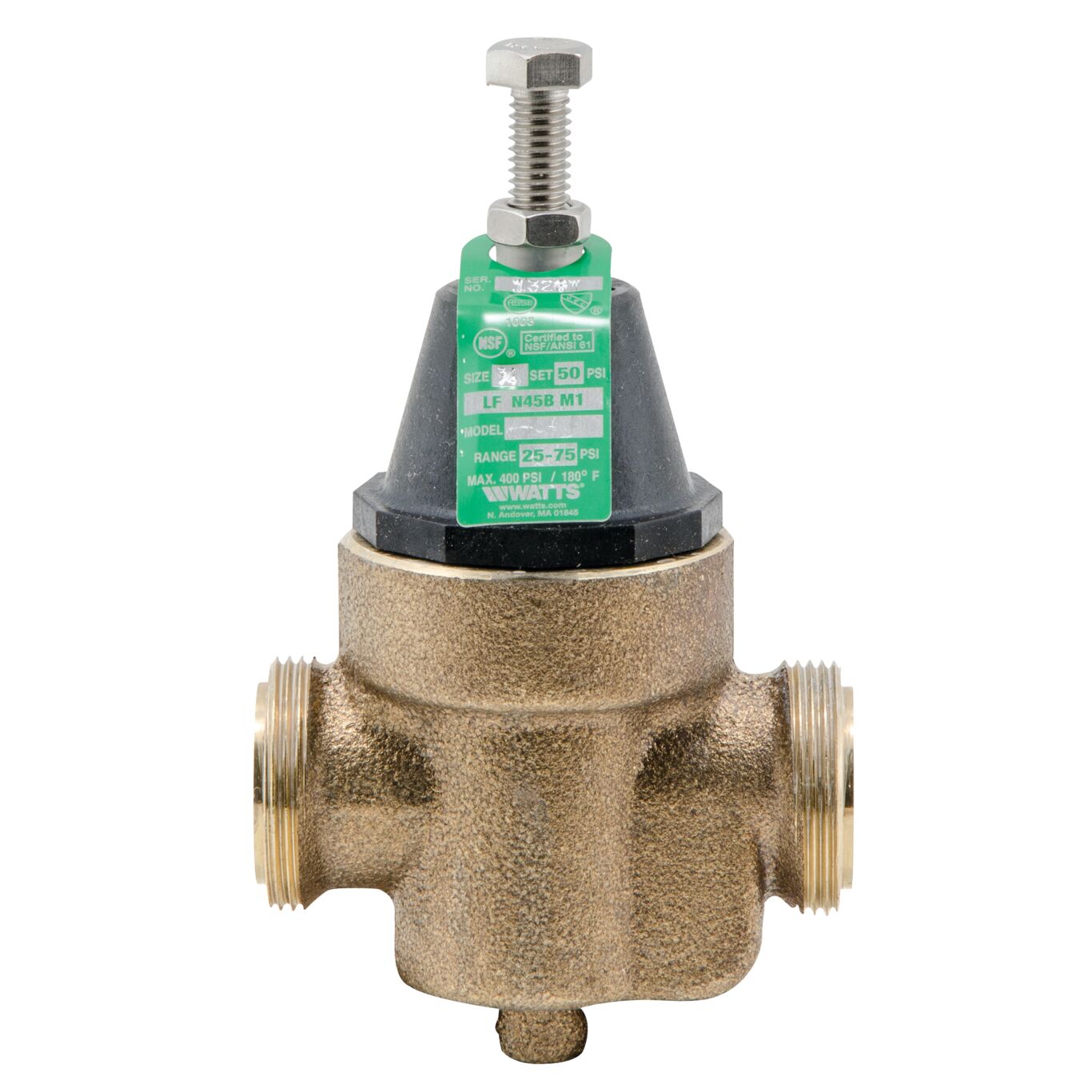

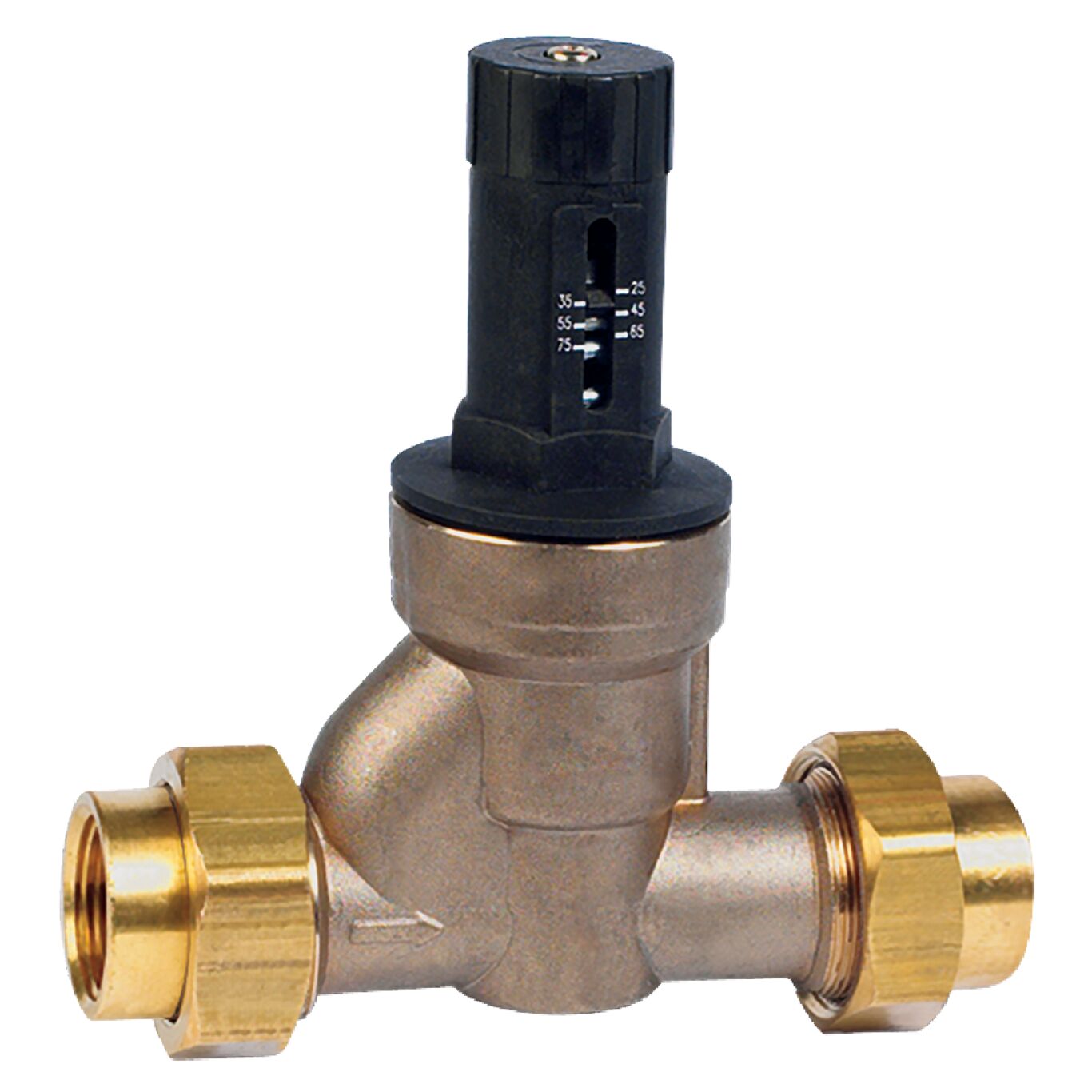

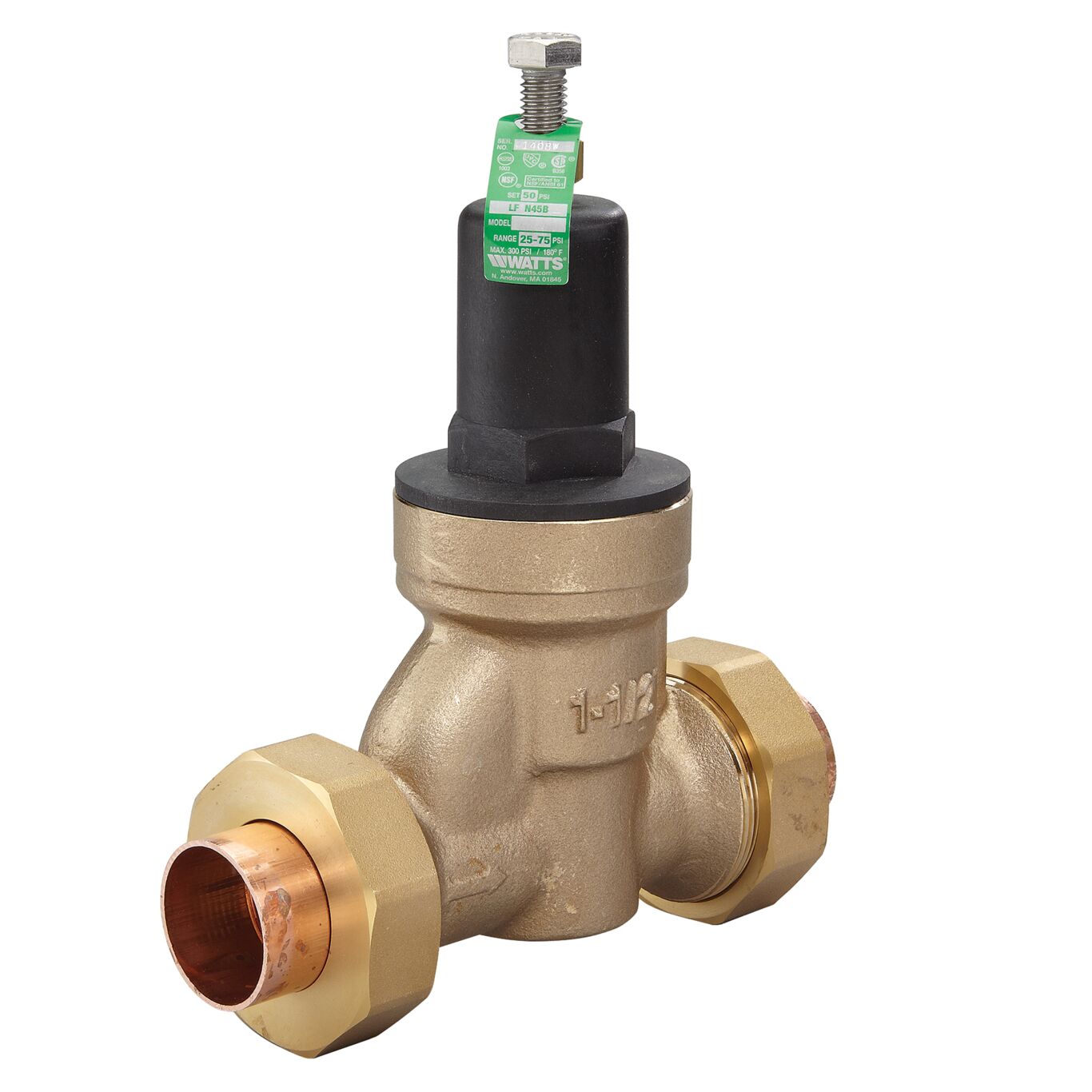

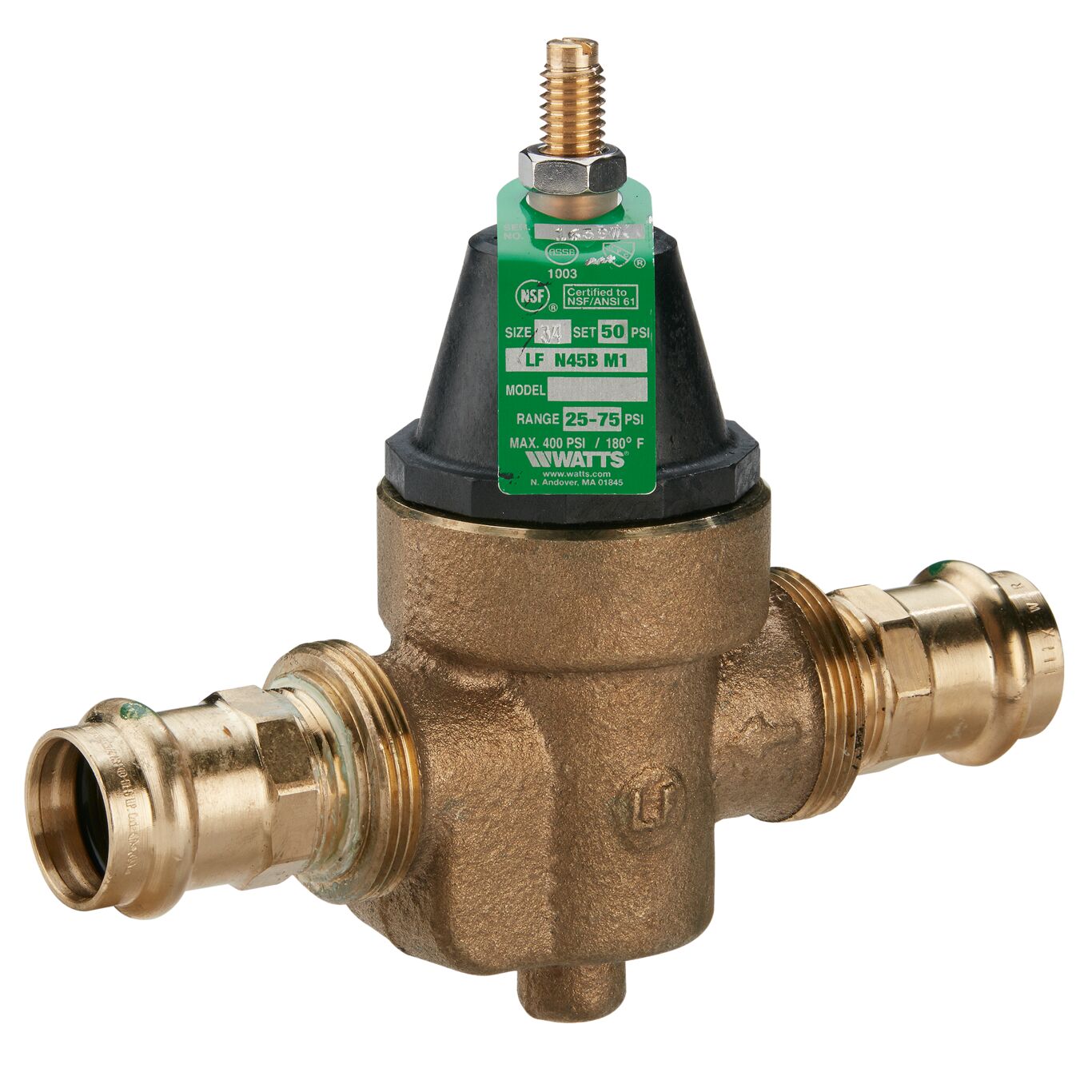

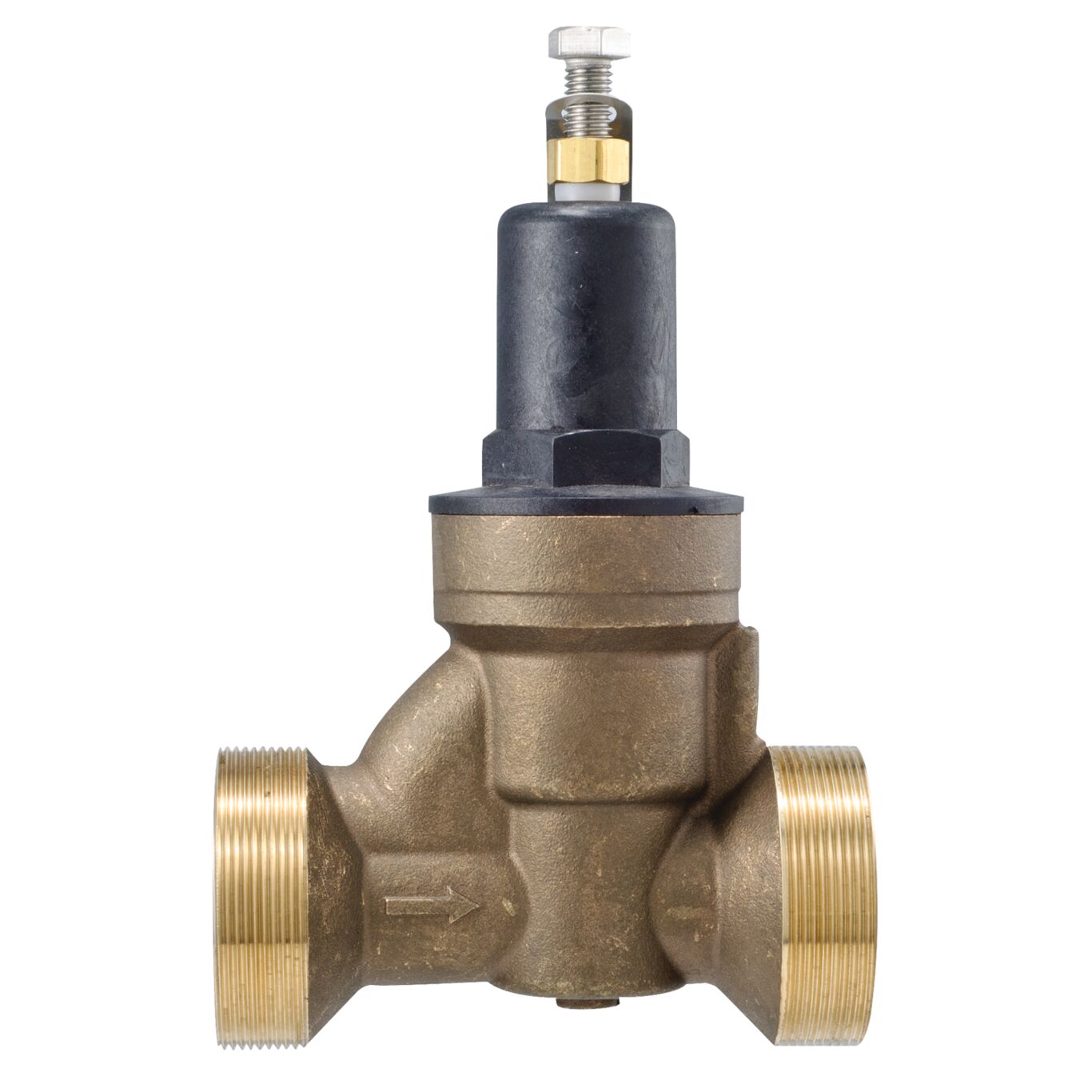

N45B

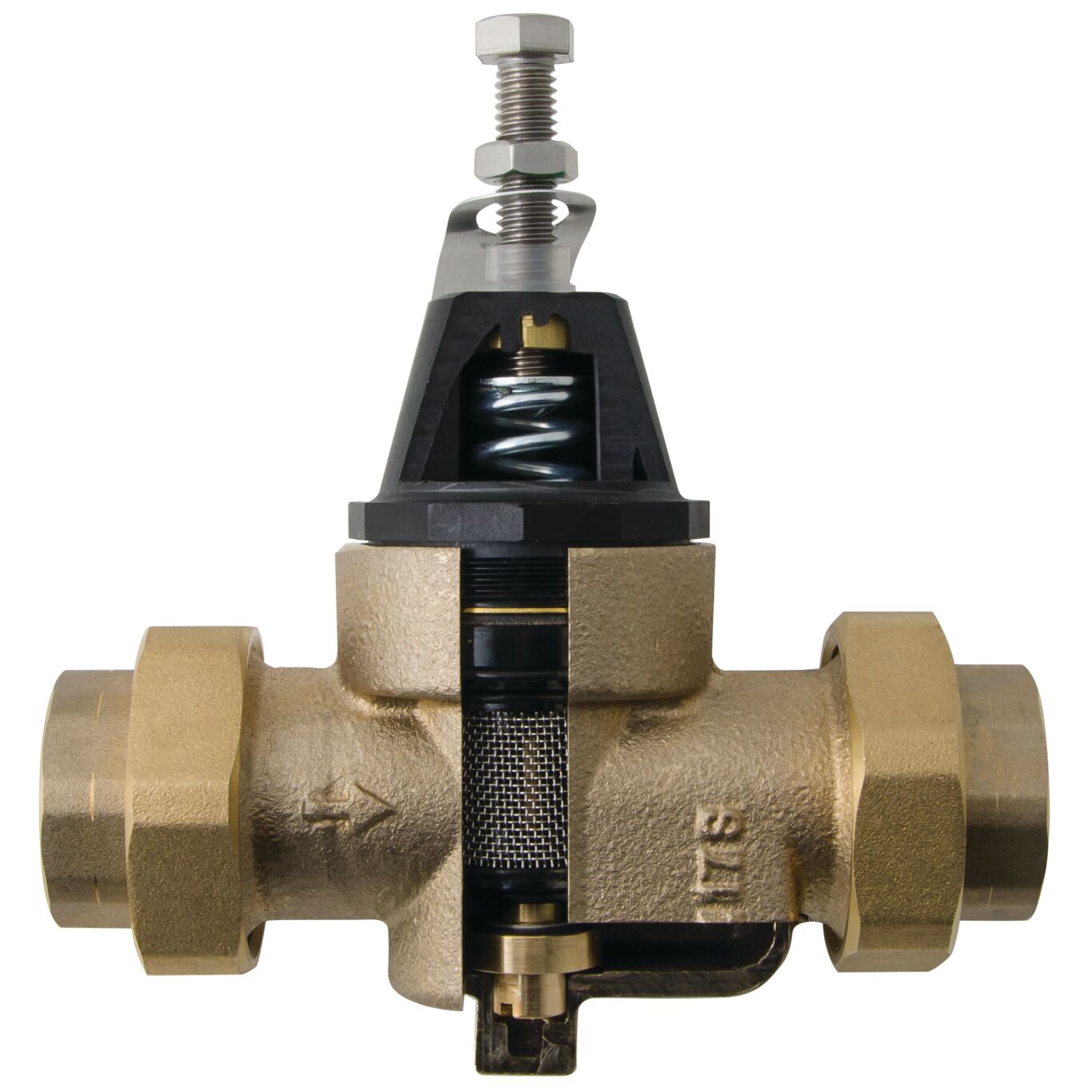

Series N45B water pressure reducing valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a bronze body construction, stainless steel integral strainer, thermoplastic seat and cage, thermal expansion bypass, and sealed spring cage for waterworks pit installations. The N45B series is available in a variety of end connections including: threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Maximum Working Pressure: 400psi (27.6 bar), Adjustable reduced pressure range: 25 to 75 psi (172 to 517 kPa), Standard pressure setting: 50 psi (345 kPa).
Literature
Select a Model

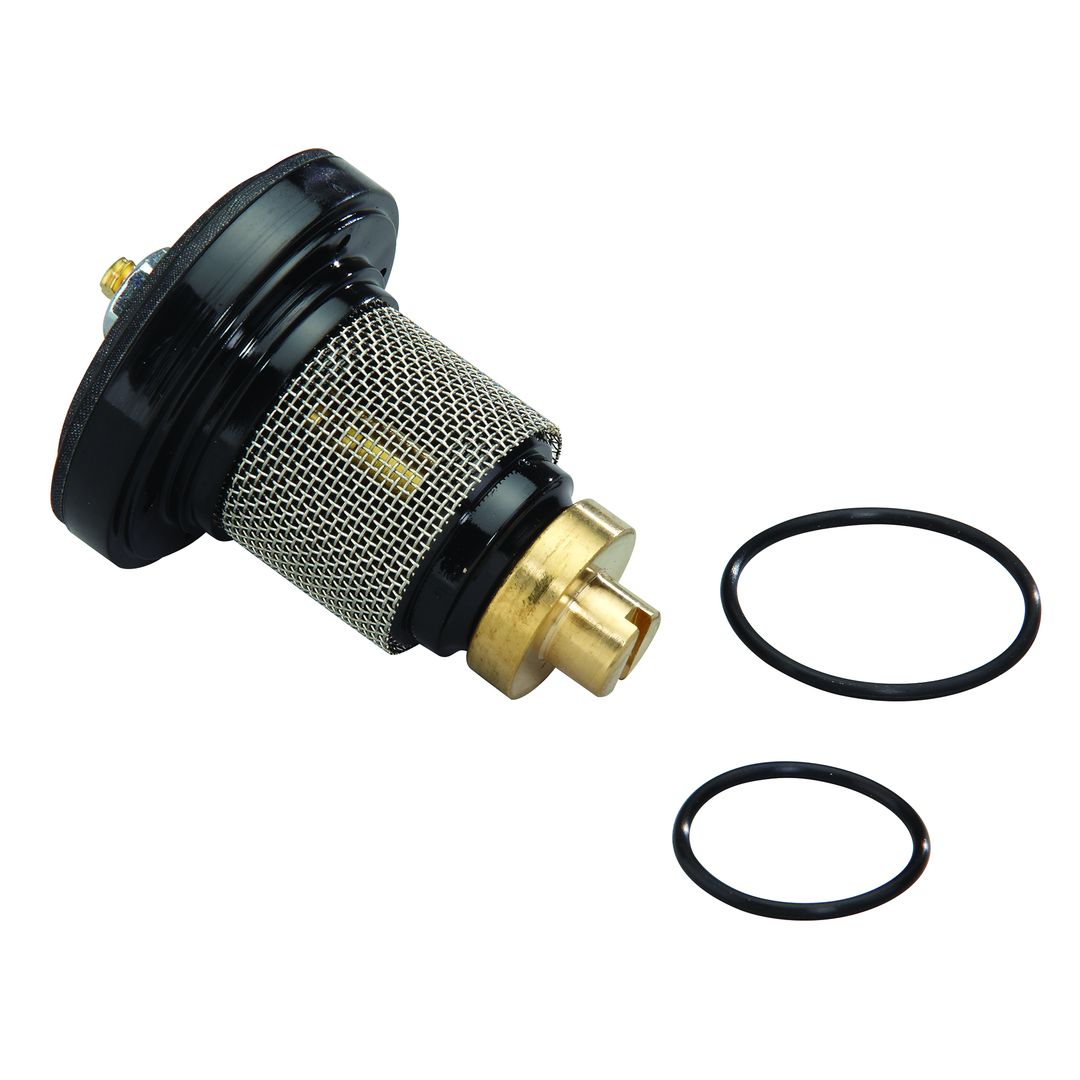

Select options below to identify the UPC, Order Code, and Repair Kit for a specific N45B
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
