LF25AUB-Z3

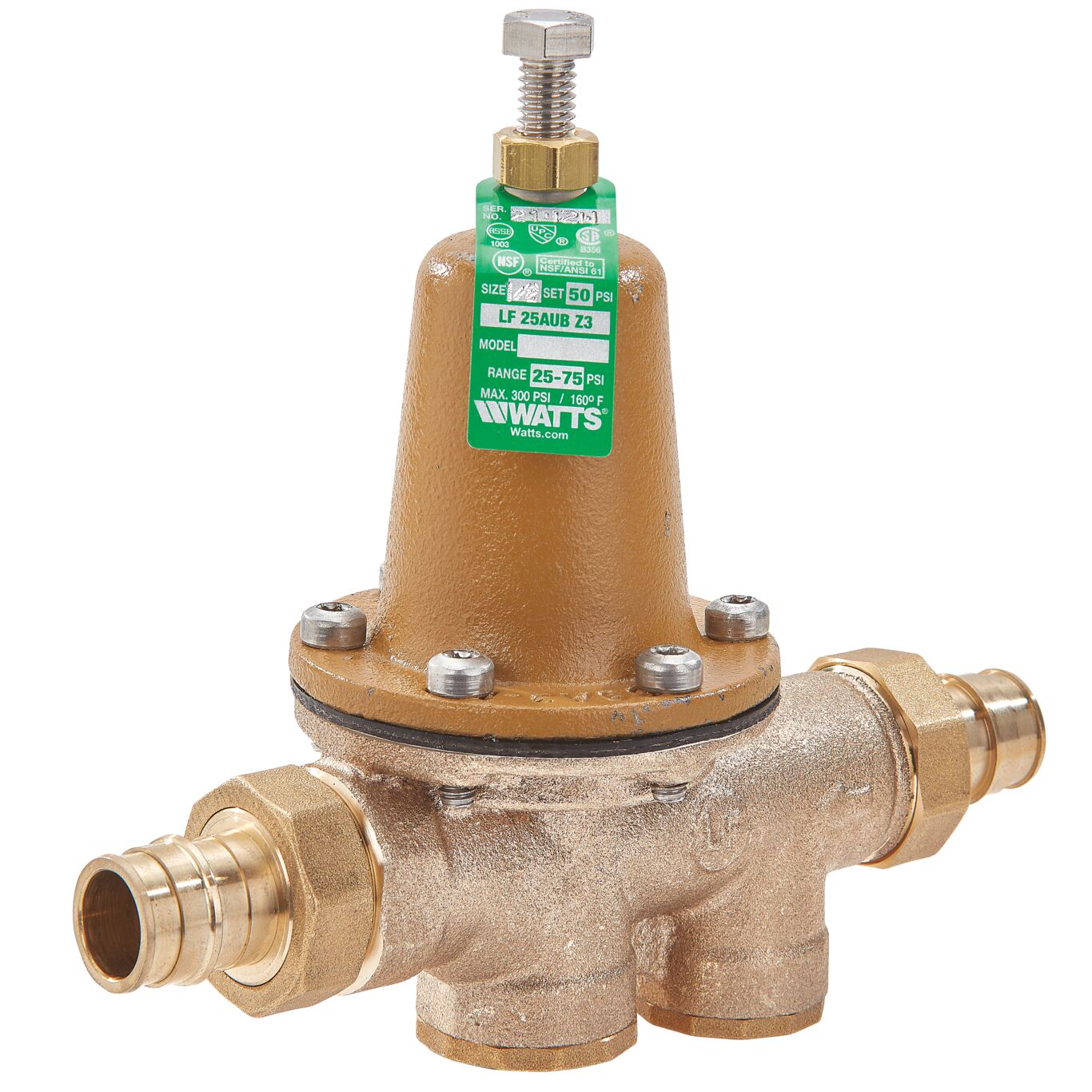

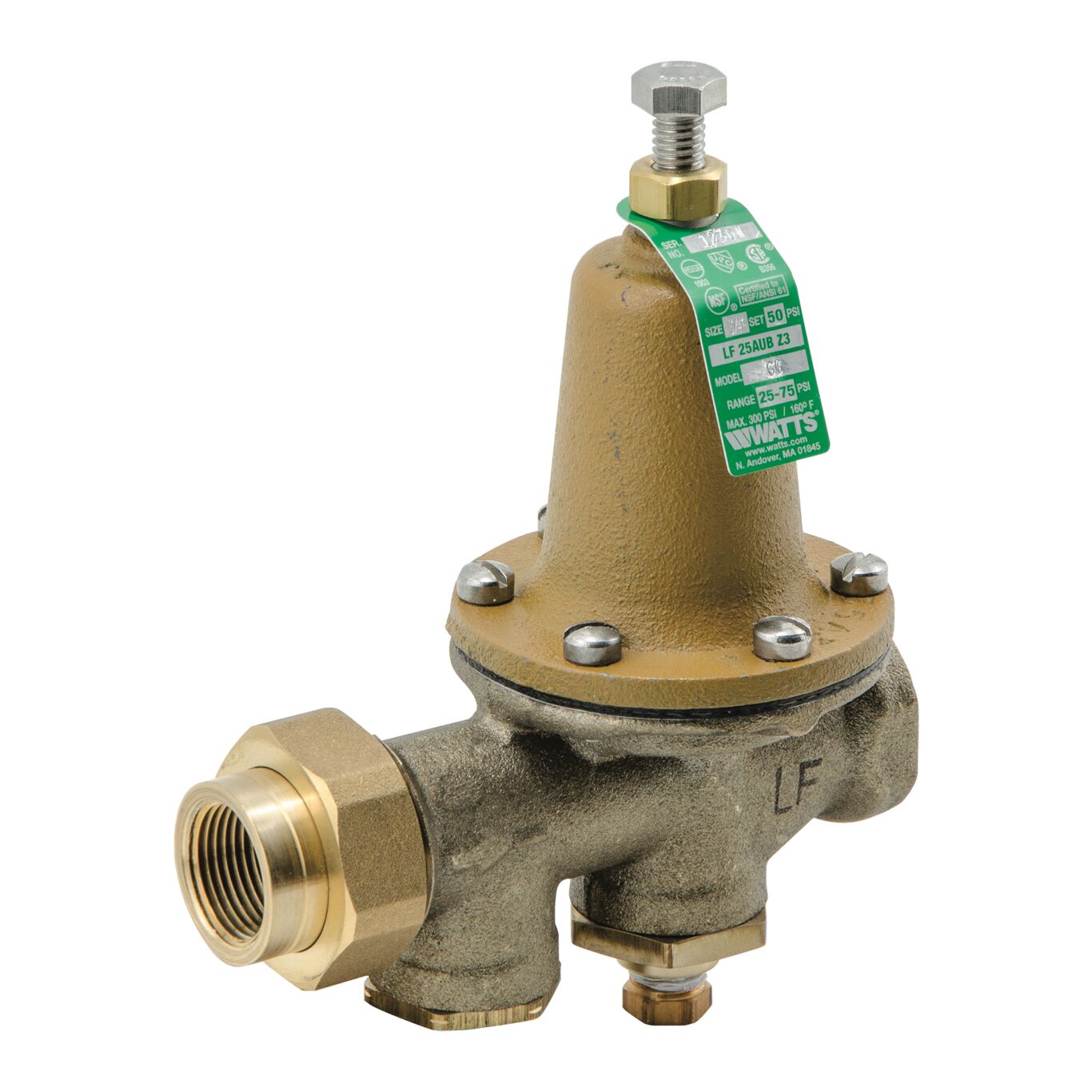

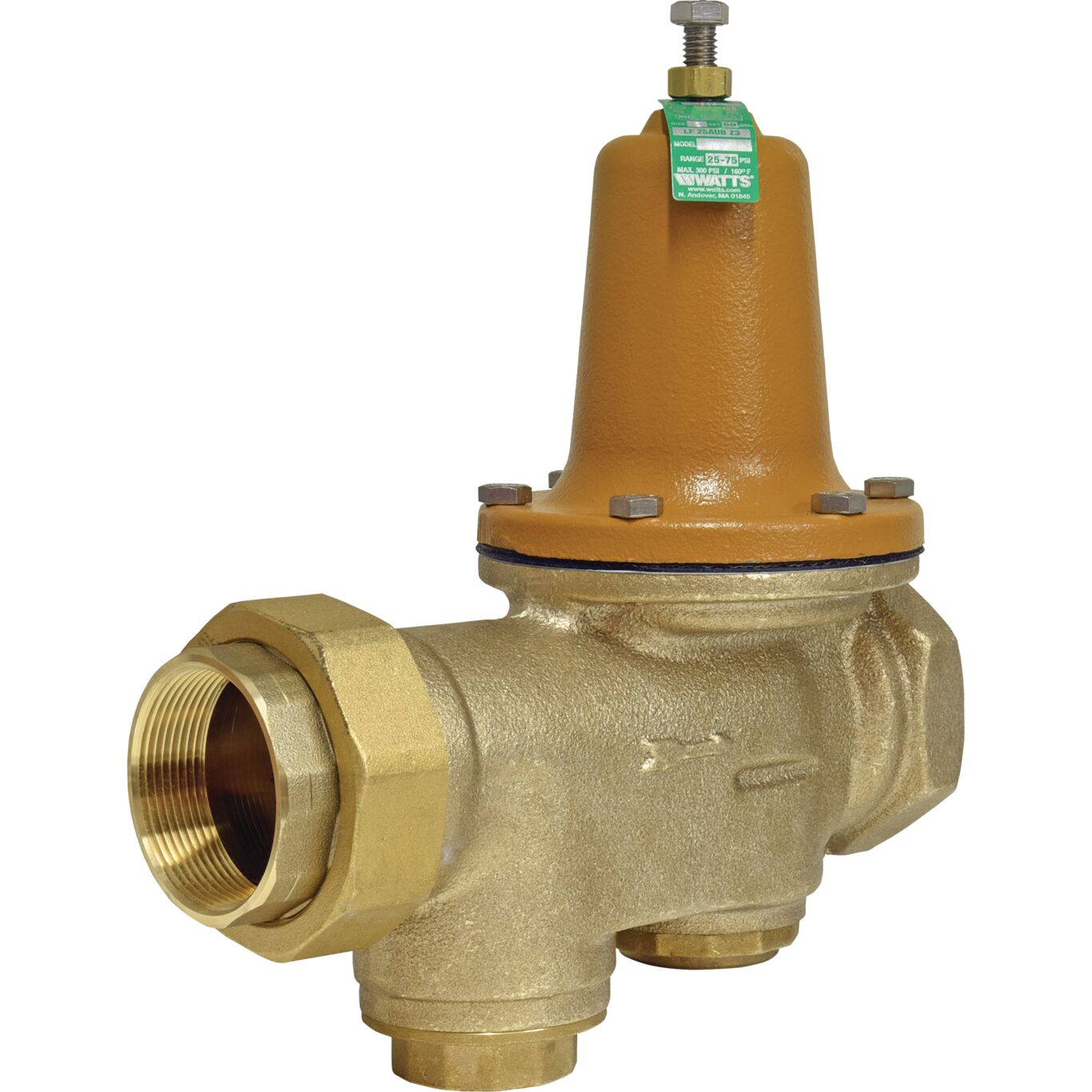

Product Image - LF25AUB-Z3-DU-CEF (Angle)

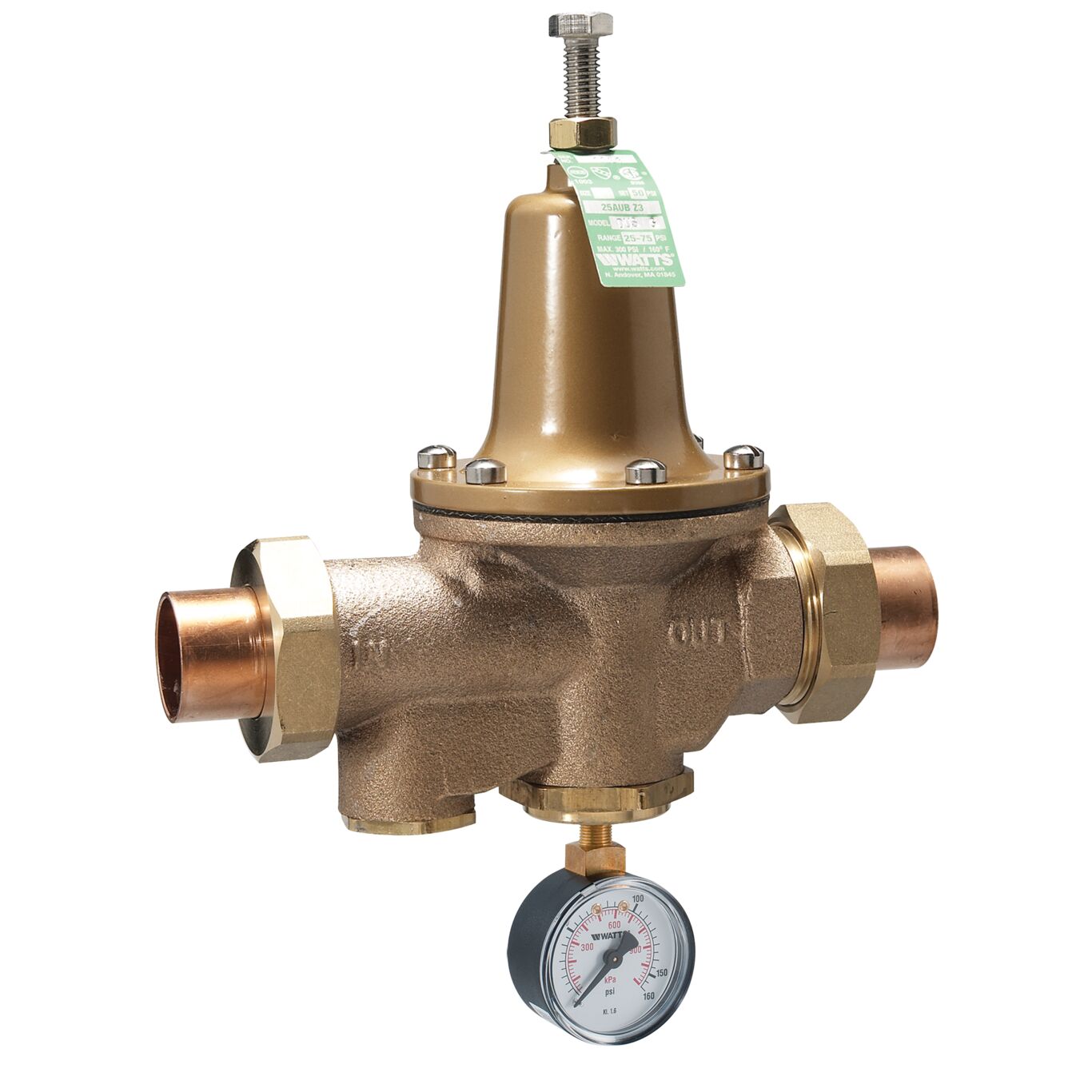

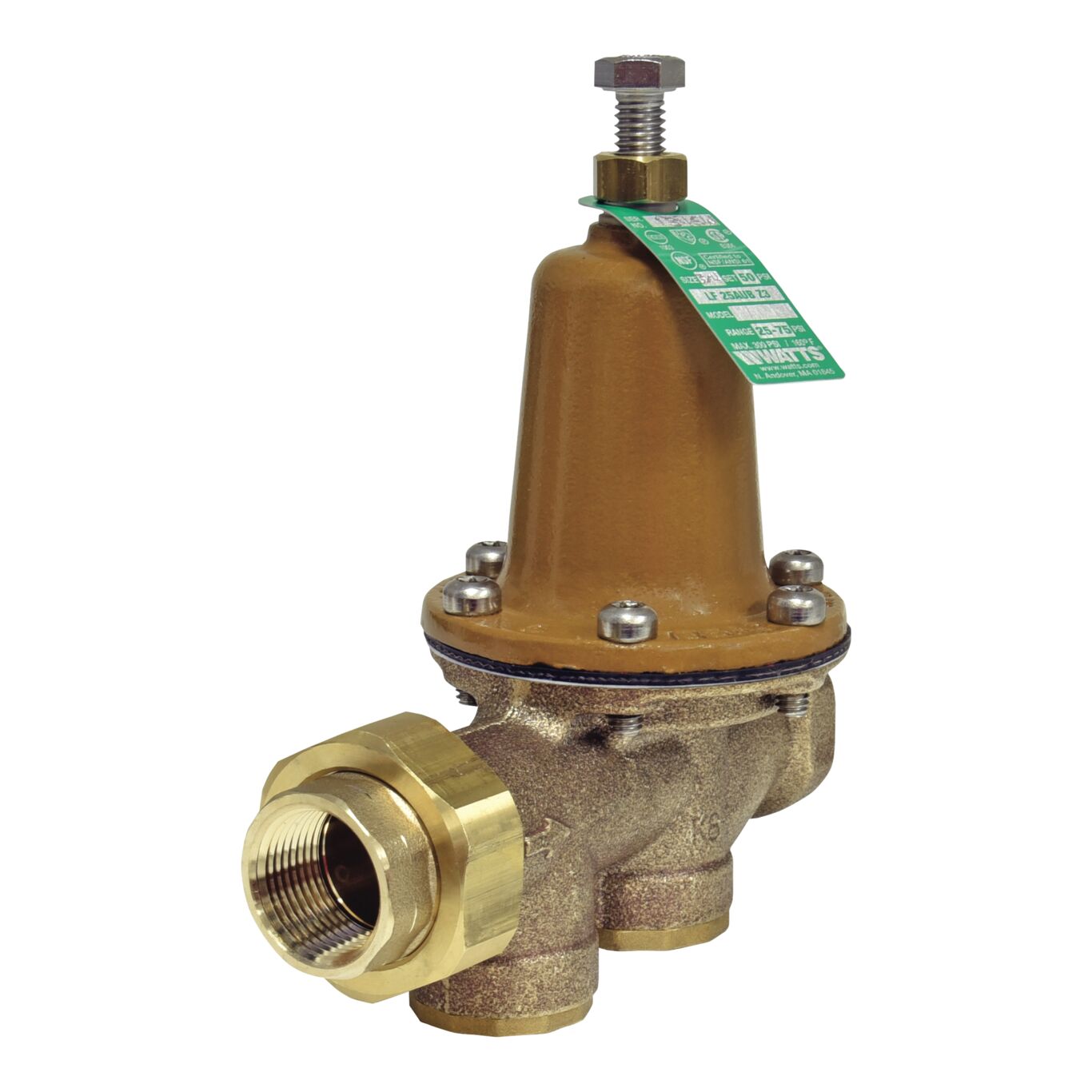

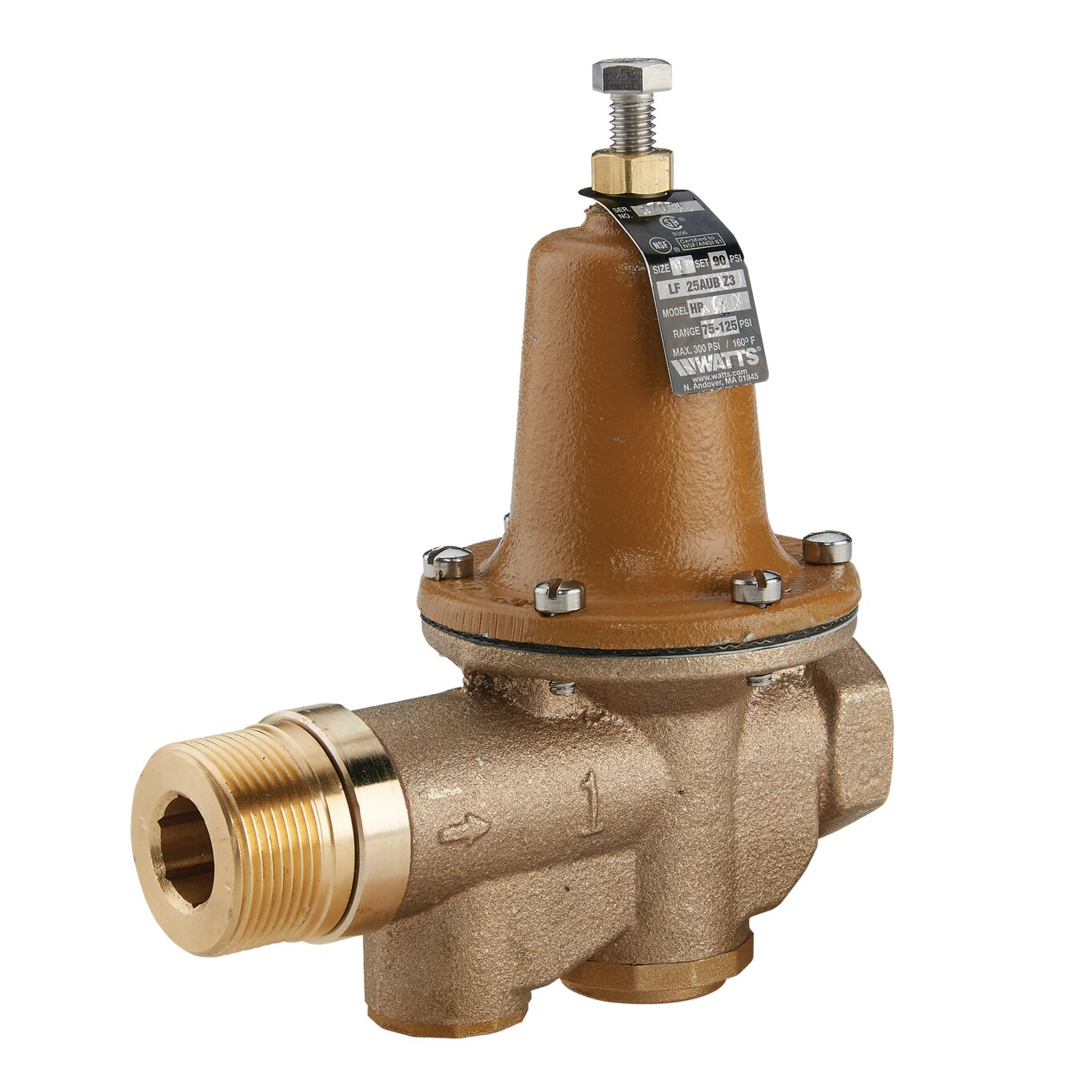

Lead Free* Adjustable Pressure Reducing Valve, Sizes: 1/2 ‒ 2 IN

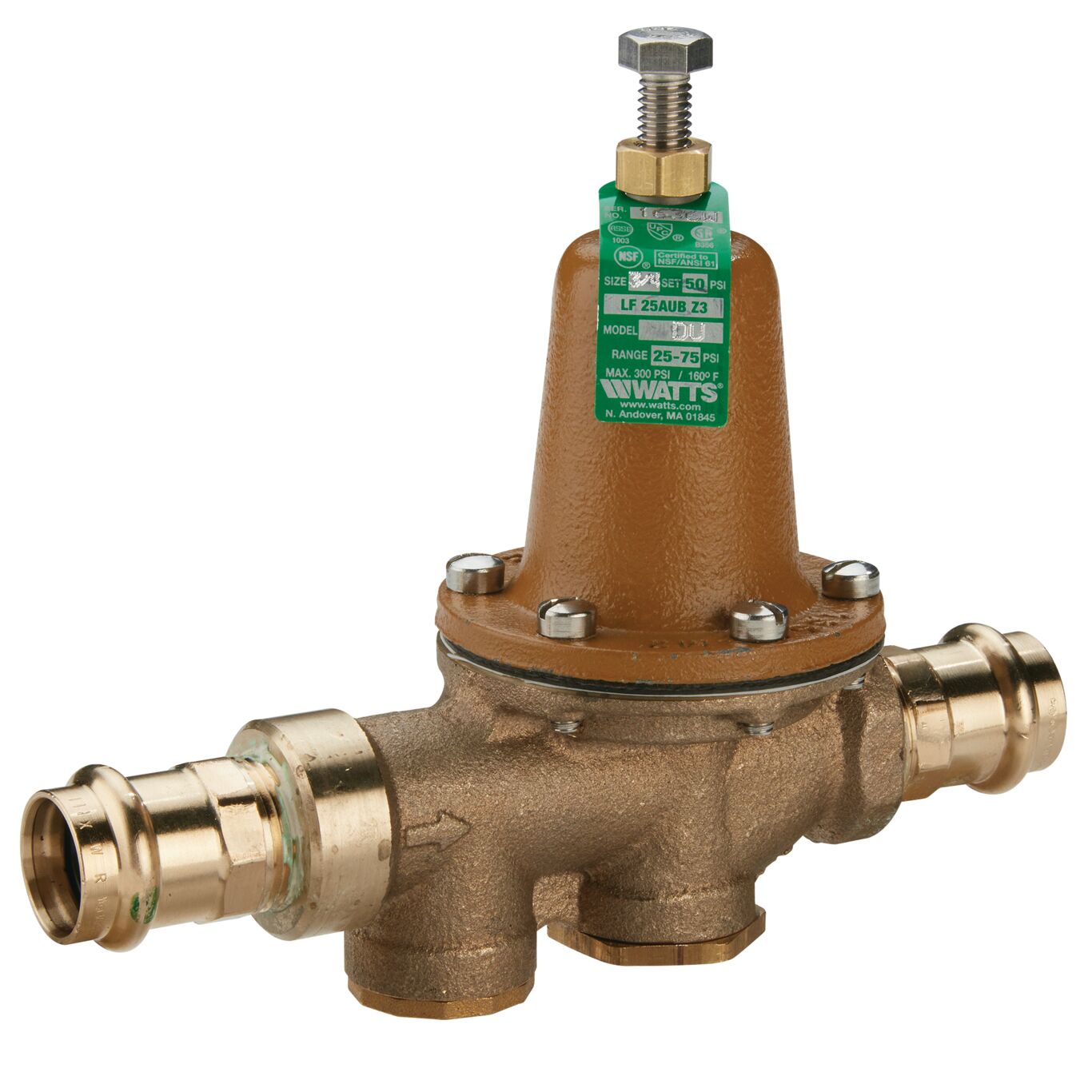

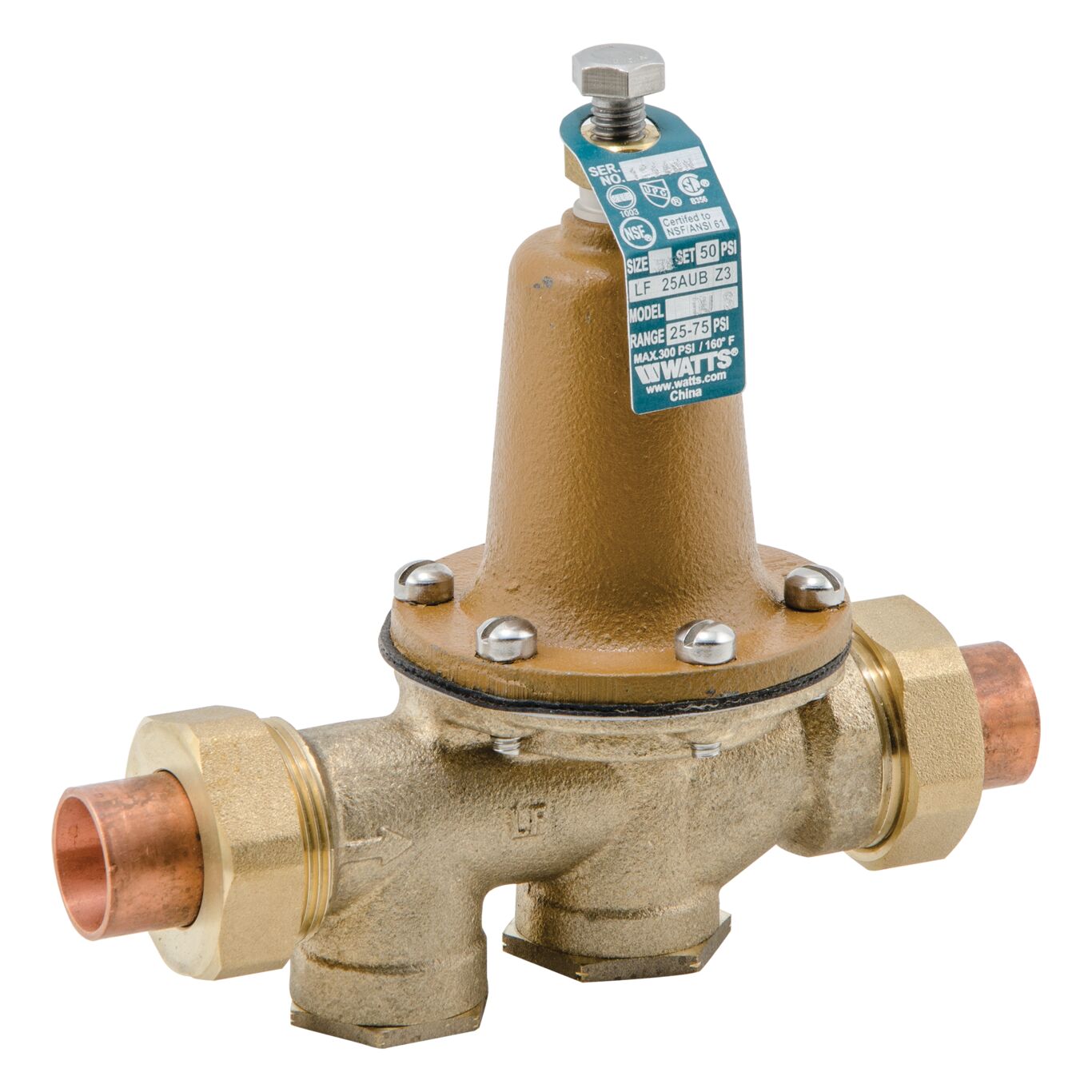

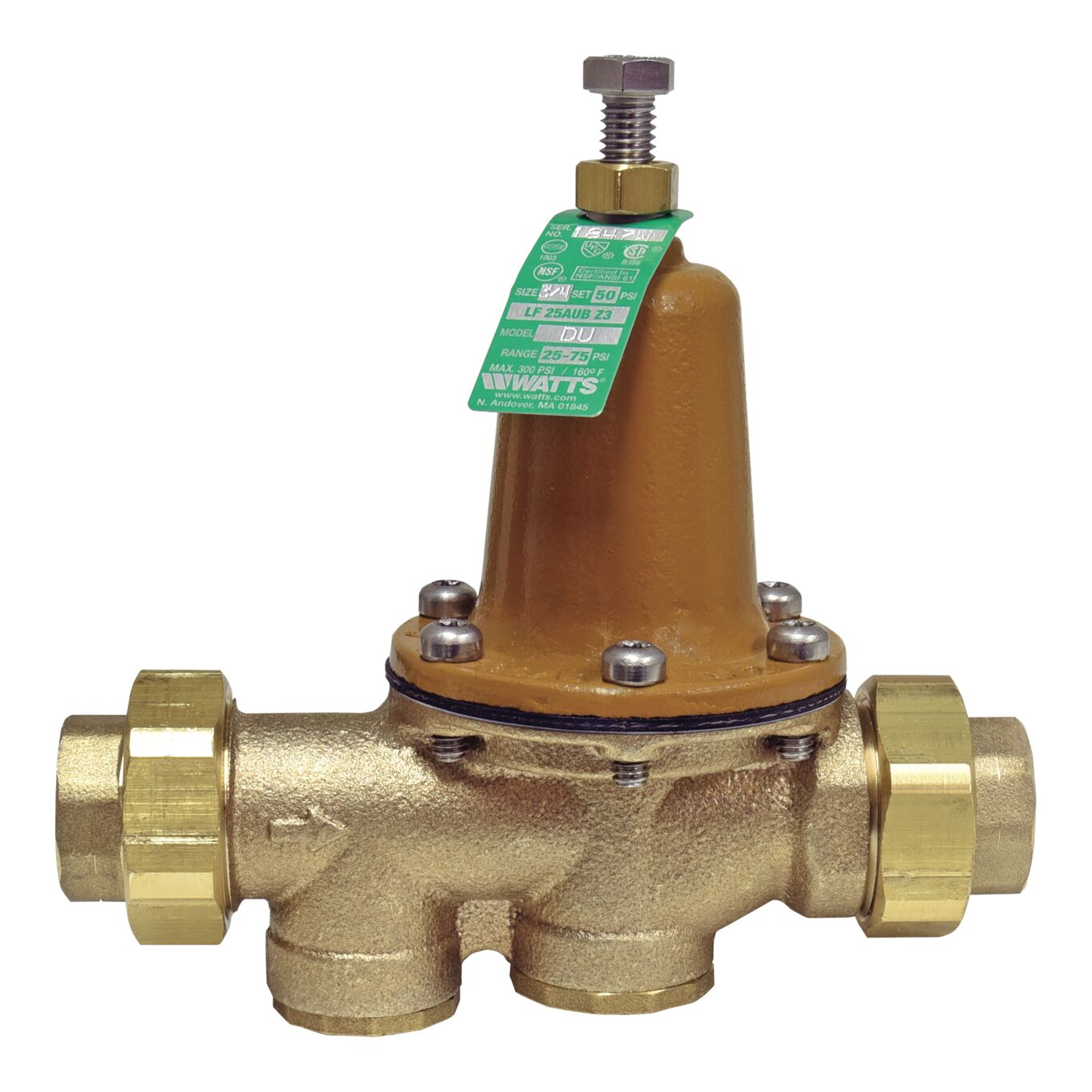

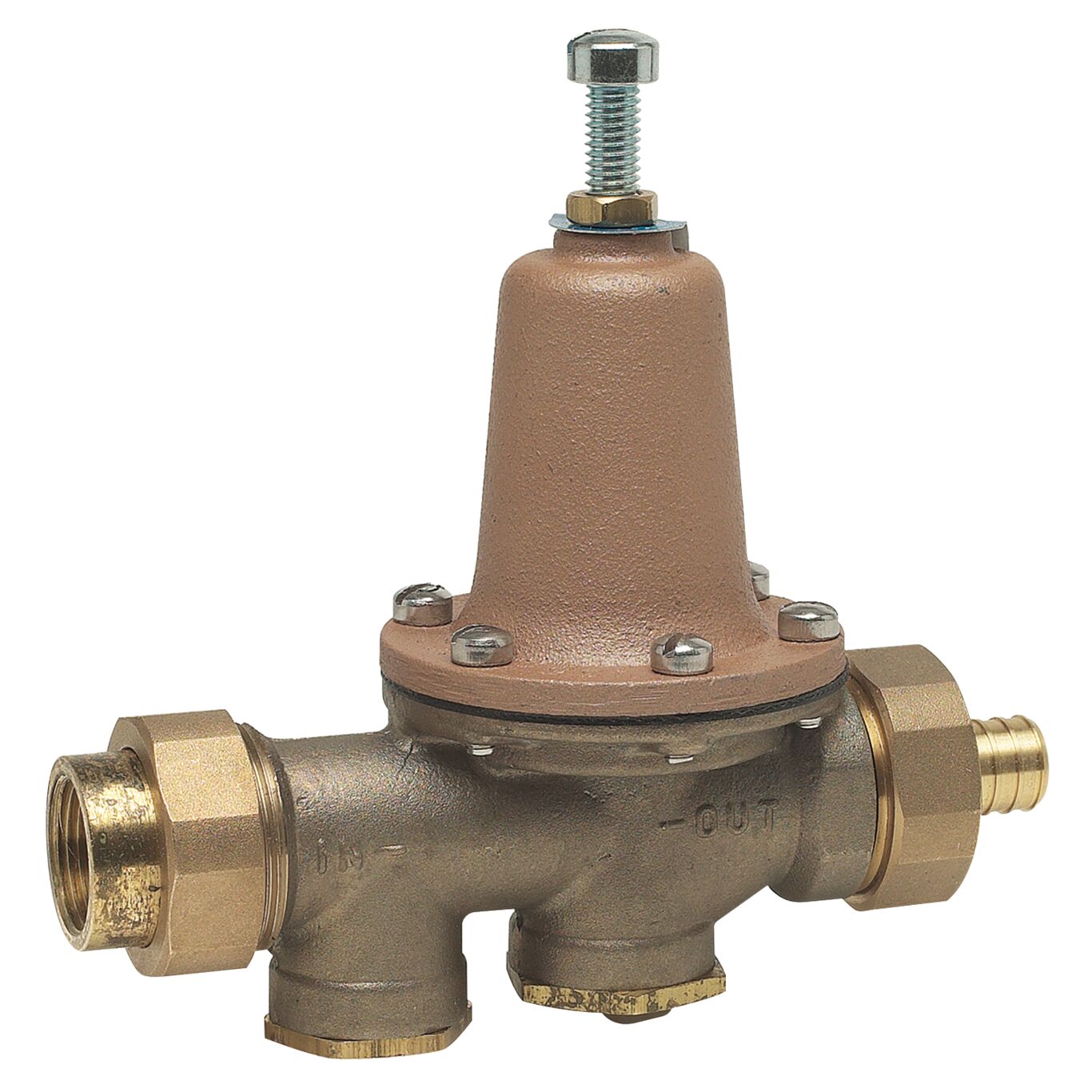

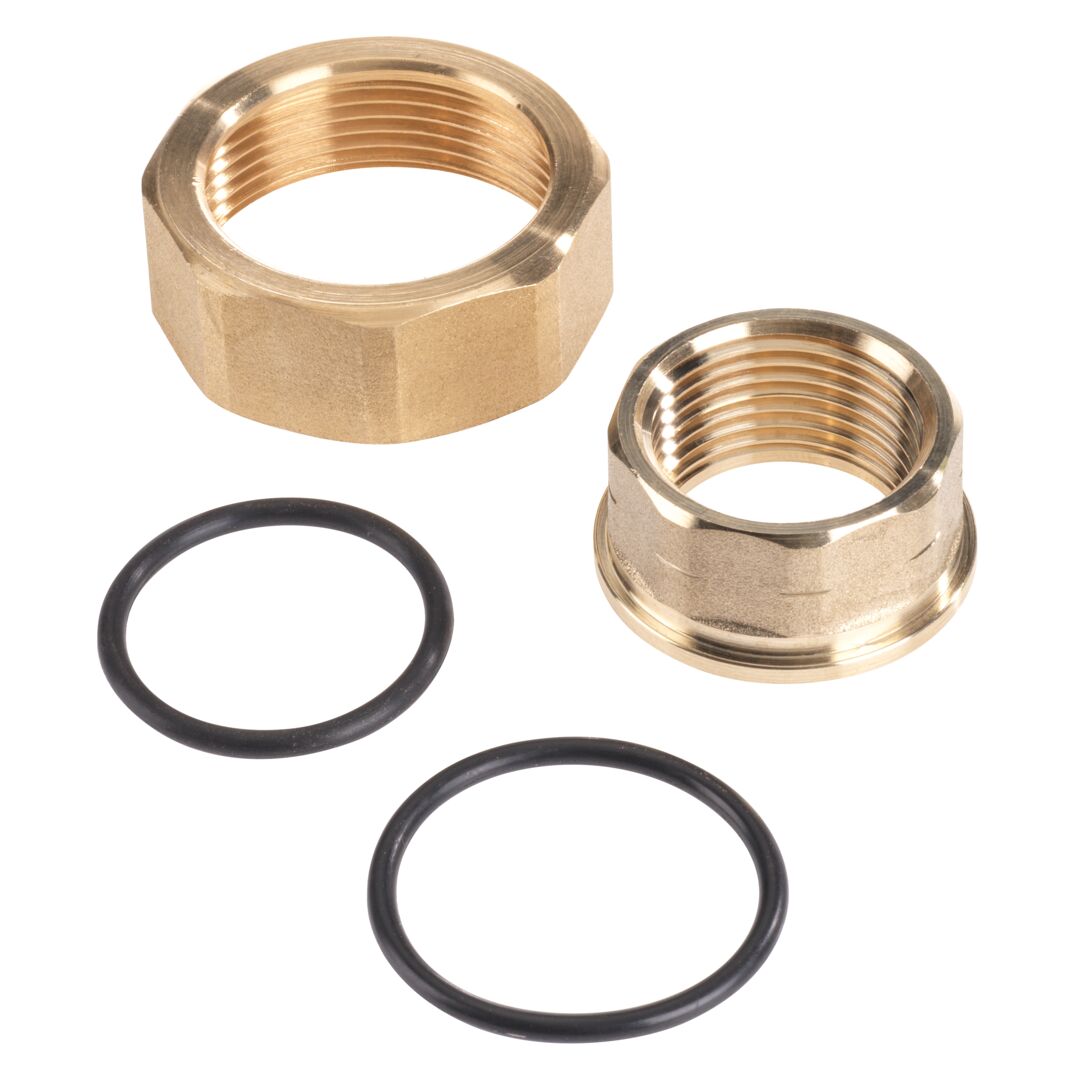

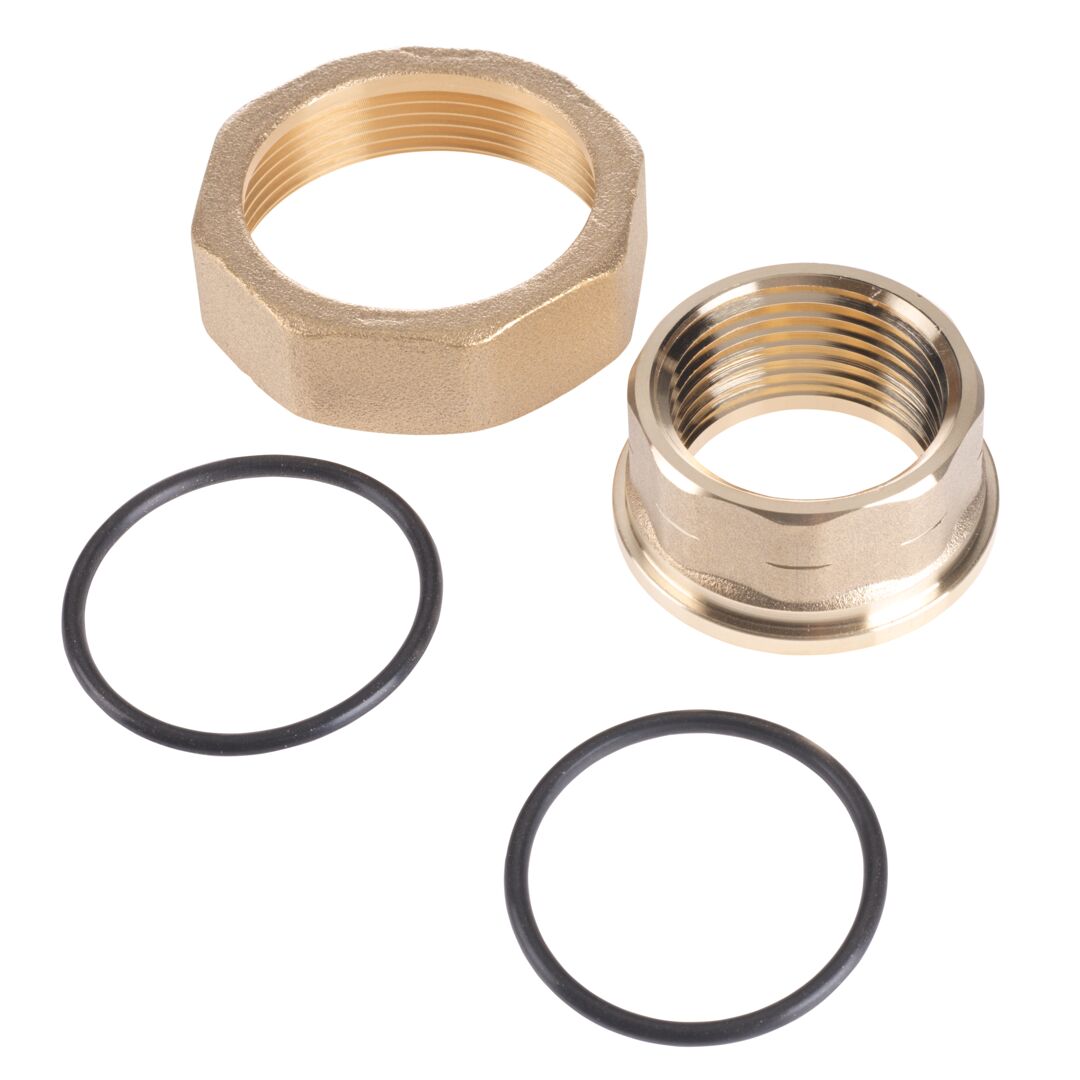

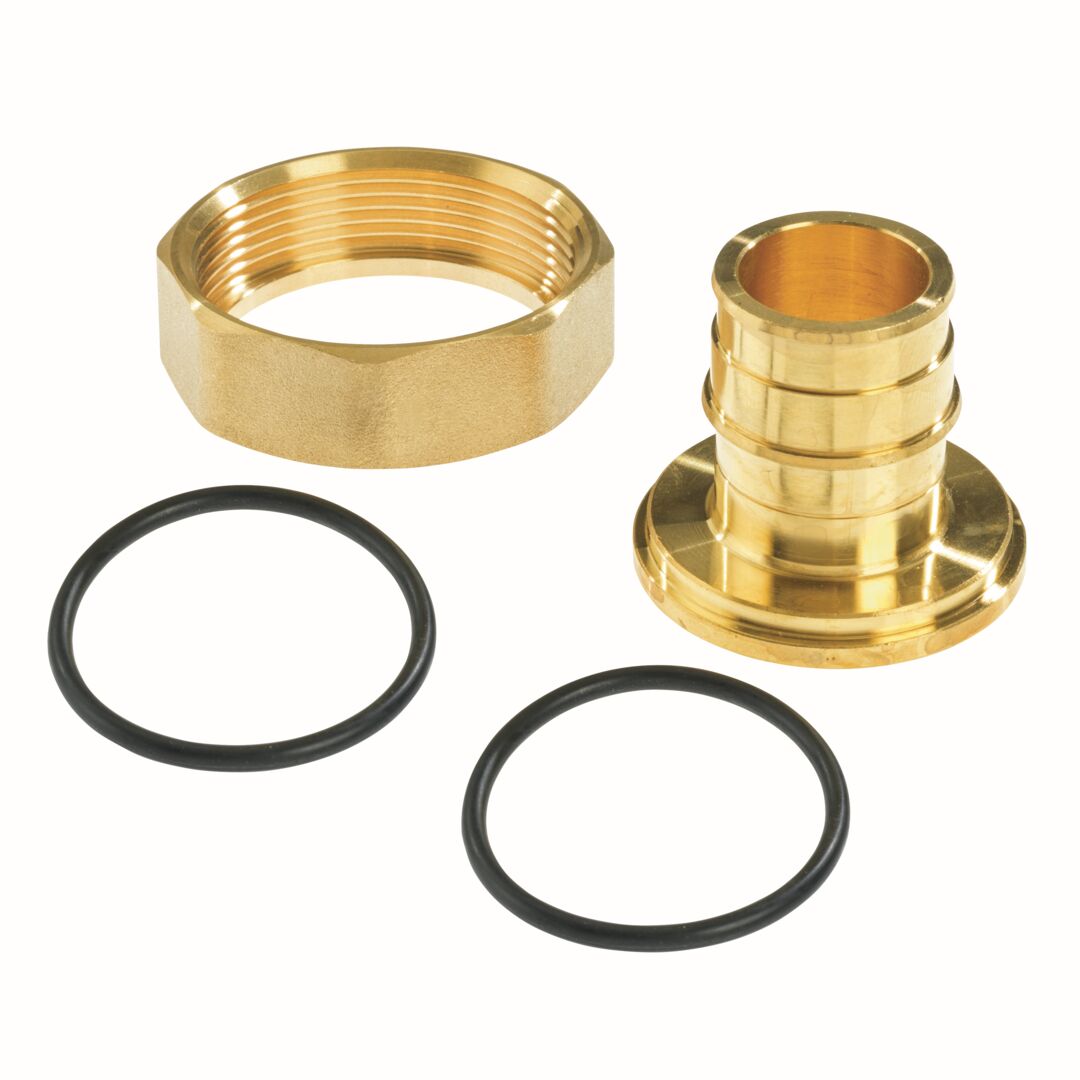

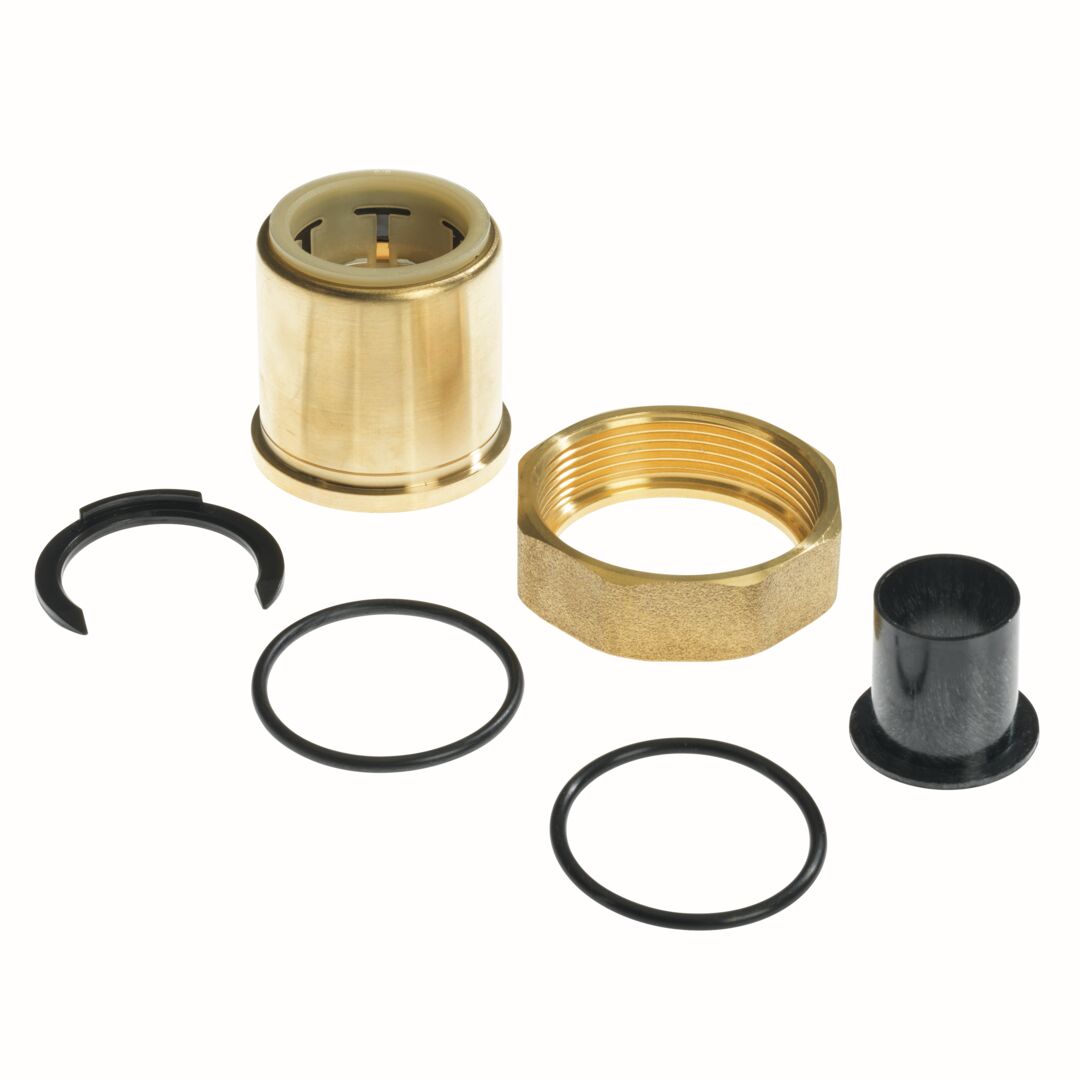

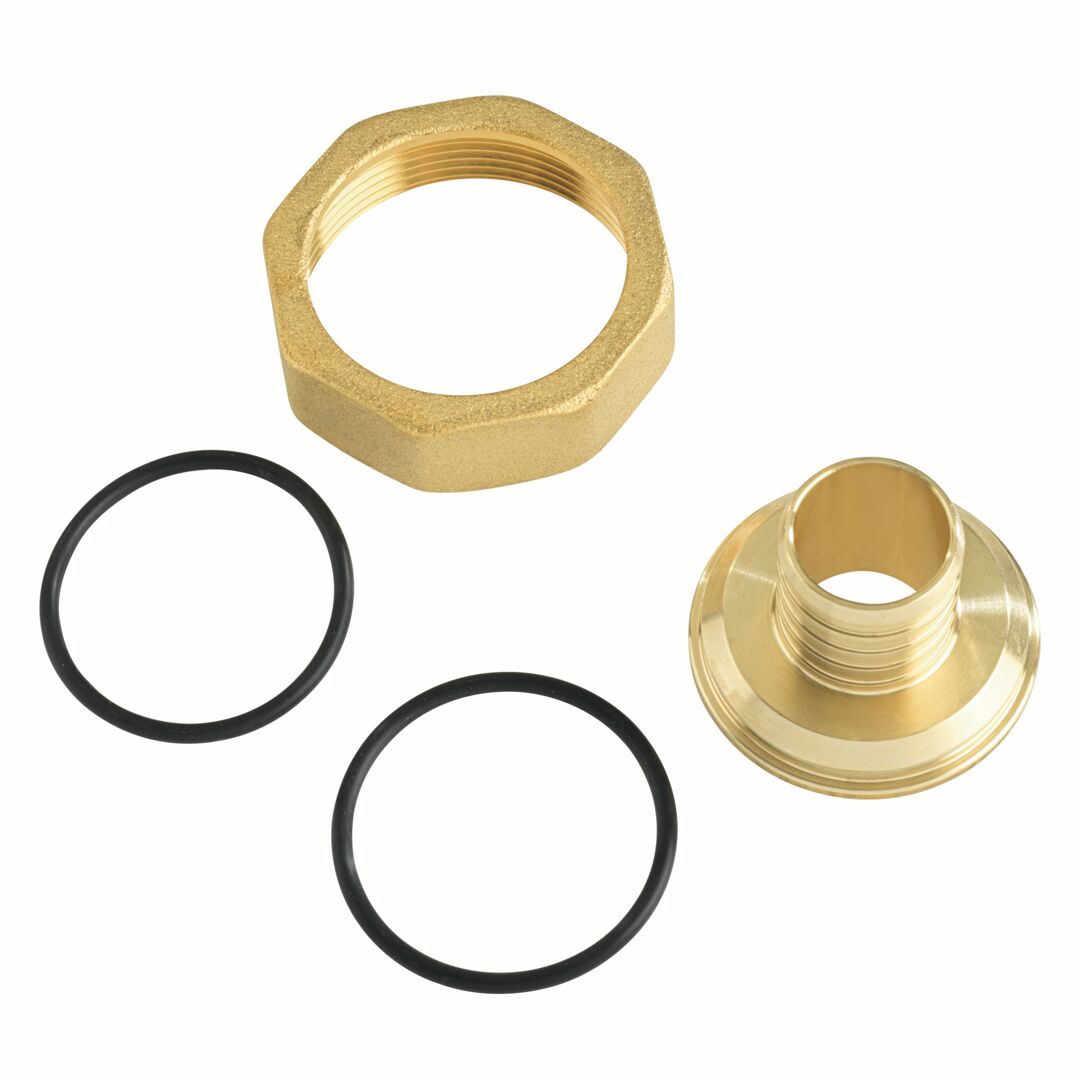

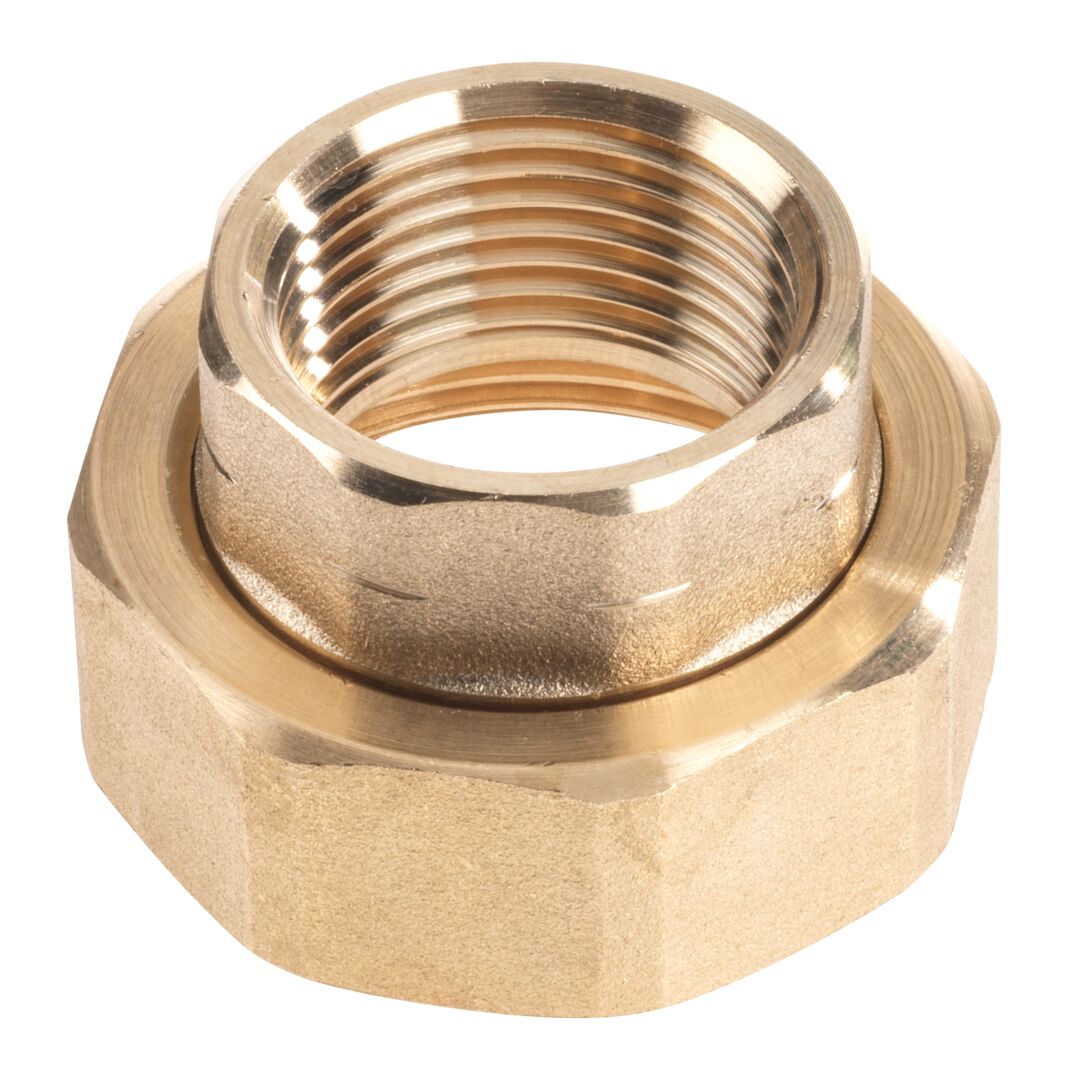

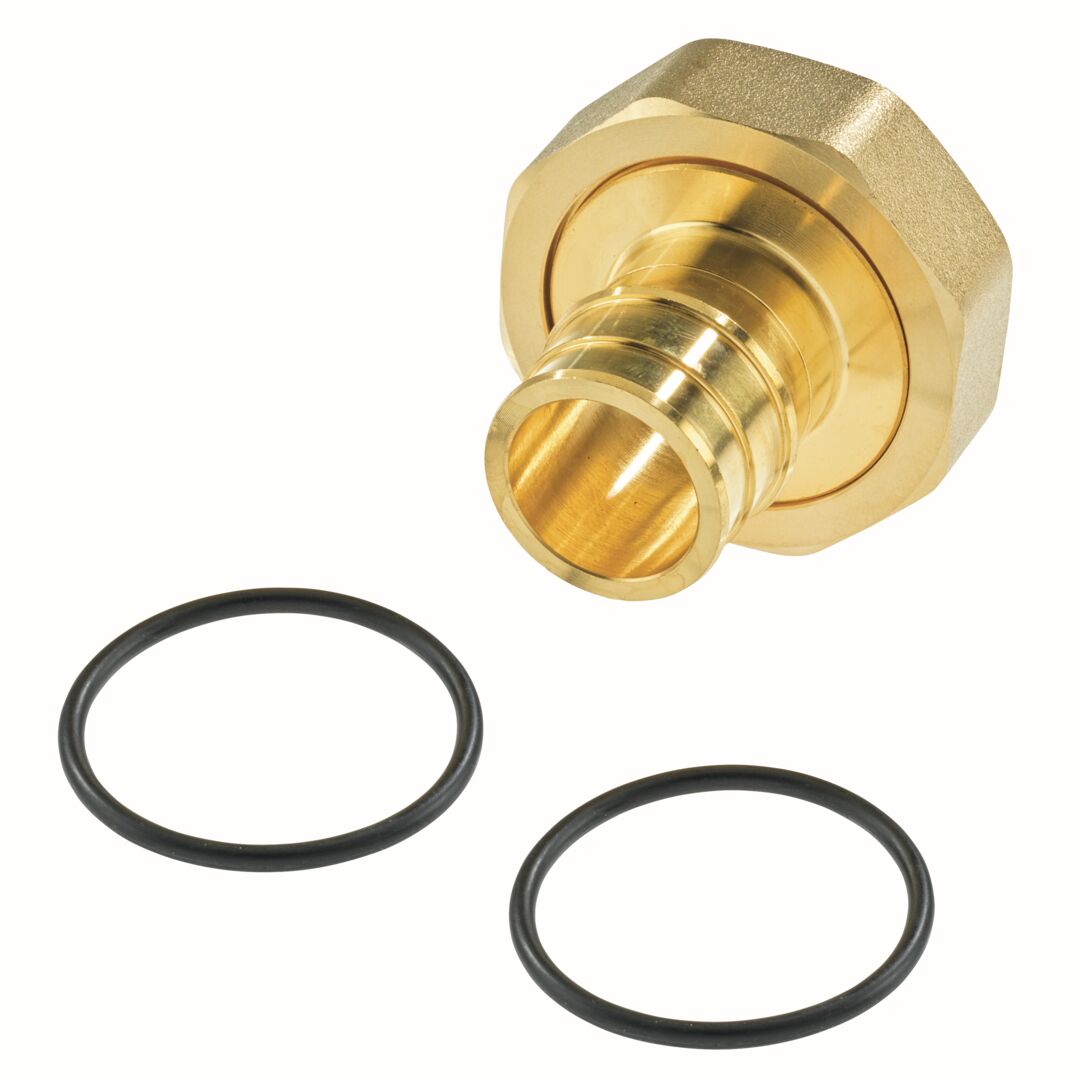

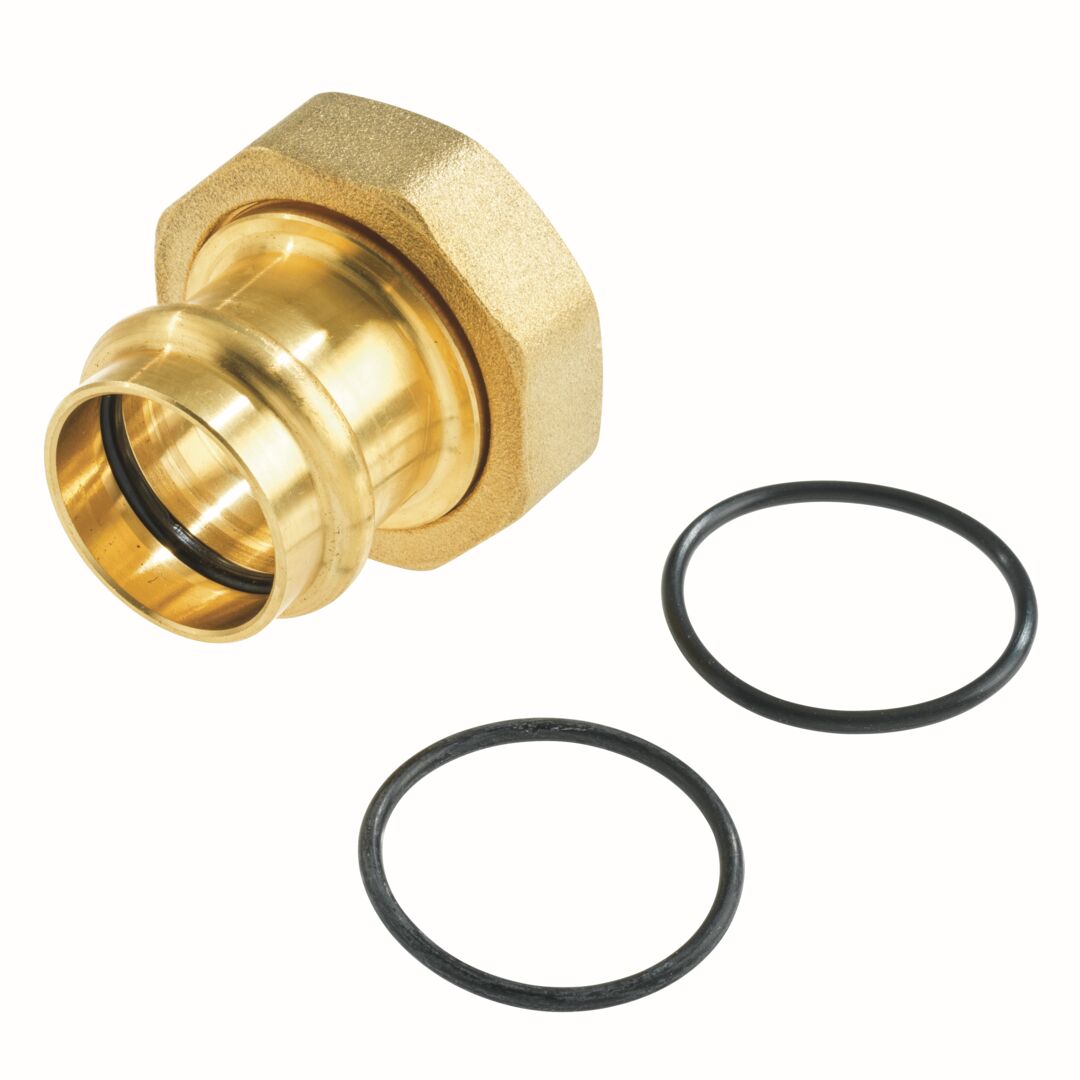

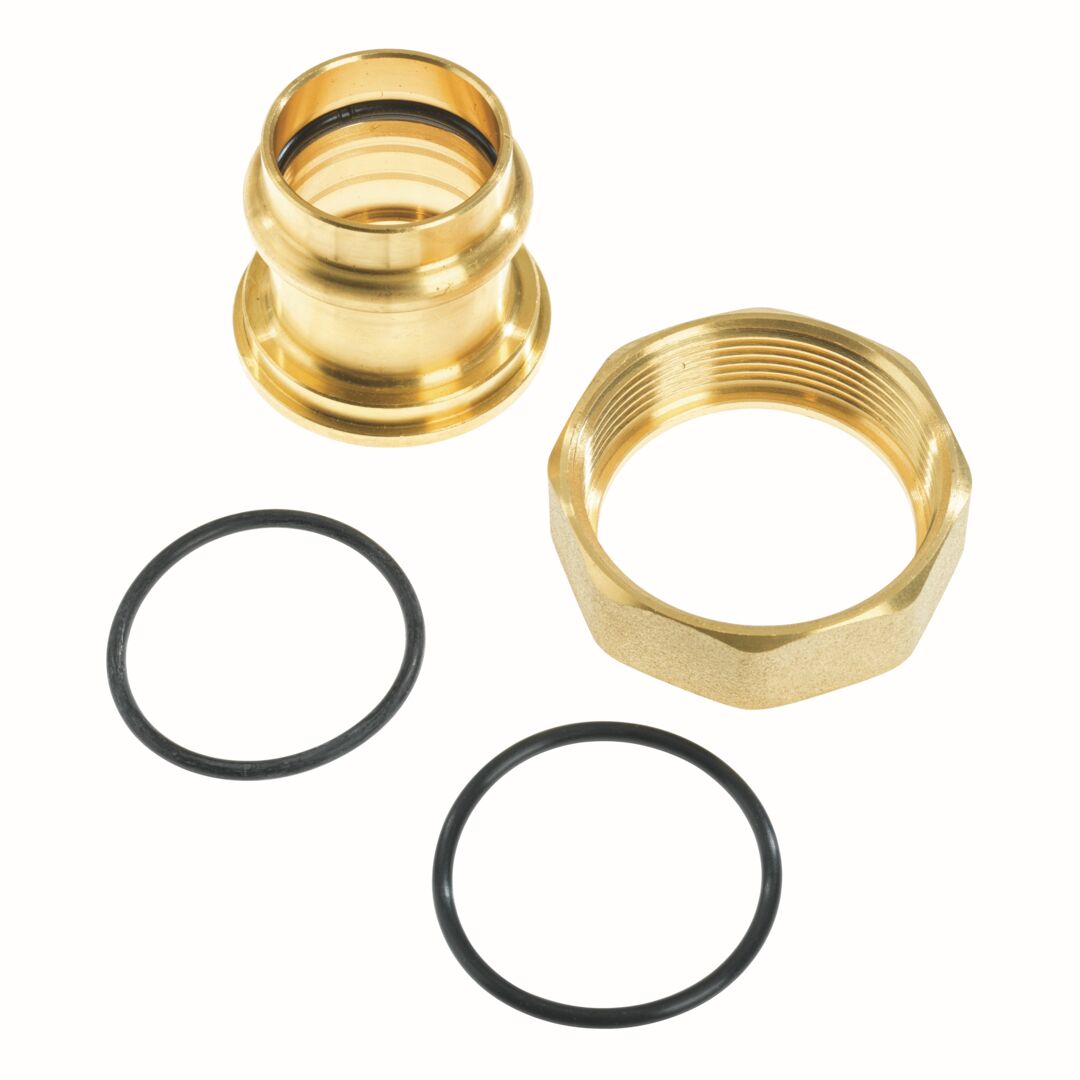

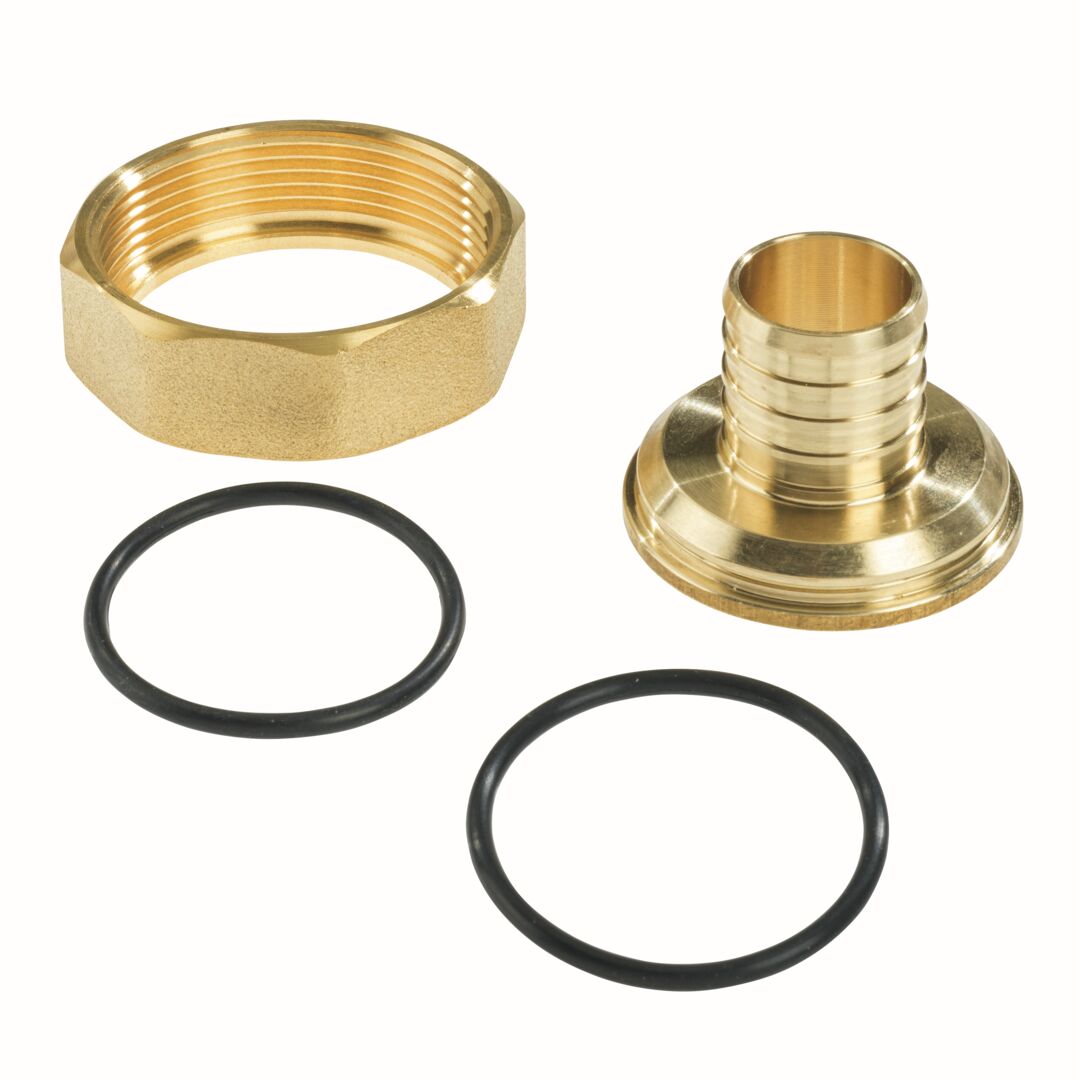

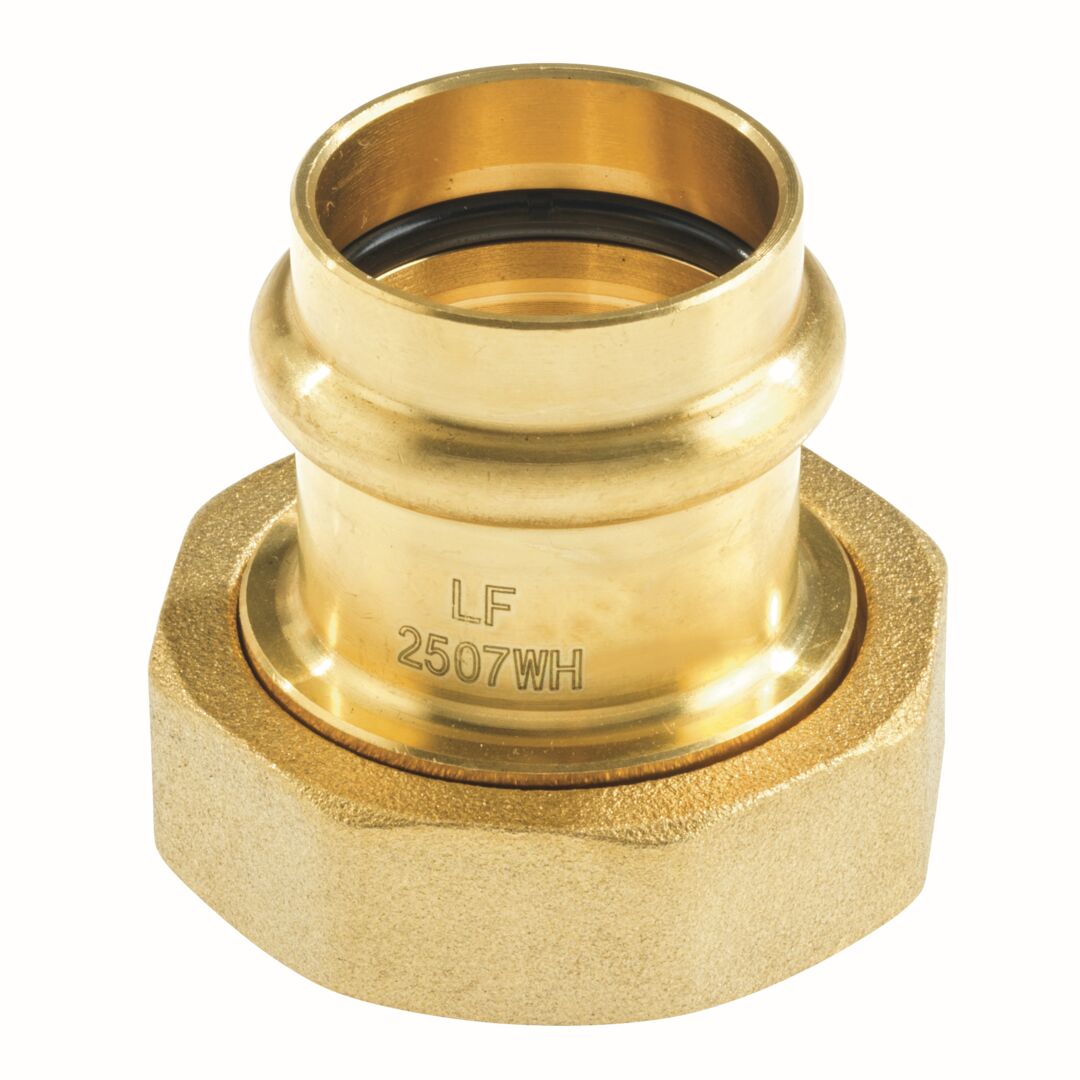

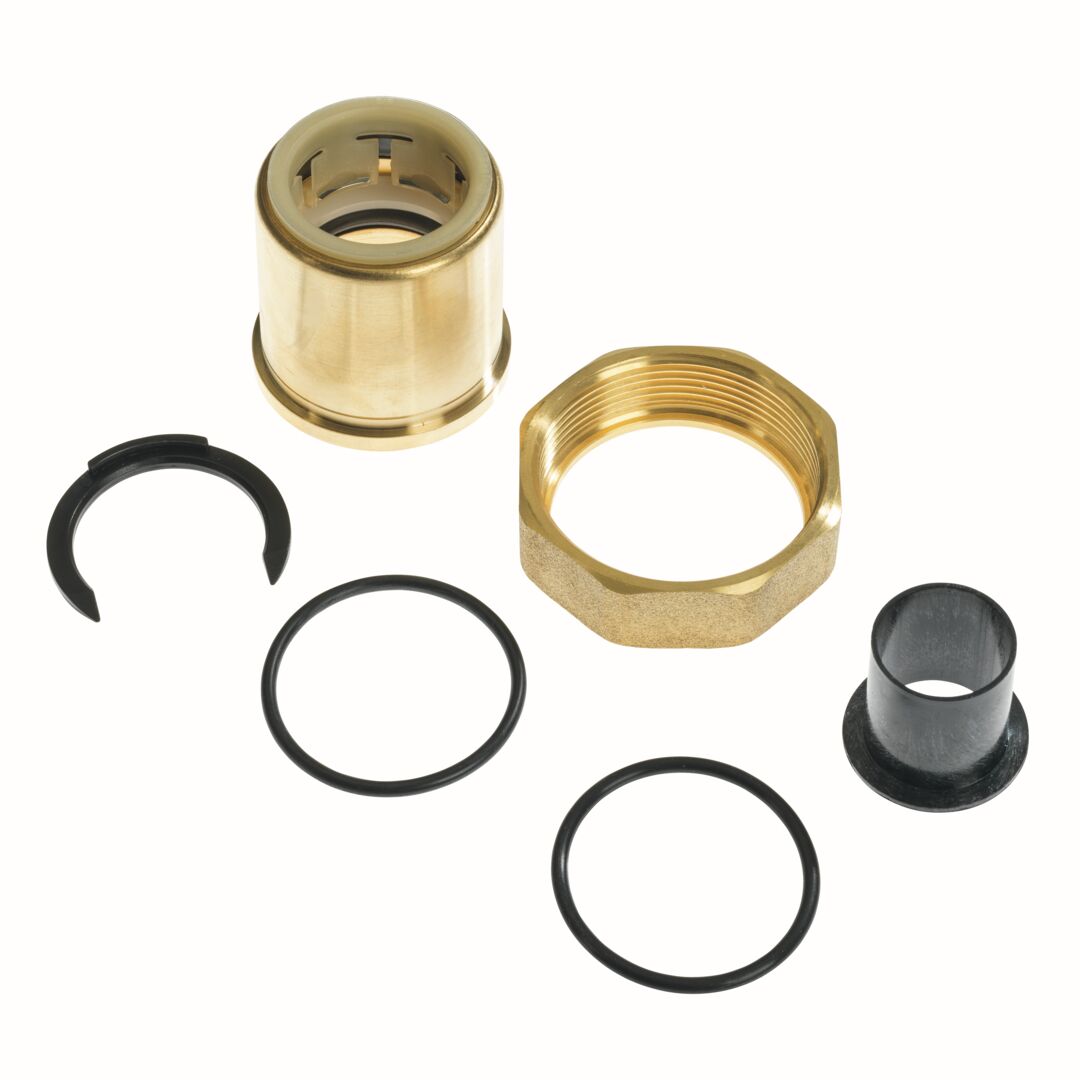

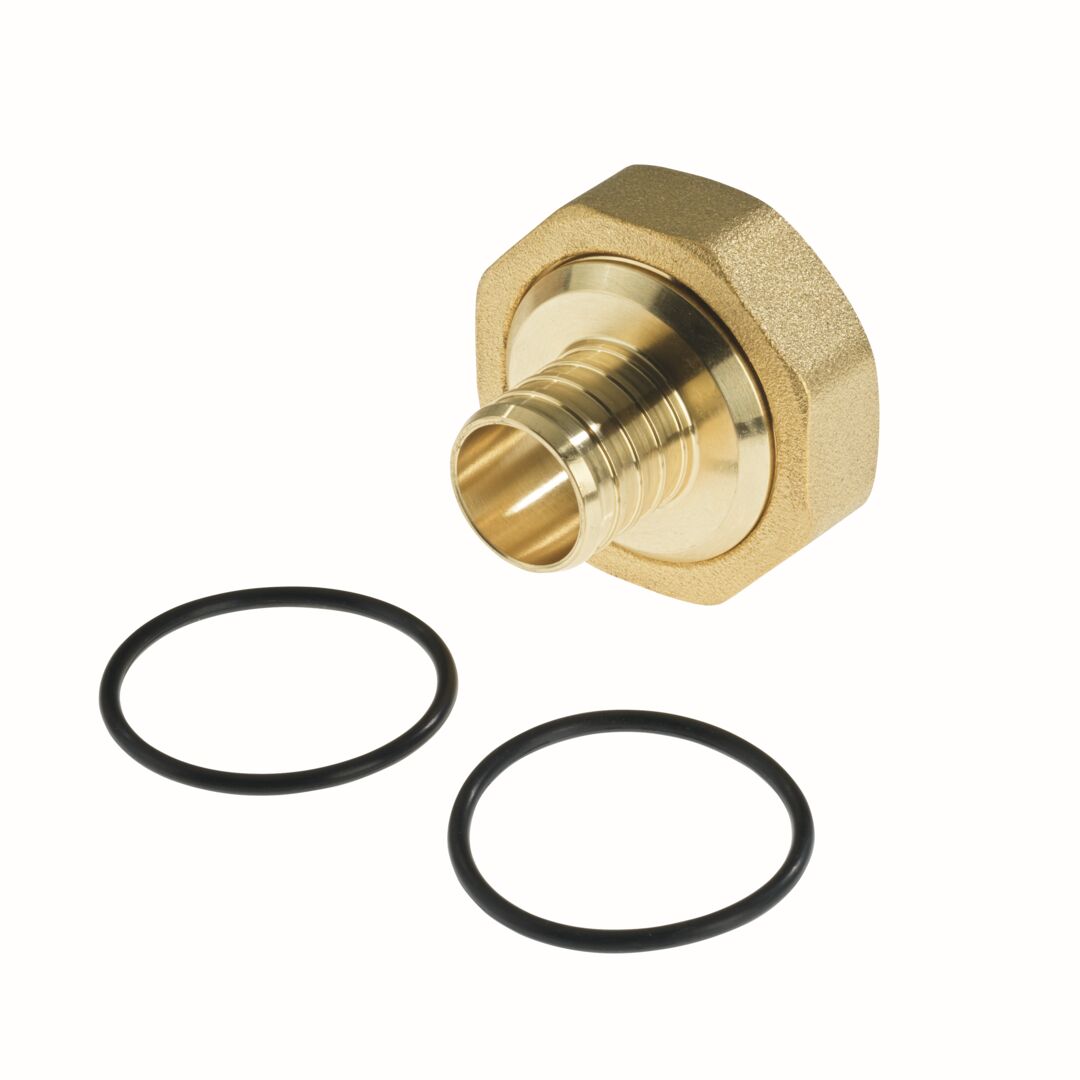

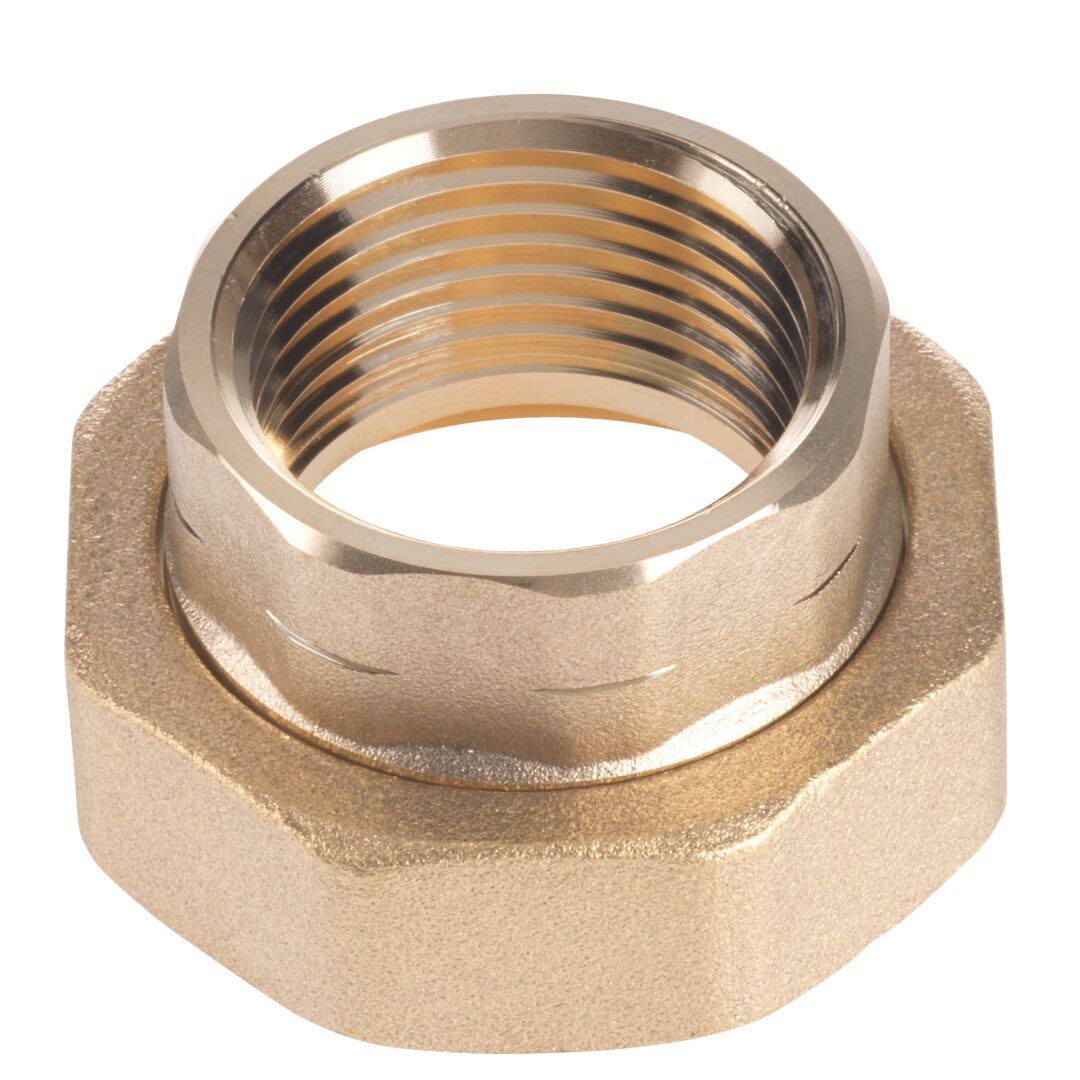

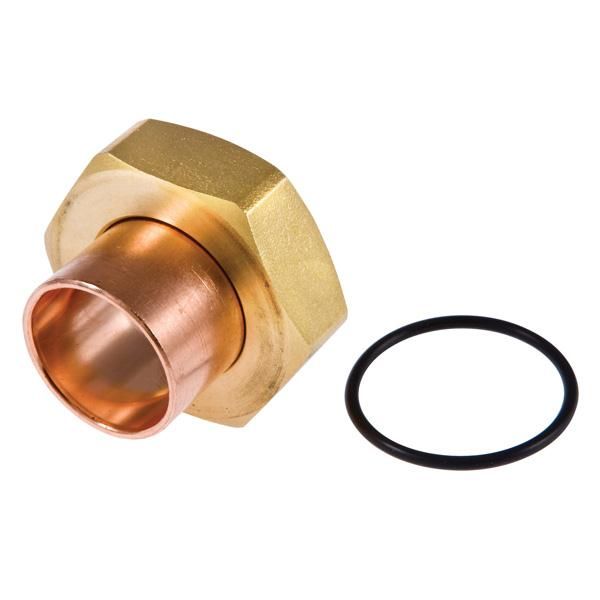

Series LF25AUB-Z3 Lead Free* Water Pressure Reducing Valves are used in commercial and residential applications to reduce incoming water pressure to a predetermined level, thereby protecting downstream plumbing system components and reducing water consumption. For versatility, a variety of end connections are available: threaded, solder, PEX, quick-connect, Press, or Cold Expansion PEX (ASTM F1960) with union and double union. Standard pressure setting is 50psi with an adjustable range of 25 ‒ 75psi (172 ‒ 517 kPa). For sizes: 1/2 to 2 IN (15 ‒ 50mm). Temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).

Features

For water supply pressures up to 300psi
Designed for easy in-line servicing; has replaceable seat module
Integral stainless steel strainer and bypass feature that controls thermal expansion pressure
Sealed spring cage for accessible outdoor or pit applications

Literature

Select a Model

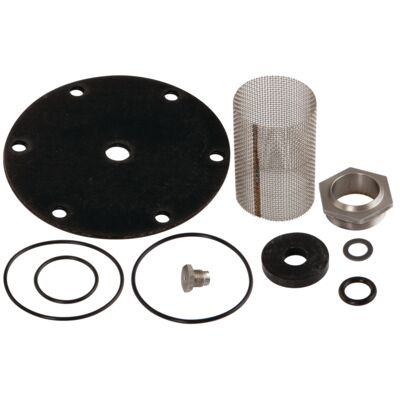

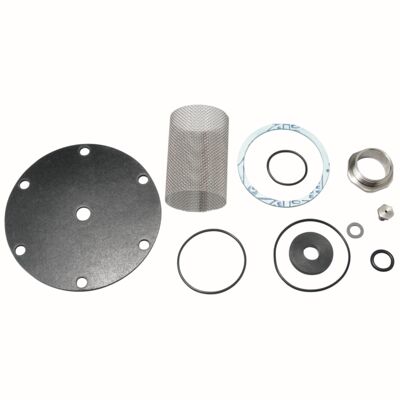

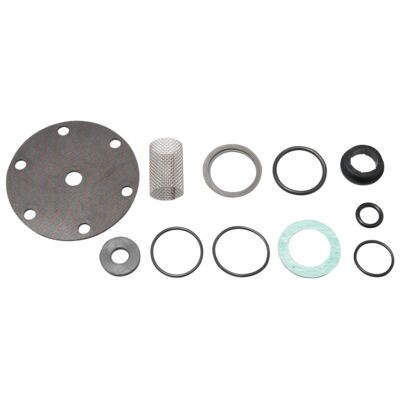

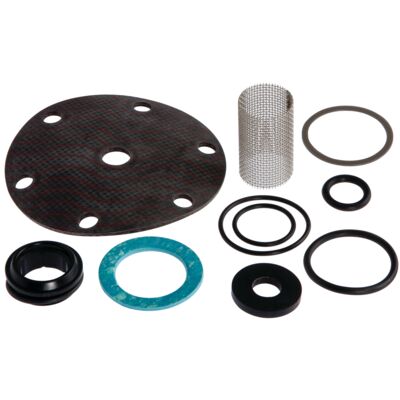

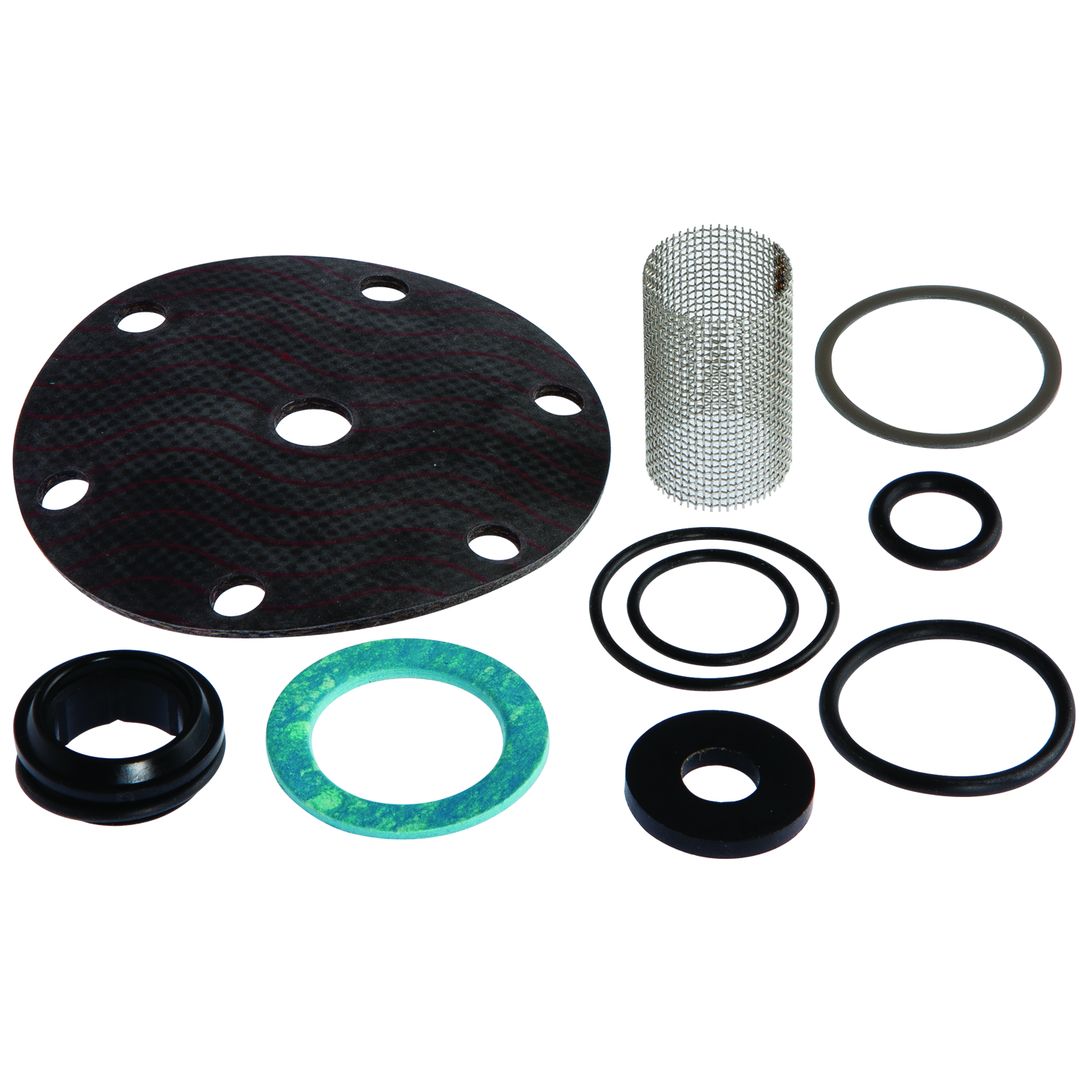

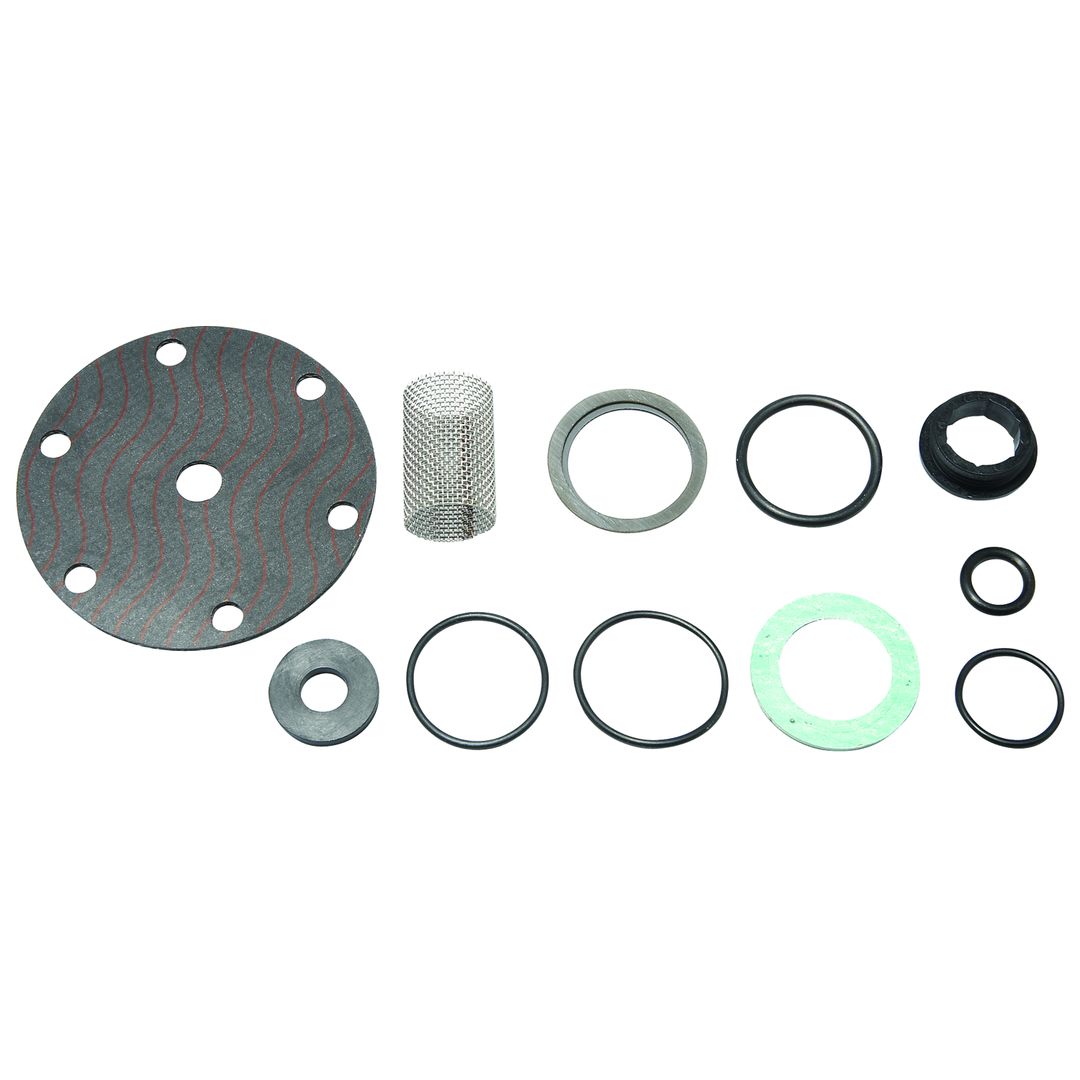

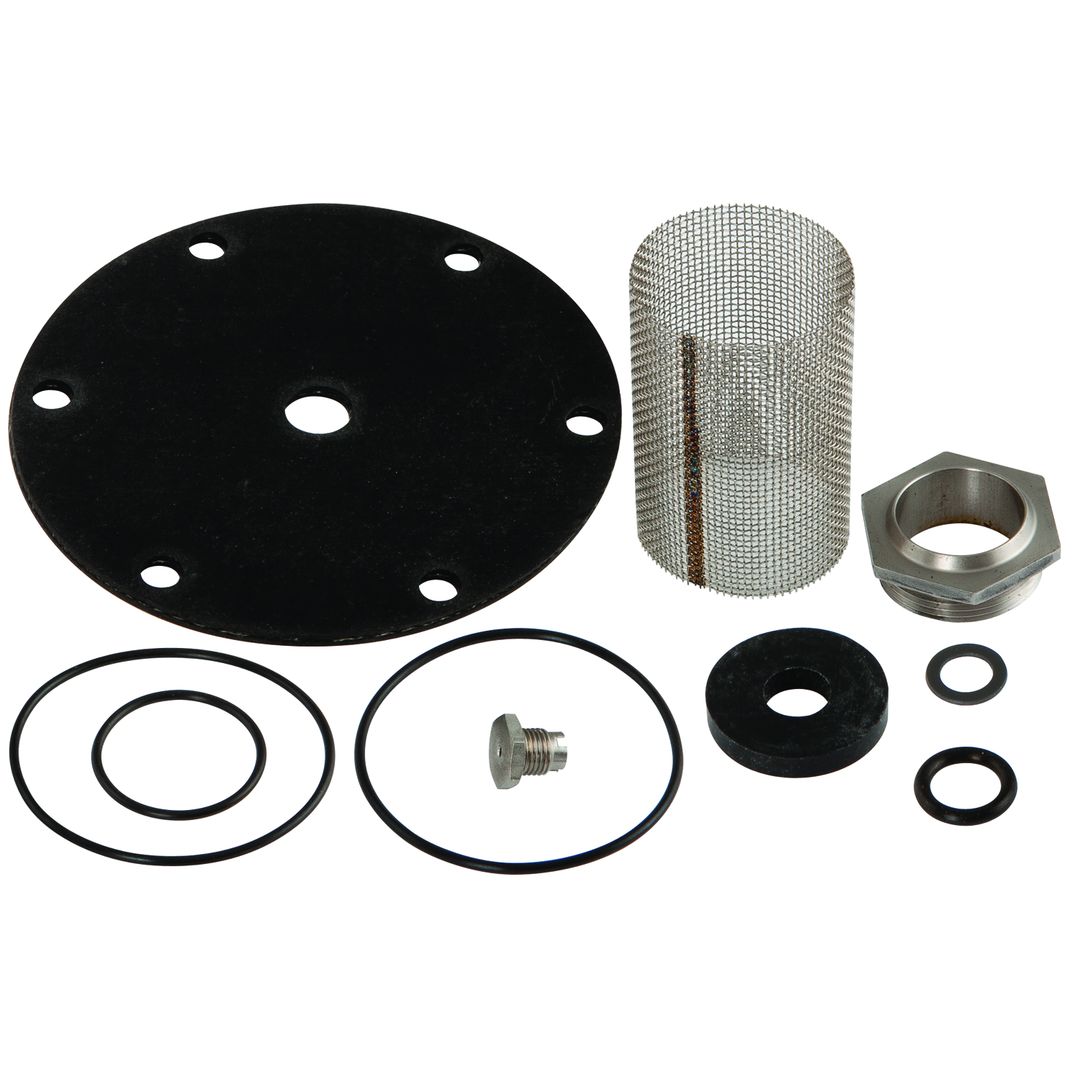

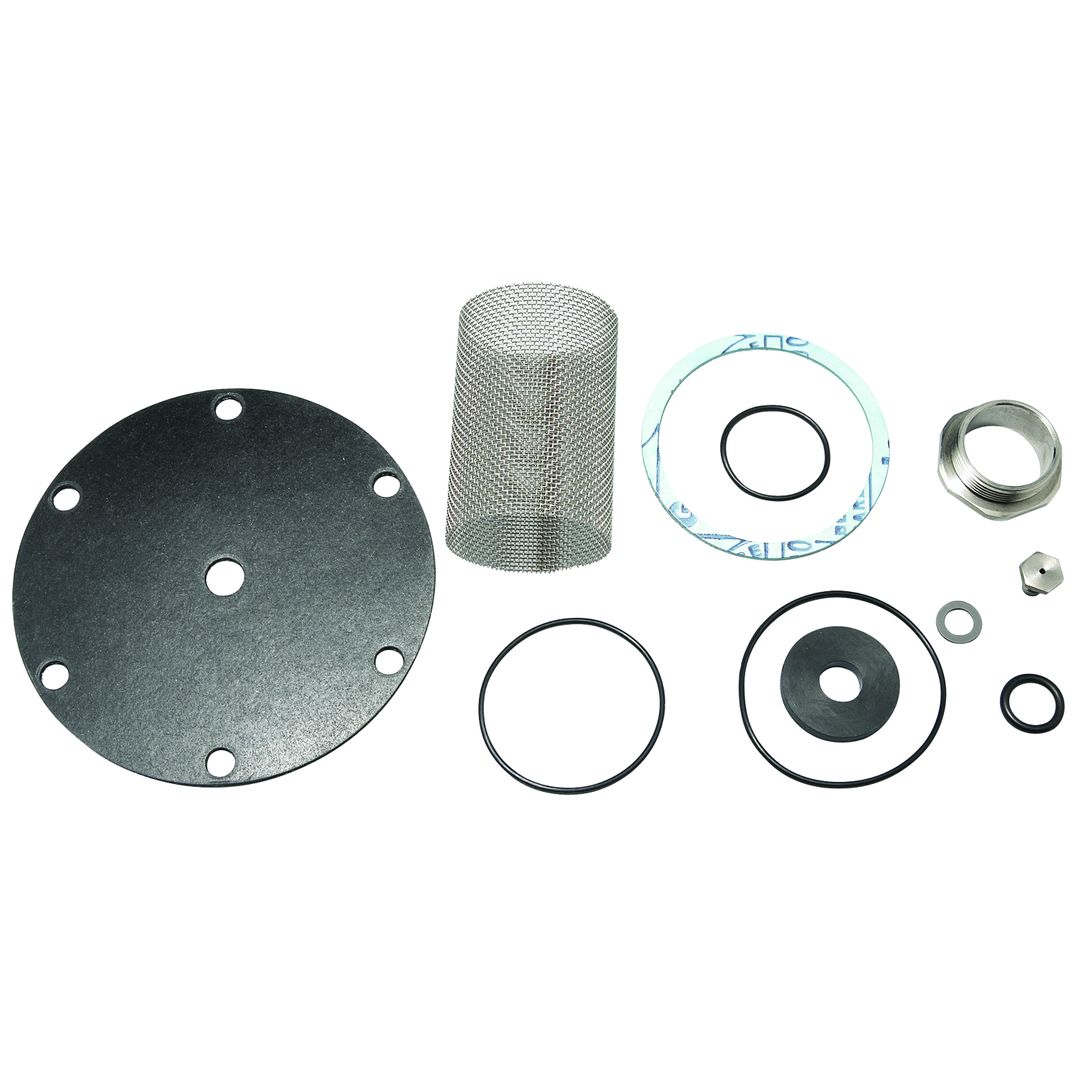

Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF25AUB-Z3
