HydroGuard XP LFSH1430

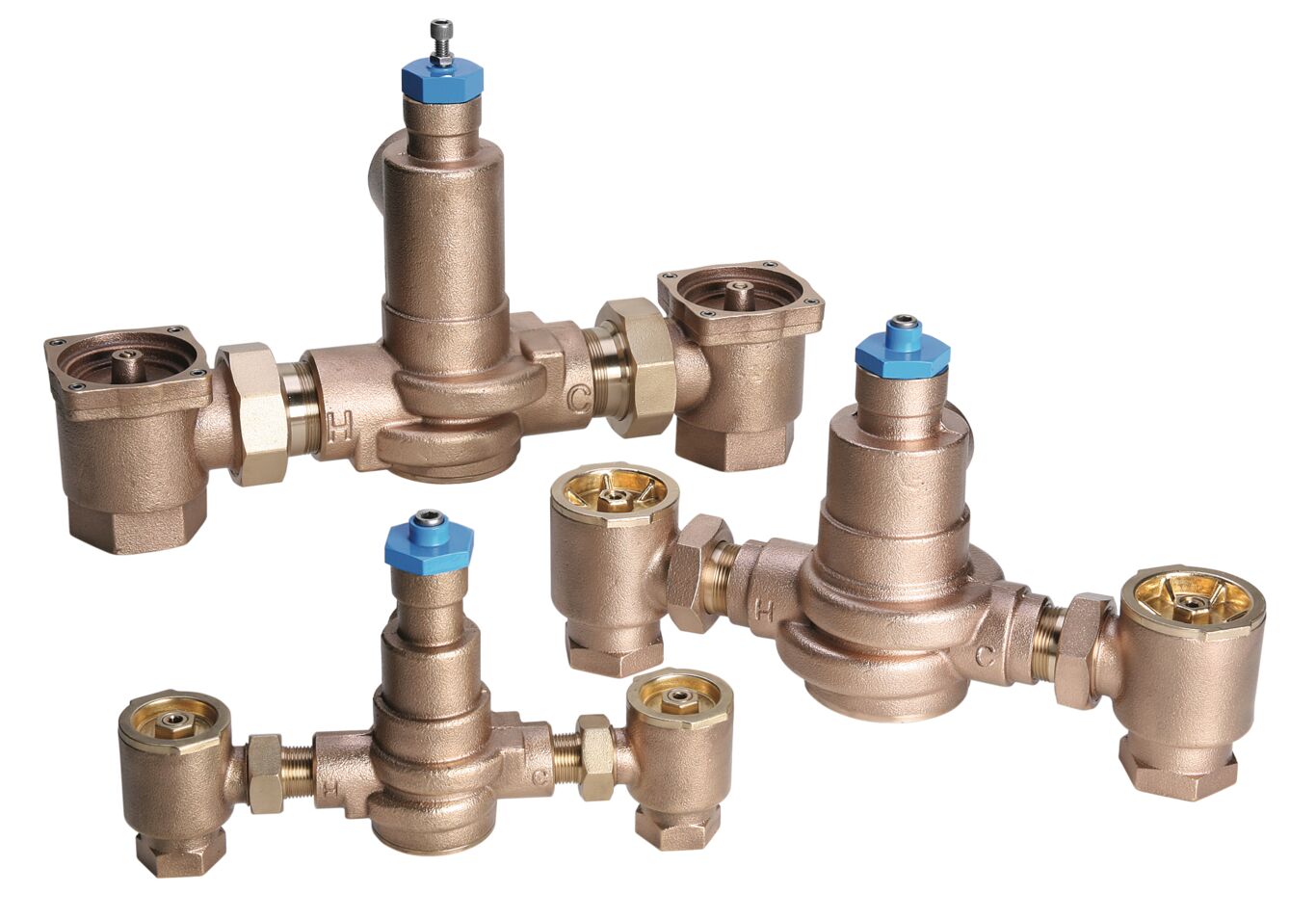

Product Image - HydroGuard XP LFSH1430,HydroGuard XP SH1430
×

HydroGuard XP Lead Free* series LFSH1430 Hi/Lo master tempering valves

Single solution Hi/Lo valves available in three sizes that temper water as high as 201 gpm and as low as 1 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology and a booster funnel design for dynamic response and superior low flow temperature control. The LFSH1430 line also features a single-seat design for virtual shut down in the event of cold water failure, triple-duty check stops with screens, and a 5°F (3°C) approach temperature for low temperature hot water supply. Valves are available in Lead-Free* rough bronze and chrome plated finish.

Size this now with our Selexit sizing tool.

Features

  • Superior low flow temperature control and shut off in the event of cold water failure
  • Dirt and lime resistant poppet and seat design
  • Temper water as high as 201 gpm and as low as 1 gpm with thermostatic tempering valve listed to ASSE 1017 and certified to CSA B125
  • Vandal-resistant locking mechanism secures temperature setting
