3540-10CP
×
![]()
Part of the Check Valve 3540 Series
Ordering Code: 81902993
UPC: 840213003371

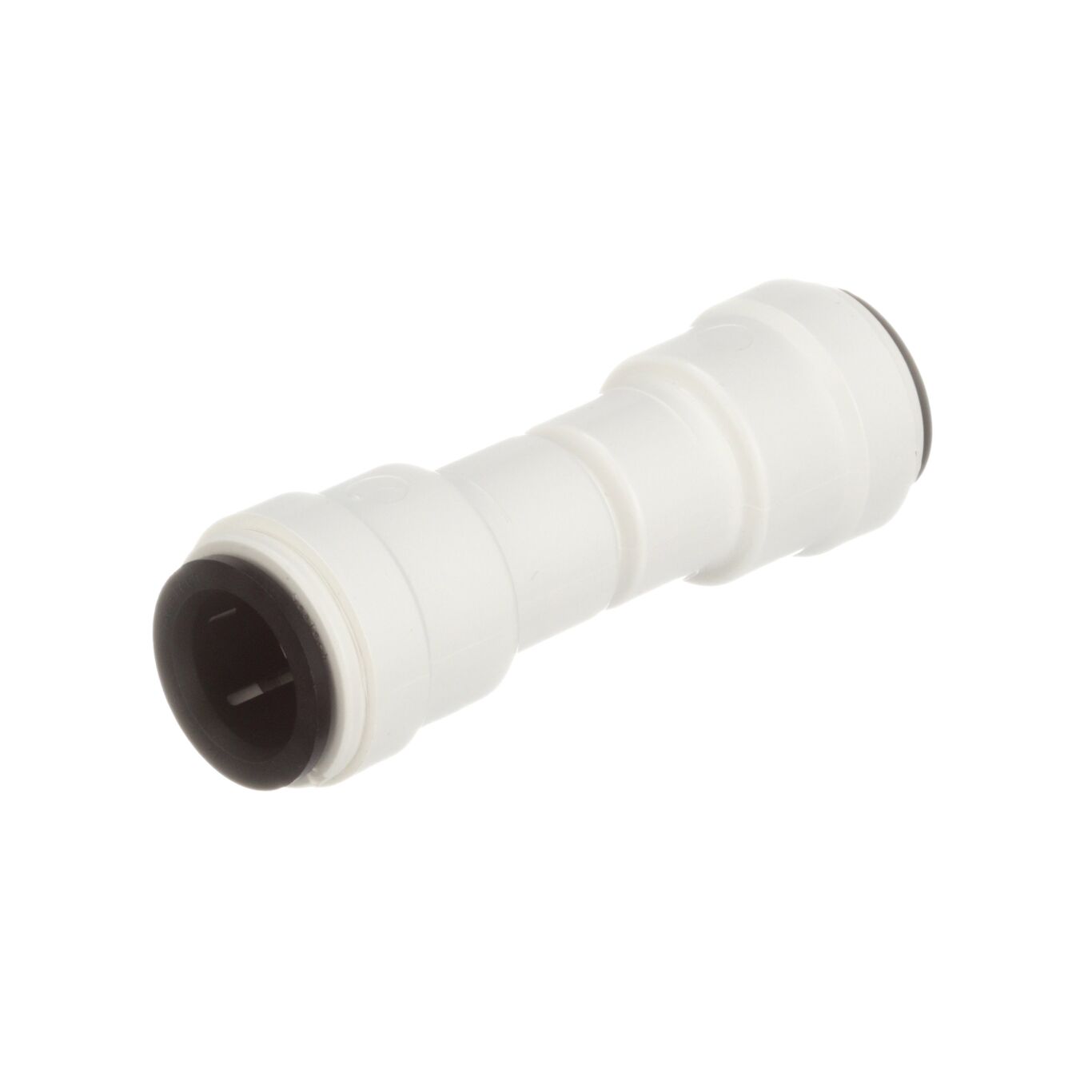

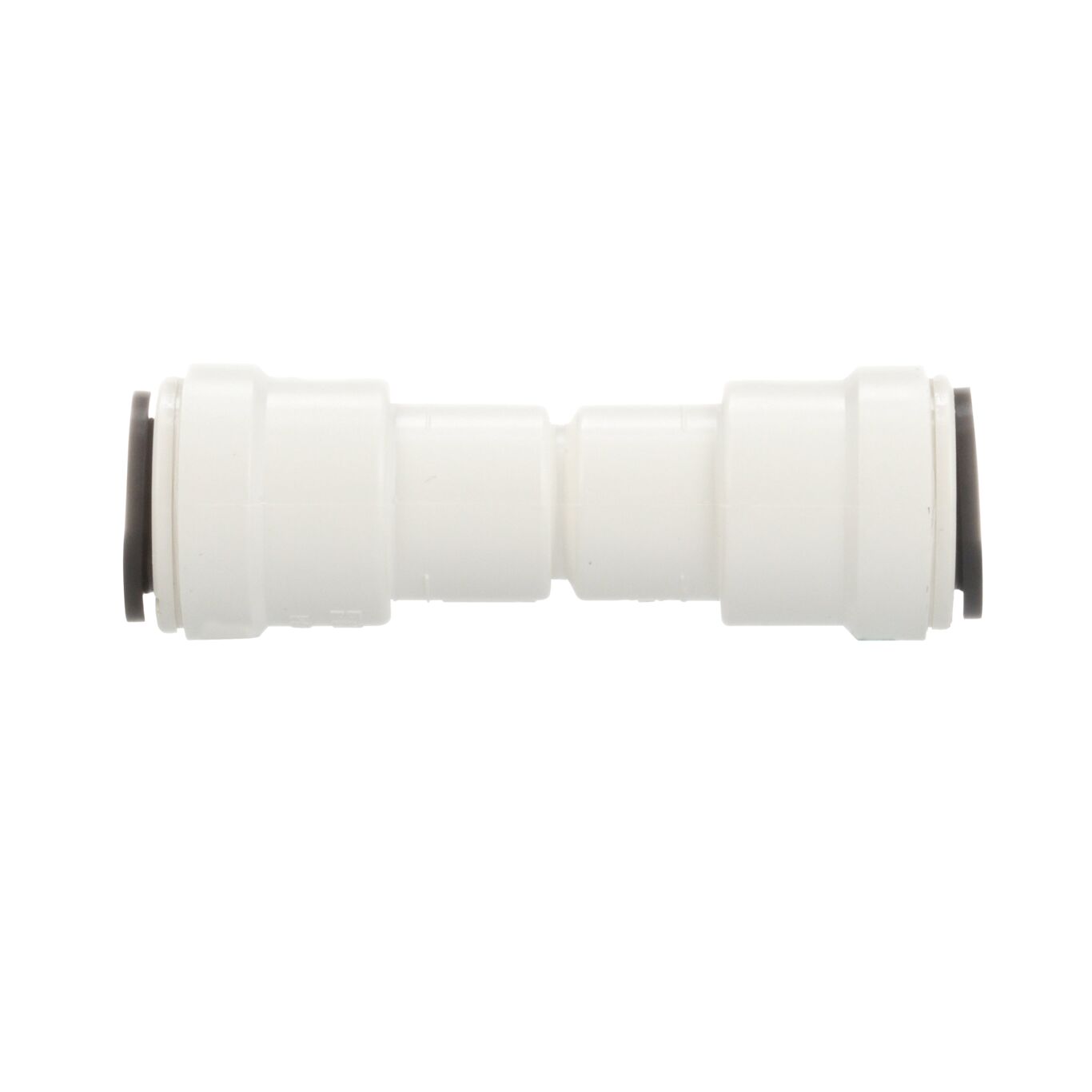

1/2 IN CTS Plastic Check Valve, Contractor Pack
This 1/2 inch CTS AquaLock(TM) plastic check valve works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications. Available in bulk quantities as contractor pack.
Features
- Ccontractor pack included 10 pack valves
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- No tools required for installation or removal
- 25-year limited warranty
| Specifications | |
|---|---|
| Brand | Watts |
| Buy American Act Compliant | NO |
| EAN | 840213003371 |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Push to connect |
| Maximum Working Pressure-PSI | 250 |
| Minimum Temperature - Celsius | 0.56 |
| Minimum Temperature-Fahrenheit | 33 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Push to connect |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 81902993 |
| Series | Check Valve 3540 |
