411 6
×
![]()
Discontinued
Part of the 411 Series
Ordering Code: 0390030
UPC: 098268025644
Lead Free: NO

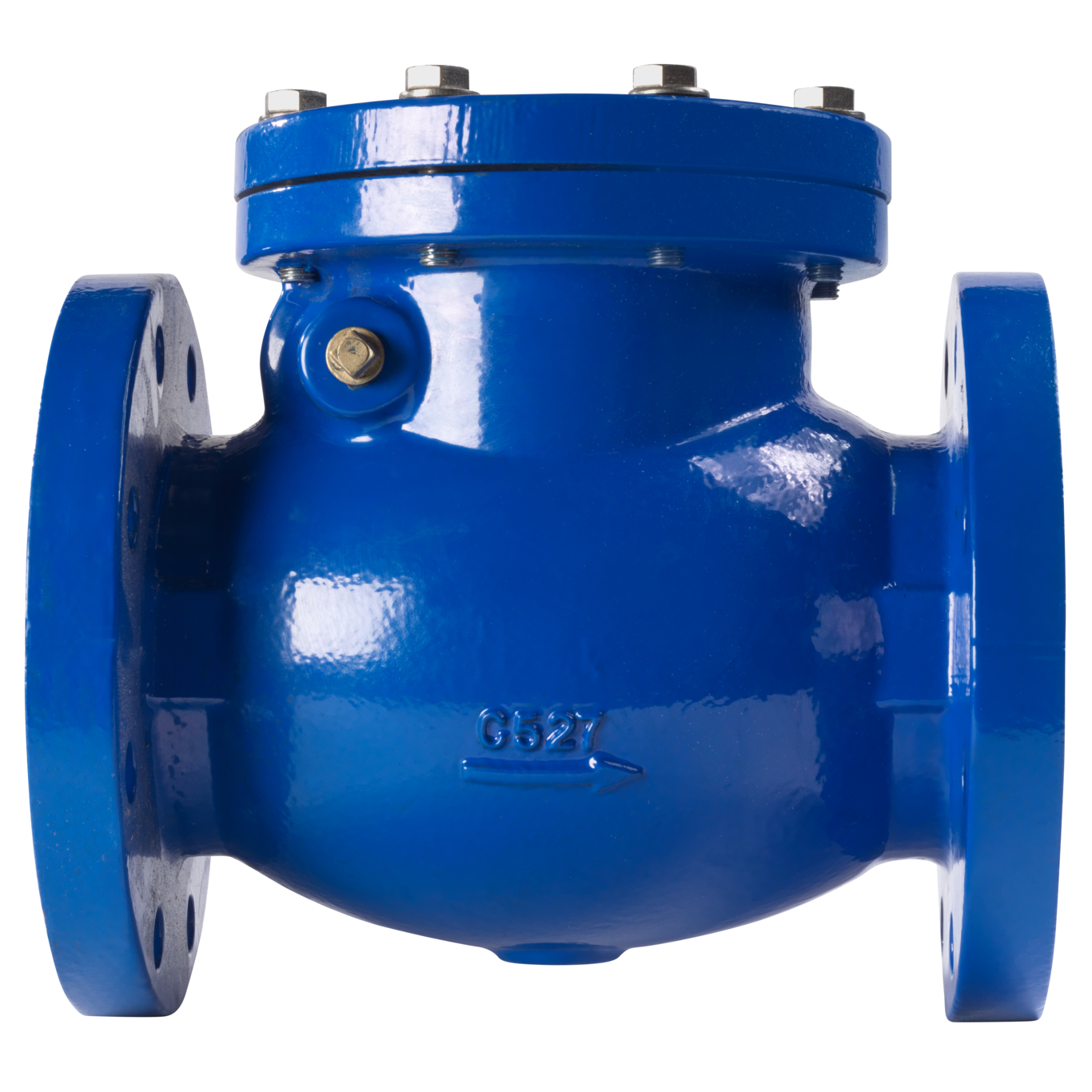

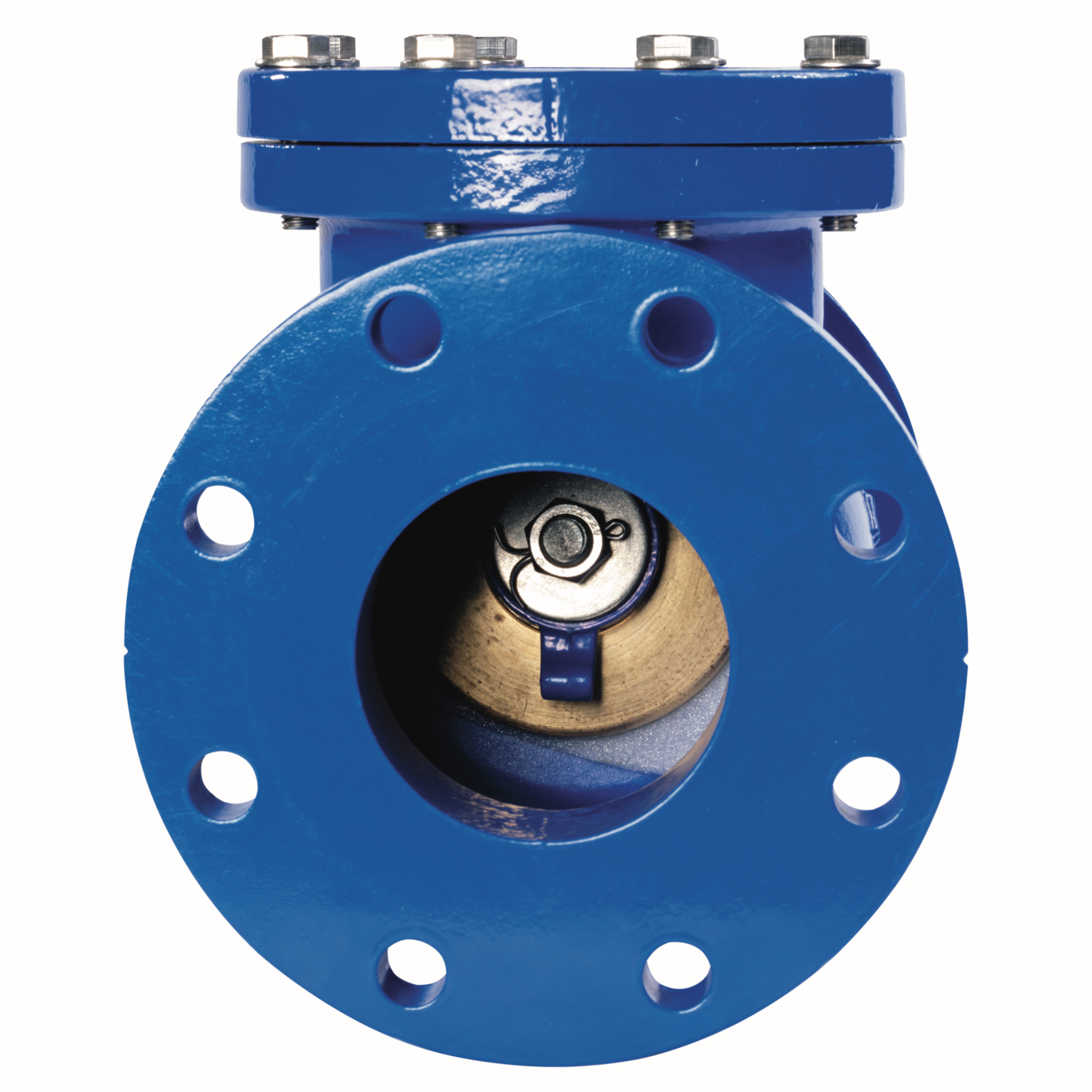

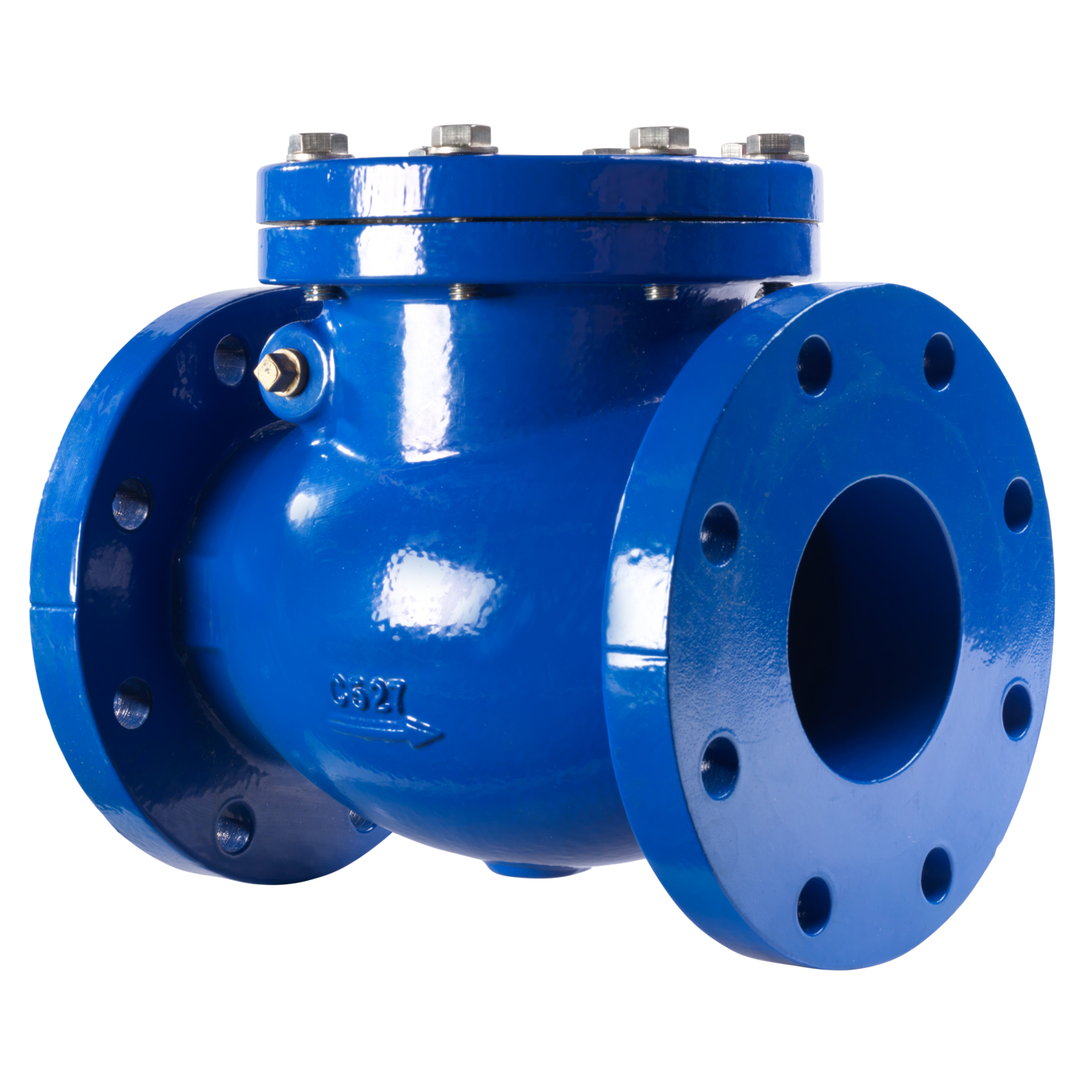

6 In Cast Iron Swing Check Valve
This 6 inch cast iron swing check valve is used in fire protection applications to prevent reverse fluid flow in water lines. It consists of a cast iron body construction with flange connections and a full port, cast iron cover and arm, bronze arm disc bushing, replaceable Buna-N seat and ductile iron disc, bronze disc stud, and stainless steel knock and hinge pin.
Features
- Cast iron body
- Replaceable Buna-N seat and ductile iron disc
- Flanged connections
- Easy in line service
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Body Pattern | Straight |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Class Rating | 125 |
| Disc Material | Ductile Iron |
| Disc Type | Swing |
| EAN | 098268025644 |
| Inlet Connection Size | 6 IN |
| Inlet Connection Size-Metric | 150 MM |
| Inlet Connection Type | Flanged Joint |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | NO |
| Maximum Operating Temperature-Celsius | 82.00 |
| Maximum Operating Temperature-Fahrenheit | 180 |
| Maximum Working Pressure-PSI | 175 |
| Outlet Connection Size | 6 IN |
| Outlet Connection Type | Flanged Joint |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 0390030 |
| Pressure-Temperature Rating | 175 PSI CWP at 180 Degree F |
| Pressure-Temperature Rating-BAR | 12.1 BAR CWP at 82 degree C |
| Series | 411 |
