TK-DL
Discontinued
Backflow Preventer Test Kit with Download Capability

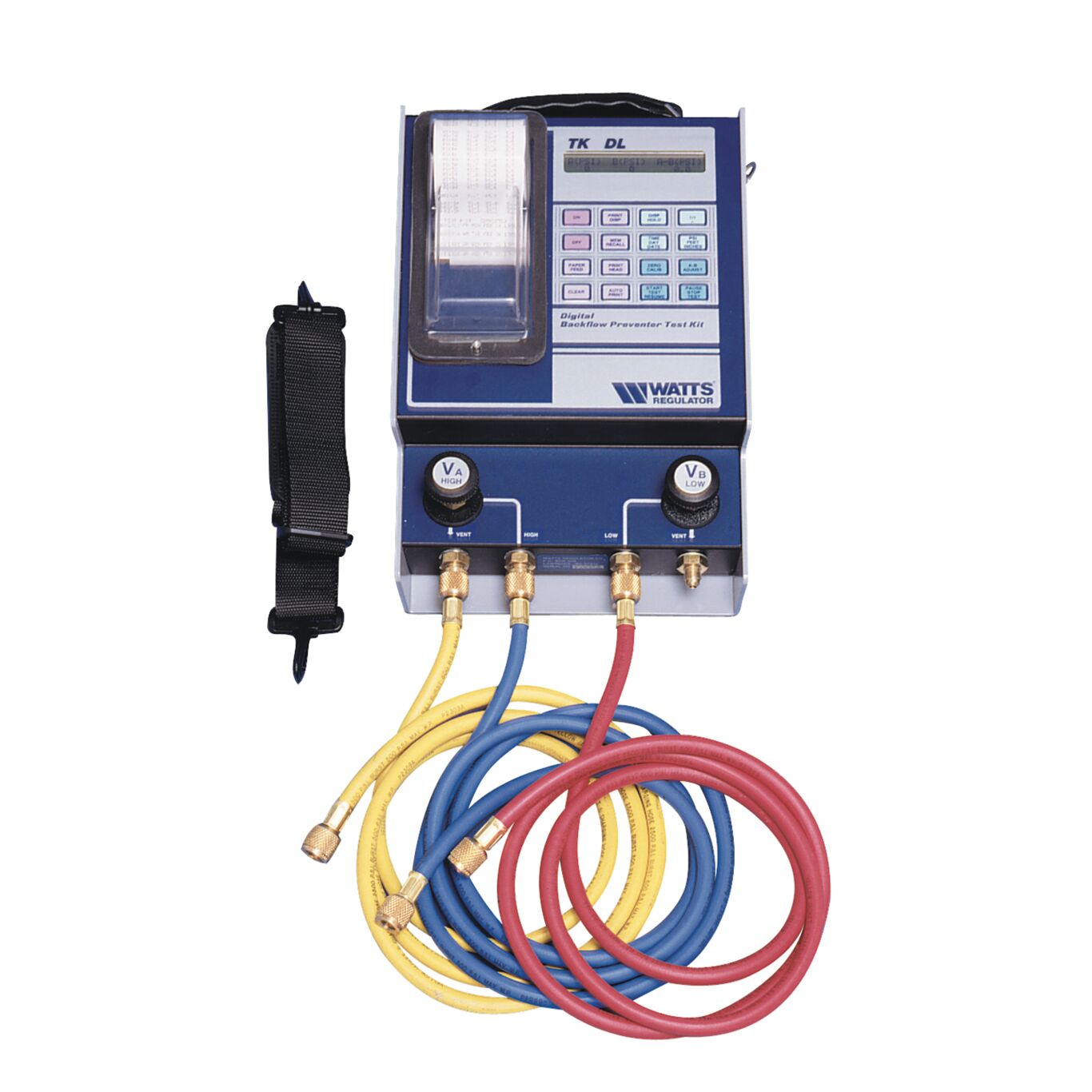

Model TK-DL Backflow Preventer Test Kit with Download Capability is a compact portable device made for testing pressure vacuum breakers, reduced pressure zone assemblies, and double check valve assemblies. The TK-DL replaces both pressure and differential test gauges featuring powerful microprocessors and a compact size. High-side, low-side and differential pressure are continuously displayed and recorded in the unit’s 32K memory. Model TK-DL also provides printed, on-site documentation, recording time, date, and verified test results. The TKDL hold 50 three-minute tests in its memory (or 75 shorter tests) which allows you to access and print your records whenever you like or transfer the data to your computer for permanent storage. Model TK-DL self-calibrates prior to each test and provides +/- 0.2% accuracy in addition. The TK-DL is backed by a full one year warranty.
Features
- Single compact unit replaces both pressure and differential test gauges
- Both digital print-out and electronic download capability
- Color-coded hoses for quick and easy identification
- Rugged carrying case with shoulder strap for easy handling and accessibility
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TK-DL
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
