LF009M2-QT-S 1

Discontinued - Replaced By: LF009M2-QT-S-FS 1

Part of the LF009 Series

Ordering Code: 0122693

UPC: 098268643213

Lead Free: YES

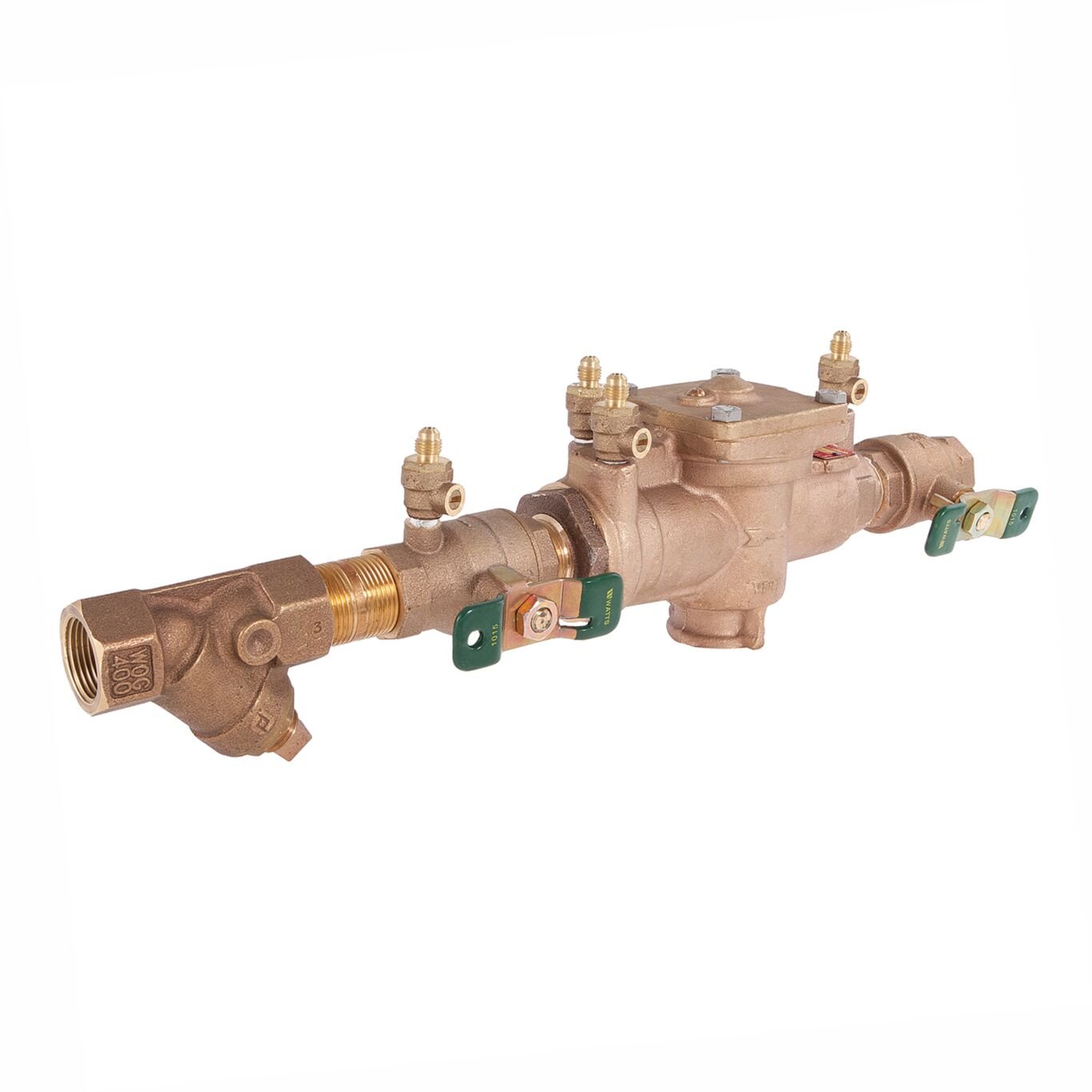

1 IN Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff Valves, Tee Handles, Bronze Strainer

  • Designed to prevent polluted water from entering your potable water supply due to back-siphonage and/or backpressure
  • Ideal for continuous-pressure piping and cross-connection applications
  • Built of lead-free bronze and cast-copper silicon alloy for durability
  • Compact modular check construction and single-access cover allow for easy maintenance and repairs
  • Offers protection from contaminants that could otherwise be hazardous to your health
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Bronze
Body Material Lead Free Bronze
Body Pattern Inline
Brand Watts
Buy American Act Compliant YES
Bypass No
Cap And Tether No
Disc Material Silicone
EAN 098268643213
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.00
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0122693
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series LF009
Strainer Yes
Technologies Does Not Apply To Product
Tradename None
