ATG-1
Backflow Preventer Test Kits

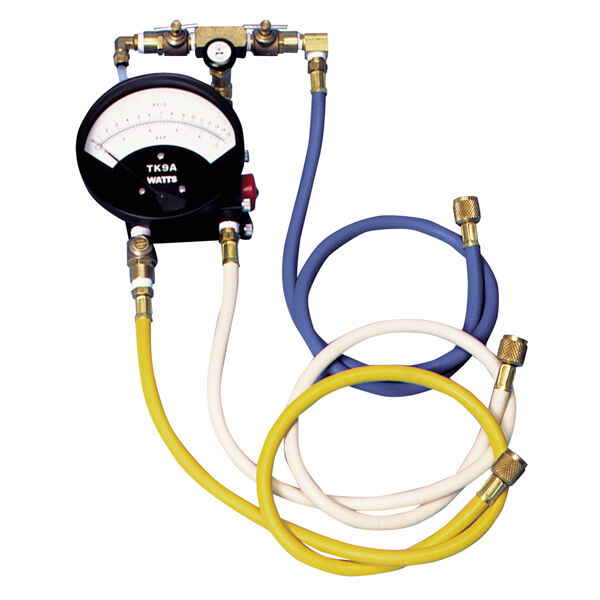

Series ATG-1 Backflow Preventer Test Kit is a compact portable device made for testing all reduced pressure zone backflow prevention assemblies and double check valve assemblies. It consists of a gauge, test valves, 3 hoses with female-threaded swivel couplings, three adapters, 1 securing strap, and an instruction guide. The ATG-1 is easily connected to any RPZ device enabling accurate testing of zone differential pressure, relief valve opening differential, fouled check valves or similar problems that visual inspections cannot locate. Includes a carrying case for easy handling and accessibility. Maximum Working Pressure: 175psi (12.06 bar).
Features
- 4.5 in. diameter face dual scale gauge
- Maximum working pressure of 175 psi (12.1 bar) and maximum working temperature of 210°F
- Includes two ball valves and one needle valve
- Lightweight, shock resistant, molded plastic carrying case with foam inserts for easy handling and access
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific ATG-1
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
