930GS-01
Stainless Steel Solenoid (On-Off) Control Valve with Hydraulic Check Feature (4 inches and Smaller)

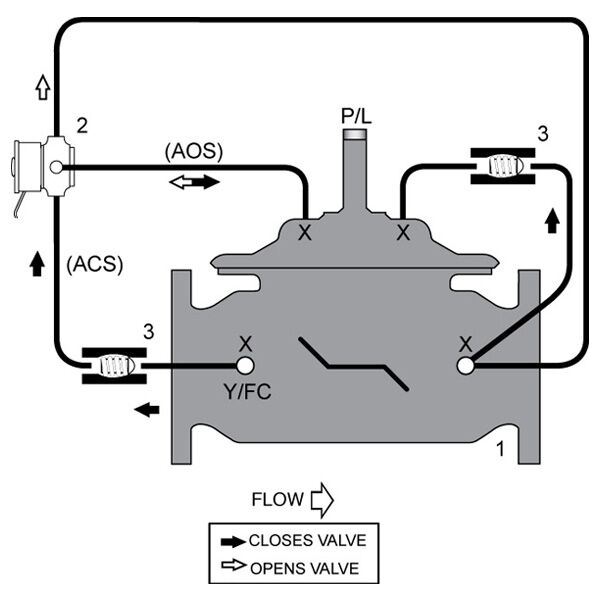

930GS-01 (Globe) and 930AS-01 (Angle) Series is designed to open fully or close drip-tight as commanded by the 3-Way Solenoid Pilot, and close drip-tight when downstream pressure becomes greater than upstream pressure. The solenoid may be activated by a pressure switch, level probe, or any other electrical on-off device. The Solenoid Pilot has provisions for manual operation in the event of power outage.
Features
- Electrically operated on / off (open / closed) valve
- Designed to open fully or close drip-tight as commanded by the 3-Way Solenoid Pilot
- Solenoid is equipped with a manual operator
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
