951GS
Stainless Steel Rate-of-Flow Control Valve with Pressure Reducing Feature

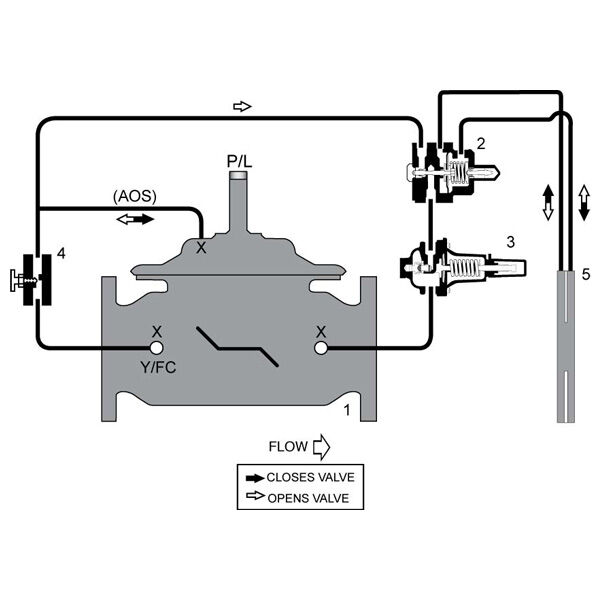

951GS (Globe) and 951AS (Angle) Series is designed to automatically limit flow rate to a constant, adjustable maximum by sensing differential pressure across a remote mounted orifice plate (field installed), and reduce a fluctuating higher upstream pressure to a constant lower downstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Throttles to reduce high upstream pressure to constant lower
- Orifice Plate Assembly is remote mounted (field installed)
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 951GS
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
