950GS-15
Stainless Steel Rate-of-Flow Control Valve with Solenoid (On-Off) Feature

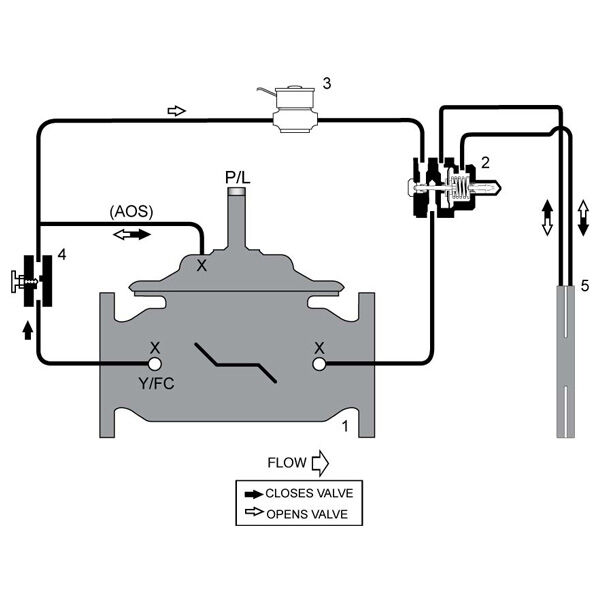

950GS-15 (Globe) and 950AS-15 (Angle) Series is designed to automatically limit flow rate to a constant, adjustable, maximum by sensing differential pressure across a remote mounted orifice plate (field installed). The valve also acts as a Solenoid (On-Off) Control Valve, opening to allow flow control action or closing drip-tight as commanded by the Solenoid Pilot. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Solenoid (On-Off) feature provides electrical override of valve function
- Orifice Plate Assembly is remote mounted (field installed)
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 950GS-15
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
