950GS-01
Stainless Steel Rate-of-Flow Control Valve with Hydraulic Check Feature

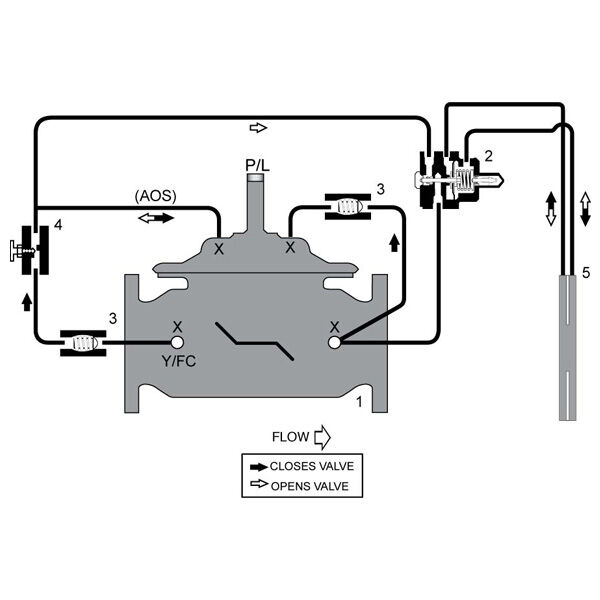

950GS-01 (Globe) and 950AS-01 (Angle) Series is designed to automatically limit flow rate to a constant, adjustable maximum by sensing differential pressure across a remote mounted orifice plate (field installed), and close drip-tight when downstream pressure becomes greater than upstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Hydraulic check feature prevents flow reversal
- Orifice Plate Assembly is remote mounted (field installed)
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 950GS-01
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
