980GS-16-19
Stainless Steel Dual Chamber Pump Control Valve with Mechanical Check Feature
980GS-16-19 (Globe) and 980AS-16-19 (Angle) Series is designed to minimize pressure surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed the limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve. The Solenoid Pilot has provisions for manual operation in the event of power outage. The valve incorporates a two-piece telescoping stem design (mechanical check feature), which closes the moment flow ceases regardless of valve position.
Features
- Minimizes the surges associated with the starting and stopping of pumps
- Valve opens at an adjustable rate upon pump start-up and closes at an adjustable rate upon pump shut-off
- A mechanical check feature closes the moment flow ceases regardless of valve position
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
Literature
-
- Installation Instructions - 980GS-16-19
- Price List - Ames ACV Controls and Accessories

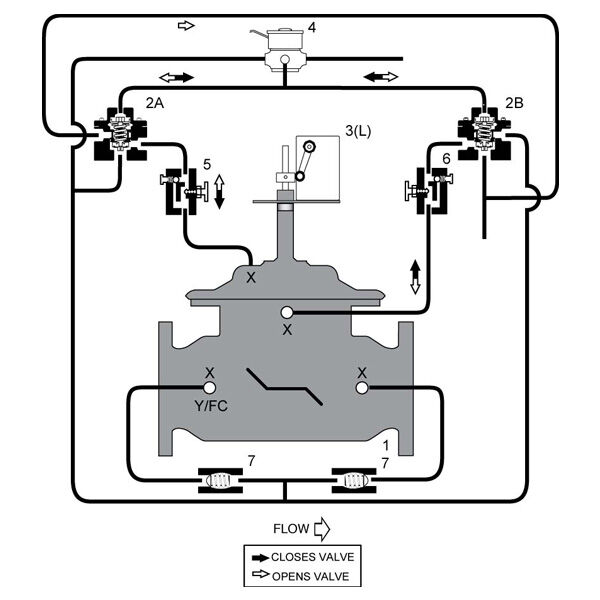

- Schematic - 980GS-16-19
- Specification Sheet - 980GS-09-16-19
- Specification Sheet - 980GS-16-19
- Specification Sheet - Engineering Bulletin - 600GS-16, 600AS-16
- Specification Sheet - Engineering Bulletin - 900GS-16, 900AS-16
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 980GS-16-19
