980GD-16
Ductile Iron Dual Chamber Pump Control Valve with Mechanical Check Feature

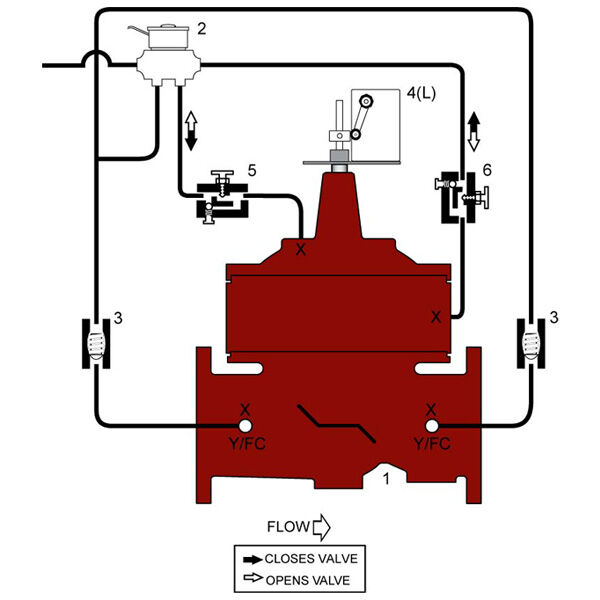

980GD-16 (Globe) and 980AD-16 (Angle) Series is designed to minimize pressure surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed the limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve. The Solenoid Pilot has provisions for manual operation in the event of power outage. The valve incorporates a two-piece telescoping stem design (mechanical check feature), which closes the moment flow ceases regardless of valve position.
Features
- Minimizes the surges associated with the starting and stopping of pumps
- Valve opens at an adjustable rate upon pump start-up and closes at an adjustable rate upon pump shut-off
- A mechanical check feature closes the moment that flow ceases, regardless of valve position
- The Solenoid is equipped with manual operator
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 980GD-16
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
