912GD-01
Ductile Iron Pressure Reducing and Sustaining Control Valve with Hydraulic Check Feature

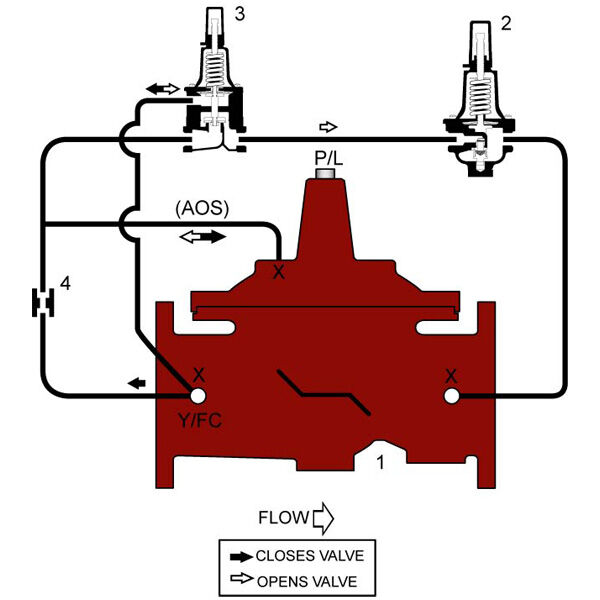

The 912GD-01 (Globe) and 912AD-01 (Angle) Series is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates, throttle to sustain a minimum upstream pressure, and close drip-tight when downstream pressure becomes greater than upstream pressure.
Features
- Automatically reduces a fluctuating higher upstream pressure to a constant lower downstream pressure
- Hydraulic Check Feature prevents flow reversal
- Reducing and Sustaining setpoints are separately adjustable
- Sizes 1 1/4 in. to 16 in. (32mm to 400mm)
