940GS-04
×
![]()
Stainless Steel Non-Surge Check Valve (4 inches and Smaller)

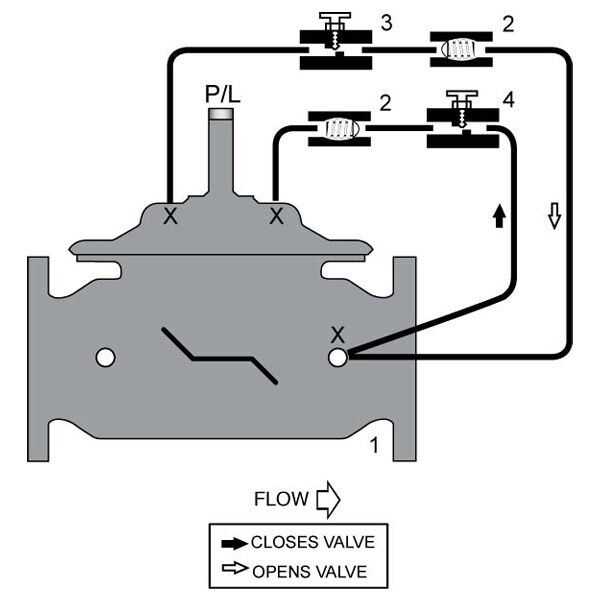

940GS-04 (Globe) and 940AS-04 (Angle) Series is designed to control pipeline surges caused by flow reversal by slowly opening and closing at separate adjustable rates.
Features
- Controls pipeline surges caused by flow reversal by slowly opening and closing at separate adjustable rates
- Valve closes when downstream pressure is greater than upstream pressure
- Valve opens when upstream pressure is greater than downstream pressure
- Lightweight Stainless Steel construction reduces corrosion, diaphragm wear, and labor frequency and costs
