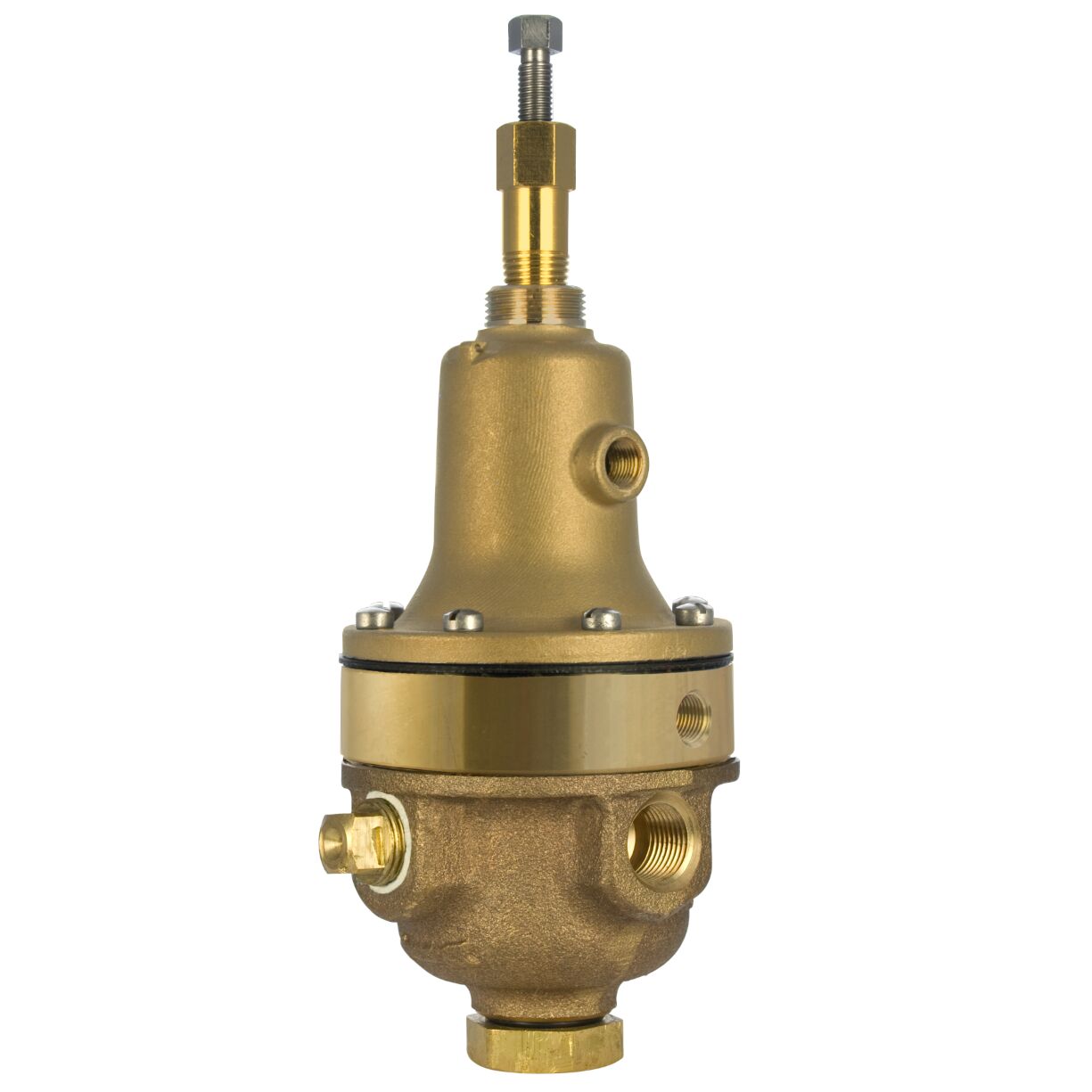

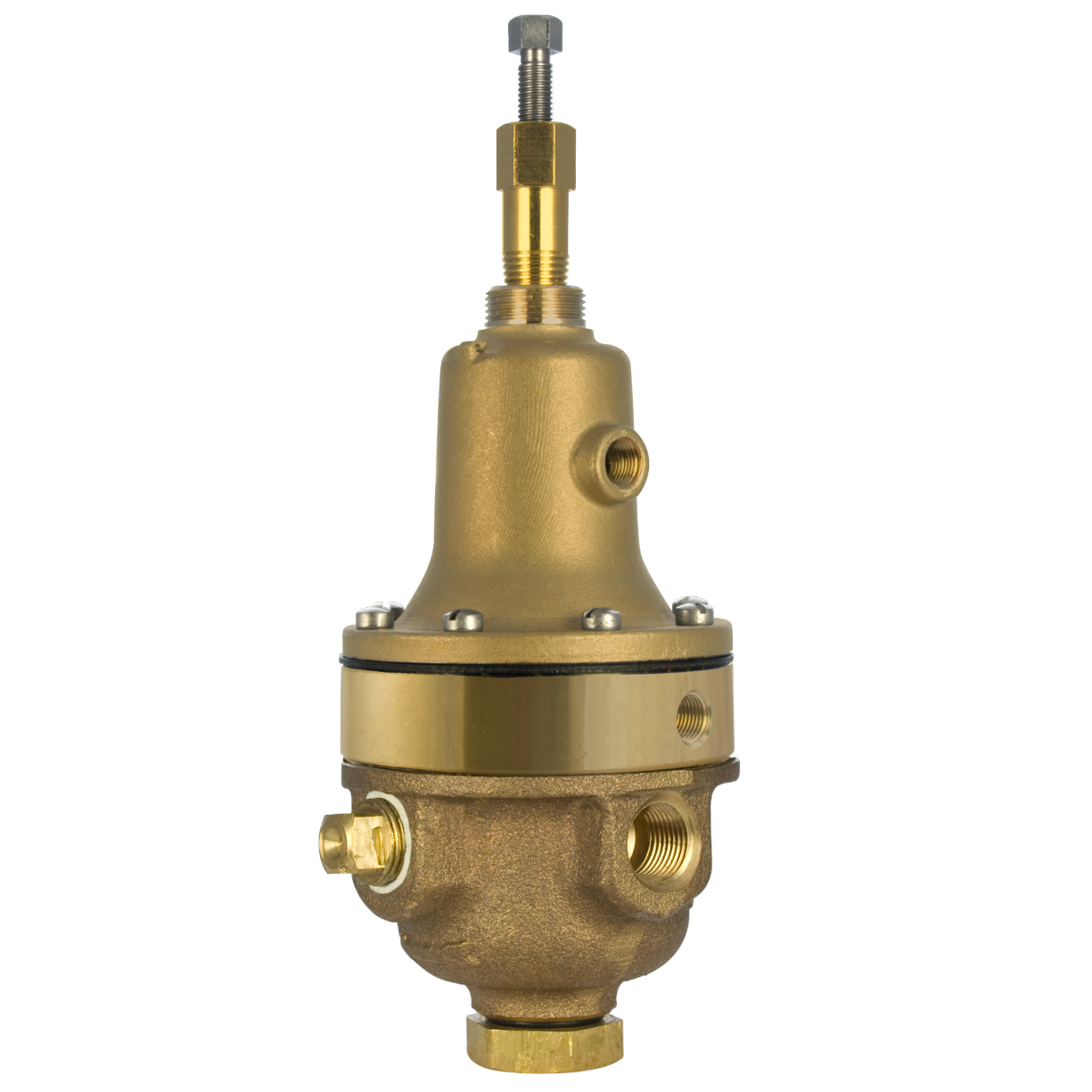

LFCP14-1
Rate-of-Flow Pilot
Series LFCP14-1 is a direct acting, diaphragm actuated Pilot that senses and responds to changes in a differential pressure signal. The differential pressure signal is usually created by an orifice plate located inline either upstream or downstream of the Main Valve. The Pilot has two sensing chambers, one above and one below the diaphragm. The low pressure signal is sensed above the diaphragm, and the high pressure signal is sensed below the diaphragm. The LFCP14-1 is equipped with one 3/8 in NPT inlet and three outlet ports for ease of installation, and two 1/8 in NPT sensing ports. The 1/8 in sensing port above the diaphragm is used to monitor the low pressure differential signal, and the sensing port below the diaphragm is used to monitor the high pressure differential signal.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFCP14-1
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
