DUOVENT
High Capacity Air Vents with Manual Vent Feature

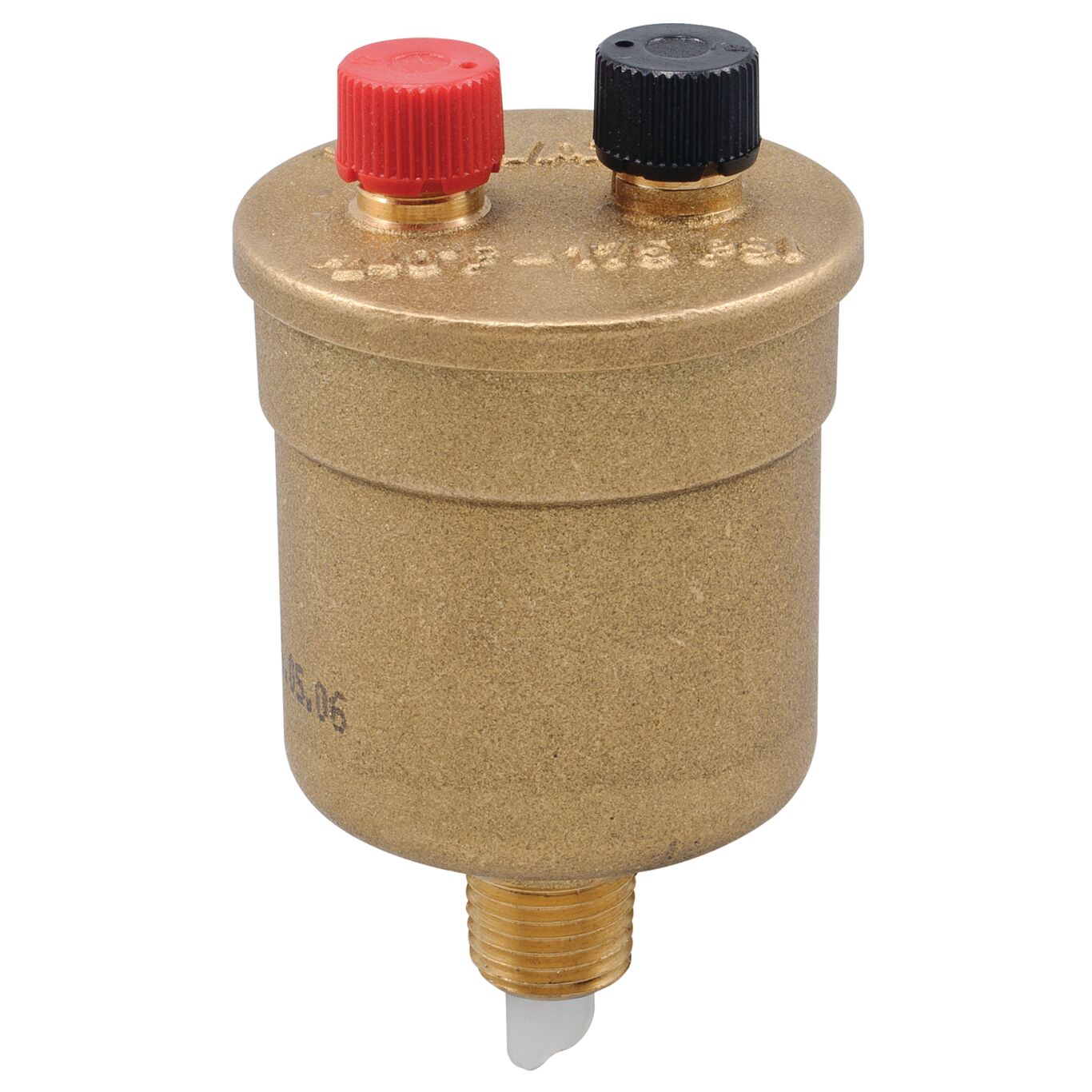

Series DuoVent High Capacity Air Vents with manual vent feature are used in commercial and residential hydronic heating applications to provide automatic air venting for hot or cold water distribution systems. It consists of a brass body construction with female NPT connection, brass cover, air vent with silicone rubber seal, shutter, polyethylene float with valve plug, automatic vent with black cap, and manual vent with red cap. Series DuoVent has a high capacity and high temperature rating and is ideal for use with glycol systems or for use as an anti-vacuum device. Can be disassembled for inspection and cleaning.
Maximum Pressure: 150psi (10 bar)
Temperature Range: 33°F - 240°F (5°C - 116°C)
Features
- Maximum Pressure: 150psi (10 bar)
- Used in commercial and residential hydronic heating applications
- Brass body construction
- Ideal for use with glycol systems or for use as an anti-vacuum device
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific DUOVENT
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
