PEX Plates
Extruded/Stamped Aluminum PEX Plate

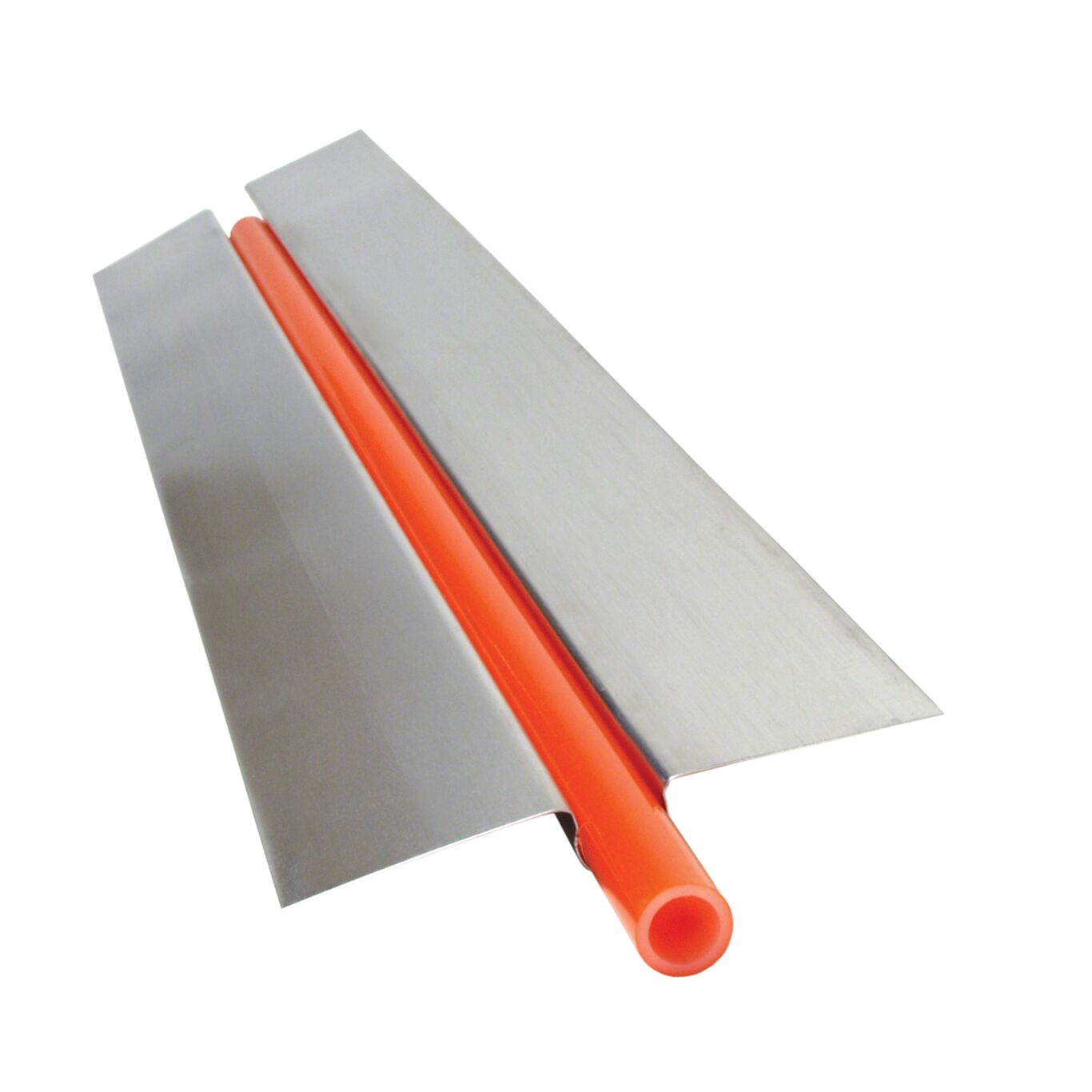

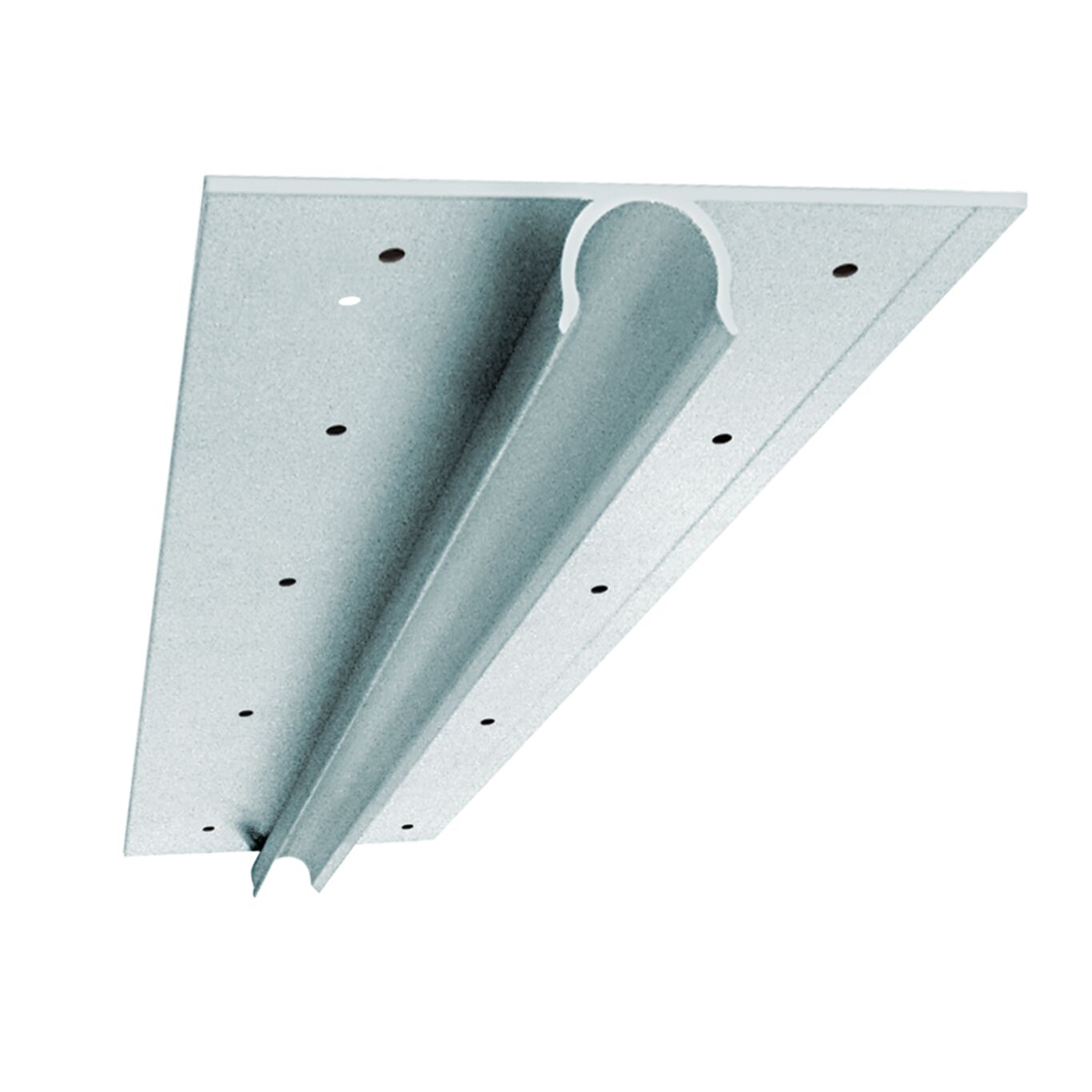

Aluminum PEX Plates are used for underfloor and sandwich applications to help transfer heat from the tubing to the floor. Extruded Aluminum PEX Plates are available in two models for 3/8 in. and 1/2 in. RadiantPEX+ or RadiantPERT. These plates are 3-1/2 in. wide by 4 ft. long with pre-drilled holes and a channel that locks the tubing tightly in place. The stamped aluminum version has an indentation for 1/2 in. PEX and measures 5 in. x 24 in.
Features
- Aluminum PEX plates help transfer heat from the tubing to the floor
- Use in underfloor and sandwich applications
- Available in two extruded models (with a tight-grip channel) and one stamped aluminum model
- Pre-drilled holes and a channel that locks the tubing tightly in place
