WarmWire Cable

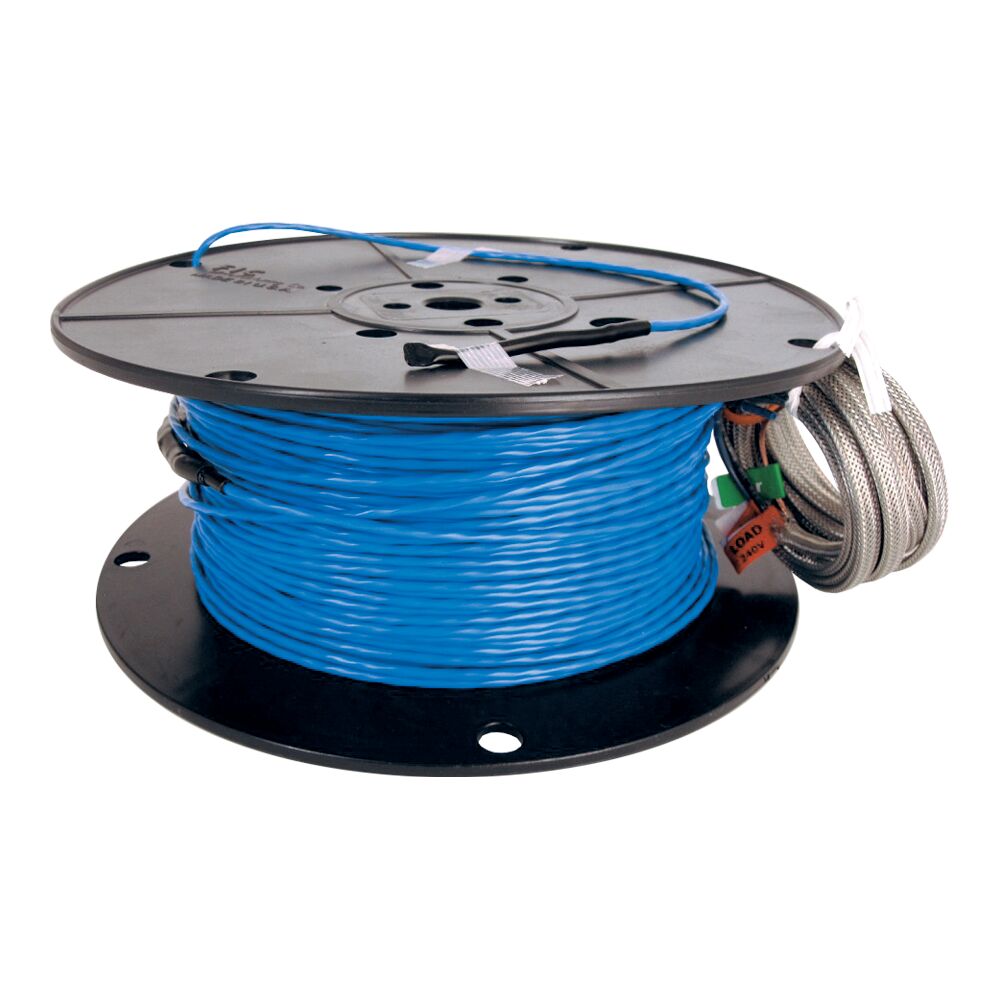

WarmWire Electric Floor Heating Cable

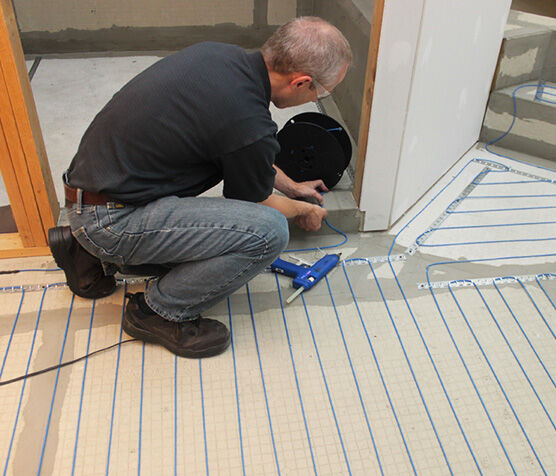

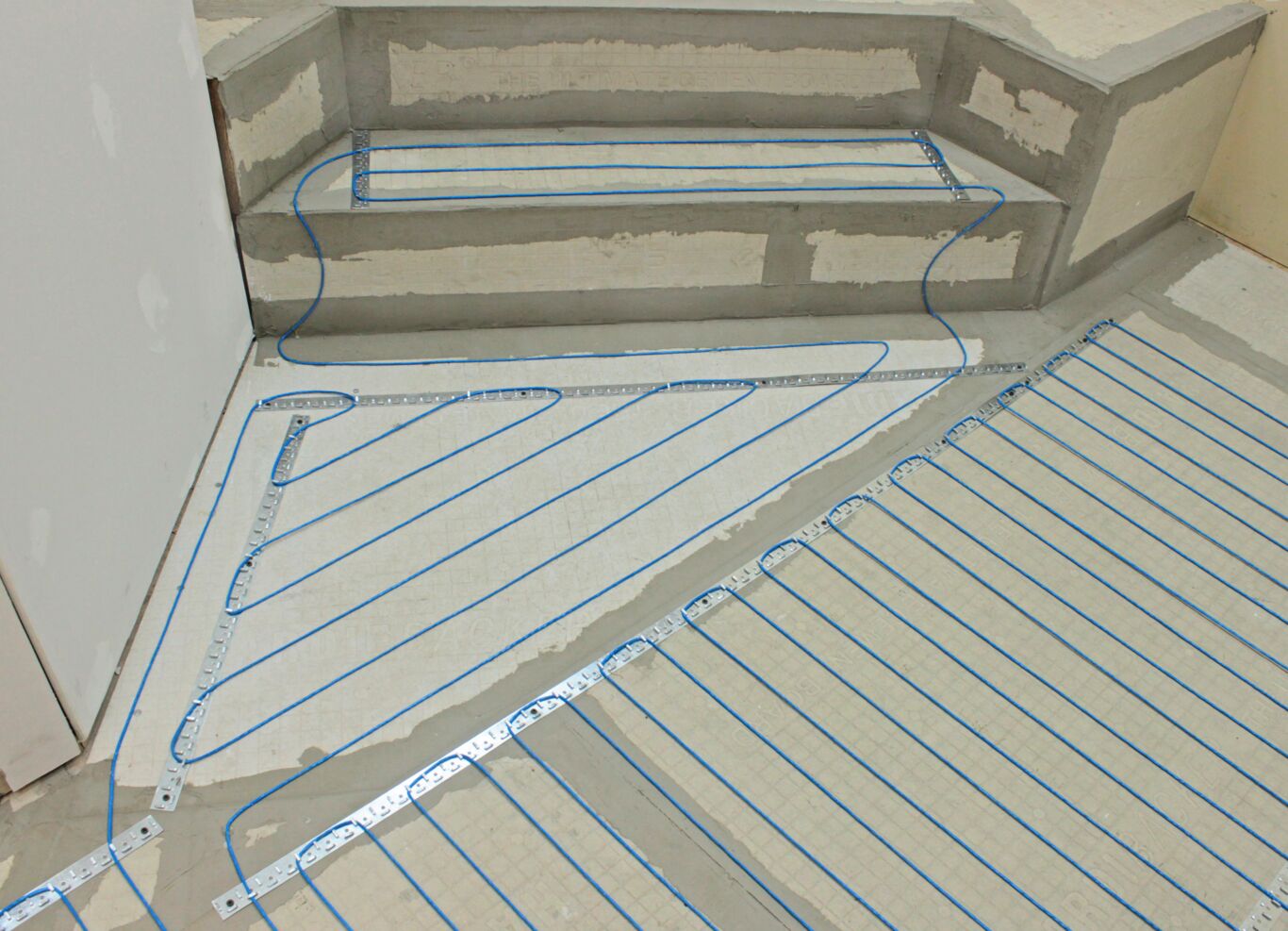

SunTouch WarmWire is a series resistance heating cable assembly for installation over plywood, backerboard, or concrete slab (according to ANSI or TCNA guidelines), and then embedded in 3/8 in. (9.5 mm) or greater self-leveling or polymer-modified thin-set mortar.

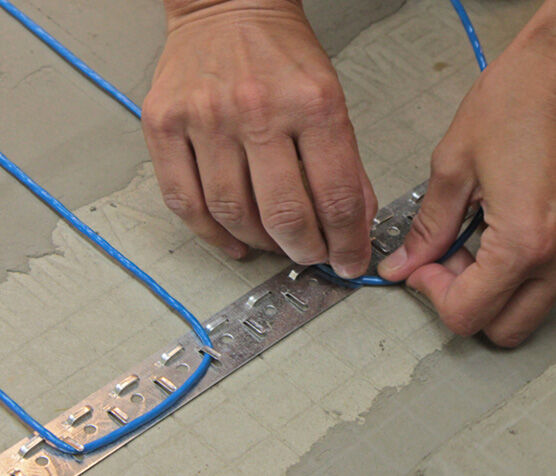

SunTouch WarmWire cables contain an electric heating wire to provide underfloor heat in bathrooms, kitchens, entryways, and other areas, and are an affordable alternative to radiant heated mats. Approved for installation in shower applications where permitted. Durable, constant-diameter wire is easily secured at 2.5 in., 3 in., or 3.5 in. intervals with CableStrap. Controlled by a SunStat floor sensing thermostat (sold separately). WarmWire is available in various lengths with voltage options of 120 or 240VAC.
Features
- Provides an affordable underfloor heating alternative to radiant heated mats in bathrooms, kitchens, entryways, and other areas
- For installation over plywood, backerboard, or concrete slab
- Suitable for installation in a shower area where permitted by local authorities
- Controlled by a SunStat floor sensing thermostat (sold separately)
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific WarmWire Cable
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
