294EXP
×
![]()
Part of the Multi-Staging Controls Series
Ordering Code: 294EXP
UPC: 779655029413
Smart Boiler Expansion, Four tN4, Expands Four Boilers up to 16 Boilers, 3-wire Communication

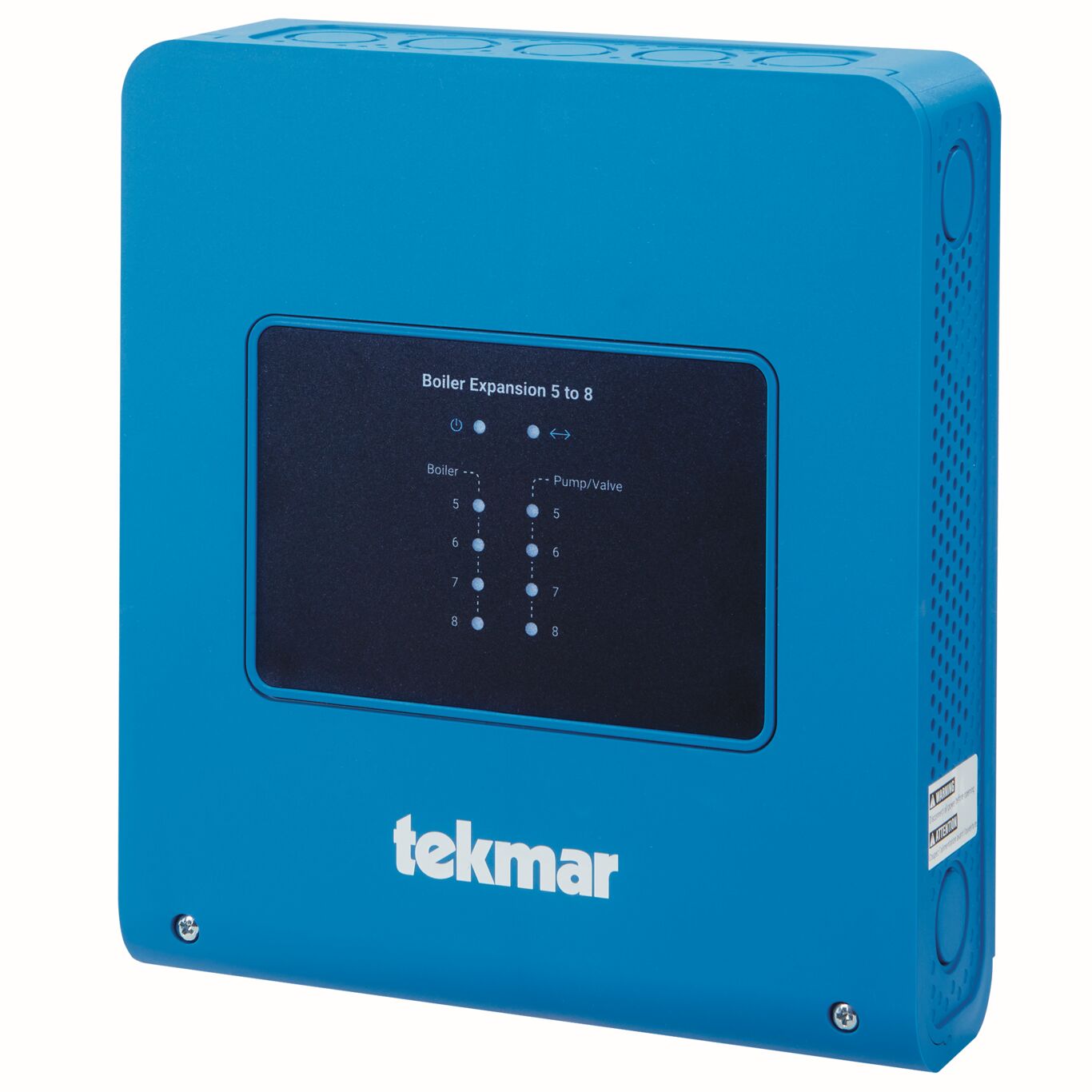

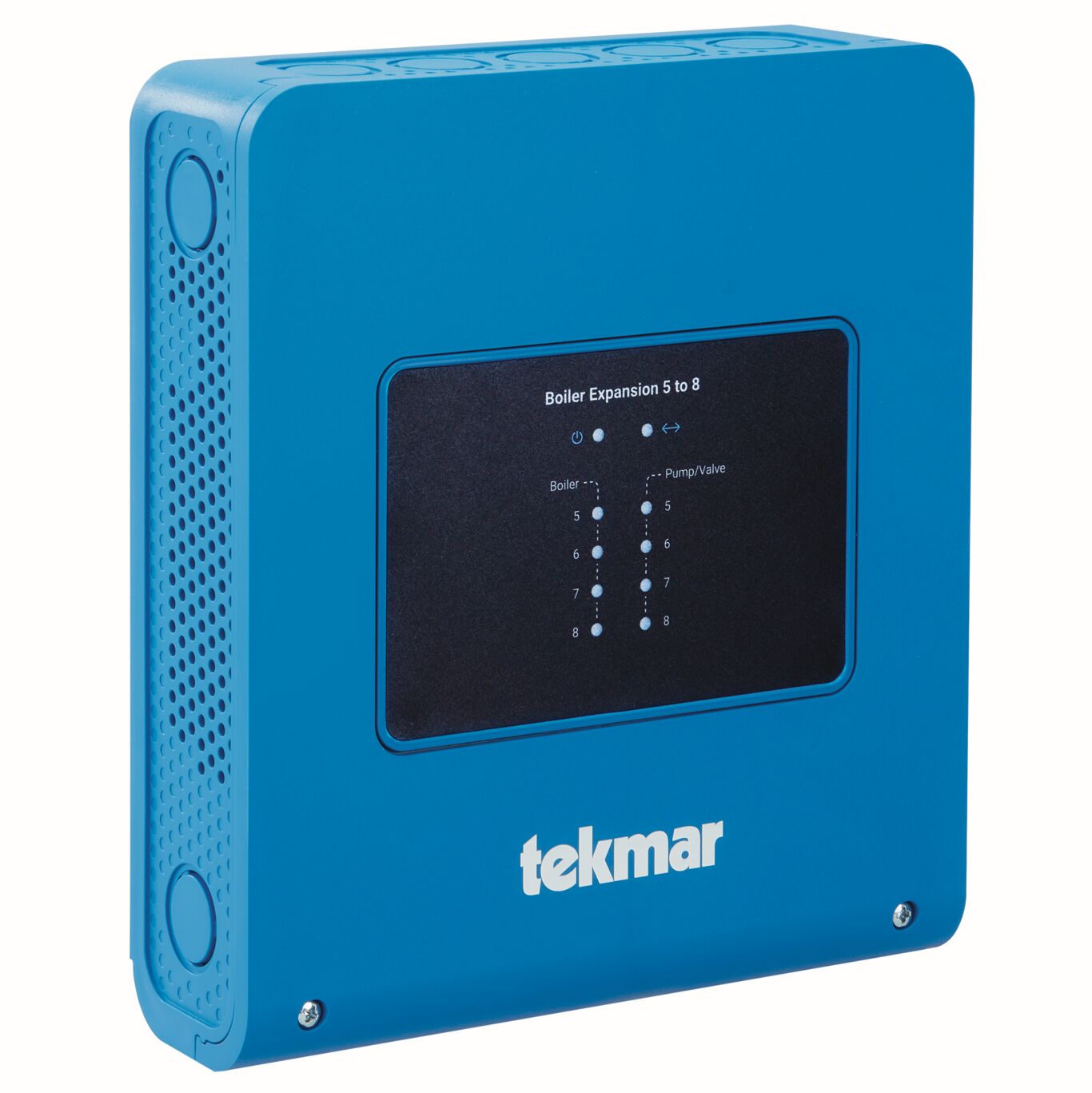

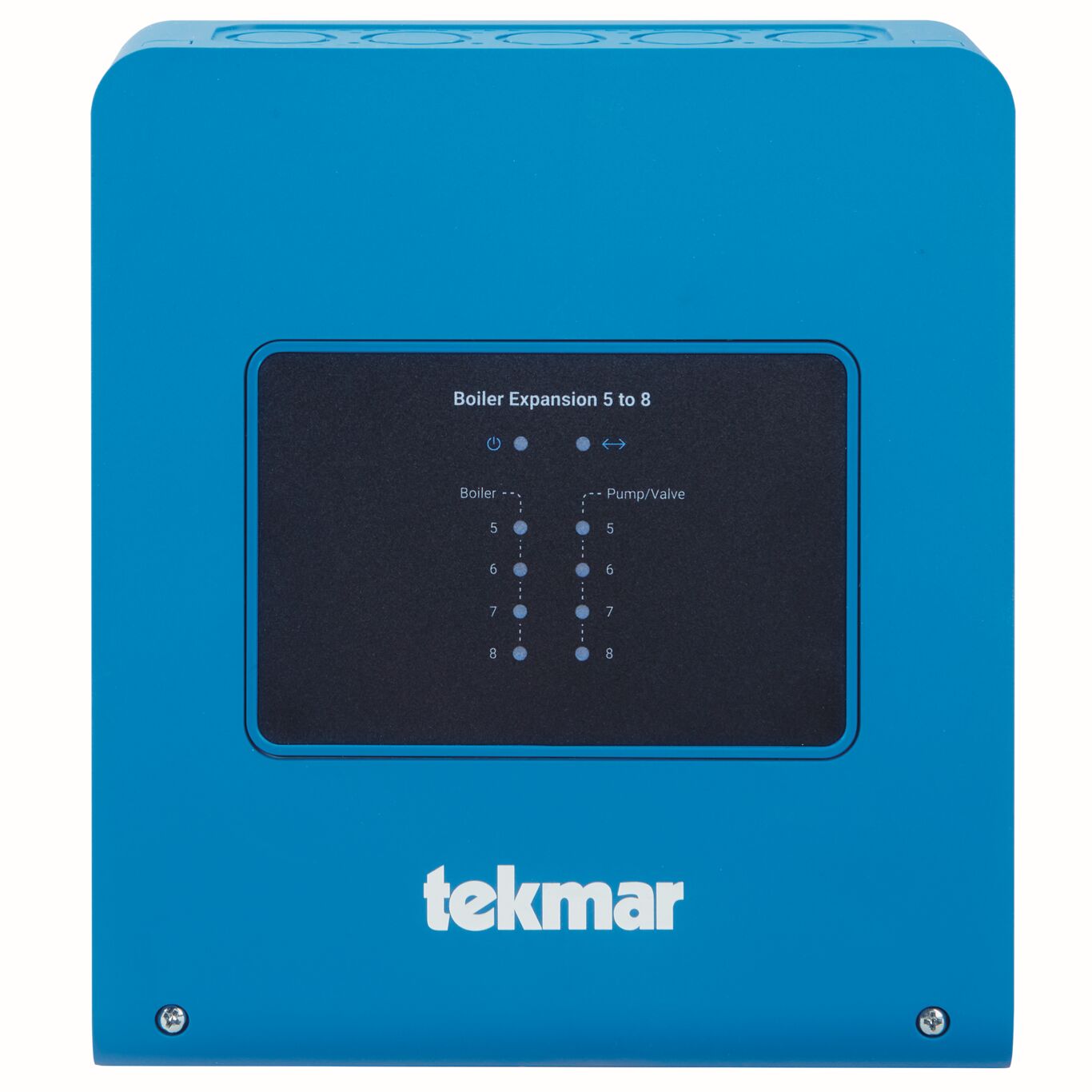

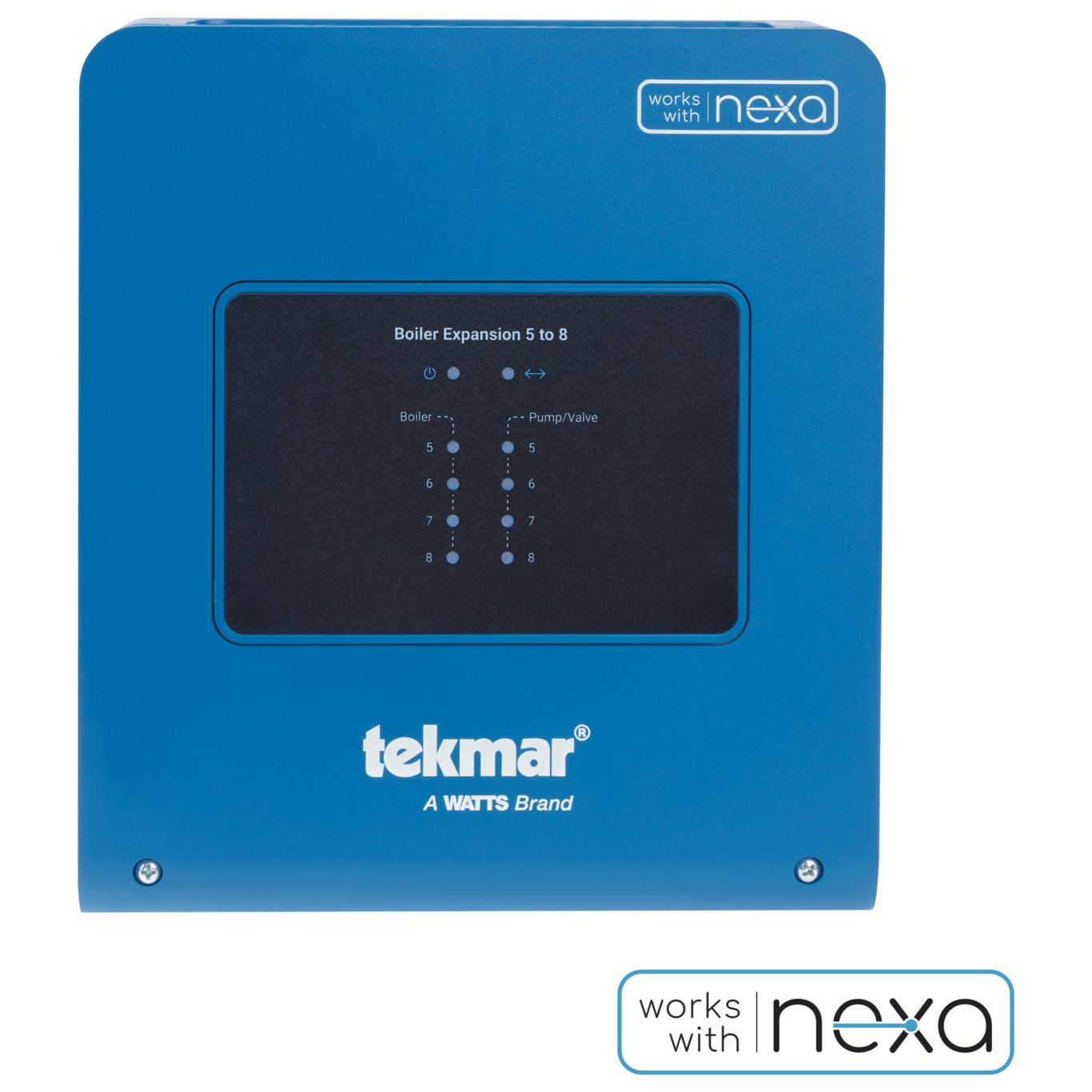

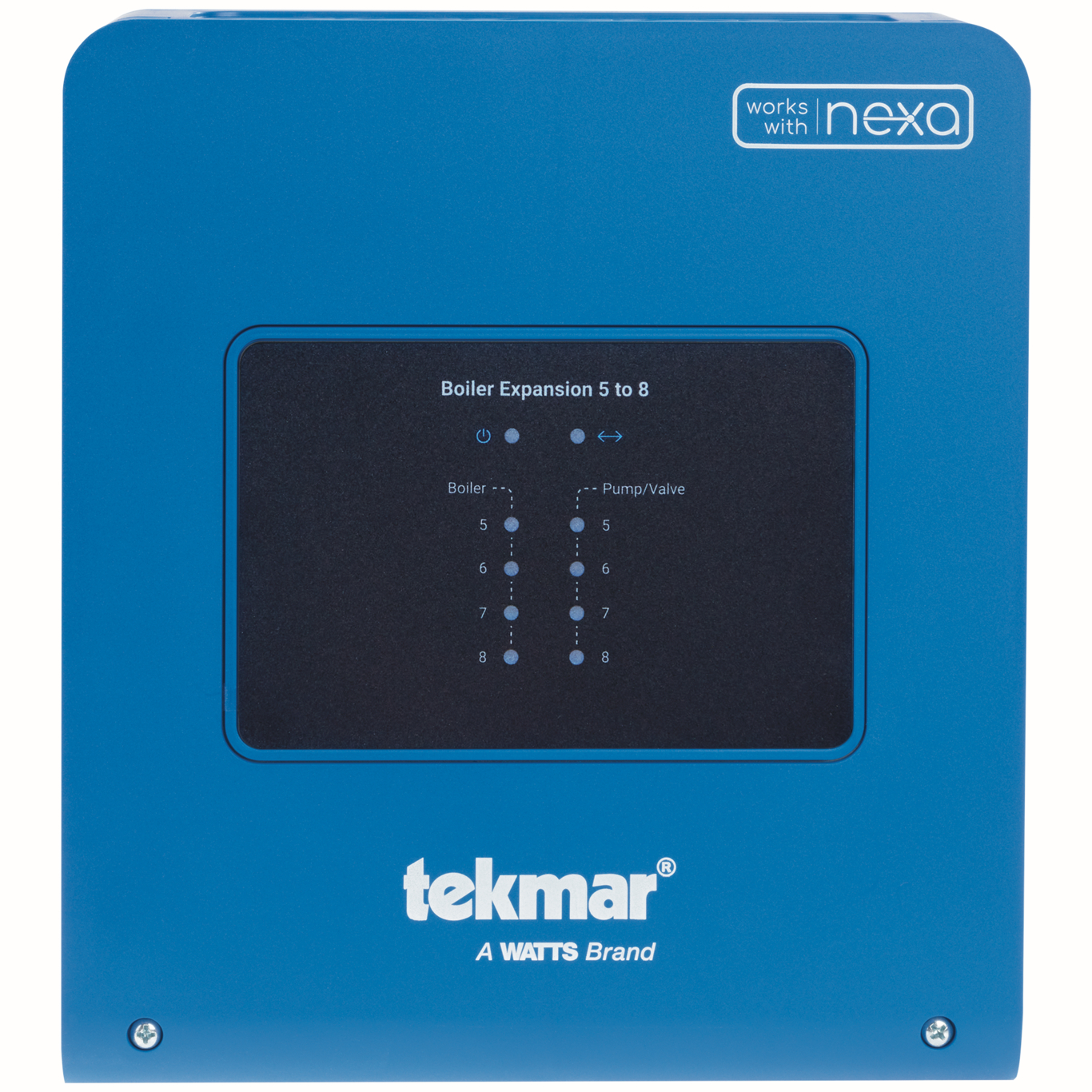

The Smart Boiler Expansion 294EXP expands the Smart Boiler Control 294 in groups of four boilers up to a maximum of sixteen boilers. The 294EXP connects to the Smart Boiler Control 294 through a three-wire communication cable.
- Expansion for 4 boilers
- Boiler configuration selected by DIP switches
- LED status indicators for power, communication, each boiler and pump/valve
- 3-wire communication
| Specifications | |
|---|---|
| Agency Approvals | CSA C US, FCC Part 15B, ICES-003 Class A |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), less than 90 percent RH Non-condensing, Altitude < 6560 feet (2000 m), Installation Category II, Pollution Degree 2 |
| Dimensions | 9 IN H x 8 IN W x 2 11/32 IN D (229 x 203 x 60 MM) |
| Enclosure Material | Blue ABS plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Modulating Output | 0-10 V (dc) 500 ohms minimum load impedance / 4-20 mA 1 k ohms max load impedance |
| Power Supply | 115 V (ac) plus / minus 10 percent, 60 Hz, 6W |
| Pump Relay | 230 V (ac), 5A, 1/3 hp |
