TCA-411
Floor Mounted Concealed Arm Track Lavatory Carrier

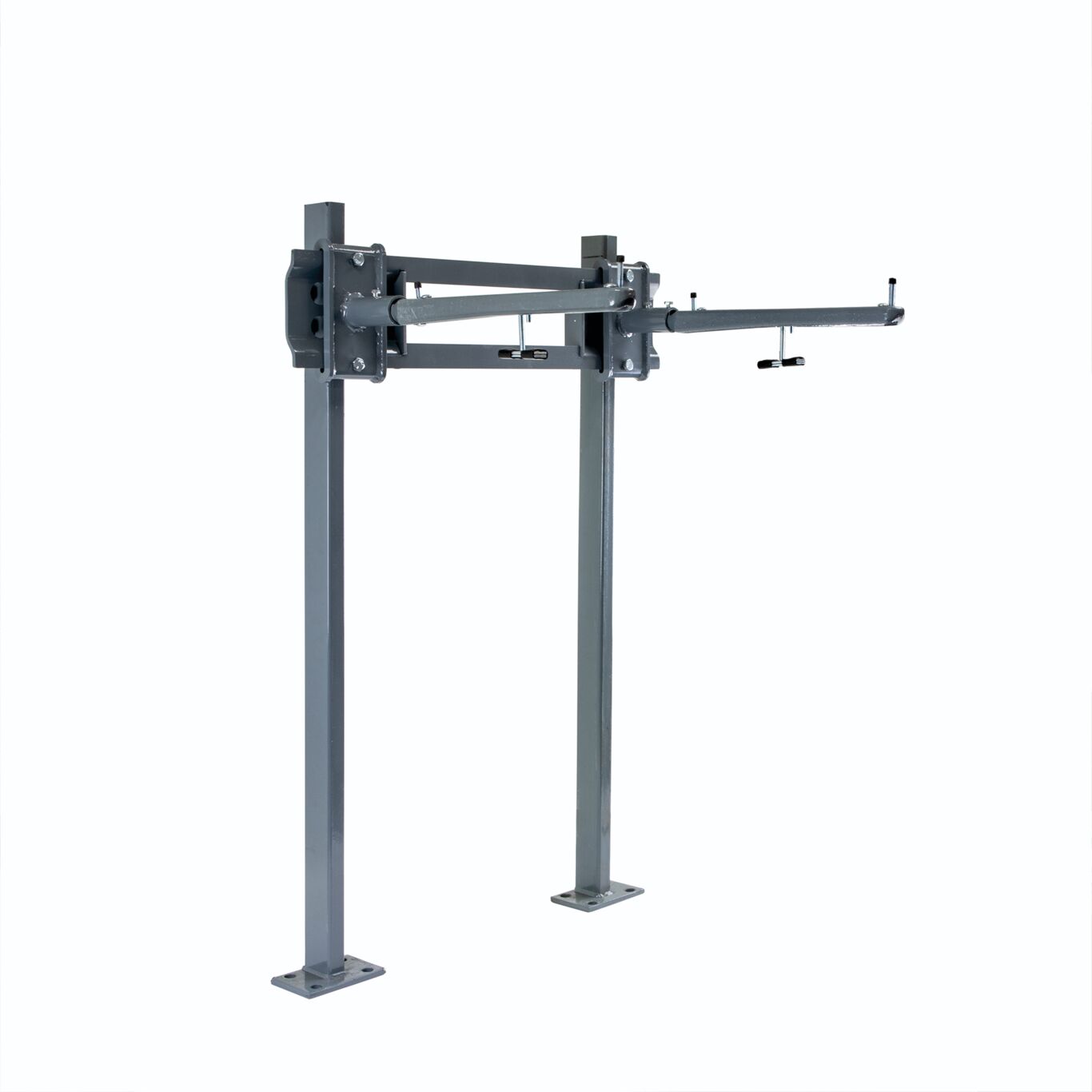

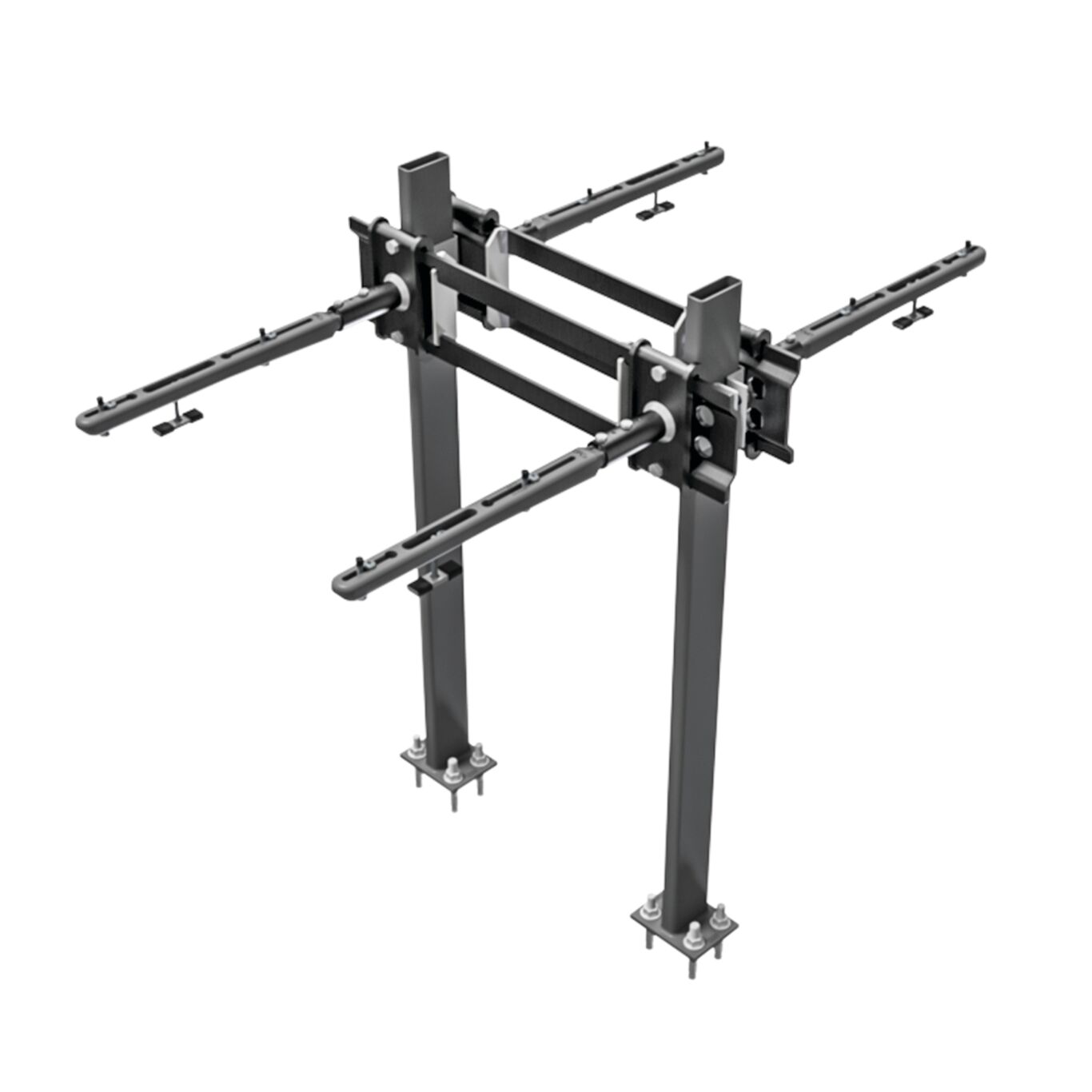

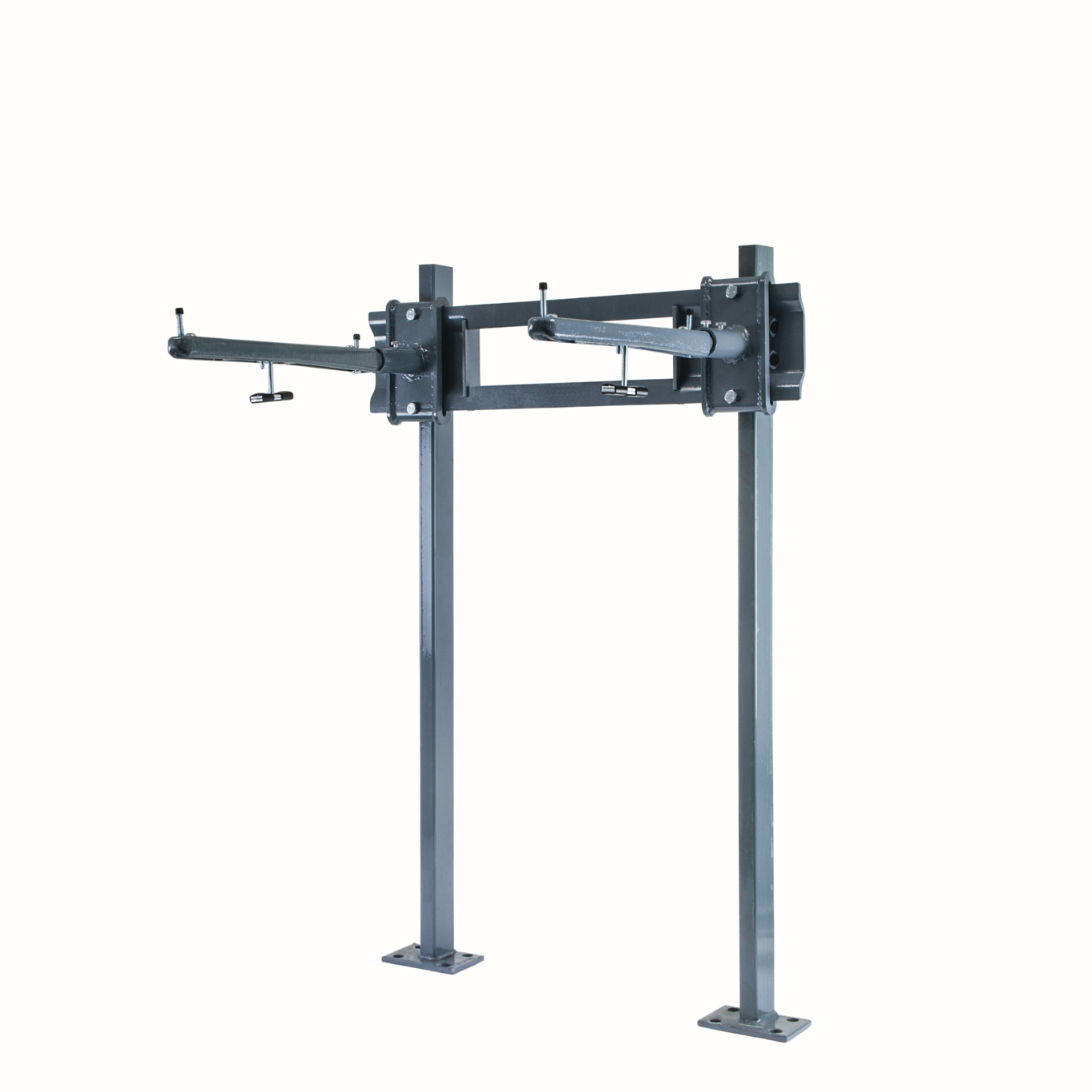

Watts TCA-411 epoxy coated floor mounted concealed arm track lavatory carrier with heavy gauge steel offset uprights with welded feet, steel cross plate with integral mounting brackets, sliding adjustable arm brackets, and adjustable cast iron concealed arms with leveling screws, and basin locking device. Carrier complies with requirements of ASME A112.6.1M up to a 250 lb (113 kg) static load.
Features
- Patented labor saving design for chase installations
- Arms adjust horizontally with uprights bolted to the floor
- Installs through a block wall without nipple extensions
- Offset feet allow uprights to be reversed in the chase
- Standard arms accommodate most 20x18 and 19x17 lavatories
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TCA-411
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
