IWTG

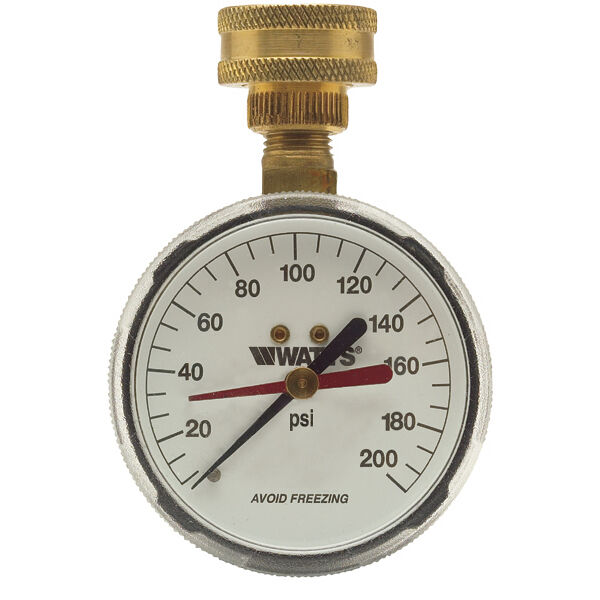

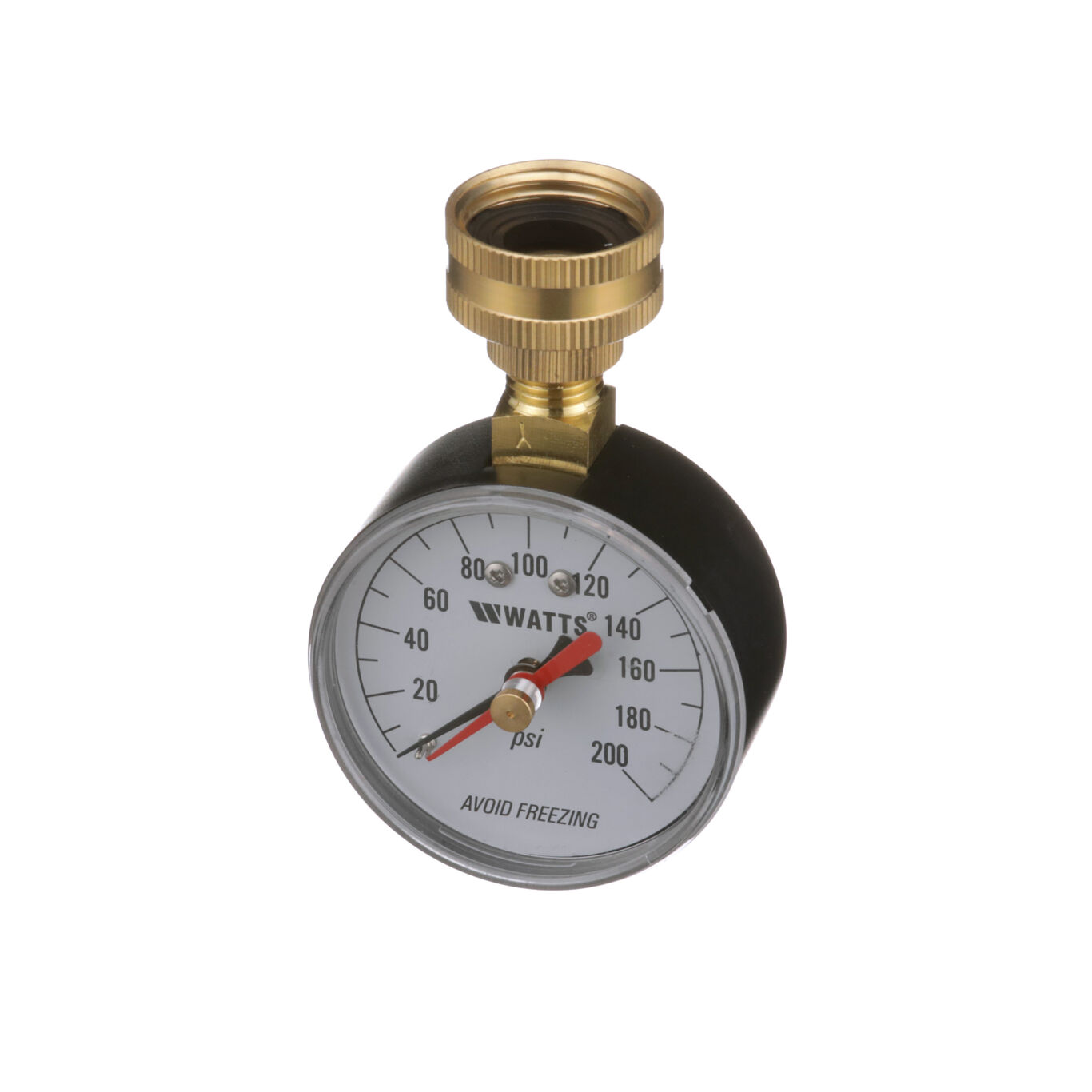

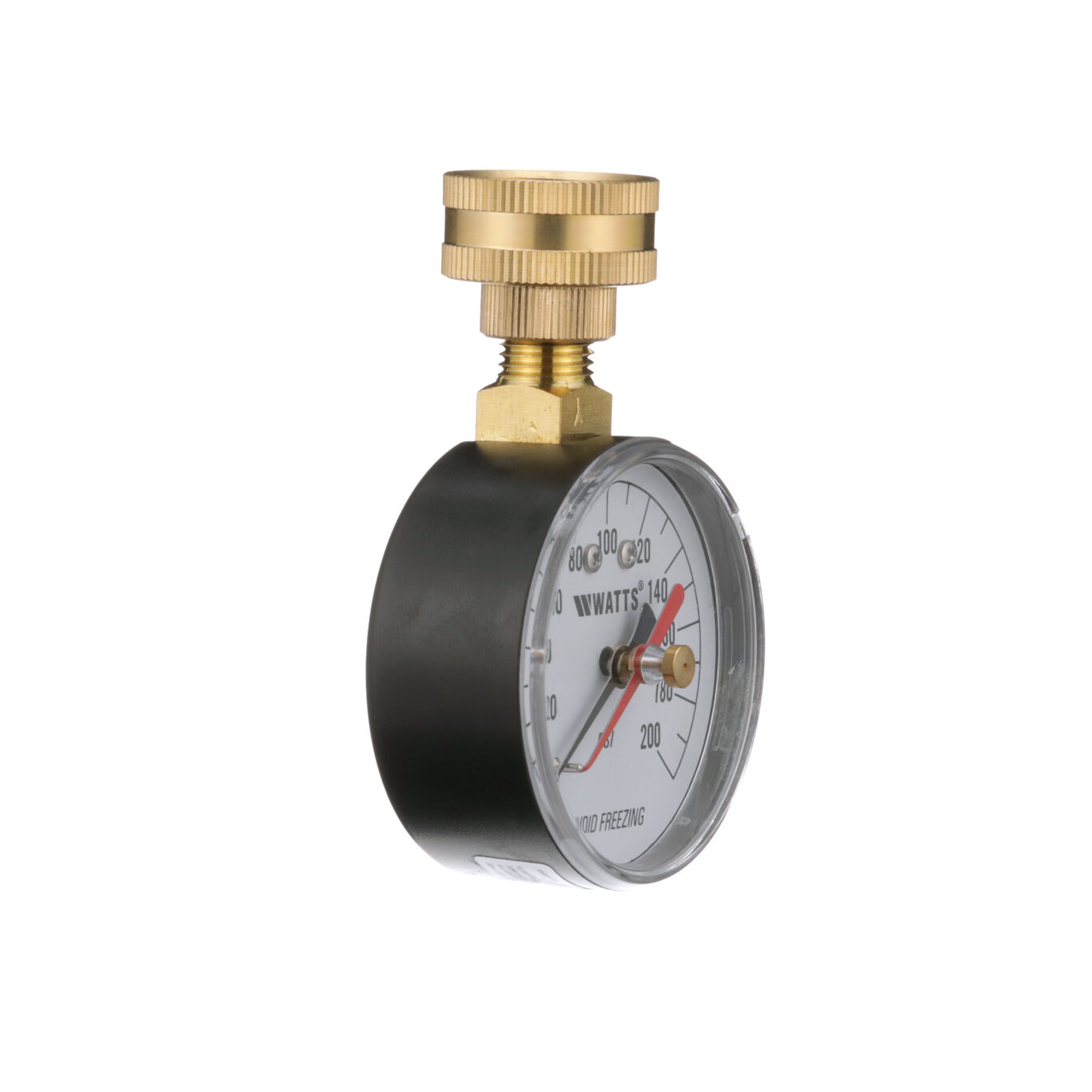

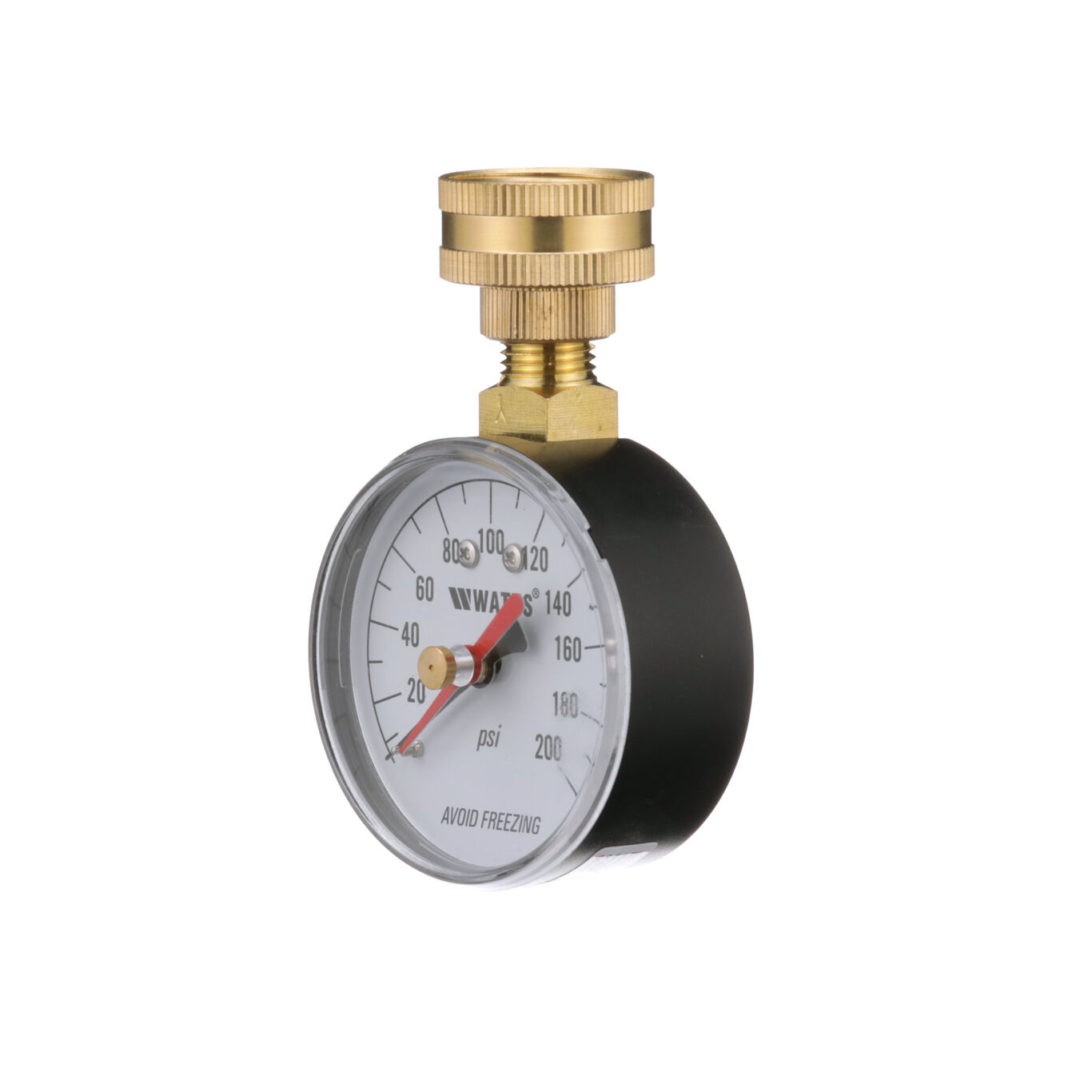

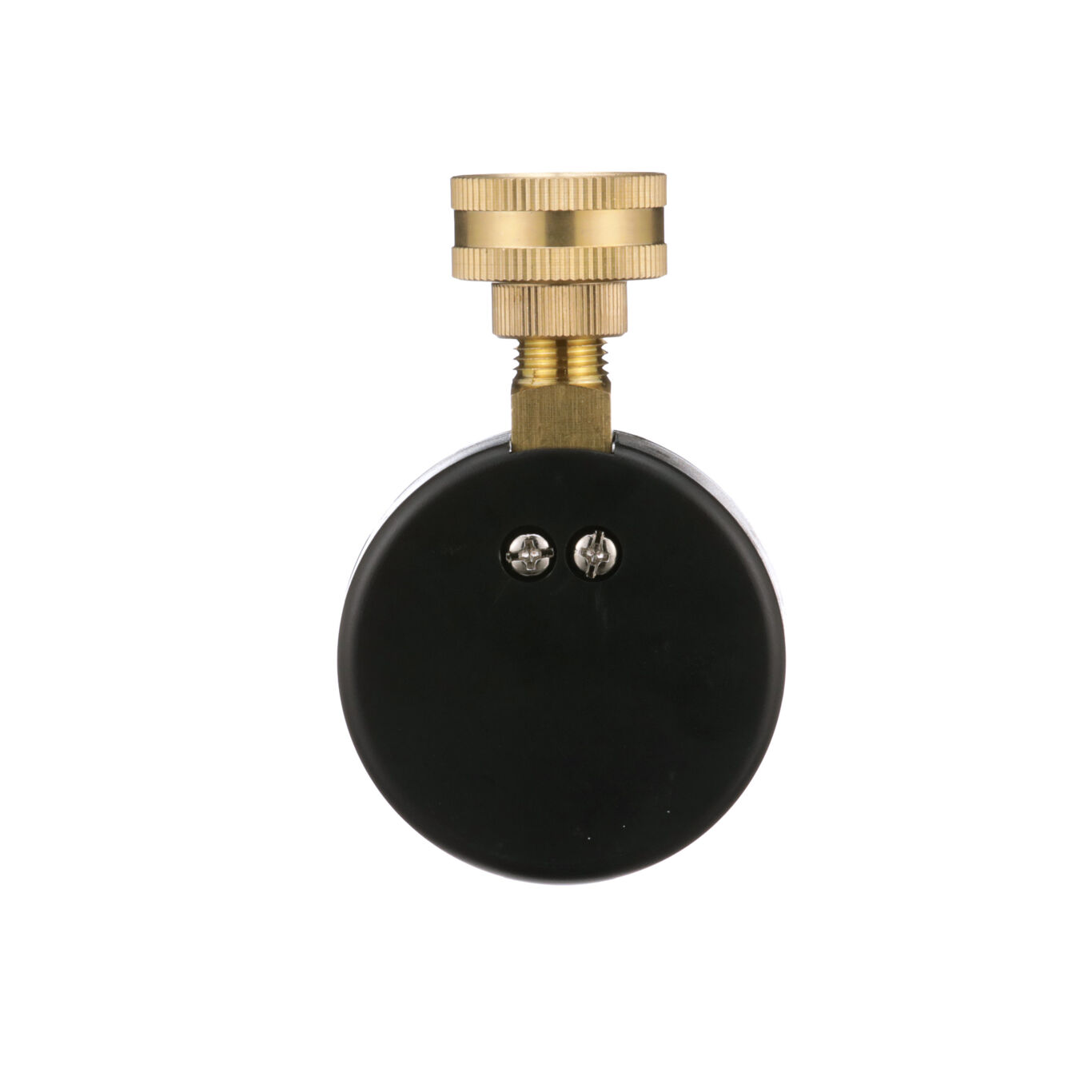

Hose Connection Gauges, 0 to 200psi Scale
Series IWTG Hose Connection Gauges are used to test water supply pressures within a distribution system. Its red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, Kostil Polymer window, 3/4 in. H.T. hose connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. Available in 0 to 200psi (14 bar) pressure rating scale.
Features
- Designed for testing water supply pressures within a distribution system
- Red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges
- Available in 0 to 200psi (14 bar) pressure rating scale with accuracy of ASME, Type B
- Gauge includes copper alloy Bourdon tube sensing element and ¾ in. H.T. hose connection, in a handy black enamel steel case
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific IWTG
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
