8 LF860-DNRS-IOT

PVS-7310_0113161_ANGLE
PVS-7310_0113161
LF860-DOSY-ALERT_0113191_ANGLE
LF860-DNRS-ALERT_0113185_ANGLE
LF860-DNRS-ALERT_0113185
LF860-DOSY-ALERT_0113191
×

Part of the LF860 Large Series

Ordering Code: 0113188

UPC: 643925240313

Lead Free: YES

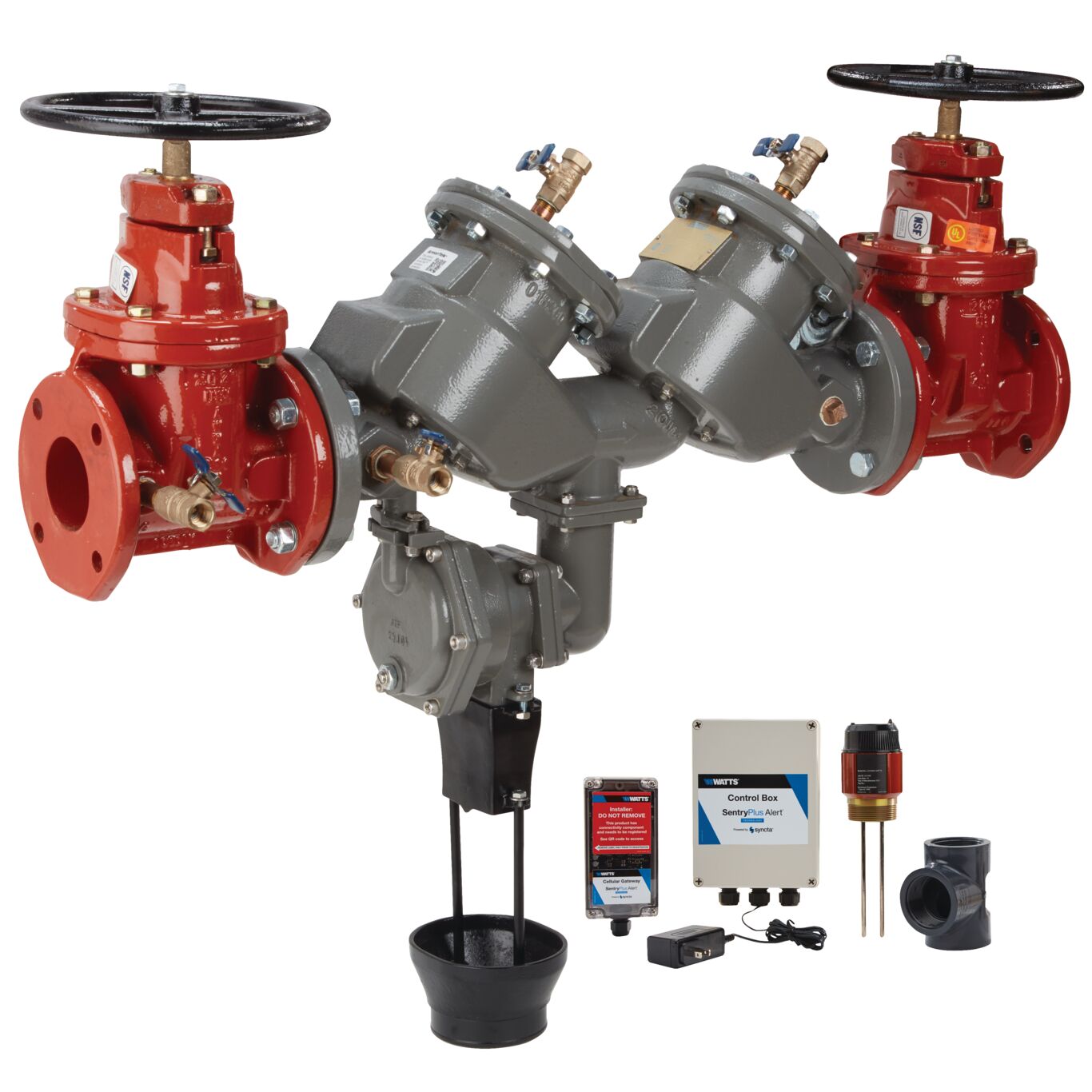

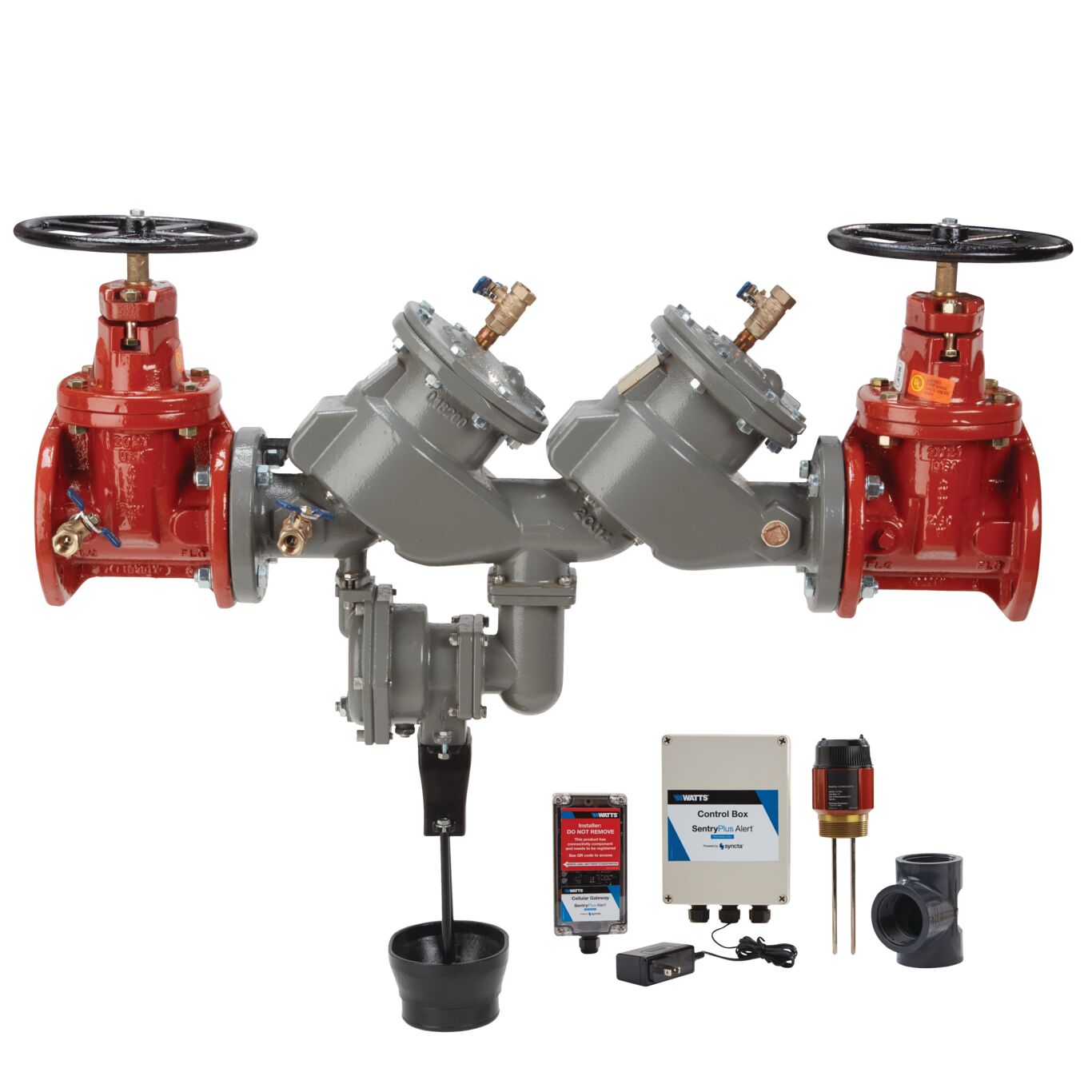

8 IN Lead Free RPZ Backflow Preventer Assy, Domestic NRS Shutoffs, SS RV Seat, with SentryPlus Alert Flood Detection Technology, Coated using ArmorTek

This 8 inch lead free MasterSeries(R) reduced pressure zone backflow preventer assembly with SentryPlus Alert(R) technology for flood detection is designed to prevent the reverse flow of contaminated water from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements, as well as provide continuous monitoring, multi-channel alerts, and automatic shutoff capability in the event of a possible flood condition. The assembly uses domestic NRS shutoffs. The ductile iron body is fused with patented 3-part ArmorTek(R) epoxy coating for advanced corrosion resistance. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Features

  • LF860 Lead Free RPZ with stainless steel relief valve seat and stainless-steel check components
  • SentryPlus Alert Flood Monitoring and Alert System
  • NRS Shutoff Valves
  • Multi-channel alert capabilities
  • Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Ductile Iron
Body Pattern Inline
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 643925240313
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 8 IN
Inlet Connection Size-Metric 203 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Non Rising Stem Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Non Rising Stem Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0113188
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF860 Large
Strainer No
Technologies Flood Detection
Tradename MasterSeries(R)
